HEX-O ABSORBER 1000
073-691740L
Quickinfo
PET felt (made of at least 50% post-consumer recycled material)A (SAC (sound absorpt
fire resistance class: B-s1, d0
Colour
General
- black
- fire resistance class: B-s1, d0
- PET felt (made of at least 50% post-consumer recycled material)
Physical
- length 1000 mm
- width 866 mm
- height 237 mm
- 4.6 kg
Acoustics
- 0.95 (Alpha w ($\alpha_w$) up to ) 1
- A (SAC (sound absorption class) up to ) 1
- NRC up to 0.9 1
- SAA up to 0.96 1
Equivalent sound absorption area (Aeq)
125 Hz
0.57
250 Hz
0.83
500 Hz
1.33
1000 Hz
1.17
2000 Hz
1.13
4000 Hz
1.13
1 Acoustic data calculations based on HEX-O ABSORBER 1000, cavity 1cm

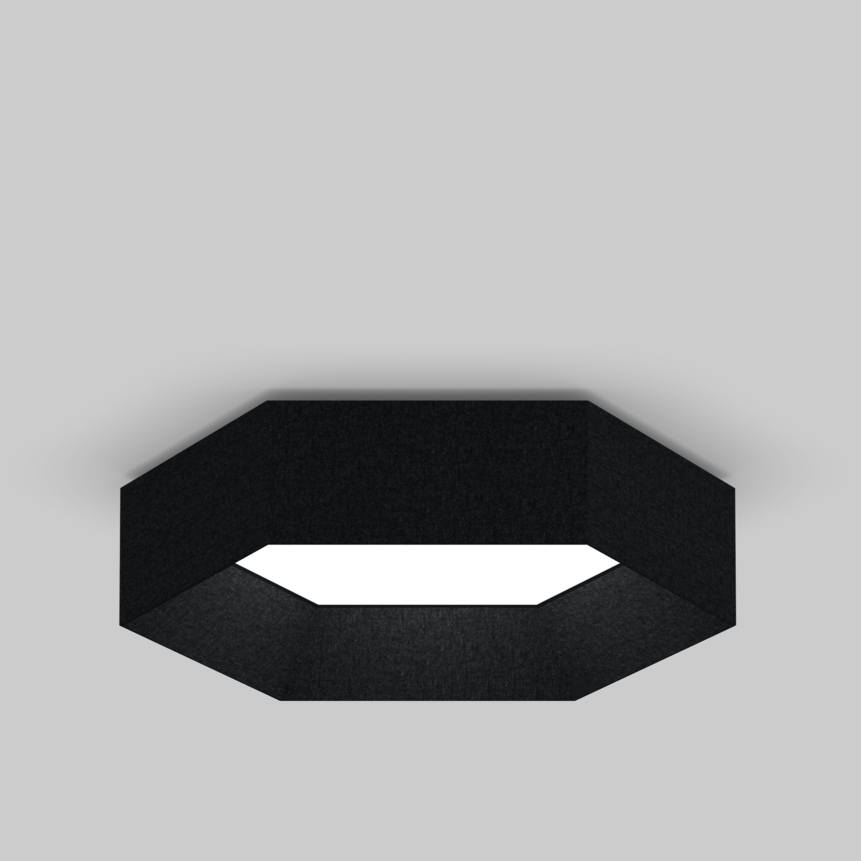

Hexagonal acoustic element made of high quality, self-supporting PET felt with sound absorbing properties, consisting of at least 50 % post-consumer recycled PET; high quality visual and tactile surface, black; foreign fiber inclusions possible; to combine with HEX-O 750, HEX-O MODULE 750 or HEX-O MODULE FLAT 750; installation without tools;
