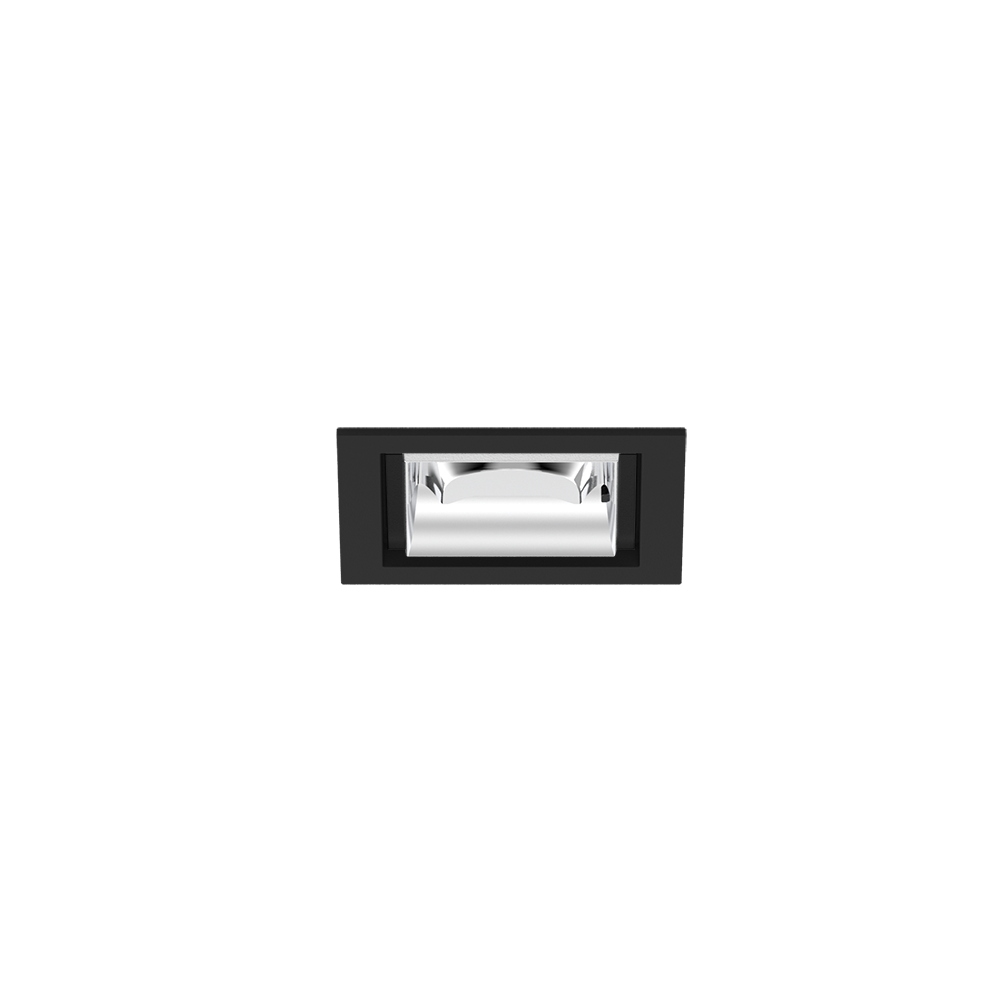

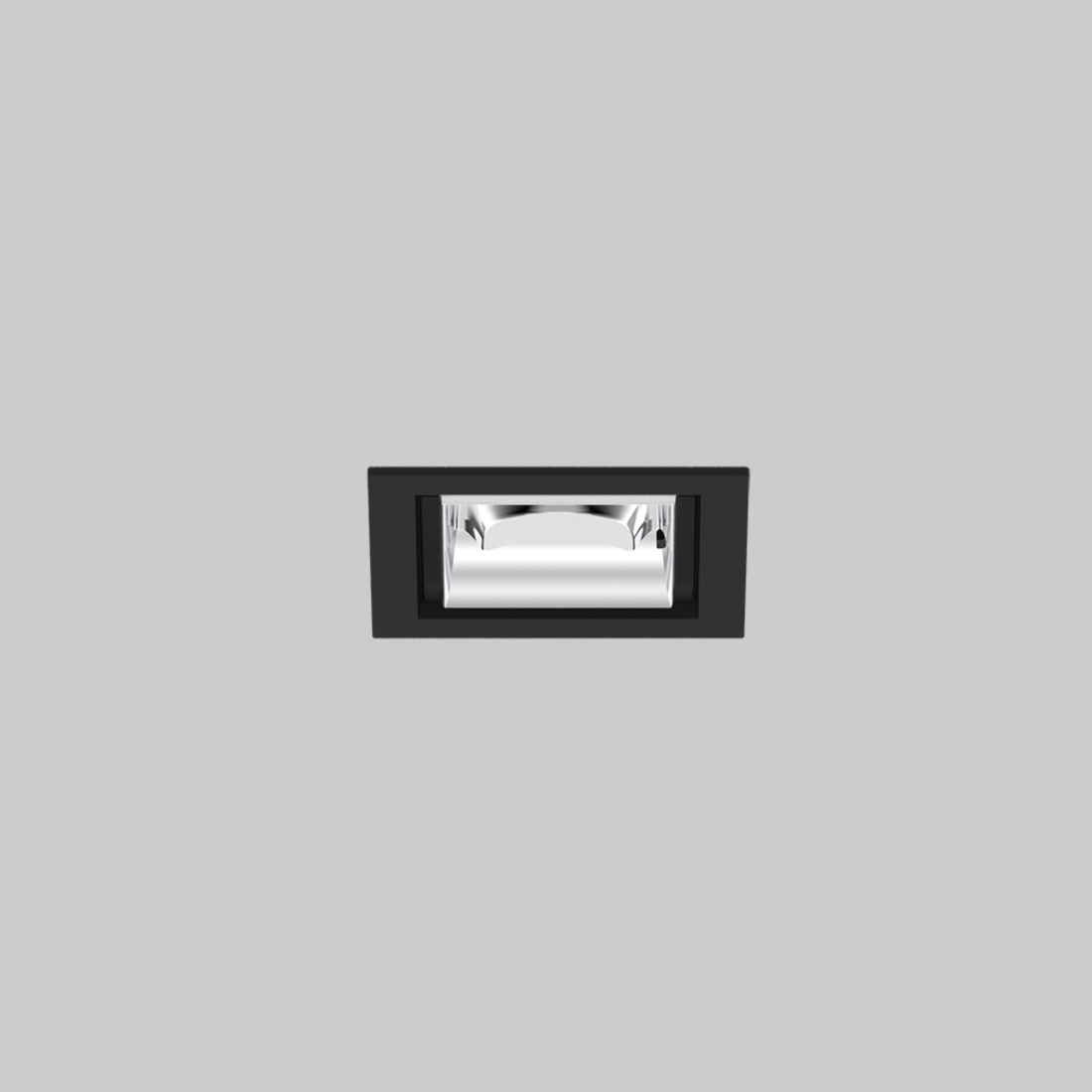

UNICO Q1 basic

trim

090-7Q141A0021 090-7Q1020B

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
61 lm/W
L90 / 50000 h
non DIM
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • chrome reflector
  • Mounting set jet black
  • RAL 9005 1
  • IP20
  • 365 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 101
  • Rf: 91
  • R{1-15}: 89
  • MR 0.56
  • MDER 0.51

Optical

  • wallwasher
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • non DIM
  • 220-240 V
  • system 6.0 W
  • system 61 lm/W 3
  • PC2

Physical

  • trim
  • length 63 mm
  • width 63 mm
  • height 51 mm
  • 0.2 kg

Cutout

  • length 50 mm
  • width 50 mm
  • min. ceiling thickness 2 mm
  • max. ceiling thickness 25 mm
  • recessed depth 100 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

31
40
50
62
52
67
85
104
1 RAL code 2 Value of containing product at full load (undimmed) 3 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Square recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; square installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with a wallwasher light element; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all

Accessories

Mounting

article number
colour
dimensions
cut out dimensions
MOUNTING SET with trim
090-7Q1020B
jet black
RAL 9005
length 63 mm
width 63 mm
height 30 mm
0.05 kg
length 50 mm
width 50 mm

Electrical components

article number
type
dimensions
THROUGH WIRING CONNECTION BOX
005-2531110
non DIM cable ø 4 – 12 mm, Linect®-Ready
length 105 mm
width 58 mm
height 30 mm
0.06 kg
THROUGH WIRING CONNECTION BOX
005-2551110
DALI cable ø 4 – 12 mm, Linect®-Ready
length 105 mm
width 58 mm
height 30 mm
0.07 kg
