XPECULAR LENS

MOVE IT PRO 45

New

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to 190 lm/W
L90 / 100000 h
DALI-2
IP20 / PC2 / 220-240 V
1,000 mm, 1,500 mm, 2,000 mm, 2,500 mm, 3,000 mm,

Colour

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)

Download all

Aggregated downloads

ROLF
ULD

Description

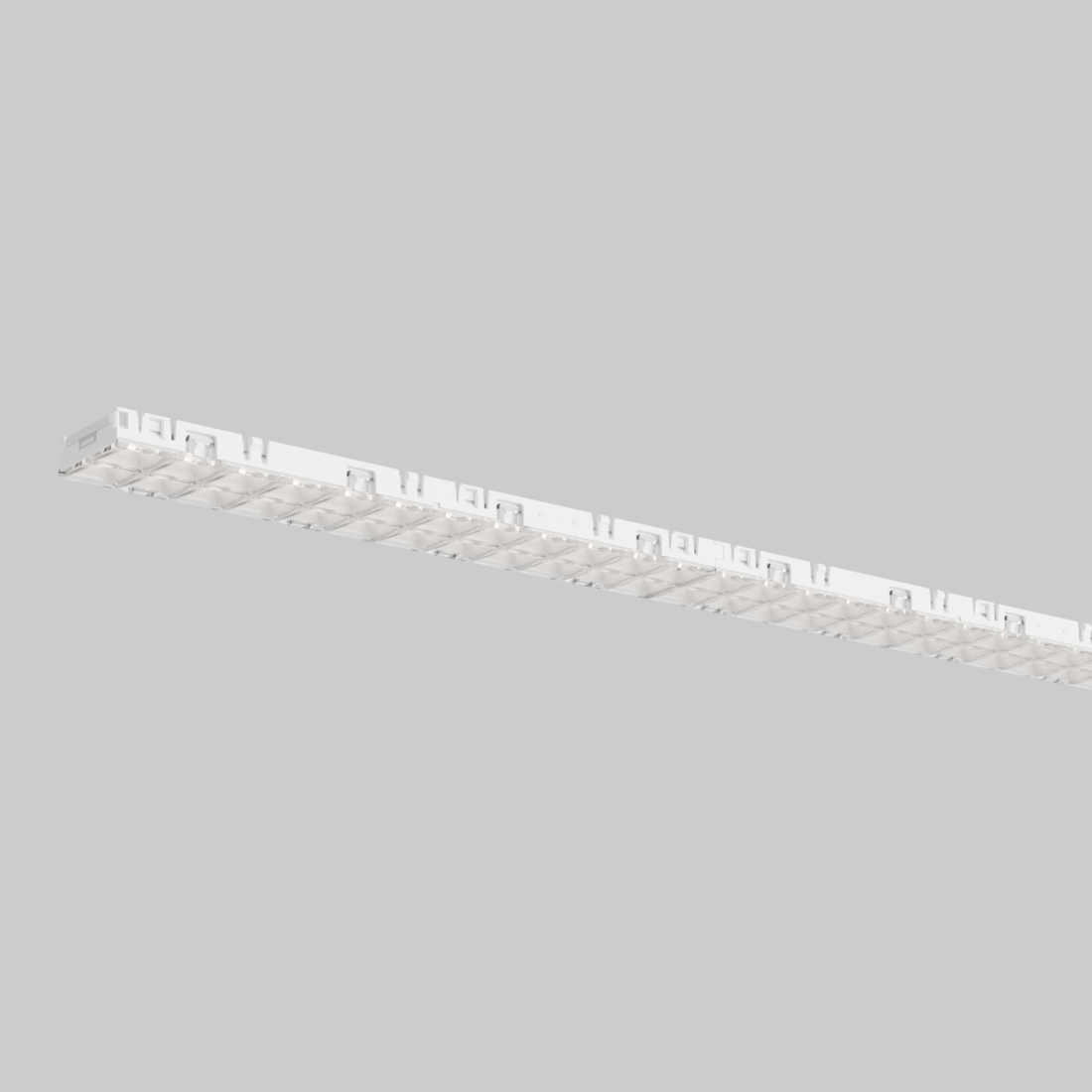

Linear light inset made of plastic; light inset, incl. high power adapter + converter can be installed flexibly and without tools; flush with profile system; high quality lens with micro-faceted surface; precise radiation characteristic with symmetrical light distribution; for use in schools and offices; energy-efficient LEDs with very good colour rendering

DIN EN 12464-1 UGR ≤ 19

up to 196 lm/W (high efficiency)

Products and codes

Filter

Colour

XPECULAR LENS MOVE IT PRO 45

Status

Article number(s)

Type

Dimming

pure white, 3000 K, CRI ≥ 90, 132 lm/W, length 1,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 90, 132 lm/W, length 1,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 90, 122 lm/W, length 1,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 80, 142 lm/W, length 1,000 mm

DALI-2

pure white, 3000 K, CRI ≥ 80, 152 lm/W, length 1,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 80, 161 lm/W, length 1,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 80, 152 lm/W, length 1,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 90, 122 lm/W, length 1,000 mm

DALI-2

pure white, 3000 K, CRI ≥ 90, 137 lm/W, length 1,500 mm

DALI-2

pure white, 4000 K, CRI ≥ 90, 137 lm/W, length 1,500 mm

DALI-2

pure white, 3500 K, CRI ≥ 90, 127 lm/W, length 1,500 mm

DALI-2

pure white, 2700 K, CRI ≥ 80, 147 lm/W, length 1,500 mm

DALI-2

pure white, 3000 K, CRI ≥ 80, 157 lm/W, length 1,500 mm

DALI-2

pure white, 4000 K, CRI ≥ 80, 167 lm/W, length 1,500 mm

DALI-2

pure white, 3500 K, CRI ≥ 80, 157 lm/W, length 1,500 mm

DALI-2

pure white, 2700 K, CRI ≥ 90, 127 lm/W, length 1,500 mm

DALI-2

pure white, 3000 K, CRI ≥ 90, 143 lm/W, length 2,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 90, 143 lm/W, length 2,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 90, 132 lm/W, length 2,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 80, 154 lm/W, length 2,000 mm

DALI-2

pure white, 3000 K, CRI ≥ 80, 164 lm/W, length 2,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 80, 175 lm/W, length 2,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 80, 164 lm/W, length 2,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 90, 132 lm/W, length 2,000 mm

DALI-2

pure white, 3000 K, CRI ≥ 90, 148 lm/W, length 2,500 mm

DALI-2

pure white, 4000 K, CRI ≥ 90, 148 lm/W, length 2,500 mm

DALI-2

pure white, 3500 K, CRI ≥ 90, 137 lm/W, length 2,500 mm

DALI-2

pure white, 2700 K, CRI ≥ 80, 159 lm/W, length 2,500 mm

DALI-2

pure white, 3000 K, CRI ≥ 80, 170 lm/W, length 2,500 mm

DALI-2

pure white, 4000 K, CRI ≥ 80, 181 lm/W, length 2,500 mm

DALI-2

pure white, 3500 K, CRI ≥ 80, 170 lm/W, length 2,500 mm

DALI-2

pure white, 2700 K, CRI ≥ 90, 137 lm/W, length 2,500 mm

DALI-2

pure white, 3000 K, CRI ≥ 90, 155 lm/W, length 3,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 90, 155 lm/W, length 3,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 90, 144 lm/W, length 3,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 80, 167 lm/W, length 3,000 mm

DALI-2

pure white, 3000 K, CRI ≥ 80, 178 lm/W, length 3,000 mm

DALI-2

pure white, 4000 K, CRI ≥ 80, 190 lm/W, length 3,000 mm

DALI-2

pure white, 3500 K, CRI ≥ 80, 178 lm/W, length 3,000 mm

DALI-2

pure white, 2700 K, CRI ≥ 90, 144 lm/W, length 3,000 mm

DALI-2

XPECULAR LENS MOVE IT PRO 45

Status

Article number(s)

Type

Dimming

jet black, 3000 K, CRI ≥ 90, 129 lm/W, length 1,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 90, 129 lm/W, length 1,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 90, 119 lm/W, length 1,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 80, 138 lm/W, length 1,000 mm

DALI-2

jet black, 3000 K, CRI ≥ 80, 148 lm/W, length 1,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 80, 157 lm/W, length 1,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 80, 148 lm/W, length 1,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 90, 119 lm/W, length 1,000 mm

DALI-2

jet black, 3000 K, CRI ≥ 90, 133 lm/W, length 1,500 mm

DALI-2

jet black, 4000 K, CRI ≥ 90, 133 lm/W, length 1,500 mm

DALI-2

jet black, 3500 K, CRI ≥ 90, 123 lm/W, length 1,500 mm

DALI-2

jet black, 2700 K, CRI ≥ 80, 143 lm/W, length 1,500 mm

DALI-2

jet black, 3000 K, CRI ≥ 80, 152 lm/W, length 1,500 mm

DALI-2

jet black, 4000 K, CRI ≥ 80, 163 lm/W, length 1,500 mm

DALI-2

jet black, 3500 K, CRI ≥ 80, 152 lm/W, length 1,500 mm

DALI-2

jet black, 2700 K, CRI ≥ 90, 123 lm/W, length 1,500 mm

DALI-2

jet black, 3000 K, CRI ≥ 90, 139 lm/W, length 2,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 90, 139 lm/W, length 2,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 90, 129 lm/W, length 2,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 80, 149 lm/W, length 2,000 mm

DALI-2

jet black, 3000 K, CRI ≥ 80, 160 lm/W, length 2,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 80, 170 lm/W, length 2,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 80, 160 lm/W, length 2,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 90, 129 lm/W, length 2,000 mm

DALI-2

jet black, 3000 K, CRI ≥ 90, 144 lm/W, length 2,500 mm

DALI-2

jet black, 4000 K, CRI ≥ 90, 144 lm/W, length 2,500 mm

DALI-2

jet black, 3500 K, CRI ≥ 90, 133 lm/W, length 2,500 mm

DALI-2

jet black, 2700 K, CRI ≥ 80, 155 lm/W, length 2,500 mm

DALI-2

jet black, 3000 K, CRI ≥ 80, 166 lm/W, length 2,500 mm

DALI-2

jet black, 4000 K, CRI ≥ 80, 176 lm/W, length 2,500 mm

DALI-2

jet black, 3500 K, CRI ≥ 80, 166 lm/W, length 2,500 mm

DALI-2

jet black, 2700 K, CRI ≥ 90, 133 lm/W, length 2,500 mm

DALI-2

jet black, 3000 K, CRI ≥ 90, 151 lm/W, length 3,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 90, 151 lm/W, length 3,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 90, 140 lm/W, length 3,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 80, 162 lm/W, length 3,000 mm

DALI-2

jet black, 3000 K, CRI ≥ 80, 173 lm/W, length 3,000 mm

DALI-2

jet black, 4000 K, CRI ≥ 80, 184 lm/W, length 3,000 mm

DALI-2

jet black, 3500 K, CRI ≥ 80, 173 lm/W, length 3,000 mm

DALI-2

jet black, 2700 K, CRI ≥ 90, 140 lm/W, length 3,000 mm

DALI-2
