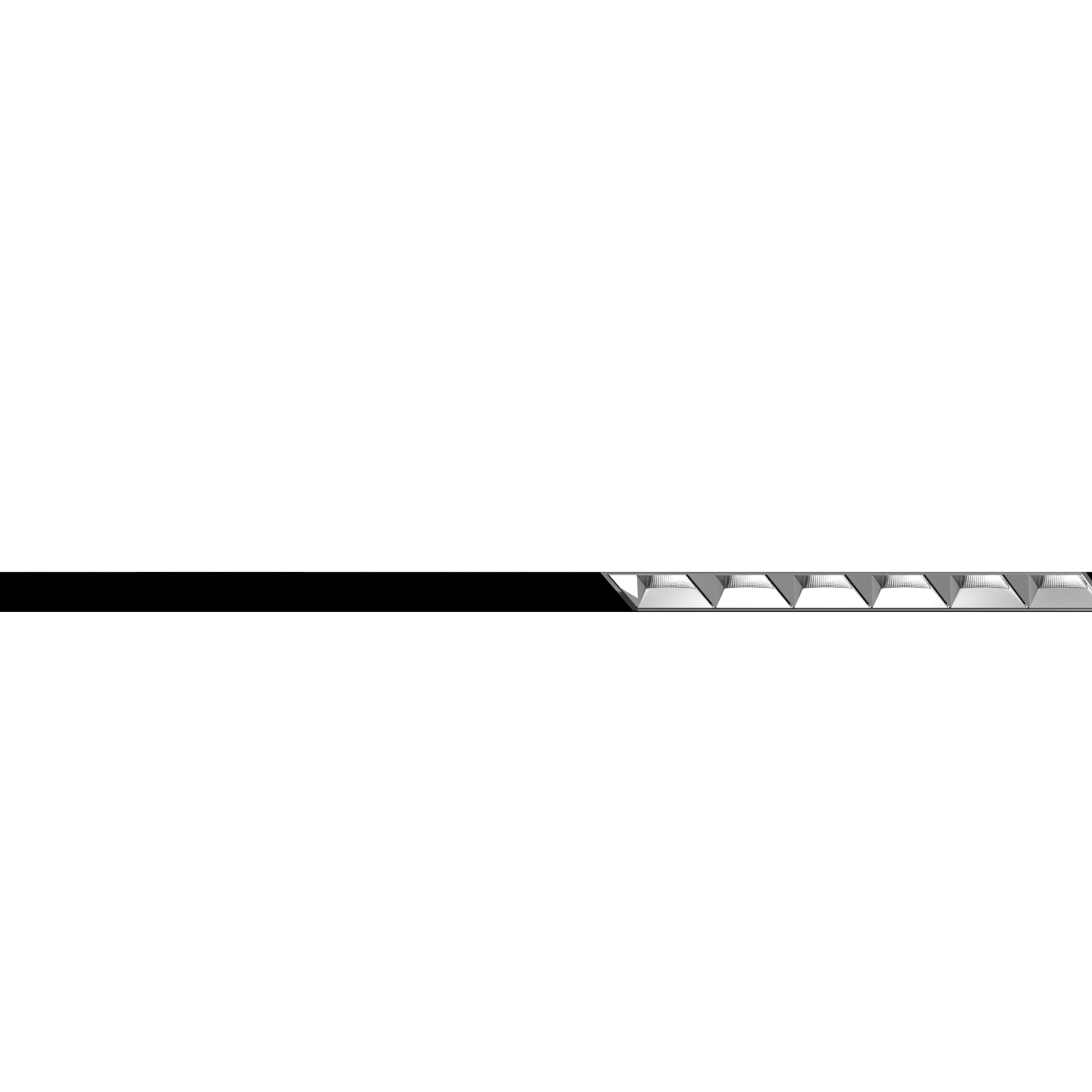

MOVE IT 45 trimless track

050-7232038

Quickinfo

DALI-2
IP20 / PC3
617 mm,

Colour

Datasheet

General

  • Ceiling / Wall
  • Recessed
  • jet black
  • RAL 9005
  • IP20

Electrical

  • DALI-2
  • PC3
  • 48 V
  • max 6.67 A

Physical

  • length 617 mm
  • width 125 mm
  • height 55 mm
  • 1.06 kg

Cutout

  • length 621 mm
  • width 82 mm
  • recessed depth 105 mm

Extruded aluminium profile with 45mm width groove; for trimless installation in plasterboard ceilings; suitable for wall or ceiling mounting; suitable for ceiling thickness of 12.5 mm; with integrated power track profile for take off of supply voltage and DALI signal; surface anodised jet black; light insets can be installed and moved without tools by means of magnetic holders+locking; degree of protection IP20; PC3; accessories are listed separately;

Product data & specification documents

Download all

Datasheets

Download all

Planning files & lighting data

Download all

Certificates

Download all
Download all
mainDrawing

System products

JUST 45

MOVE IT 25 / 25 S / 45

JUST 55

MOVE IT 25 / 25 S / 45

Accessories

Converter

article number
power
voltage / frequency
protection class
constant voltage
control
POWER SUPPLY external
002-62132
320 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62133
60 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY external
002-62134
100 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62135
150 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62138
200 W
min 50 Hz
max 60 Hz
PC2
48 V
DIN RAIL POWER SUPPLY PRO
005-6220110
240 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY PRO
005-6220210
480 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY BASIC
005-6520210
160 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY surface
050-2055117
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055118
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055137
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055138
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055217
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055218
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055237
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055238
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055317
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055318
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055337
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055338
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055417
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055418
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055437
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055438
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055517
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055518
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055537
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055538
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY intrack
050-2071238
150 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY intrack
050-2071338
250 W
min 47 Hz
max 63 Hz
PC2
48 V

Electrical components

article number
colour
dimensions
type
DIN RAIL DALI-2 SELV DEVICE
005-6620030
length 107 mm
width 37 mm
height 58 mm
0.08 kg
DALI-2 SELV DEVICE
050-2061130
length 212 mm
width 37 mm
height 26 mm
0.1 kg
control unit
MOVE IT 45 sensor sense
050-2063278
jet black
RAL 9005
length 43 mm
width 43 mm
height 48 mm
0.12 kg
MOVE IT 45 sensor essential
050-2063378
jet black
RAL 9005
length 43 mm
width 43 mm
height 48 mm
0.1 kg
WIRELESS TO DALI-2 CONTROL DEVICE
050-2065230
length 111 mm
width 25 mm
height 45 mm
0.07 kg
WIRELESS TO DALI-2 REPEATER
050-2066230
length 111 mm
width 25 mm
height 45 mm
0.11 kg

Mounting

article number
type
dimensions
LINEAR CONNECTOR SET mechanical
050-2011110
1 pair
length 80 mm
width 10 mm
0.02 kg

Feeder

article number
control
feeder cable length
dimensions
POWER FEEDER UNIT
050-2020110
non DIM | 2 × 2,5 mm²
500 mm
length 78 mm
width 28 mm
height 6 mm
0.2 kg
POWER FEEDER UNIT
050-2020130
DALI-2 | 2 × 2,5 + 2 × 0,5 mm²
500 mm
length 78 mm
width 28 mm
height 6 mm
0.07 kg
MIDDLE FEED
050-2038130
DALI-2
2,000 mm
length 120 mm
width 28 mm
height 6 mm
0.24 kg

Electrical mounting

article number
dimensions
control
type
LINEAR CONNECTOR
050-2031130
length 100 mm
width 28 mm
height 6 mm
0.02 kg
(non DIM, DALI-2)
LINEAR CONNECTOR flexible
050-2032110
length 78 mm
width 28 mm
height 6 mm
0.04 kg
non DIM
LINEAR CONNECTOR flexible
050-2032130
length 78 mm
width 28 mm
height 6 mm
0.04 kg
DALI-2

Optical

article number
colour
dimensions
BLIND COVER
050-7034008
jet black
RAL 9005
length 1,217 mm
width 45 mm
0.12 kg
BLIND COVER
050-7038008
jet black
RAL 9005
length 2,417 mm
width 45 mm
0.28 kg
BLIND COVER
050-7039008
jet black
RAL 9005
length 3,622 mm
width 45 mm
0.44 kg
BLIND COVER
E83500....8B
jet black
RAL 9005
custom cut
width 45 mm
