MOVE IT 45 track
has-to-be-Gmbh
has-to-be-Gmbh
Node connector (up to 4 channels)

MOVE IT 45 track

050-7332038

Quickinfo

DALI-2
IP20 / PC3 / 48 V

Colour

Datasheet

General

  • Ceiling
  • Suspended
  • black
  • RAL 9005 1
  • IP20

Electrical

  • DALI-2
  • 48 V
  • PC3

Physical

  • length 620 mm
  • width 48 mm
  • height 60 mm
  • 0.8 kg
1 RAL code

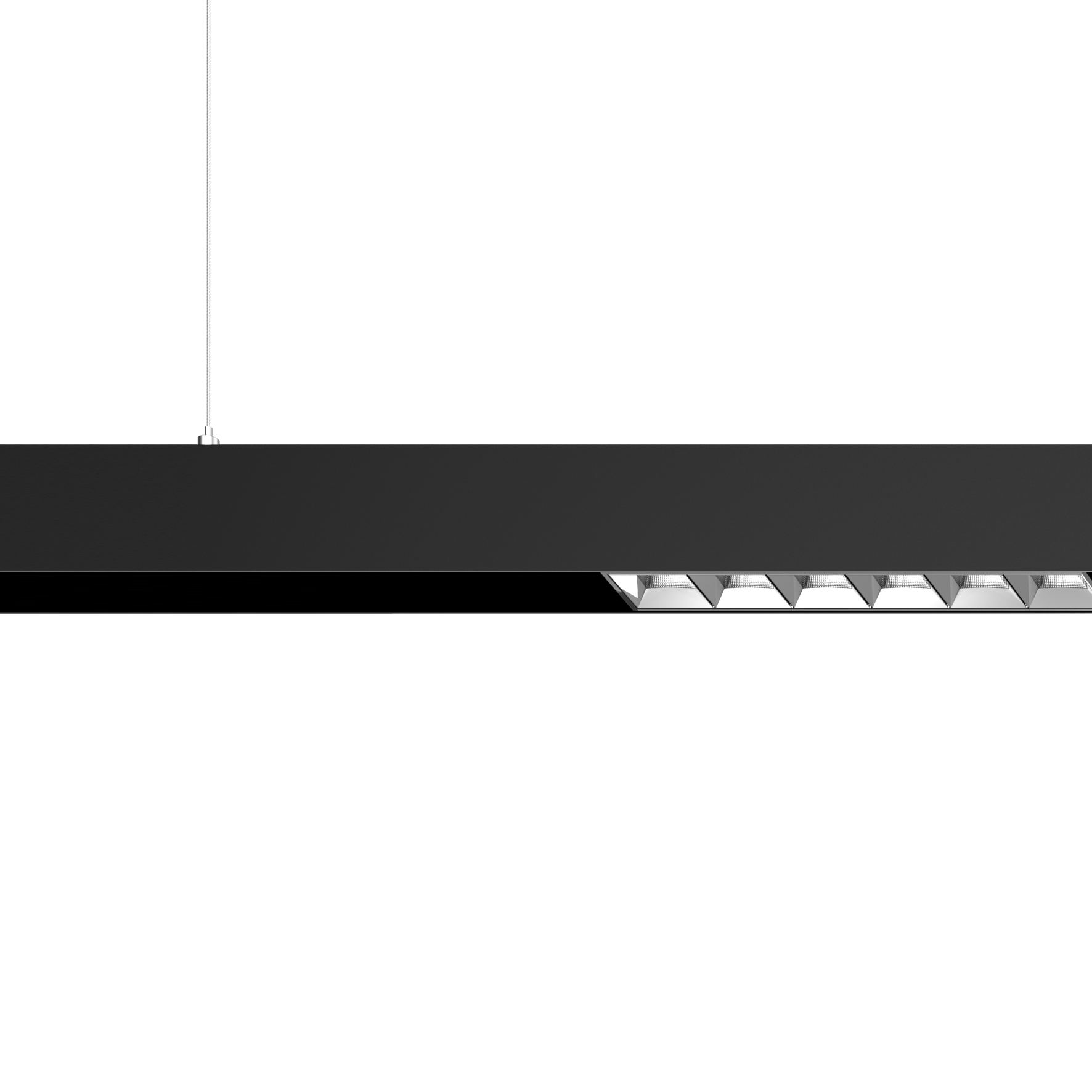

Extruded aluminium profile with 45mm width groove; for wall-/ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); height adjustment without tools; with integrated power track profile for take off of supply voltage and DALI signal; surface anodised black; light insets can be installed and moved without tools by means of magnetic holders+locking; degree of protection IP20; PC3; 48 V; accessories are listed separately;

Product data & specification documents

Download all

Datasheets

Download all

Planing files & lighting data

Download all

Certificates

Download all
Download all
mainDrawing

Accessories

Converter

article number
power
voltage / frequency
protection class
control
constant voltage
POWER SUPPLY EXTERNAL
002-60320
320 W
min 47 Hz
max 63 Hz
PC11
48 V
POWER SUPPLY EXTERNAL
002-62133
60 W
min 47 Hz
max 63 Hz
PC21
48 V
POWER SUPPLY EXTERNAL
002-62134
100 W
min 50 Hz
max 60 Hz
PC21
48 V
POWER SUPPLY EXTERNAL
002-62135
150 W
min 50 Hz
max 60 Hz
PC21
48 V
POWER SUPPLY EXTERNAL
002-62139
250 W
min 50 Hz
max 60 Hz
PC21
48 V
DIN RAIL POWER SUPPLY PRO
005-6220110
240 W
min 50 Hz
max 60 Hz
PC21
DIN RAIL POWER SUPPLY PRO
005-6220210
480 W
min 50 Hz
max 60 Hz
PC21
DIN RAIL POWER SUPPLY
005-6520210
160 W
min 50 Hz
max 60 Hz
PC21
48 V
POWER SUPPLY surface
050-2055117
60 W
min 47 Hz
max 63 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055118
60 W
min 47 Hz
max 63 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055137
60 W
min 47 Hz
max 63 Hz
PC21
DALI-2
POWER SUPPLY surface
050-2055138
60 W
min 47 Hz
max 63 Hz
PC21
DALI-2
POWER SUPPLY surface
050-2055217
153 W
min 47 Hz
max 63 Hz
PC11
non DIM
POWER SUPPLY surface
050-2055218
153 W
min 47 Hz
max 63 Hz
PC11
non DIM
POWER SUPPLY surface
050-2055237
153 W
min 47 Hz
max 63 Hz
PC11
DALI-2
POWER SUPPLY surface
050-2055238
153 W
min 47 Hz
max 63 Hz
PC11
DALI-2
POWER SUPPLY surface
050-2055317
320 W
min 47 Hz
max 63 Hz
PC11
non DIM
POWER SUPPLY surface
050-2055318
320 W
min 47 Hz
max 63 Hz
PC11
non DIM
POWER SUPPLY surface
050-2055337
320 W
min 47 Hz
max 63 Hz
PC11
DALI-2
POWER SUPPLY surface
050-2055338
320 W
min 47 Hz
max 63 Hz
PC11
DALI-2
POWER SUPPLY surface
050-2055417
100 W
min 50 Hz
max 60 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055418
100 W
min 50 Hz
max 60 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055437
100 W
min 50 Hz
max 60 Hz
PC21
DALI-2
POWER SUPPLY surface
050-2055438
100 W
min 50 Hz
max 60 Hz
PC21
DALI-2
POWER SUPPLY surface
050-2055517
250 W
min 50 Hz
max 60 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055518
250 W
min 50 Hz
max 60 Hz
PC21
non DIM
POWER SUPPLY surface
050-2055537
250 W
min 50 Hz
max 60 Hz
PC21
DALI-2
POWER SUPPLY surface
050-2055538
250 W
min 47 Hz
max 63 Hz
PC21
DALI-2
POWER SUPPLY INTRACK
050-2071238
150 W
min 47 Hz
max 63 Hz
PC21
POWER SUPPLY INTRACK
050-2071338
250 W
min 47 Hz
max 63 Hz
PC21

Suspensions

article number
colour
dimensions
cable length
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
Array
CABLE SUSPENSION
005-2152118
black
width 46 mm
0.05 kg
Array

Mounting

article number
colour
dimensions
CANOPY square
005-2311717
traffic white
RAL 9016
length 90 mm
width 90 mm
height 22 mm
0.1 kg
CANOPY square
005-2311718
jet black
RAL 9005
length 90 mm
width 90 mm
height 22 mm
0.1 kg
MECHANICAL LINEAR CONNECTOR
050-2011310
chrome
length 120 mm
width 28 mm
0.12 kg
MECHANICAL LINEAR CONNECTOR
050-2011318
black
length 120 mm
width 28 mm
0.08 kg
MECHANICAL LINEAR CONNECTOR surface
050-2011410
length 120 mm
width 27 mm
0.06 kg
CEILING FASTENER
050-2041217
traffic white
RAL 9016
length 67 mm
width 48 mm
height 8 mm
0.02 kg
CEILING FASTENER
050-2041218
jet black
RAL 9005
length 67 mm
width 48 mm
height 8 mm
0.02 kg
WALL MOUNTING ACCESSORY
050-2044118
length 28 mm
width 10 mm
height 5 mm
0.01 kg
NODE END CAP
050-7300108
jet black
RAL 9005
0.09 kg
NODE END CAP
050-730010P
white / black
0.09 kg
NODE END CAP
050-730010X
special colours
0.1 kg
END CAP
050-7330008
jet black
RAL 9005
length 60 mm
width 48 mm
height 3 mm
0.05 kg
END CAP
050-733000G
gold / black
length 60 mm
width 48 mm
height 3 mm
0.05 kg
END CAP
050-733000P
white / black
length 60 mm
width 48 mm
height 3 mm
0.05 kg
END CAP
050-733000X
special colours
length 60 mm
width 48 mm
height 3 mm
0.05 kg

Feeder

article number
dimensions
POWER FEEDER UNIT
050-2022110
length 78 mm
width 28 mm
height 6 mm
0.25 kg
POWER FEEDER UNIT
050-2022130
length 78 mm
width 28 mm
height 6 mm
0.3 kg
POWER FEEDER UNIT
050-2024110
length 78 mm
width 28 mm
height 6 mm
0.28 kg

Electrical components

article number
colour
type
dimensions
cable length
NODE CONNECTOR suspended
050-2022237
traffic white
RAL 9016
chrome cable
diameter 64 mm
height 60 mm
0.68 kg
Array
NODE CONNECTOR suspended
050-2022238
jet black
RAL 9005
chrome cable
diameter 64 mm
height 60 mm
0.45 kg
Array
NODE CONNECTOR suspended
050-202223X
special colours
chrome cable
diameter 64 mm
height 60 mm
0.65 kg
Array
NODE CONNECTOR suspended
050-2022247
traffic white
RAL 9016
black cable
diameter 64 mm
height 60 mm
0.61 kg
Array
NODE CONNECTOR suspended
050-2022248
jet black
RAL 9005
black cable
diameter 64 mm
height 60 mm
0.45 kg
Array
NODE CONNECTOR suspended
050-202224X
special colours
black cable
diameter 64 mm
height 60 mm
0.65 kg
Array
NODE CONNECTOR surface
050-2022437
traffic white
RAL 9016
incl. feeder
diameter 64 mm
height 60 mm
0.46 kg
NODE CONNECTOR surface
050-2022438
jet black
RAL 9005
incl. feeder
diameter 64 mm
height 60 mm
0.46 kg
NODE CONNECTOR surface
050-202243X
special colours
incl. feeder
diameter 64 mm
height 60 mm
0.65 kg
MECHANICAL & ELECTRICAL LINEAR CONNECTOR
050-2031230
length 150 mm
width 28 mm
0.06 kg
NODE CONNECTOR suspended
050-2033137
traffic white
RAL 9016
chrome cable
diameter 64 mm
height 60 mm
0.43 kg
Array
NODE CONNECTOR suspended
050-2033138
jet black
RAL 9005
chrome cable
diameter 64 mm
height 60 mm
0.44 kg
Array
NODE CONNECTOR suspended
050-203313X
special colours
chrome cable
diameter 64 mm
height 60 mm
0.45 kg
Array
NODE CONNECTOR suspended
050-2033147
traffic white
RAL 9016
black cable
diameter 64 mm
height 60 mm
0.45 kg
Array
NODE CONNECTOR suspended
050-2033148
jet black
RAL 9005
black cable
diameter 64 mm
height 60 mm
0.44 kg
Array
NODE CONNECTOR suspended
050-203314X
special colours
black cable
diameter 64 mm
height 60 mm
0.45 kg
Array
NODE CONNECTOR surface
050-2033337
traffic white
RAL 9016
diameter 64 mm
height 60 mm
0.38 kg
NODE CONNECTOR surface
050-2033338
jet black
RAL 9005
diameter 64 mm
height 60 mm
0.37 kg
NODE CONNECTOR surface
050-203333X
special colours
diameter 64 mm
height 60 mm
0.45 kg
DALI-2 SELV DEVICE
050-2061130
control unit
length 212 mm
width 37 mm
height 26 mm
0.1 kg

Optical

article number
colour
dimensions
BLIND COVER
050-7034008
jet black
RAL 9005
length 1,217 mm
width 45 mm
0.12 kg
BLIND COVER
050-7038008
jet black
RAL 9005
length 2,417 mm
width 45 mm
0.28 kg
BLIND COVER
050-7039008
jet black
RAL 9005
length 3,622 mm
width 45 mm
0.44 kg

System products

JUST 45

MOVE IT 25 / 25 S / 45

JUST 55

MOVE IT 25 / 25 S / 45
