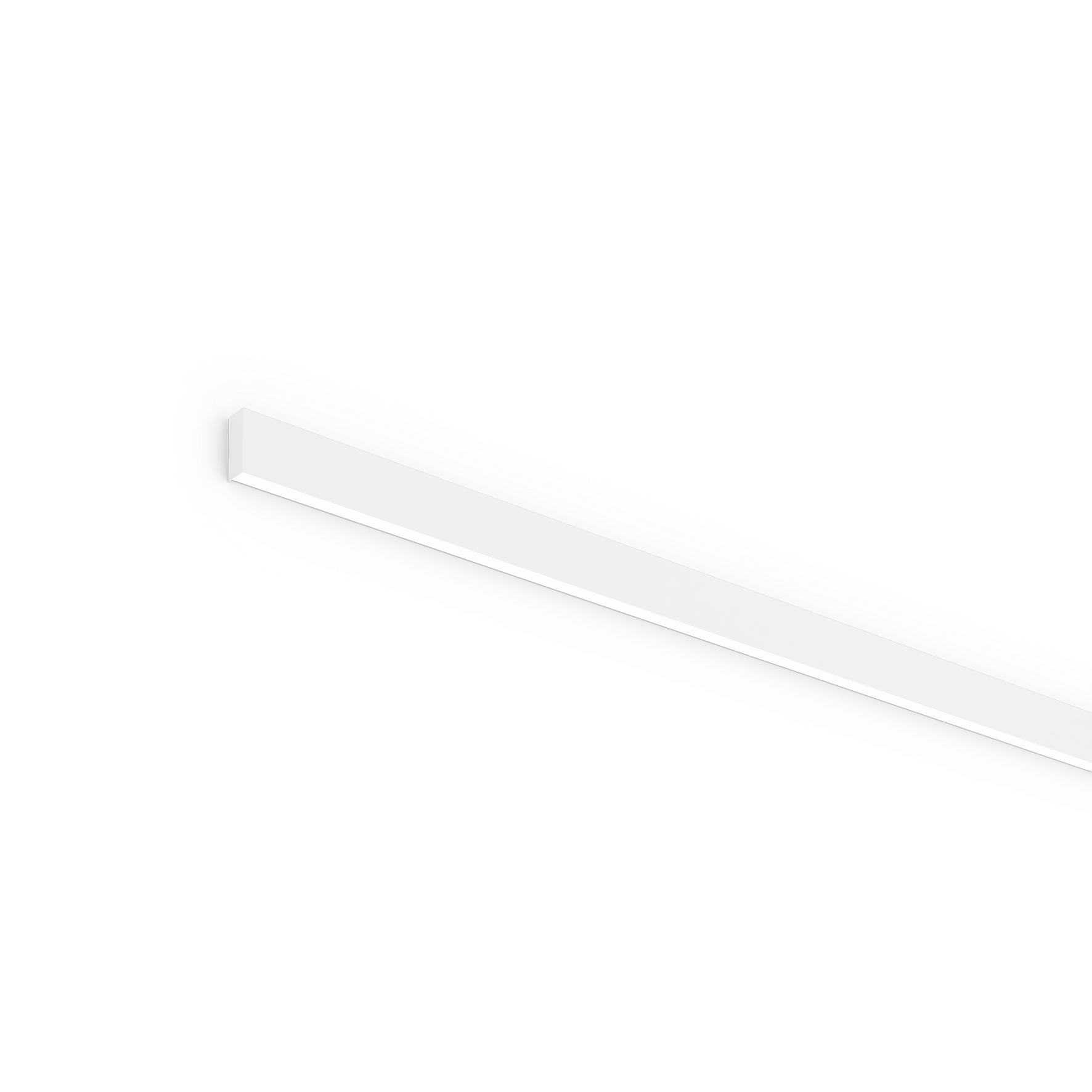

LINEA opal / asymmetric
wall system
058-6141517AA
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM (initial MacAdam)
428 lm/↑ 509 lm
105 lm/W
L85 / 50000 h
non DIM
Opal / Asymmetric
IP20 / PC1 / 220-240 V
306 mm,
Colour
General
- Wall
- Surface
- pure white
- RAL 9010
- IP20
- indirect 509 lm
- direct 428 lm
- total 937 lm
LED
- 3000 K
- CRI ≥ 90
- L85 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.61
- MDER 0.55
Optical
- Opal / Asymmetric
- asymmetric
- ≤ 1.01 2
- SVM ≤ 0.41 2
Electrical
- non DIM
- 220-240 V
- system 8.9 W
- system 105 lm/W 3
- PC1
- 29 W/m
Physical
- length 306 mm
- width 40 mm
- height 100 mm
- 0.8 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Light fitting and front cover made of extruded aluminium profile; angular design; linear; for lighting systems; no visible screws; surface pure white powder coated; suitable for wall mounting; homogeneous wall or ceiling illumination through uniform direct/indirect light distribution; direct light component: opal cover for uniform illumination; indirect light component: with specially computed, asymmetrical lens for homogeneous lighting intensity (installation optionally for floor or ceiling illumination); light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC1; 220-240 V; incl. converter, non dimmable; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
