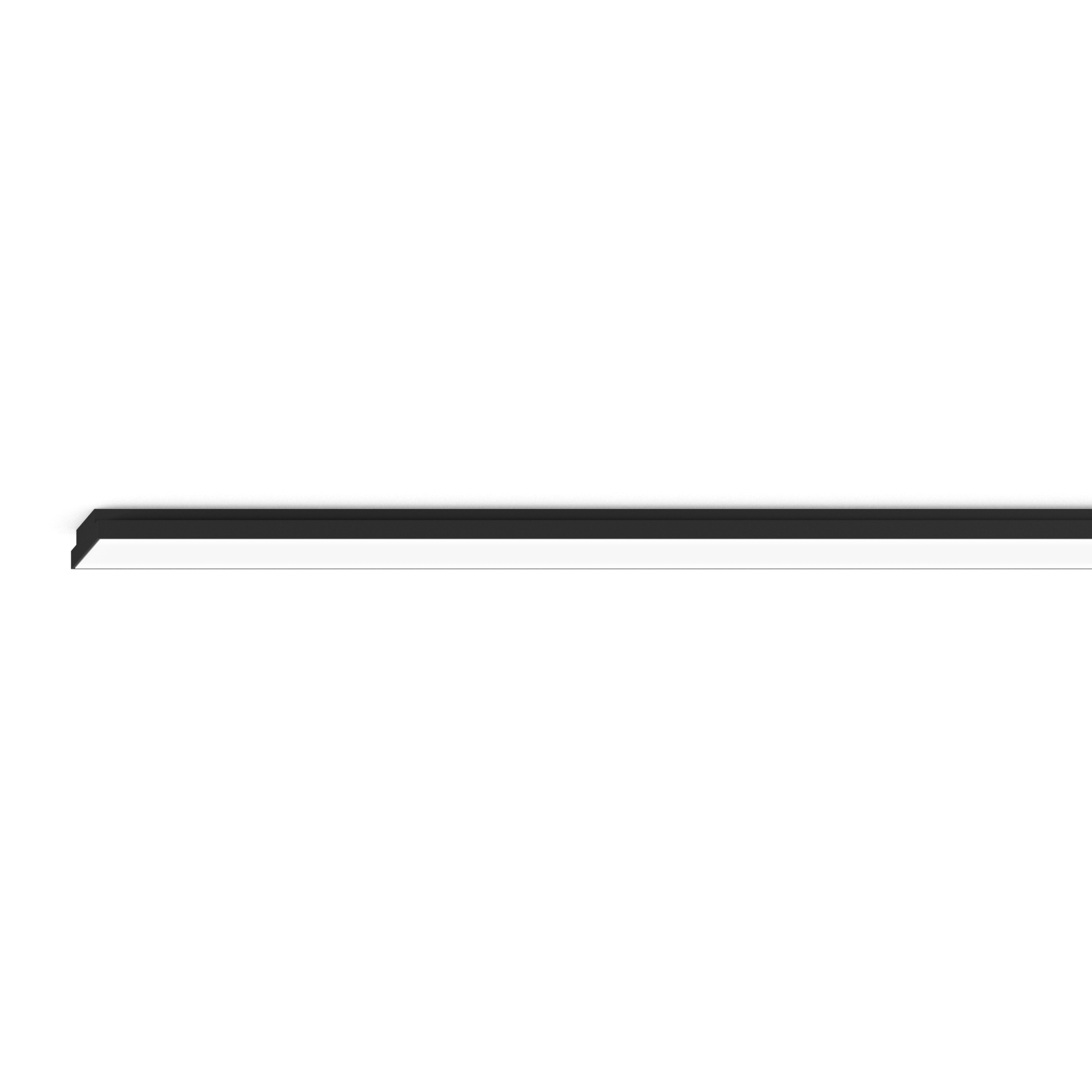

LENO microprismatic surface, LENO opal surface

LENO opal

semi-recessed / surface system

051-8112537H 051-8920068

Quickinfo

3000 K
CRI ≥ 80 / 3 SDCM (initial MacAd
123 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP40 / back IP20 / PC1 / 220-240 V

Colour

Acoustic colour

General

  • Ceiling / Wall
  • Surface1-Semi-Recessed2
  • jet black
  • jet black
  • RAL 9005
  • front IP201-IP402
  • 1220 lm
  • 2000 lm/m
  • back IP20

LED

  • 3000 K
  • CRI ≥ 80
  • L90 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • MR 0.54
  • MDER 0.49

Optical

  • High Performance Opal
  • opal (lambertsch)
  • PstLM ≤ 1.01 2 3
  • SVM ≤ 0.41 2 3

Electrical

  • DALI-2
  • 220-240 V
  • system 9.9 W
  • system 123 lm/W 4
  • PC1
  • 1 DALI Addr.
  • 16 W/m

Physical

  • length 613 mm
  • width 89 mm
  • height 28 mm
  • 1.8 kg

Cutout

  • length 626 mm
  • width 70 mm
  • min. ceiling thickness 12.5 mm
  • recessed depth 13 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

18
24
30
37
31
40
51
62
1 surface 2 semi-recessed 3 Value of containing product at full load (undimmed) 4 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Low profile recessed mounted luminaire, 15 mm visible height or low profile surface mounted luminaire, 28 mm total height; converter integrated into luminaire housing; suitable for wall or ceiling mounting; suitable for installation in primed or exposed concrete, in plasterboard constructions and in plastered walls or ceilings; for continuous lighting systems; surface jet black powder coated; fall-safe light inset made of extruded aluminium profile, can be inserted in the canal without tools by magnetic holders; side coupled light directed downward through LGP (LIGHT GUIDING PRISM) body and high efficiency reflector; HPO (High Performance Opal) cover for uniform illumination; flush cover; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all

Accessories

Mounting

article number
colour
dimensions
INSTALLATION CHANNEL semi-recessed / surface
051-8920068
jet black
RAL 9005
length 613 mm
width 89 mm
height 28 mm
0.6 kg

Mounting

article number
colour
dimensions
type
CONCRETE MOUNTING HOUSING
051-8960060
length 616 mm
width 67 mm
height 28 mm
0.34 kg
end
CONCRETE MOUNTING HOUSING
051-8960120
length 1,224 mm
width 67 mm
height 28 mm
0.68 kg
start/end
CONCRETE MOUNTING HOUSING
051-8960180
length 1,833 mm
width 67 mm
height 28 mm
1.02 kg
start/end
CONCRETE MOUNTING HOUSING
051-8960240
length 2,441 mm
width 67 mm
height 28 mm
1.36 kg
start/end
CONCRETE MOUNTING HOUSING
051-8961120
length 1,221 mm
width 67 mm
height 28 mm
0.68 kg
middle
CONCRETE MOUNTING HOUSING
051-8961180
length 1,830 mm
width 67 mm
height 28 mm
1.02 kg
middle
CONCRETE MOUNTING HOUSING
051-8961240
length 2,438 mm
width 67 mm
height 28 mm
1.26 kg
middle
LINEAR CONNECTOR semi-recessed / surface
051-8992110
length 60 mm
width 15 mm
0.01 kg
1 pair
LINEAR CONNECTOR semi-recessed / surface
051-8992110.10
length 60 mm
width 15 mm
0.05 kg
10 pairs
END CAPS semi-recessed
051-8992217
pure white
RAL 9010
width 89 mm
height 28 mm
0.15 kg
END CAPS semi-recessed
051-8992218
jet black
RAL 9005
width 89 mm
height 28 mm
0.15 kg
END CAPS surface
051-8996210
width 89 mm
height 28 mm
0.1 kg
1 pair

Feeder

article number
type
dimensions
POWER FEEDER CONNECTOR
051-8992330
220–240 V | 13A
0.02 kg
