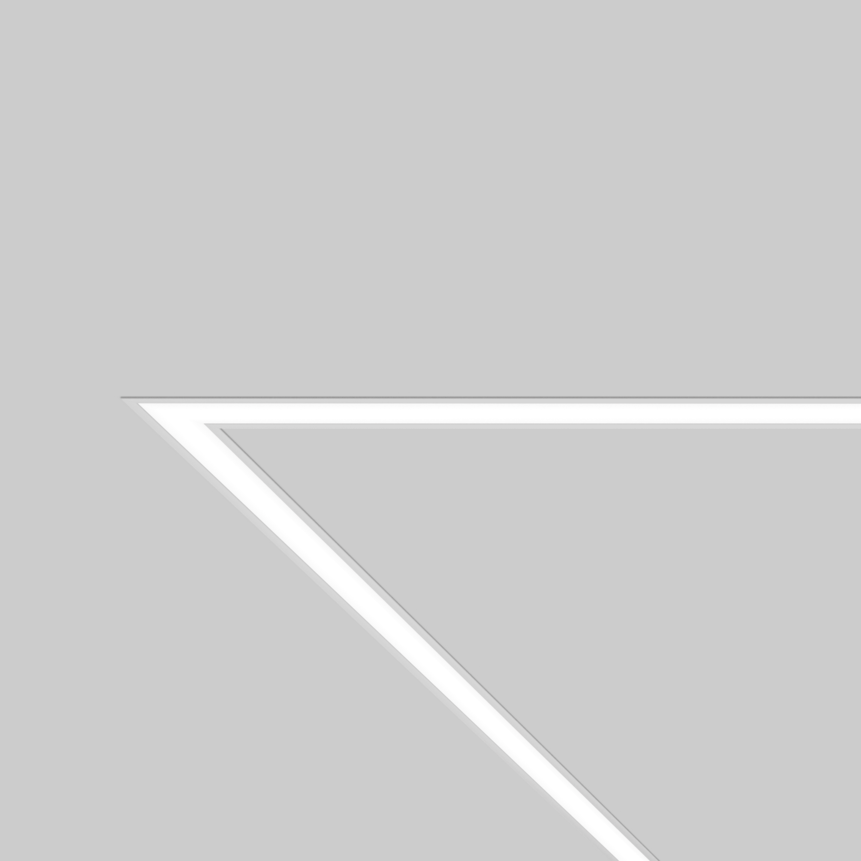

FRAME 40 mid lumen
trim system
042-0112137 042-700201G 006-4210010Z
Quickinfo
4000 KCRI ≥ 90 / 3
107 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP20 / PC1 / 220-240 V
Colour
Acoustic colour
General
- Ceiling
- Recessed
- grey
- white aluminium
- RAL9006
- IP20
- 1300 lm
- 1300 lm/m
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 92
- R{1-15}: 90
- MR 0.81
- MDER 0.74
Optical
- Microprismatic
- microprismatic
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 12.1 W
- PC1
- system 107 lm/W 2
- 12 W/m
Physical
- trim
- length 1000 mm
- width 55 mm
- height 60 mm
- 1.7 kg
Cutout
- length 1010 mm
- width 45 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 100 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; recessed light with wrap around edge; for continuous lighting systems; suitable for ceiling thickness of 8-25 mm; surface grey powder coated; luminaire profile can be pre-mounted; pre-assembled power rail for power supply in luminaire profile; voltage tap of the light inset on the power rail; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
