BO 32
PROFILES 40 2 lamps
042-0610638M
Quickinfo
4000 KCRI ≥ 90 / 2
L80 / 50000 h
DALI-2
IP20 / PC1 220-240V
Colour
General
- Ceiling
- Semi-Recessed
- tilt max 90°
- rotation 360°
- black
- RAL9005
- IP20
- 1620 lm
LED
- 4000 K
- CRI ≥ 90
- L80 / 50000 h
- initial MacAdam ≤ 2 SDCM
- Rg: 97
- Rf: 90
- R{1-15}: 89
- MR 0.81
- MDER 0.74
Optical
- medium
- beam angle 23°
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 20.6 W
- inset 17.5 W
- 250 mA
- PC1 220-240V
- 79 lm/W 2
- 1 DALI Addr.
Physical
- length 300 mm
- width 32 mm
- height 128 mm
- 0.43 kg
- 300 (adapter) mm
Cutout
- diameter 54 mm
- min. ceiling thickness 9 mm
- max. ceiling thickness 25 mm
- recessed depth 110 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

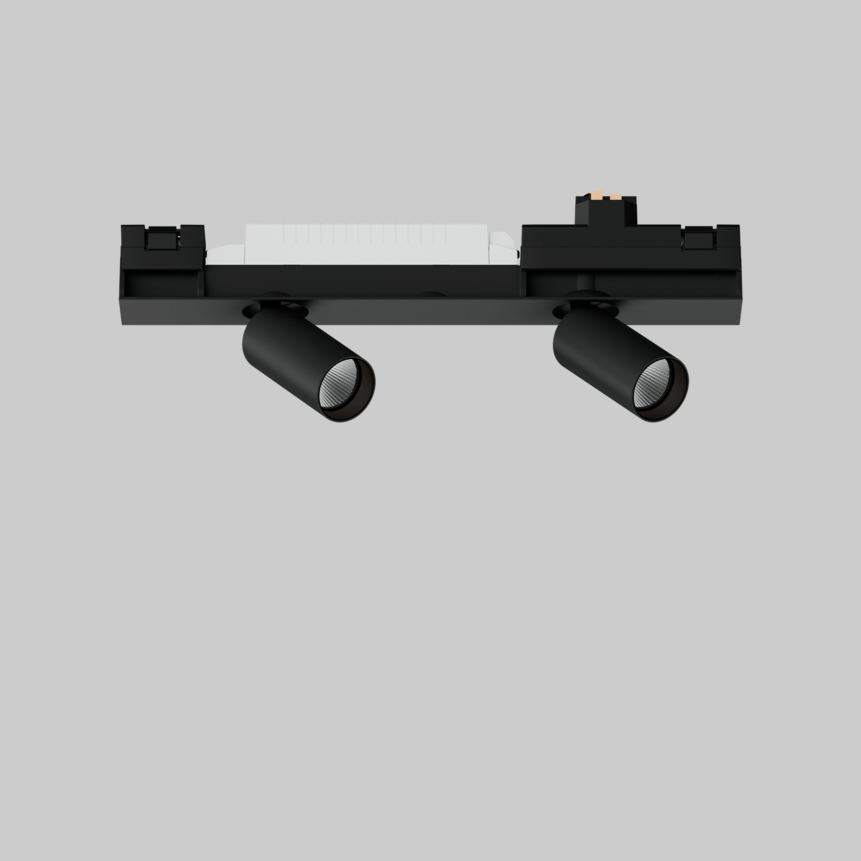

Spotlight made of aluminium; 2 lamps; cylindrical spotlight heads; surface black powder coated; spotlight head 360° rotatable and 90° tiltable; spotlight can be installed without tools in MINO 40 system or FRAME 40 system; converter integrated in the power track adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 4000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality, aluminium, vapour deposition coated reflector with faceted lens design; precise radiation characteristic with 23° beam; good glare control through recessed light point level; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC1 220-240V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
