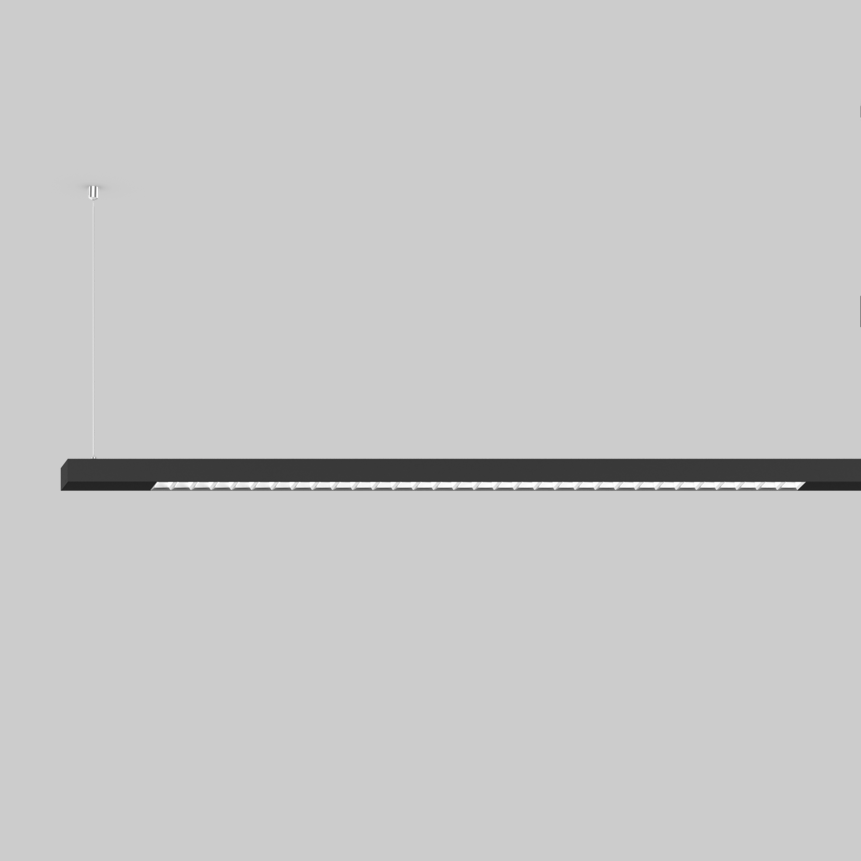

BETO linear direct ceiling / suspended system

BETO linear direct

ceiling / suspended system

074-6009578R

Quickinfo

3000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19 / 65° ≤ 1,500 cd/m²
141 lm/W
L90 / 50000 h
DALI-2 / DALI-2 ESSENTIAL sensor
Reflector
IP20 / PC1 / 220-240 V

Colour

Reflector

General

  • Ceiling
  • Suspended
  • black
  • Reflector chrome
  • RAL 9005 1
  • IP20
  • 6360 lm

LED

  • 3000 K
  • CRI ≥ 80
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • MR 0.56
  • MDER 0.51

Optical

  • Reflector
  • symmetric
  • UGR ≤ 19
  • ≥65° <1500 cd/m²

Electrical

  • brightness & presence
  • DALI-2 / DALI-2 ESSENTIAL sensor
  • 220-240 V
  • system 45 W
  • system 141 lm/W 2
  • PC1
  • 2 DALI Addr.

Physical

  • length 3400 mm
  • width 42 mm
  • height 42 mm
  • 5 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
B25
C10
C13
C16
C20
C25

Number of Fixtures

15
20
25
31
39
26
33
42
52
65
1 RAL code 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Luminaire housing made of extruded aluminium profile; extremely slim design (only 42 x 42 mm) linear; converter integrated into luminaire housing; no visible screws; angular design; for lighting systems; surface black powder coated; for ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; extruded profile for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high gloss reflector with faceted design; Reflector chrome; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. converter, non dimmable; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Certificates

Download all

Accessories

Electrical cable

article number
colour
type
dimensions
feeder cable length
THROUGH WIRE
004-90005
5 x 1,5 mm² | 10 pieces
0.3 kg
CANOPY / FEEDER CABLE
005-2212417
pure white
RAL 9010
5 x 1,5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
feeder length 1,500 mm
CANOPY / FEEDER CABLE
005-2212418
jet black
RAL 9005
5 x 1,5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
feeder length 1,500 mm

Suspensions

article number
colour
dimensions
cable length
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
cable length 1500 mm

Mounting

article number
colour
dimensions
CEILING FASTENER
050-2041217
traffic white
RAL 9016
length 67 mm
width 48 mm
height 8 mm
0.02 kg
CEILING FASTENER
050-2041218
jet black
RAL 9005
length 67 mm
width 48 mm
height 8 mm
0.02 kg
END CAPS
074-6090017
pure white
RAL 9010
length 30 mm
width 42 mm
height 42 mm
0.03 kg
END CAPS
074-6090018
jet black
RAL 9005
length 30 mm
width 42 mm
height 42 mm
0.04 kg
LINEAR CONNECTOR
074-6091110
length 150 mm
width 28 mm
0.02 kg

Optical

article number
colour
dimensions
BLIND COVER
074-6099107
traffic white
RAL 9016
length 250 mm
width 38 mm
0.04 kg
BLIND COVER
074-6099108
jet black
RAL 9005
length 250 mm
width 38 mm
0.05 kg
BLIND COVER
074-6099117
traffic white
RAL 9016
length 500 mm
width 38 mm
0.1 kg
BLIND COVER
074-6099118
jet black
RAL 9005
length 500 mm
width 38 mm
0.08 kg
