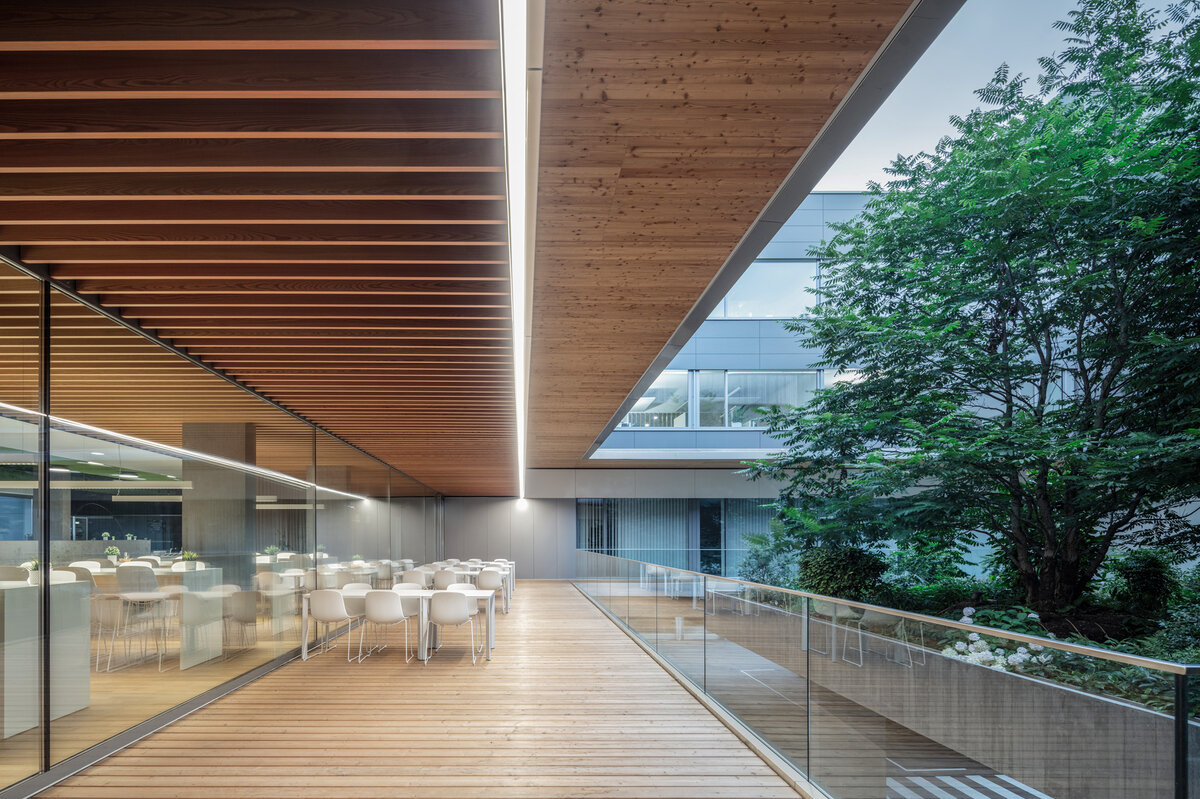

E-Campus

BASO 60 IP54

surface system

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM (initial MacAd
up to 130 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP54 / PC2 / 220-240 V

Colour

    • Mounting set

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • ULD
    • 3DS
    • DWG - 3D

    Description

    Luminaire housing from extruded aluminium profile, angular design; light-tight end caps in aluminium, no visible screws; designed for continuous lighting systems; surface powder coated; suitable for wall or ceiling mounting; luminaire profile can be pre-mounted; remaining luminaire components mounted without tools; closed light insert made of PMMA, consisting of converter unit and circuit board unit; light inset with screwed-on, thus maintenance-friendly, transparent end cap in PMMA; HPO (High Performance Opal) cover for uniform illumination; energy-efficient LEDs with very good colour rendering; IP 67 socket connector system for easy and sealed electrical connection

    quick installation

    dust & splash water protection (IP 54)

    CRI ≥ 98 XPECTRUM (optional)

    Products and codes

    Filter
    122
    lm/W
    130
    lm/W
    1320
    lm
    5600
    lm
    10.8
    W
    43
    W
    0.54
    0.72
    0.49
    0.66

    Colour

    • Mounting set

    • BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system end

    BASO 60 IP54 surface system end

    Status
    Article number(s)
    Type
    Dimming
    traffic white, 3000 K, 122 lm/W, length 599 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 599 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 1,198 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 1,198 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 1,597 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 1,597 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 2,396 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 2,396 mm
    DALI-2
    BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system end

    BASO 60 IP54 surface system end

    Status
    Article number(s)
    Type
    Dimming
    umbra grey, 3000 K, 122 lm/W, length 599 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 599 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 1,198 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 1,198 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 1,597 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 1,597 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 2,396 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 2,396 mm
    DALI-2
    BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system start/run

    Status
    Article number(s)
    Type
    Dimming
    traffic white, 3000 K, 122 lm/W, length 599 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 599 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 1,198 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 1,198 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 1,597 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 1,597 mm
    DALI-2
    traffic white, 3000 K, 123 lm/W, length 2,396 mm
    DALI-2
    traffic white, 4000 K, 130 lm/W, length 2,396 mm
    DALI-2
    BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system start/run

    BASO 60 IP54 surface system start/run

    Status
    Article number(s)
    Type
    Dimming
    umbra grey, 3000 K, 122 lm/W, length 599 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 599 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 1,198 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 1,198 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 1,597 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 1,597 mm
    DALI-2
    umbra grey, 3000 K, 123 lm/W, length 2,396 mm
    DALI-2
    umbra grey, 4000 K, 130 lm/W, length 2,396 mm
    DALI-2

    Accessories

    Mounting

    article number
    colour
    dimensions
    INSTALLATION CHANNEL surface
    845-4002017
    traffic white
    RAL 9016
    length 600 mm
    width 61 mm
    height 76 mm
    0.8 kg
    INSTALLATION CHANNEL surface
    845-400201D
    umbra grey
    RAL 7022
    length 600 mm
    width 61 mm
    height 76 mm
    0.8 kg
    INSTALLATION CHANNEL surface
    845-4004017
    traffic white
    RAL 9016
    length 1,200 mm
    width 61 mm
    height 76 mm
    1.57 kg
    INSTALLATION CHANNEL surface
    845-400401D
    umbra grey
    RAL 7022
    length 1,200 mm
    width 61 mm
    height 76 mm
    1.6 kg
    INSTALLATION CHANNEL surface
    845-4005017
    traffic white
    RAL 9016
    length 1,600 mm
    width 61 mm
    height 76 mm
    2.32 kg
    INSTALLATION CHANNEL surface
    845-400501D
    umbra grey
    RAL 7022
    length 1,600 mm
    width 61 mm
    height 76 mm
    2.1 kg
    INSTALLATION CHANNEL surface
    845-4008017
    traffic white
    RAL 9016
    length 2,400 mm
    width 61 mm
    height 76 mm
    3.2 kg
    INSTALLATION CHANNEL surface
    845-400801D
    umbra grey
    RAL 7022
    length 2,400 mm
    width 61 mm
    height 76 mm
    3.2 kg

    Mounting

    article number
    type
    colour
    dimensions
    LINEAR CONNECTOR FOR CONCRETE INSTALLATION
    005-41166
    1 piece
    length 53 mm
    width 80 mm
    0.12 kg
    LINEAR CONNECTOR FOR CONCRETE INSTALLATION
    005-41166.10
    10 pieces
    length 53 mm
    width 80 mm
    0.71 kg
    END CAPS FOR CONCRETE INSTALLATION
    005-41246
    1 pair
    length 76 mm
    width 28 mm
    height 87 mm
    0.09 kg
    HOUSING FOR CONCRETE INSTALLATION
    005-41446
    length 3,000 mm
    width 75 mm
    height 88 mm
    4.5 kg
    MOUNTING SET FOR CONCRETE INSTALLATION
    034-04002
    2 pieces
    diameter 116 mm
    height 25 mm
    0.01 kg
    MOUNTING SET FOR CONCRETE INSTALLATION
    034-04003
    3 pieces
    diameter 116 mm
    height 25 mm
    0.01 kg
    CORNER CONNECTOR 90° FOR CONCRETE INSTALLATION
    034-04016
    length 157 mm
    width 157 mm
    0.52 kg
    LINEAR CONNECTOR
    045-4011110
    1 piece
    length 76 mm
    width 57 mm
    height 30 mm
    0.06 kg
    LINEAR CONNECTOR
    045-4011110.10
    10 pieces
    length 76 mm
    width 57 mm
    height 30 mm
    0.7 kg
    END CAPS surface
    845-4010017
    1 pair
    traffic white
    RAL 9016
    length 61 mm
    width 76 mm
    height 5 mm
    0.12 kg
    END CAPS surface
    845-401001D
    1 pair
    umbra grey
    RAL 7022
    length 61 mm
    width 76 mm
    height 5 mm
    0.1 kg

    Optical

    article number
    colour
    dimensions
    BLIND COVER
    006-3306017B
    traffic white
    RAL 9016
    length 600 mm
    width 57 mm
    0.34 kg
    BLIND COVER
    006-330601DB
    umbra grey
    RAL 7022
    length 600 mm
    width 57 mm
    0.34 kg
    BLIND COVER
    006-3312017B
    traffic white
    RAL 9016
    length 1,200 mm
    width 57 mm
    0.7 kg
    BLIND COVER
    006-331201DB
    umbra grey
    RAL 7022
    length 1,200 mm
    width 57 mm
    0.7 kg
    BLIND COVER
    006-3316017B
    traffic white
    RAL 9016
    length 1,600 mm
    width 57 mm
    1 kg
    BLIND COVER
    006-331601DB
    umbra grey
    RAL 7022
    length 1,600 mm
    width 57 mm
    1 kg
    BLIND COVER
    006-3324017B
    traffic white
    RAL 9016
    length 2,400 mm
    width 57 mm
    1.36 kg
    BLIND COVER
    006-332401DB
    umbra grey
    RAL 7022
    length 2,400 mm
    width 57 mm
    1.36 kg
    BLIND COVER
    006-3330017B
    traffic white
    RAL 9016
    length 3,000 mm
    width 57 mm
    1.7 kg
    BLIND COVER
    006-333001DB
    umbra grey
    RAL 7022
    length 3,000 mm
    width 57 mm
    1.7 kg

    Electrical mounting

    article number
    colour
    dimensions
    CORNER CONNECTOR 90°
    845-4011217
    traffic white
    RAL 9016
    length 604 mm
    width 659 mm
    height 76 mm
    1.65 kg
    CORNER CONNECTOR 90°
    845-401121D
    umbra grey
    RAL 7022
    length 604 mm
    width 659 mm
    height 76 mm
    1.59 kg

    Feeder

    article number
    type
    dimensions
    MINI CONNECTOR
    845-4013040
    4-pole
    diameter 23 mm
    height 68 mm
    0.02 kg

    Electrical cable

    article number
    type
    dimensions
    feeder cable length
    FEEDER CABLE
    845-4013240
    2× 1.5 + 2× 0.75 mm² | 2m
    0.23 kg
    2,000 mm
    FEEDER CABLE
    845-4013440
    2× 1.5 + 2× 0.75 mm² | 4m
    0.42 kg
    4,000 mm
    EXTENSION CABLE
    845-4014140
    2× 1.5 + 2× 0.75 mm² | 1,2m
    0.16 kg
    1,200 mm
