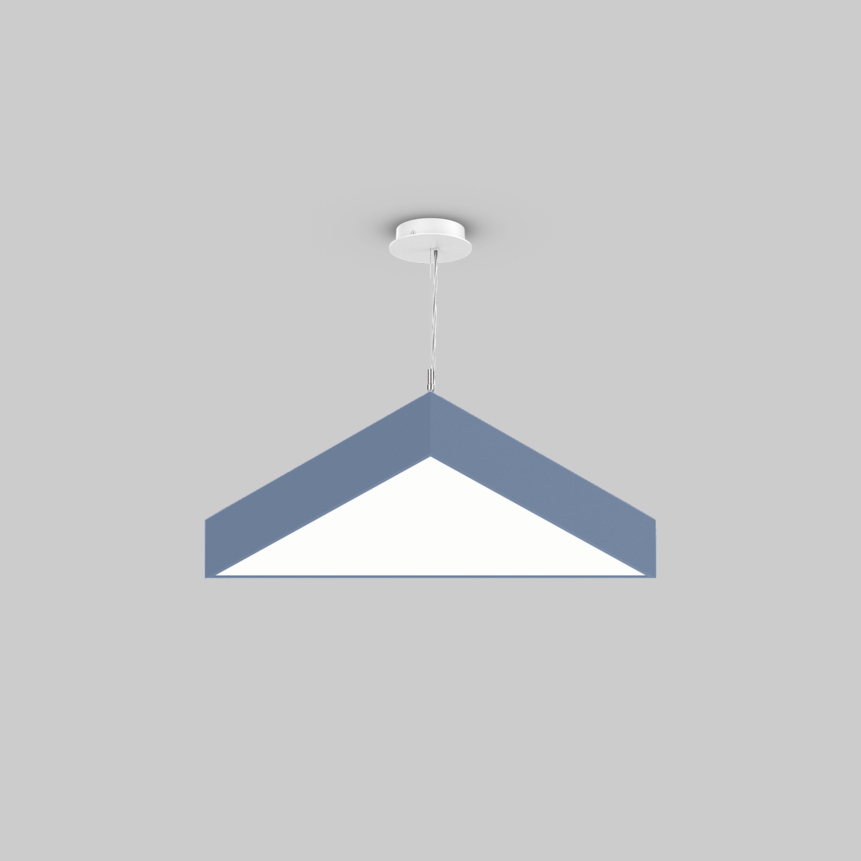

TRIG-O 750 suspended group

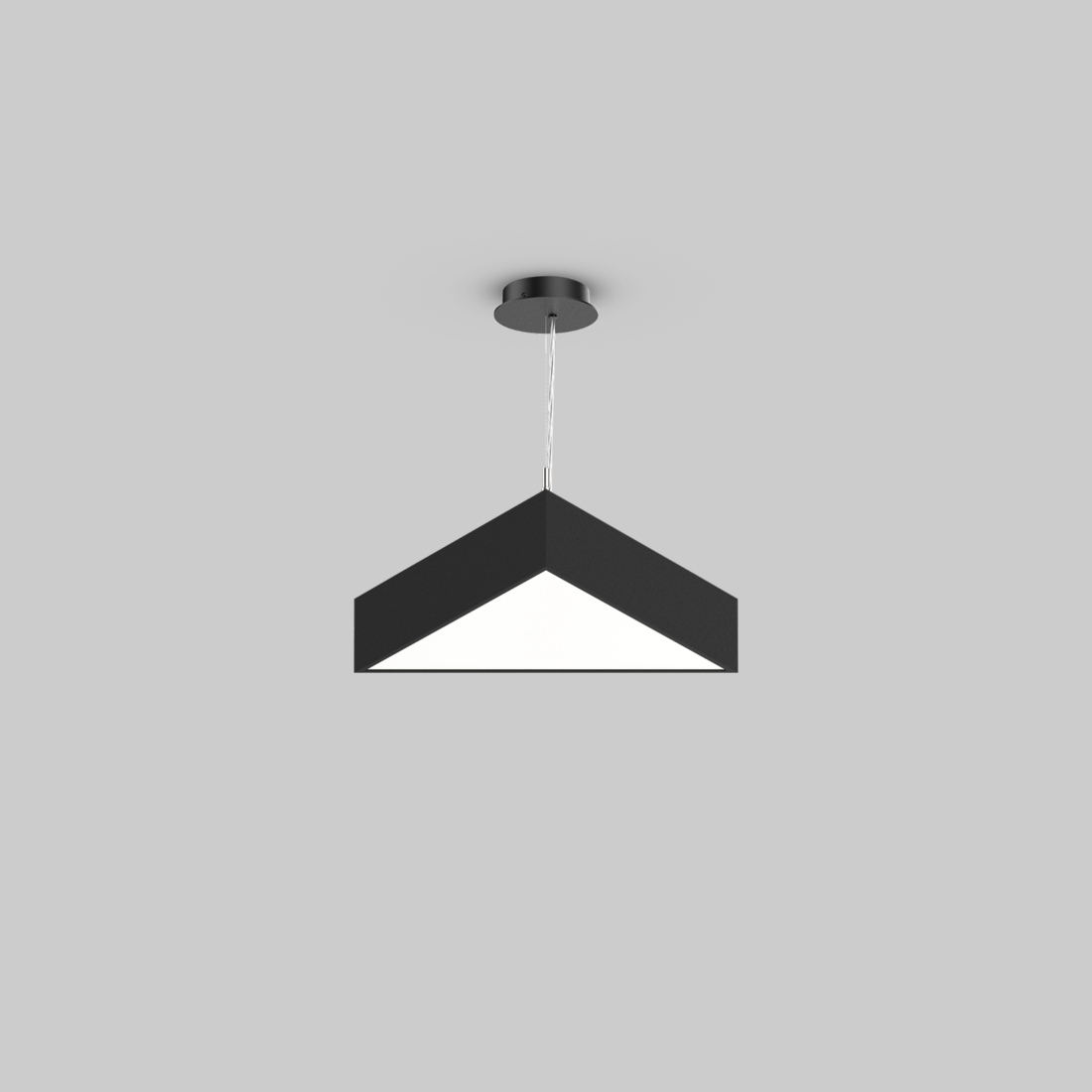

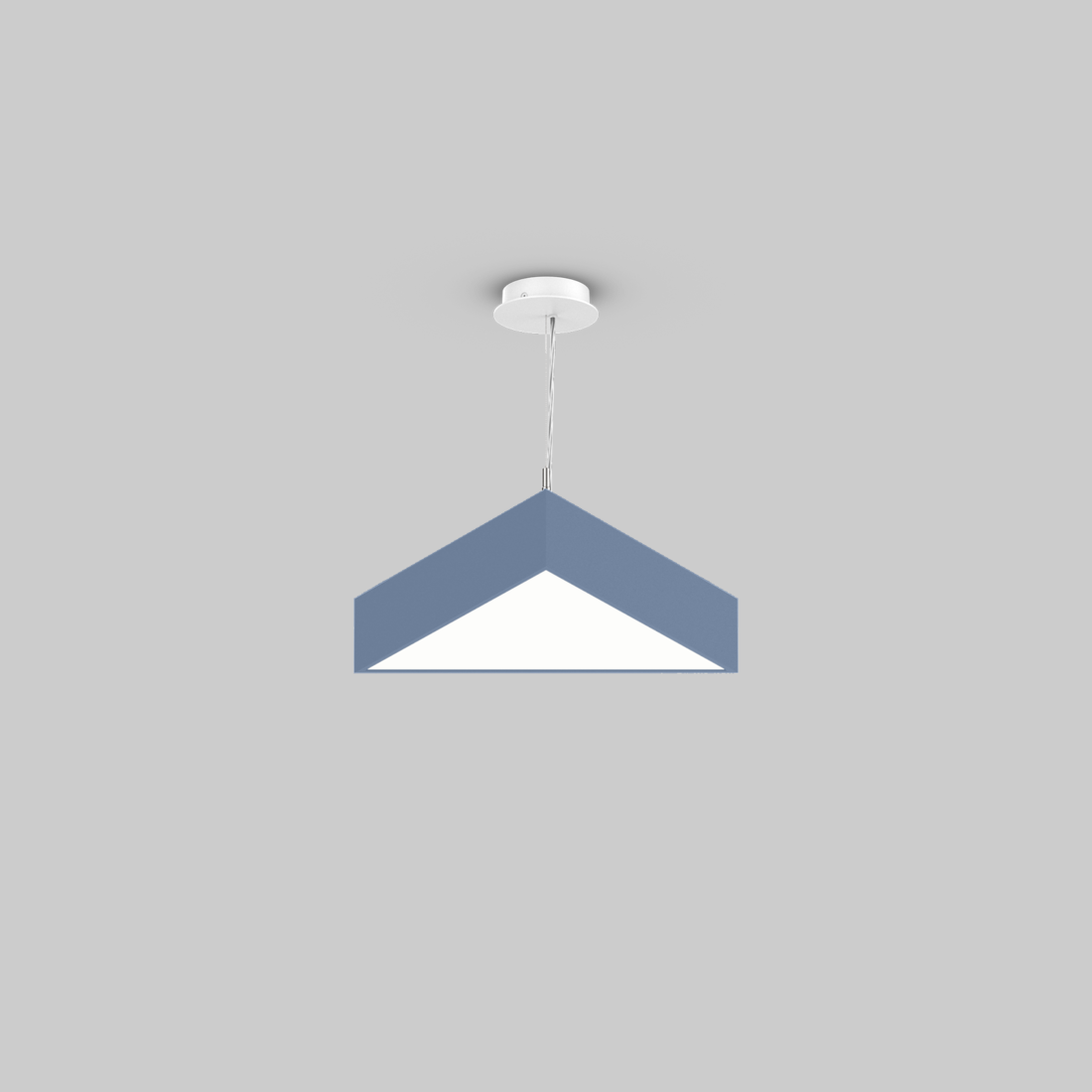

TRIG-O 500 suspended group

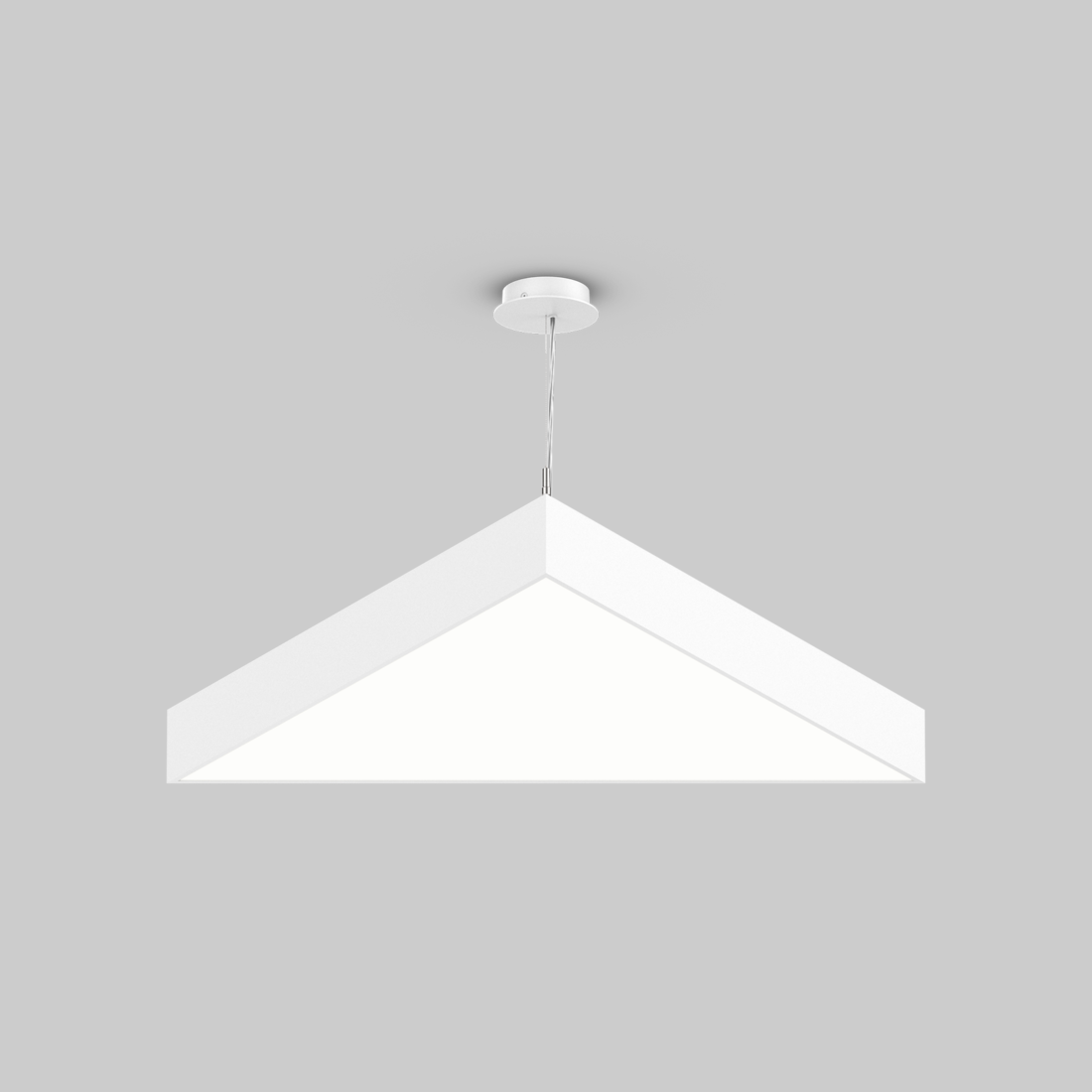

TRIG-O 1000 suspended group
TRIG-O 500 suspended group

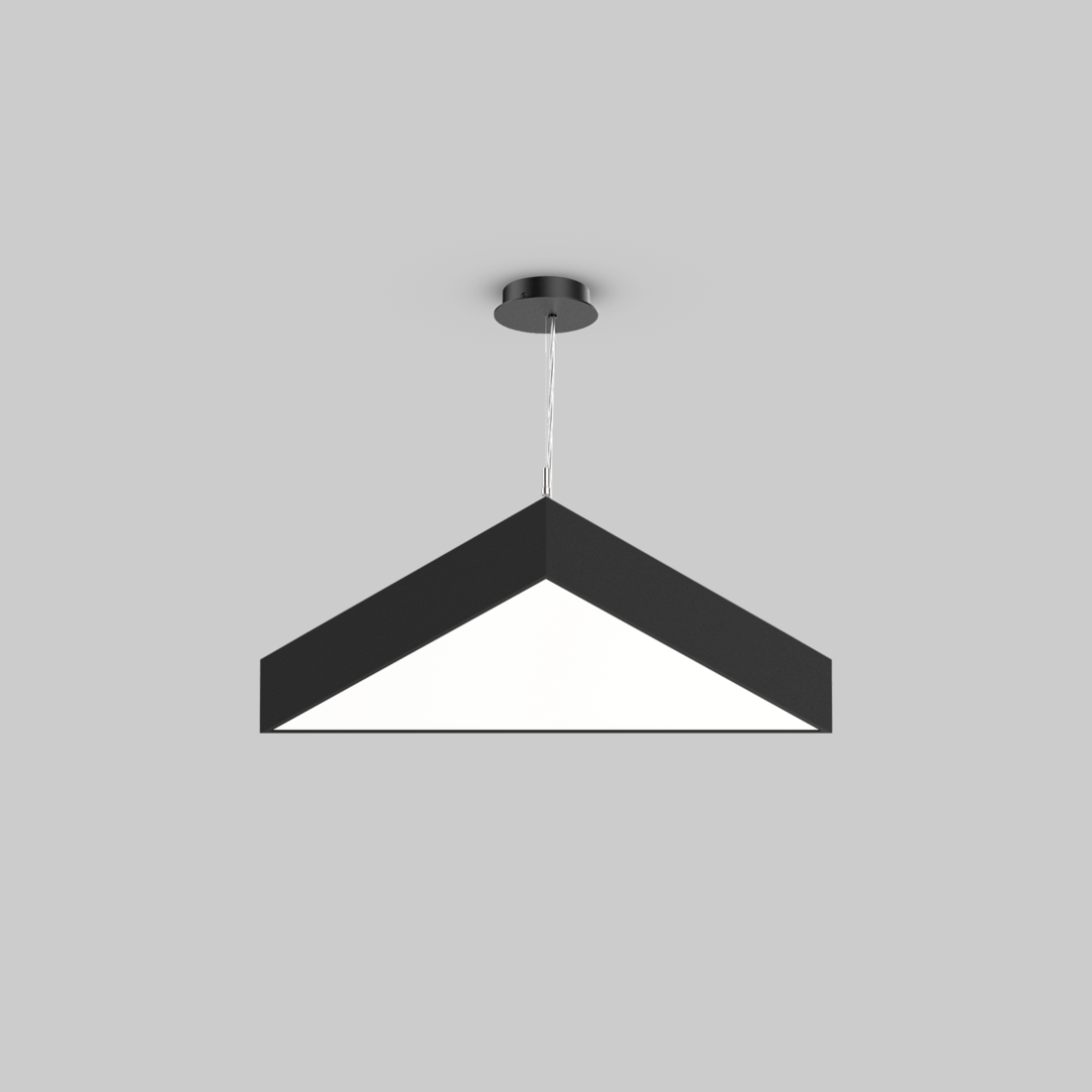

TRIG-O 750 suspended group

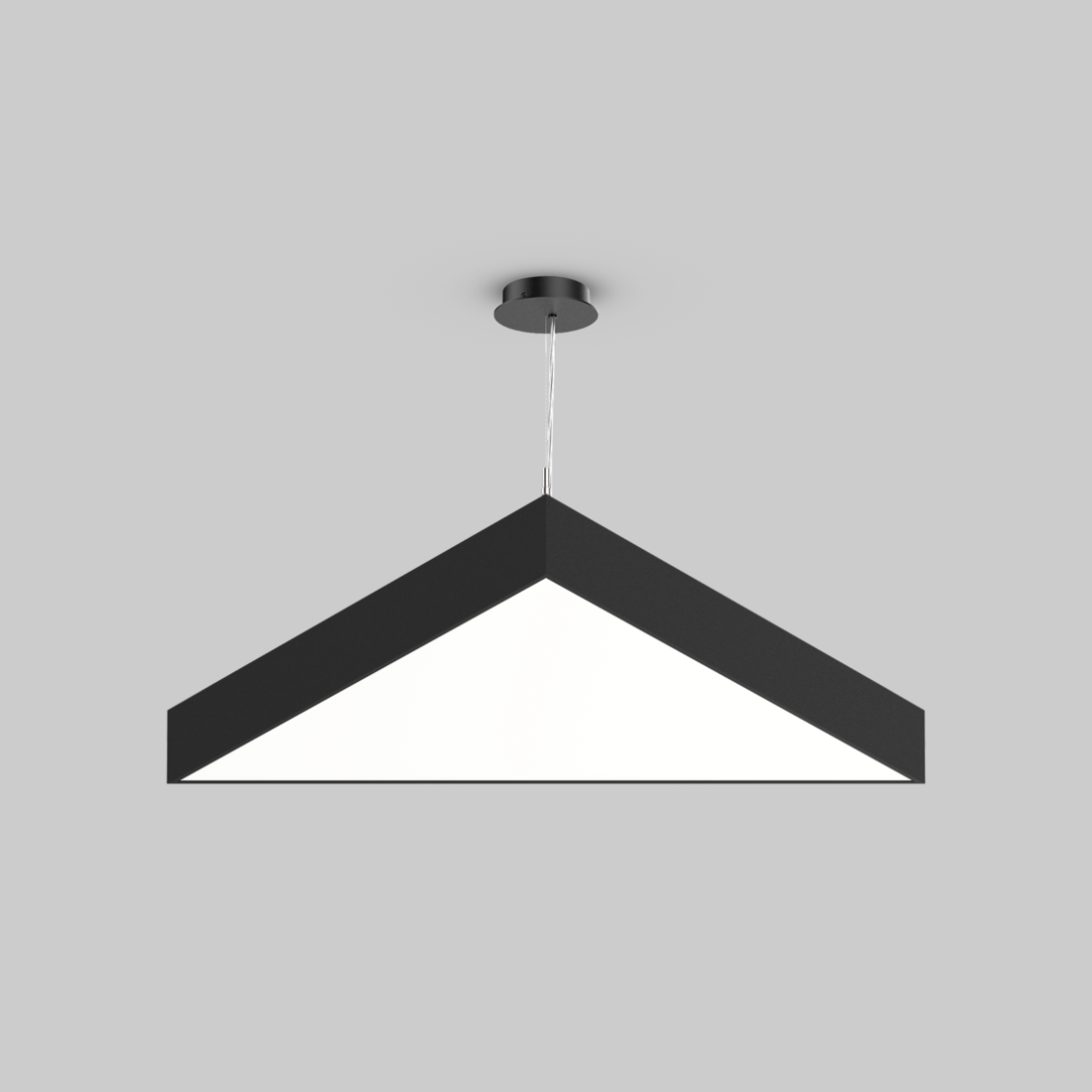

TRIG-O 1000 suspended group

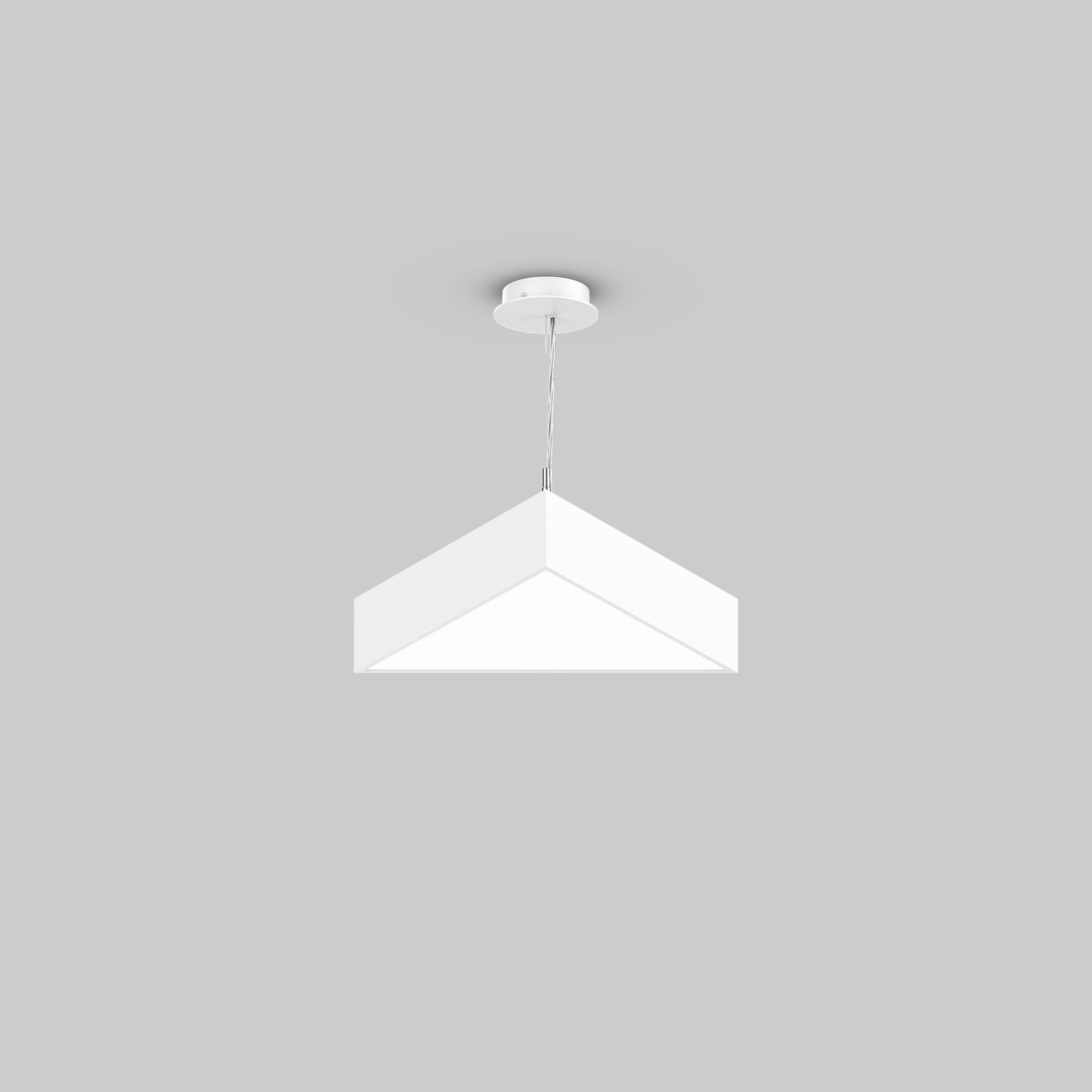

TRIG-O 500 suspended group

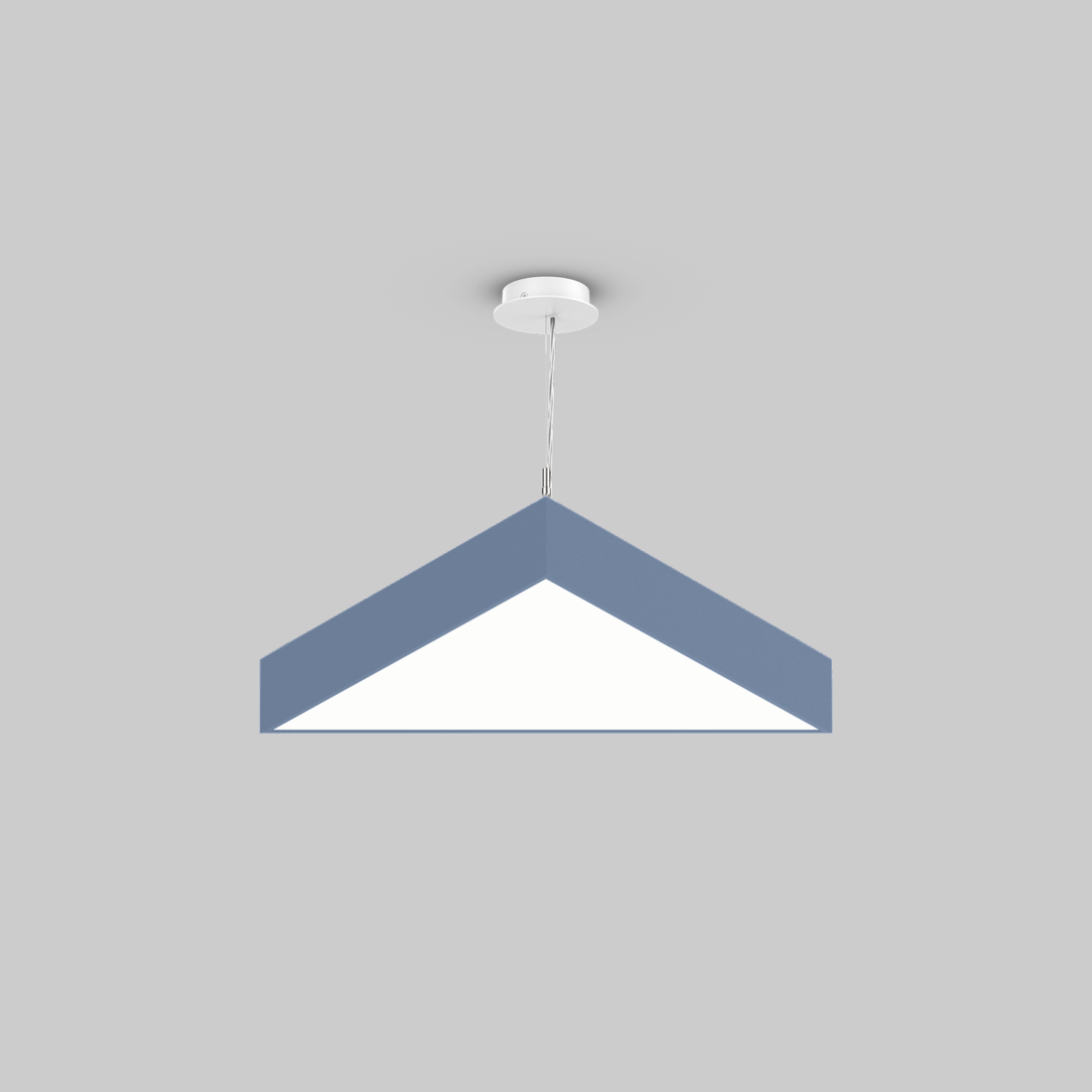

TRIG-O 750 suspended group

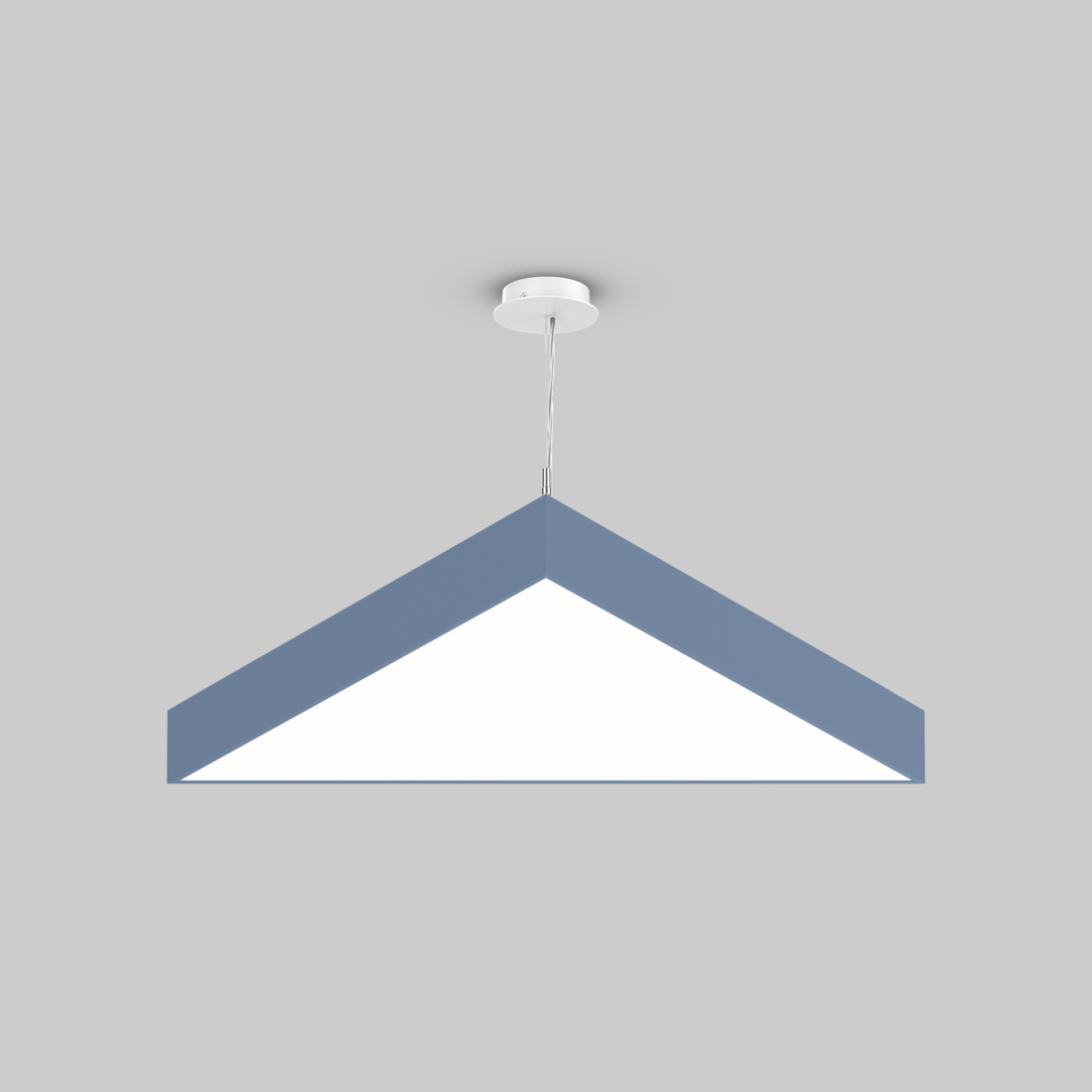

TRIG-O 1000 suspended group

TRIG-O

suspended group

Light distribution

Product data & specification documents

Download all

Description

Triangular light fitting from aluminium profile, seamlessly welded; suitable for group installation; pendant fitting with 1500 mm cable suspension (1 cable); height adjustment without tools; including rear rail for alignment of the housings; powder coated in white or black; available in special colours; can be combined with all HEX-O ceiling and TRIG-O ceiling luminaires and acoustic elements; satinised or microprismatic PMMA cover; workplace luminaire suitable for VDUs according to DIN EN 12464-1 (UGR ≤ 19); same luminance for all size versions; energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; light colour 3000 K or 4000 K; CRI ≥ 80; L90 / 50 000 h; canopy separately available with 2 cable openings and plug-in terminal for through wiring, incl. transparent feed; degree of protection IP 20; PC I; photobiological safety according to IEC 62471 risk group 0; optionally non-dimmable or DALI-2 control with CLO function

DIN EN 12464-1 UGR ≤ 19
