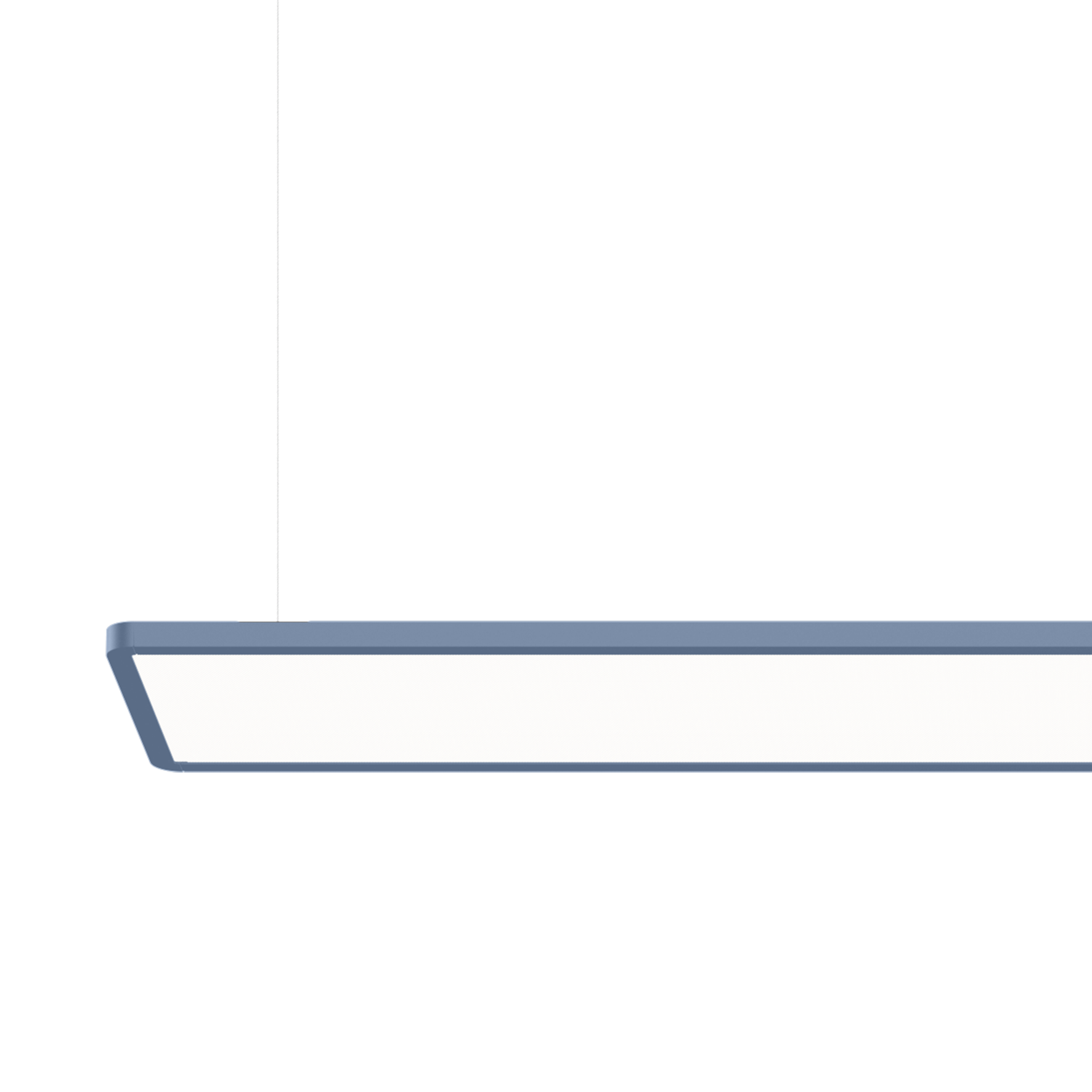

TASK 1500 direct / indirect power
suspended
059-222513XK
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
UGR < 16 / 65° ≤ 3,000 cd/m²
5,170 lm/↑ 2,900 lm
128 lm/W
L90 / 50000 h
DALI-2
Microprismatic
front IP20
Colour
Available from Q2/24
General
- Ceiling
- Suspended
- special colours
- IP20
- indirect 2900 lm
- direct 5170 lm
- total 8070 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
-
Rg: 96
-
Rf: 90
-
R{1-15}: 87
-
MR 0.75
-
MDER 0.68
Optical
- Microprismatic
- UGR < 16
- ≥65° <3000 cd/m²
-
≤ 1.0 1
-
SVM ≤ 0.4 1
Electrical
- DALI-2
- 63 W
- PC1 220-240V
- 128 lm/W
- 1 DALI Addr.
Physical
- cable 1500 mm
- length 1520 mm
- width 320 mm
- height 32 mm
- 10 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Rectangular luminaire housing with rounded edges in aluminium; extremely flat design (only 15mm); modern shape in elegant design for discerning requirements; surface special colours powder coated; suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. feeder cable; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination; same light density for all surface lights with the same components; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. DALI-2 converter; sound absorbing accessories available; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
