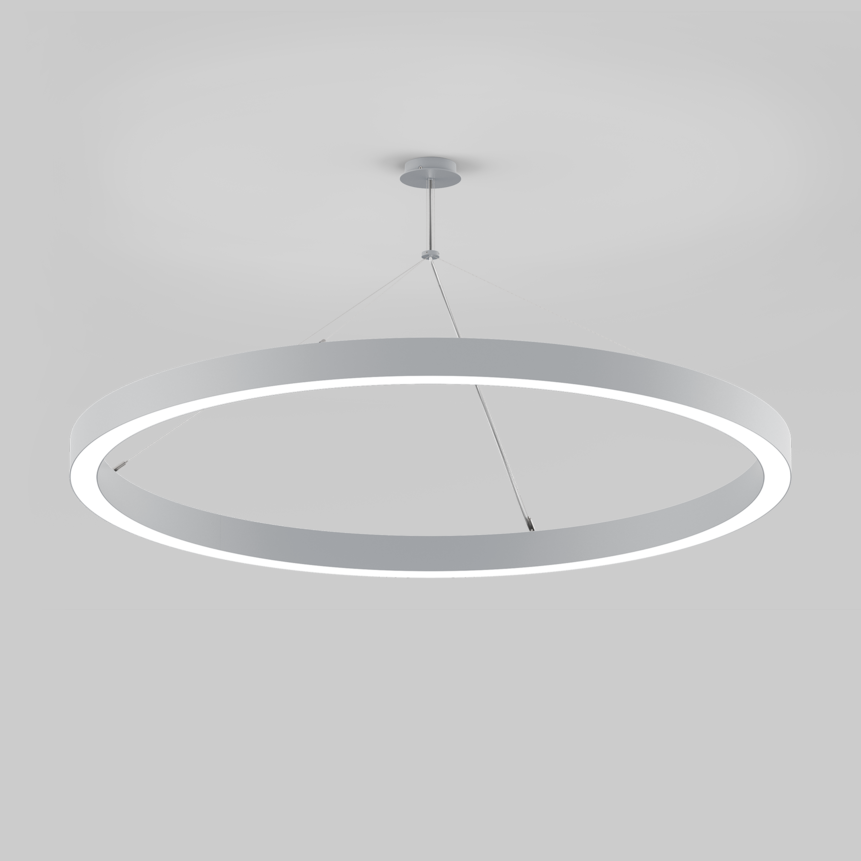

MINO 60 CIRCLE 1500 direct / indirect suspended

Technical data

General

Ceiling
Suspended
white aluminium
RAL 9006
IP20
indirect 5490 lm
direct 10400 lm
total 15900 lm

LED

4000 K
CRI ≥ 80
L90 / 50000 h
initial MacAdam ≤ 3 SDCM
MR 0.72
MDER 0.65

Optical

Microprismatic
microprismatic
$P_{st}^{LM}$ ≤ 1.0¹ ²
SVM ≤ 0.4¹ ²

Electrical

DALI-2
220-240 V
system 114 W
system 139 lm/W ³
PC1
5 DALI Addr.

Physical

cable 1500 mm / canopy central
diameter 1560 mm
height 80 mm
centerline radius 750 mm
14 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

^¹ combined ^² Value of containing product at full load (undimmed) ^³ incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Ring-shaped light fitting in rolled and seamlessly welded extruded aluminium profile; suspended luminaire with 1500mm cable suspension (canopy central); with integrated toolless suspension height adjustment on the luminaire; incl. feed (white); surface white aluminium powder coated; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; direct/indirect light emission for additional accentuation of the ceiling; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination, separately controllable; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; sound absorbing accessories available; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
