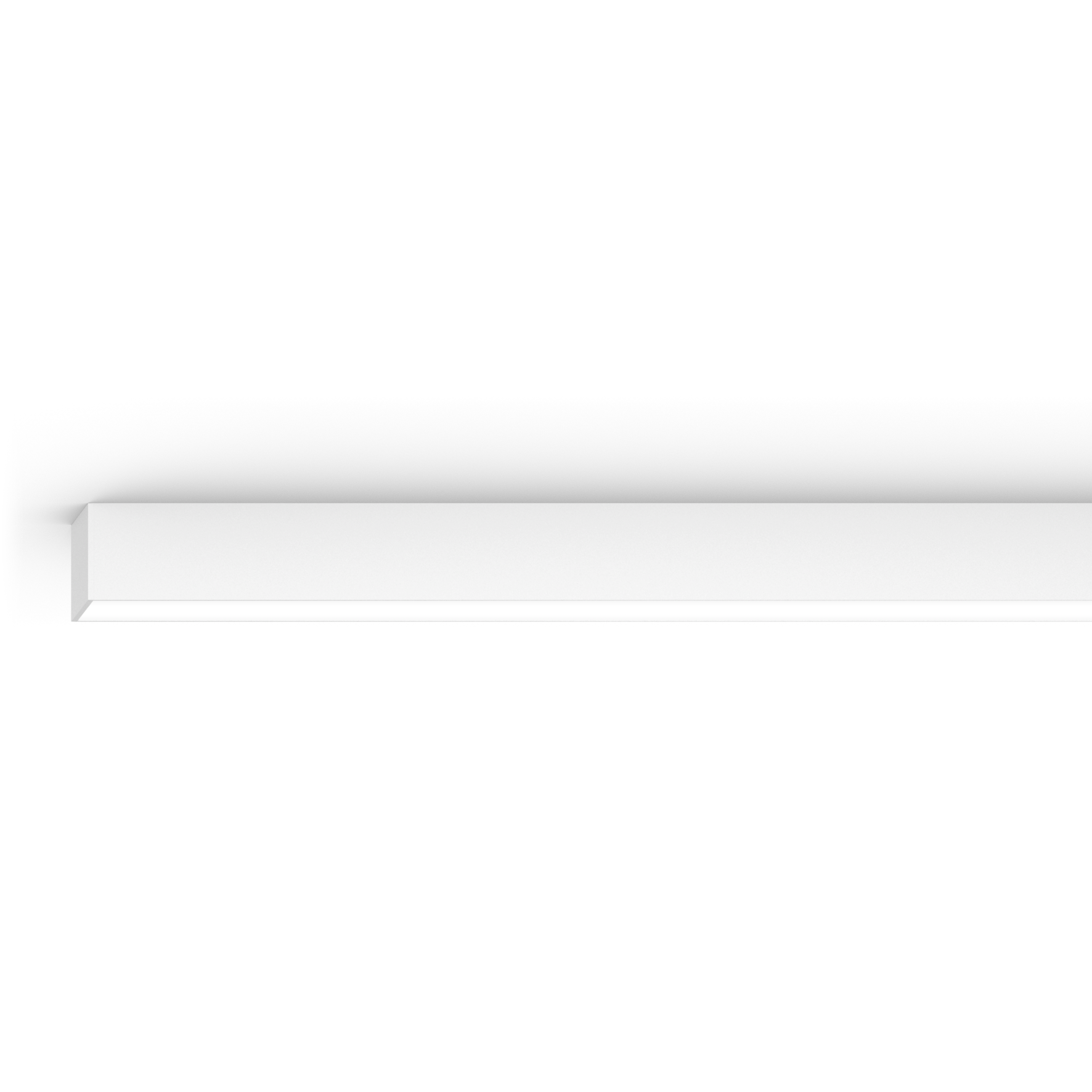

MINO 40 mid lumen surface | Ceiling luminaires

Technical data

General

Ceiling
Surface
RAL Traffic white
RAL 9016
IP20
3600 lm
1200 lm/m

LED

3000 K
CRI ≥ 90
L90 / 50000 h
≤ 3 SDCM (initial MacAdam)
R_g: 99
R_f: 91
R_{1-15}: 89
MR 0.61
MDER 0.55

Optical

Microprismatic
microprismatic
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

DALI-2
220-240 V
system 34 W
system 106 lm/W ²
PC1
1 DALI Addr.
11 W/m

Physical

length 3008 mm
width 40 mm
height 65 mm
4.5 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

13

17

21

27

21

28

35

45

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface traffic white powder coated; same RAL colour as spotlight modules; suitable for ceiling mounting; luminaire profile can be pre-mounted; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
