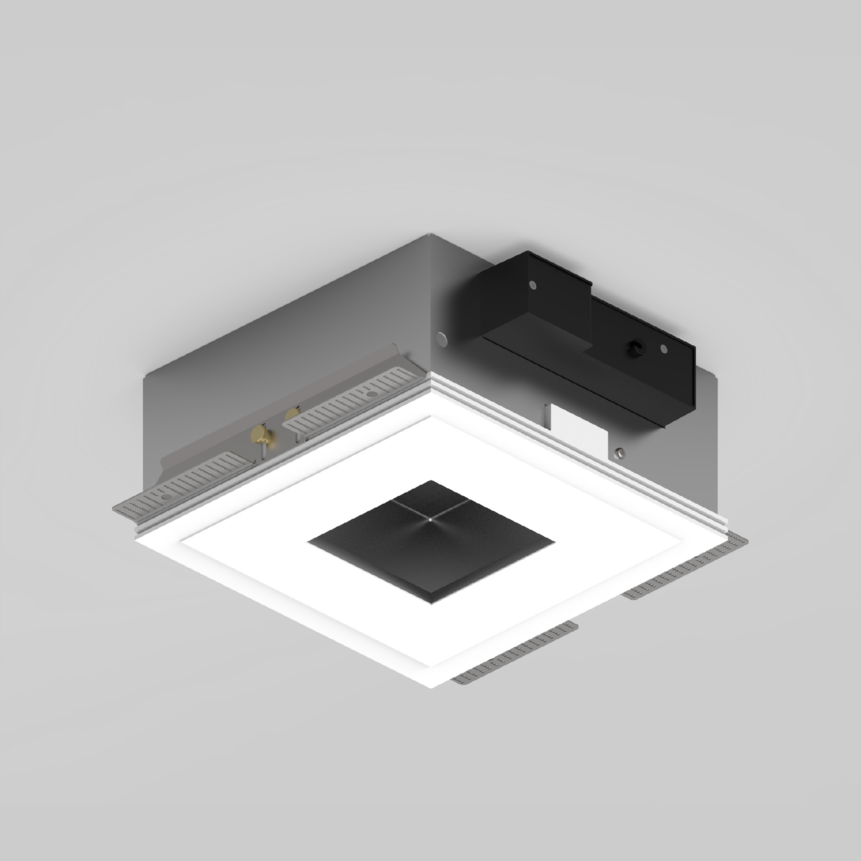

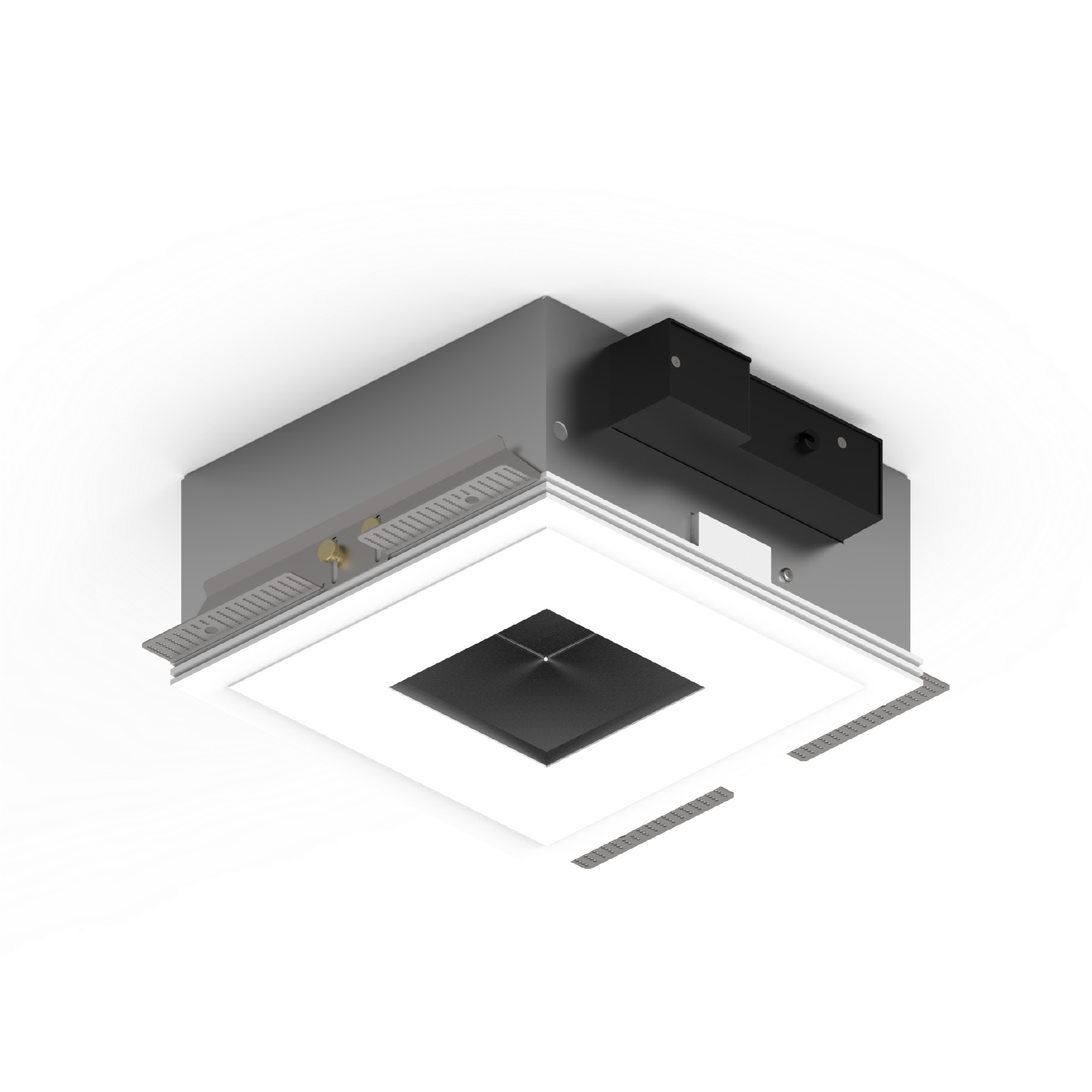

MOUNTING HOUSING with glowing square
049-8833537
Colour
General
- Ceiling
- Recessed
- traffic white
- RAL 9016
- IP20
- 100 lm
LED
- 3000 K
- CRI ≥ 90
- L80 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- Rg: 101
- Rf: 91
- R{1-15}: 89
- MR 0.56
- MDER 0.51
Optical
- beam angle 117°
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 9.0 W
- system 11 lm/W 2
- PC1
- 1 DALI Addr.
Physical
- length 260 mm
- width 260 mm
- height 120 mm
- 5 kg
Cutout
- length 270 mm
- width 270 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 140 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Converters
Recessed housing made of pressed steel sheet for flush installation in plasterboard ceilings, underside of aluminium-reinforced plaster (paintable); with square cut-out; no break-out of edges; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 8-25 mm; 3 non-reversible plug and play connector sockets for power supply to the spotlights; spotlight can be installed and moved without tools by means of magnetic holders; hot plug protection; indirect light component in housing; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; indirect component in the channel continuously adjustable dimming via DALI; surface traffic white powder coated; degree of protection IP20; PC1; incl. DALI-2 converter; all spotlights together DALI dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
