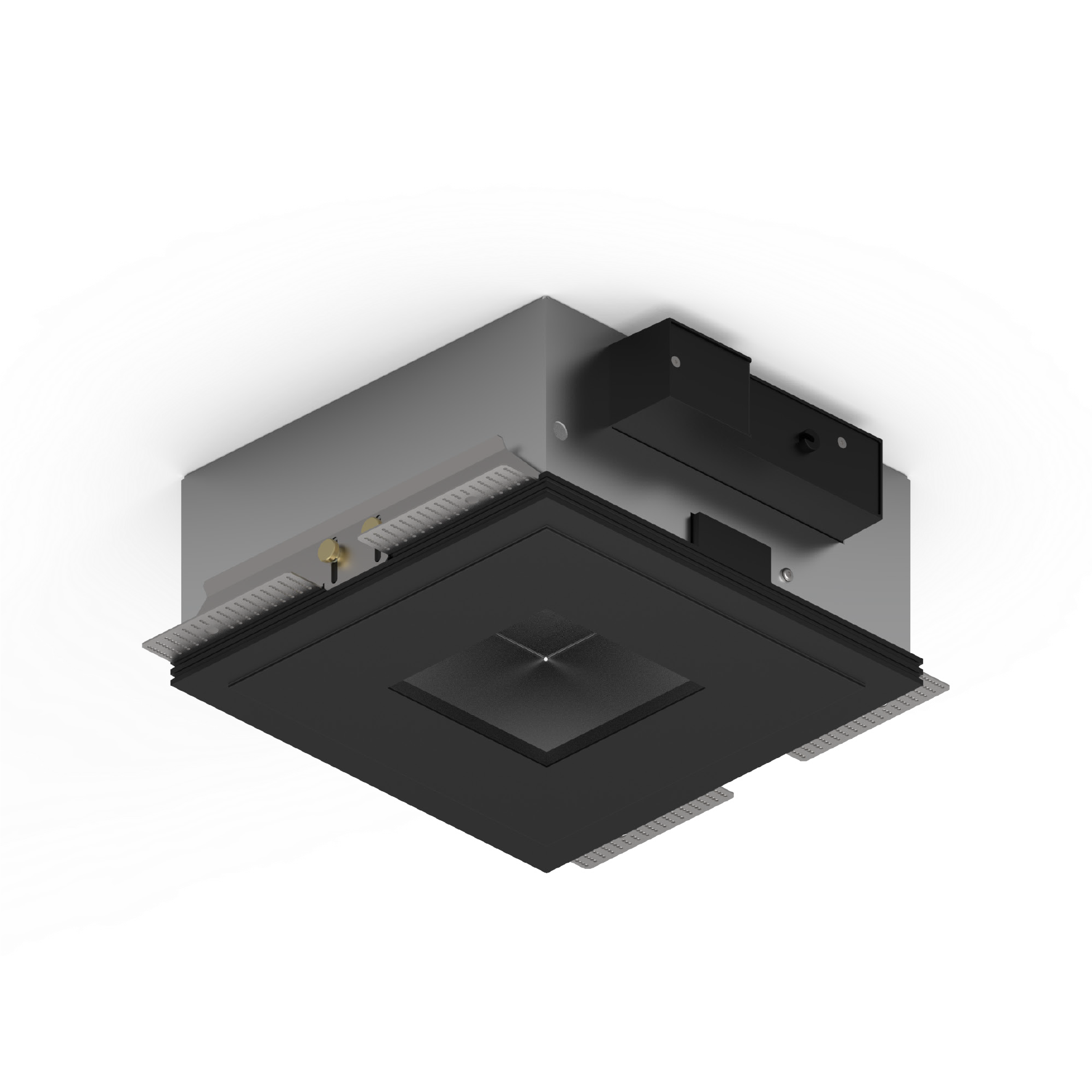

MOUNTING HOUSING square
049-8813038
Colour
General
- jet black
- RAL 9005
- IP20
Electrical
- DALI-2
- 220-240 V
- PC1
- 1 DALI Addr.
- PC2
- 25 W
- min 198 V AC
- max 264 V AC
- min 50 Hz
- max 60 Hz
Physical
- length 260 mm
- width 260 mm
- height 120 mm
Cutout
- length 270 mm
- width 270 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 140 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
B20
C10
C13
C16
C20
Number of Converters
19
24
31
40
31
40
51
66
Recessed housing made of pressed steel sheet for flush installation in plasterboard ceilings, underside of aluminium-reinforced plaster (paintable); with square cut-out; no break-out of edges; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 8-25 mm; 3 non-reversible plug and play connector sockets for power supply to the spotlights; spotlight can be installed and moved without tools by means of magnetic holders; hot plug protection; surface jet black powder coated; degree of protection IP20; PC1; incl. DALI-2 converter; all spotlights together DALI dimmable; control gear replaceable by an authorized professional;
