STRETTA
surface
057-013453CH
discontinued
Quickinfo
90 / 3L80 / 50000 h
DALI-2
Colour
Inner colour
General
- Wall
- Surface
- white
- Inner colour chrome
- RAL9010
- IP44
- 2680 lm
LED
- 3000 K
- CRI ≥ 90
- L80 / 50000 h
- photobio. safety RG 0 - no Risk
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.61
- MDER 0.55
Optical
- High Performance Opal
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 26.3 W
- PC1 220-240V
- 102 lm/W 2
- 1 DALI Addr.
Physical
- length 1200 mm
- width 80 mm
- height 40 mm
- 1.8 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
B20
B25
C10
C13
C16
C20
C25
Number of Fixtures
18
24
30
37
46
31
40
51
62
78
1 Value of containing product at full load (undimmed)
2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

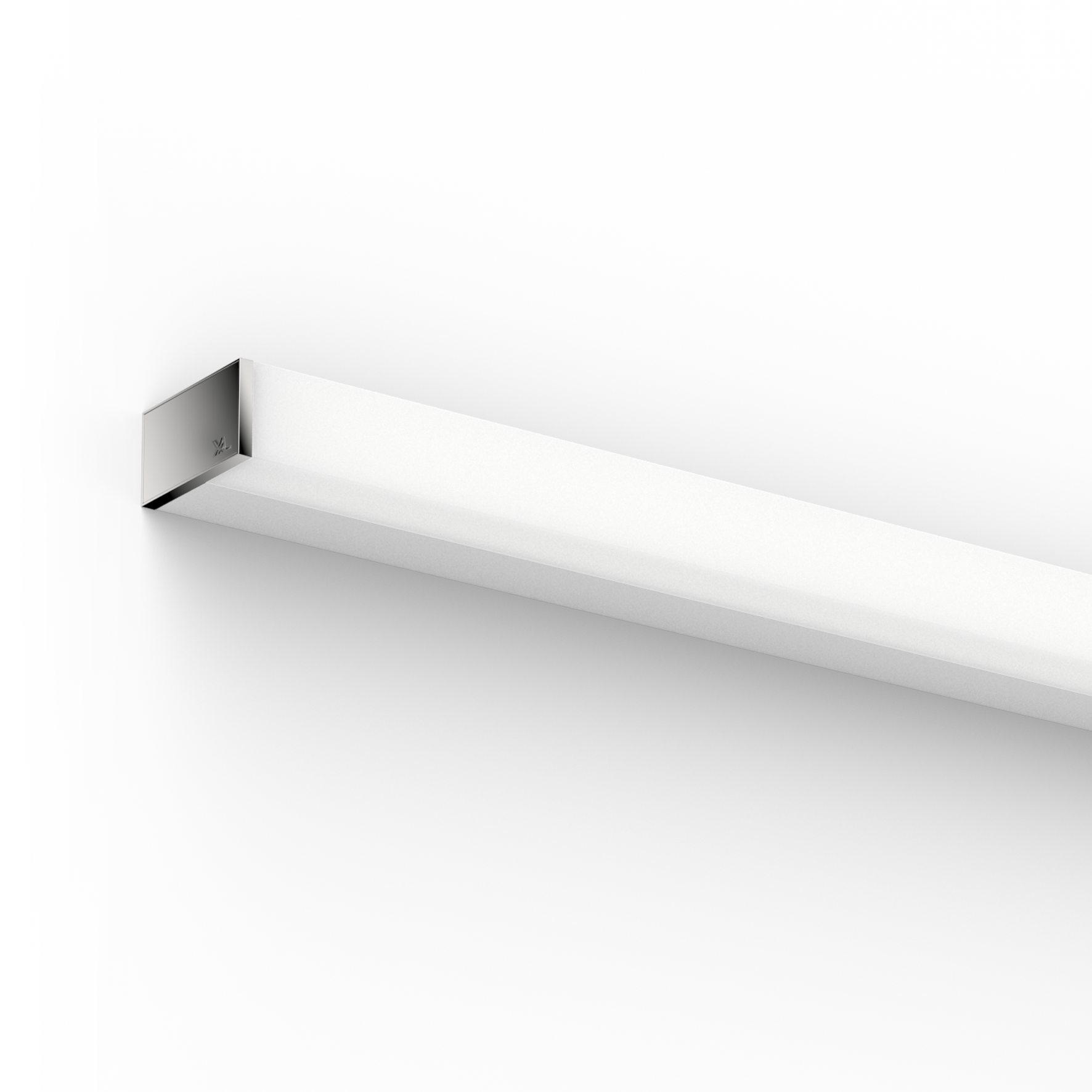

Luminaire housing made of extruded aluminium profile; angular design; no visible screws; surface white powder coated; end cap galvanically chromed; suitable for wall mounting; luminaire profile can be pre-mounted; with three sided light beam; HPO (High Performance Opal) cover for uniform illumination; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP44; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; incl. DALI-2 converter; light source not replaceable; control gear replaceable by an authorized professional;
