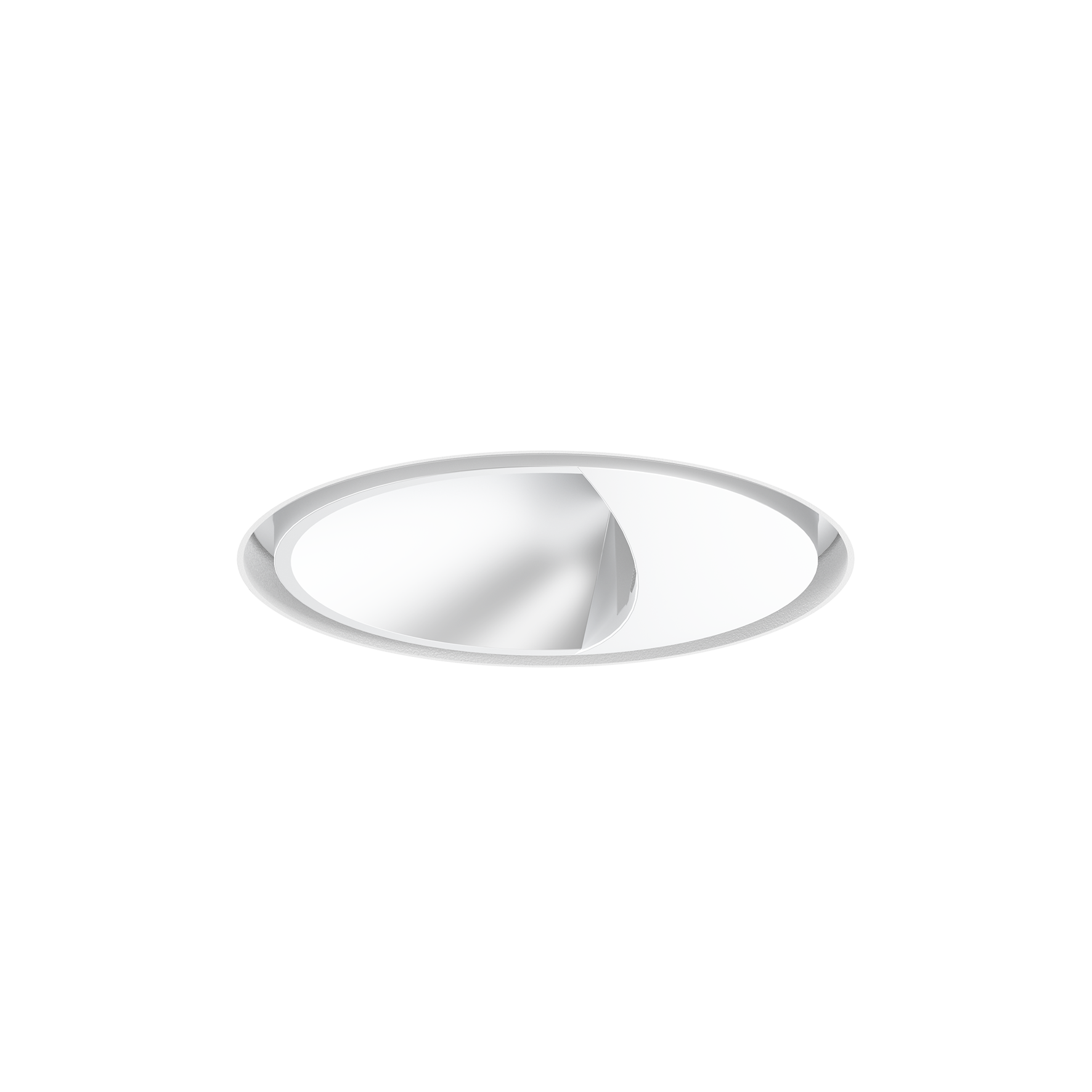

SASSO 60 round wallwasher trimless | Spotlights & Downlights

Technical data

General

Ceiling
Recessed
rotation 360°
white
Mounting set traffic white
RAL9016
IP20
766 lm
system 79 lm/W ¹
fixture 93 lm/W ²

LED

3000 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 3 SDCM
R_g: 97
R_f: 91
R_{1-15}: 89
MR 0.6
MDER 0.54

Optical

wallwasher
$P_{st}^{LM}$ ≤ 1.0 ³
SVM ≤ 0.4 ³

Electrical

DALI-2
220-240 V
system 9.7 W
fixture 8.3 W
27 Vf
300 mA
PC2
1 DALI Addr.

Physical

trimless
diameter 73 mm
height 48 mm
0.28 kg

Cutout

diameter 73 mm
recessed depth 120 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B16

C10

C16

Number of Fixtures

18

30

23

36

^¹ incl. consideration of optical losses, internal control unit losses & operating device efficiency ^² incl. consideration of optical losses & internal control unit losses ^³ Value of containing product at full load (undimmed)

Specification text

Round recessed spotlight in die-cast aluminium; 1 lamp; surface white; 360° rotatable; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; no multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; with specially computed, asymmetrical reflector for homogeneous lighting intensity; high quality reflector with micro-faceted, aluminum-vaporised surface; PC2; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
