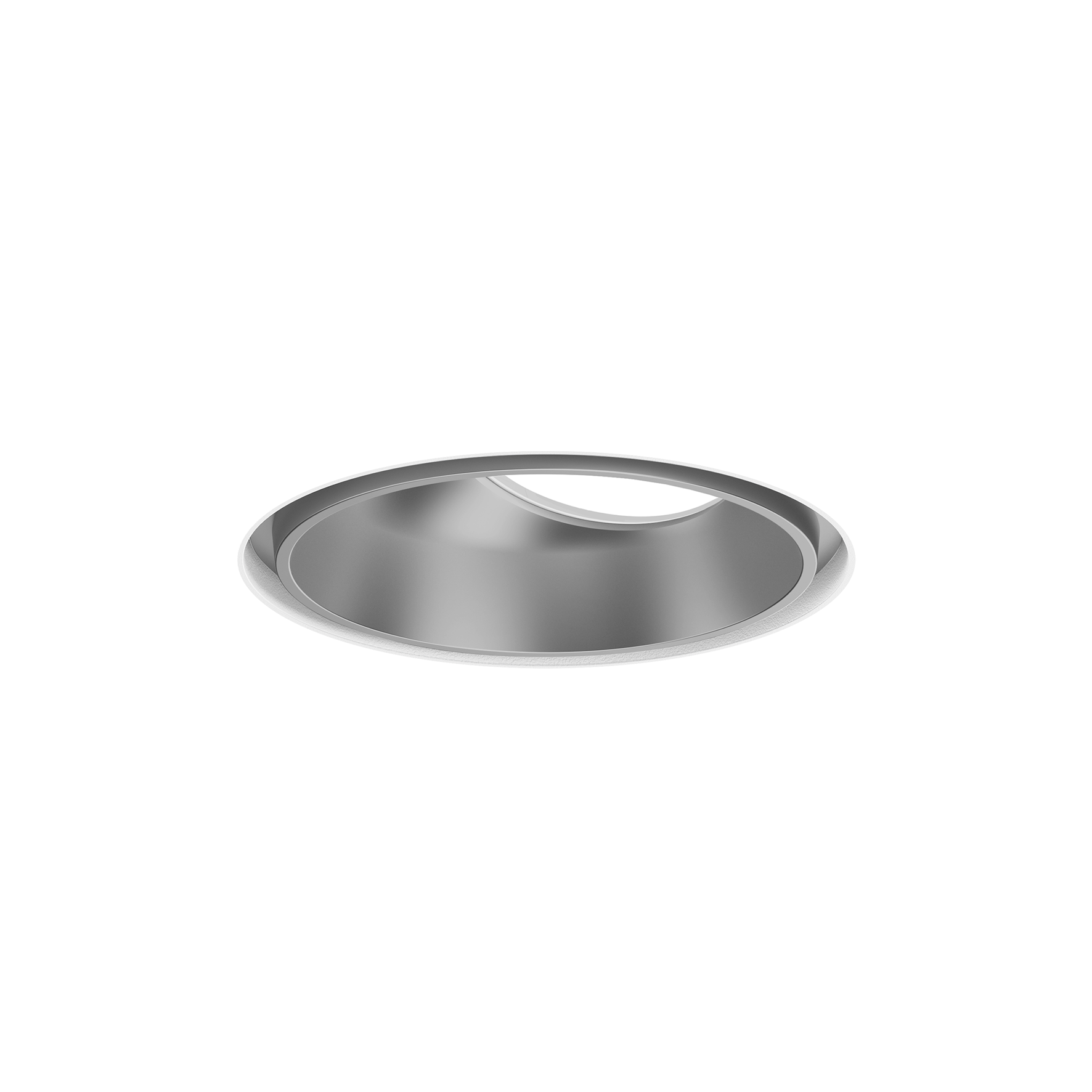

SASSO 60 round adjustable

trimless

048-2622114S 048-2696117 002-90746

discontinued

Quickinfo

4000 K
CRI ≥ 90 / 2
UGR < 16 / 65° ≤ 1,500 cd/m²
59 lm/W
DALI-2
IP40, back IP20

Colour

matt silver

Mounting set

traffic white

Datasheet

Technical data

General

Ceiling
Recessed
tilt max 30°
rotation 360°
matt silver
Mounting set traffic white
front IP40
back IP20
614 lm
system 59 lm/W ¹
fixture 69 lm/W ²

LED

4000 K
CRI ≥ 90
initial MacAdam ≤ 2 SDCM
R_g: 98
R_f: 90
R_{1-15}: 88
MR 0.8
MDER 0.72

Optical

spot
beam angle 12°
UGR < 16
≥65° <1500 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ³
SVM ≤ 0.4 ³

Electrical

DALI-2
220-240 V
system 10.4 W
fixture 8.8 W
36 Vf
250 mA
PC2
1 DALI Addr.

Physical

trimless
diameter 73 mm
height 48 mm
0.28 kg

Cutout

diameter 73 mm
recessed depth 120 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B16

C10

C16

Number of Fixtures

^¹ incl. consideration of optical losses, internal control unit losses & operating device efficiency ^² incl. consideration of optical losses & internal control unit losses ^³ Value of containing product at full load (undimmed)

Specification text

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 4000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 12° beam; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; degree of protection from below IP40 (from above IP20); PC2; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
