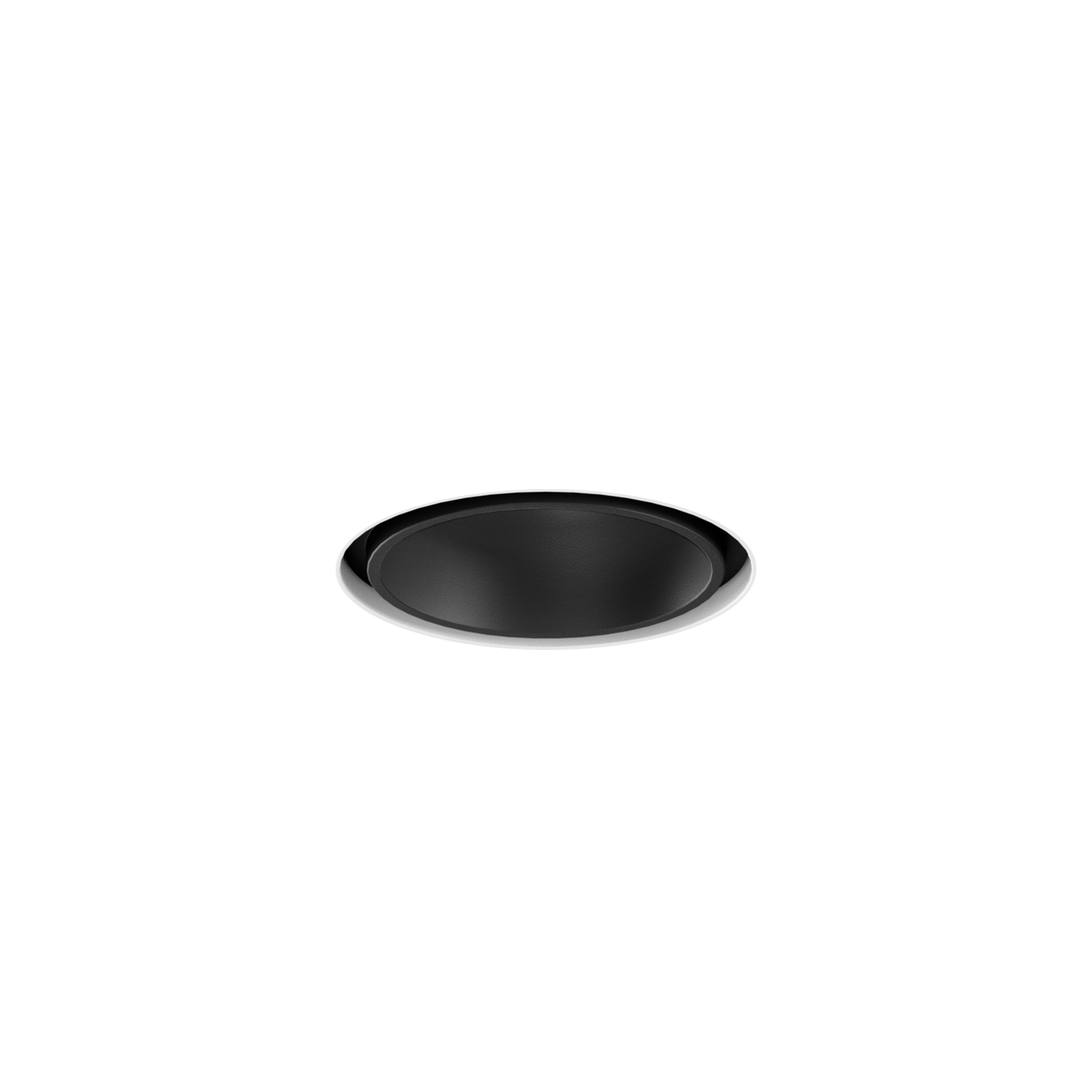

SASSO 40 round adjustable

trimless

048-2820511F 048-2896117 002-90744

discontinued

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM
UGR < 19 / 65° ≤ 3,000 cd/m²
40 lm/W
L85 / 50000 h
non DIM
IP40, back IP20

Colour

black | RAL9005

Mounting set

traffic white

Datasheet

Technical data

General

Ceiling
Recessed
tilt max 30°
rotation 360°
black
Mounting set traffic white
RAL9005 ¹
front IP40
back IP20
399 lm

LED

3000 K
CRI ≥ 90
L85 / 50000 h
initial MacAdam ≤ 3 SDCM
R_g: 100
R_f: 89
R_{1-15}: 89
MR 0.56
MDER 0.51

Optical

flood
beam angle 44°
UGR < 19
≥65° <3000 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ²
SVM ≤ 0.4 ²

Electrical

non DIM
9.9 W
inset 7.5 W
36 Vf
200 mA
PC2 220-240V
40 lm/W ³
inset 54 lm/W ⁴

Physical

trimless
diameter 56 mm
height 50 mm
0.61 kg

Cutout

diameter 56 mm
recessed depth 60 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

115

^¹ RAL code ^² Value of containing product at full load (undimmed) ^³ incl. consideration of optical losses, internal control unit losses & operating device efficiency ^⁴ incl. consideration of optical losses & internal control unit losses

Specification text

Round recessed spotlight in die-cast aluminium; surface black; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 44° beam; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; degree of protection from below IP40 (from above IP20); PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
