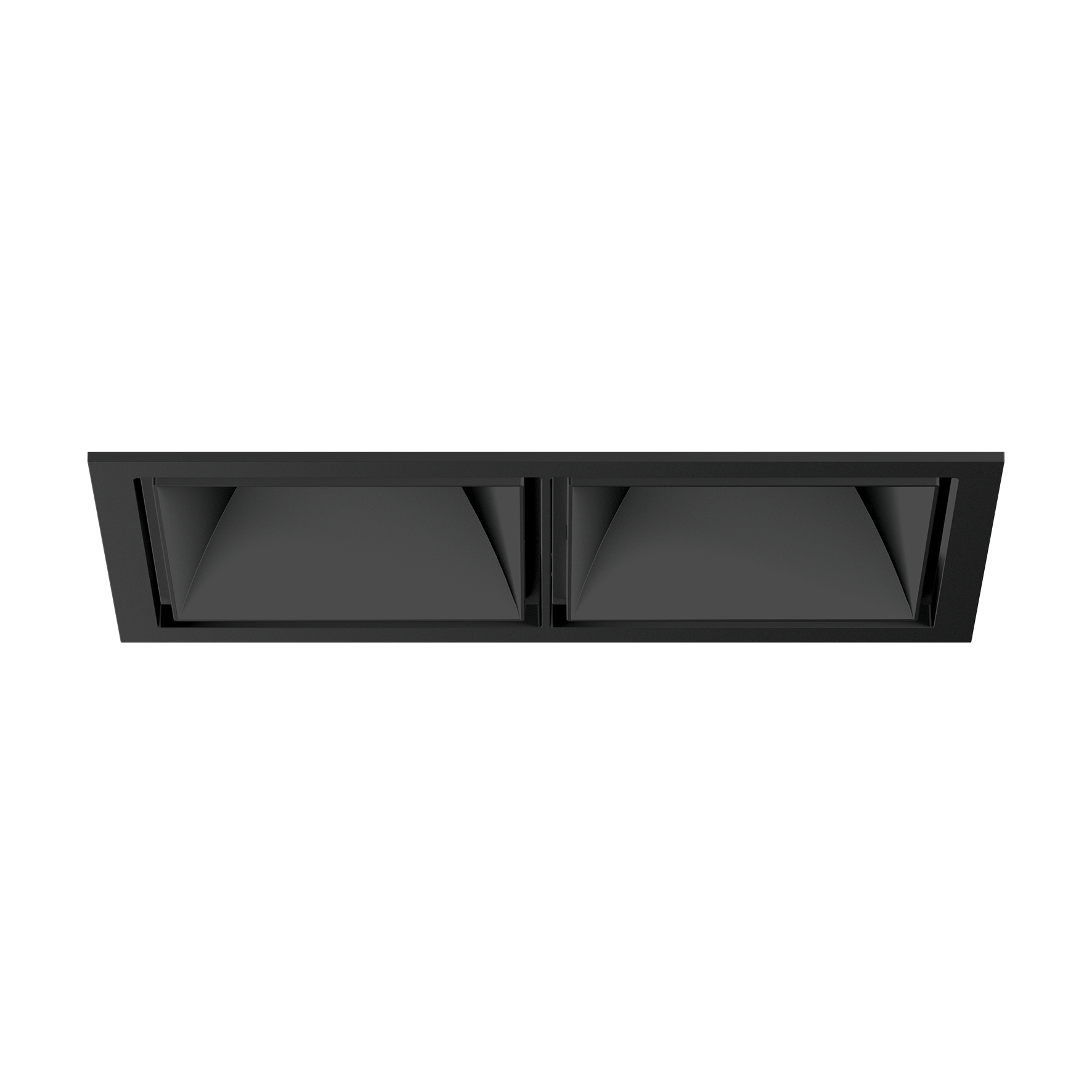

SASSO 100 square downlight
trim 2 lamps
048-2710111S 048-2799318 002-90780
Quickinfo
4000 KCRI ≥ 90 / 2 SDCM (initial MacAdam)
UGR ≤ 13
101 lm/W
L80 / 50000 h
non DIM
IP44, back IP20
Colour
Mounting set
General
- Ceiling
- Recessed
- jet black
- Mounting set jet black
- RAL 9005
- front IP44
- back IP20
- 4580 lm
- fixture 101 lm/W 1
LED
- 4000 K
- CRI ≥ 90
- L80 / 50000 h
- ≤ 2 SDCM (initial MacAdam)
- Rg: 98
- Rf: 90
- R{1-15}: 88
- MR 0.8
- MDER 0.72
Optical
- spot
- beam angle 20°
- UGR ≤ 13
Electrical
- non DIM
- 220-240 V
- system 52 W
- fixture 22.7 W
- total fixtures 45 W
- 650 mA
- 36 Vf
- PC2
Physical
- trim
- length 218 mm
- width 118 mm
- height 75 mm
- 0.51 kg
Cutout
- length 210 mm
- width 112 mm
- min. ceiling thickness 2 mm
- max. ceiling thickness 25 mm
- recessed depth 100 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Recessed square spotlight in die-cast aluminium; 2 lamps; surface jet black; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 4000 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 20° beam; UGR ≤ 13; degree of protection from below IP44 (from above IP20); PC2; 220-240 V; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
