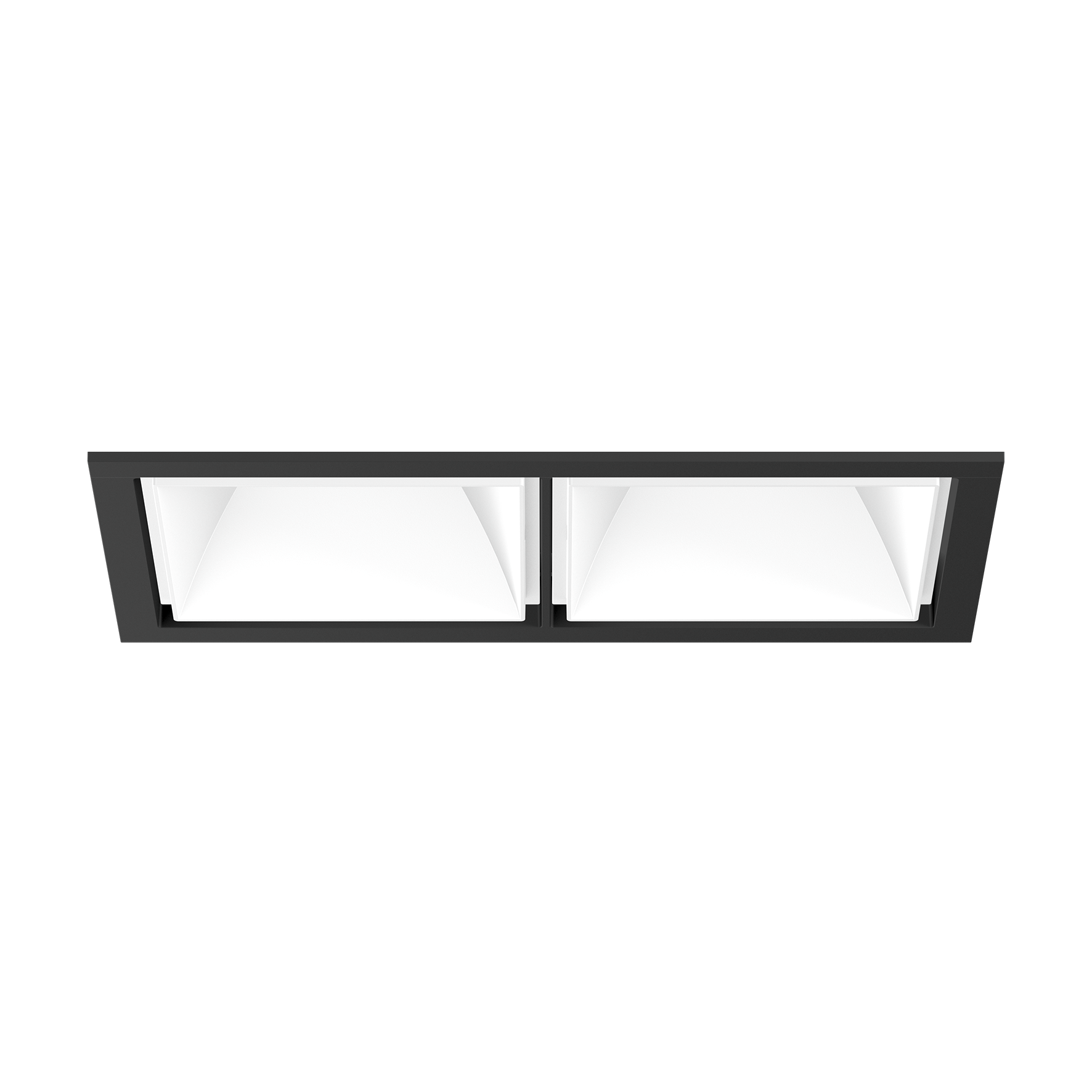

SASSO 100 square downlight
trim 2 lamps
048-2710E17M 048-2799318 002-90776
Quickinfo
colour warm dimming 1800 - 3000 KCRI ≥ 90 / 3 SDCM (initial MacAdam)
88 lm/W
L90 / 50000 h
DALI-2
IP40, back IP20
Colour
Mounting set
General
- Ceiling
- Recessed
- traffic white
- Mounting set jet black
- RAL 9016
- front IP40
- back IP20
- 4180 lm
- fixture 88 lm/W 1
LED
- colour warm dimming
- 1800 - 3000 K
- CRI ≥ 90
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- Rg: 100
- Rf: 89
- R{1-15}: 89
- MR 0.56
- MDER 0.51
Optical
- medium
- beam angle 34°
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 220-240 V
- system 54 W
- fixture 23.8 W
- total fixtures 48 W
- 700 mA
- PC2
- 1 DALI Addr.
Physical
- trim
- length 218 mm
- width 118 mm
- height 75 mm
- 0.59 kg
Cutout
- length 210 mm
- width 112 mm
- min. ceiling thickness 2 mm
- max. ceiling thickness 25 mm
- recessed depth 100 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Recessed square spotlight in die-cast aluminium; 2 lamps; surface traffic white; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 1800 - 3000 K colour warm dimming; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 34° beam; degree of protection from below IP40 (from above IP20); PC2; 220-240 V; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
