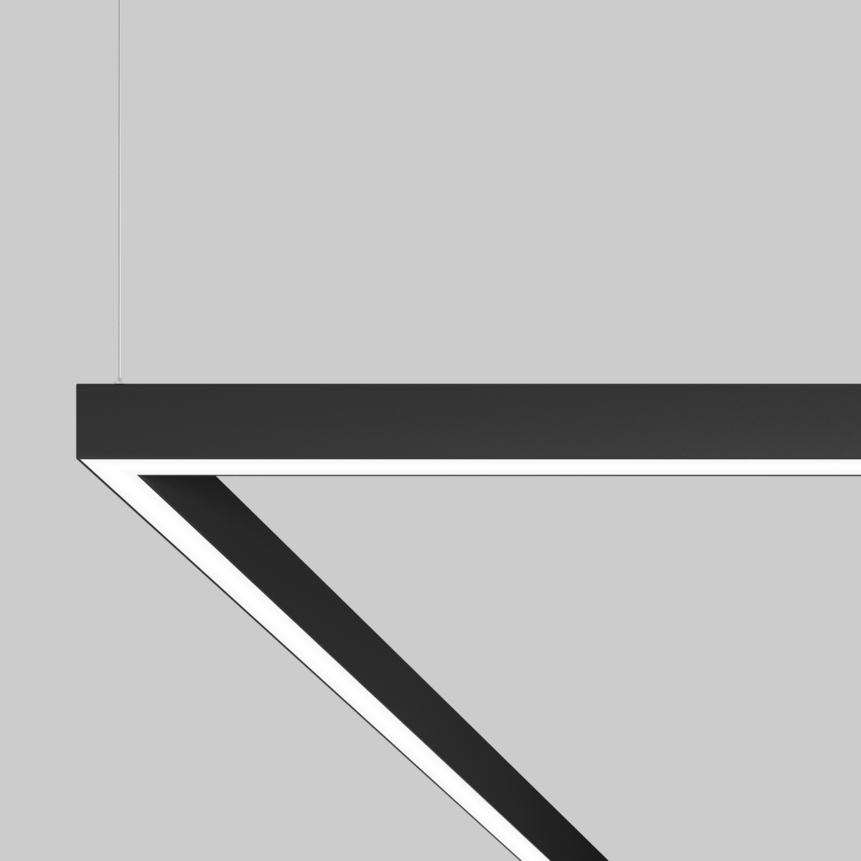

MINO 40 mid lumen

ceiling / suspended system

042-1014038 006-4220010H

discontinued

Quickinfo

90 / 3
L85 / 50000 h
DALI-2
PC1 220-240V

Colour

General

  • Ceiling
  • Suspended
  • black
  • RAL 9005
  • 1410 lm/m
  • IP20
  • 2830 lm

LED

  • LED
  • 3000 K
  • CRI ≥ 90
  • L85 / 50000 h
  • photobio. safety RG 0 - no Risk
  • initial MacAdam ≤ 3 SDCM
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.5
  • MDER 0.55

Optical

  • High Performance Opal

Electrical

  • DALI-2
  • 25.6 W
  • PC1 220-240V
  • 111 lm/W 1
  • 13 W/m

Physical

  • length 2000 mm
  • width 40 mm
  • height 65 mm
  • 3 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

7
10
12
14
10
20
24
28
1 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Luminaire housing made of extruded aluminium profile; angular design; for continuous lighting systems; light tight final end caps made of aluminium (available as an accessory); no visible screws; surface black powder coated; for ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); height adjustment without tools; luminaire profile can be pre-mounted; pre-assembled power rail for power supply in luminaire profile; voltage tap of the light inset on the power rail; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination; degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Download all

Accessories

Suspensions

article number
colour
dimensions
cable length
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg

Electrical mounting

article number
colour
dimensions
CANOPY
005-2311217
traffic white
RAL 9016
length 90 mm
width 90 mm
height 22 mm
0.12 kg
CANOPY
005-2311218
jet black
RAL 9005
length 90 mm
width 90 mm
height 22 mm
0.11 kg

Mounting

article number
colour
dimensions
END CAPS
042-1090017
pure white
RAL 9010
length 65 mm
width 40 mm
height 4 mm
0.05 kg
END CAPS
042-1090018
jet black
RAL 9005
length 65 mm
width 40 mm
height 4 mm
0.05 kg
END CAPS
042-109001G
white aluminium
RAL 9006
length 65 mm
width 40 mm
height 4 mm
0.05 kg
END CAPS
042-109001X
special colours
length 65 mm
width 40 mm
height 4 mm
0.05 kg
OPAL COVER LINEAR CONNECTOR
042-1091910
pure white
RAL 9010
length 120 mm
width 36 mm
height 14 mm
0.02 kg
LINEAR CONNECTOR
042-7091110
jet black
RAL 9005
length 120 mm
width 36 mm
height 14 mm
0.05 kg
CEILING FASTENER
050-2041117
traffic white
RAL 9016
length 67 mm
width 31 mm
height 8 mm
0.01 kg
CEILING FASTENER
050-2041118
jet black
RAL 9005
length 67 mm
width 31 mm
height 8 mm
0.03 kg

Feeder

article number
dimensions
POWER FEEDER UNIT
042-1093230
length 80 mm
width 36 mm
height 17 mm
0.07 kg
