GIRA downlight
MOVE IT 10
030-6410538M
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM
83 lm/W
L85 / 50000 h
DALI-2
IP20 / PC3 / 48 V
Colour
General
- Ceiling
- Track
- rotation 360°
- jet black
- RAL 9005 1
- IP20
- 1370 lm
- optical inset 83 lm/W2
LED
- 3000 K
- CRI ≥ 90
- L85 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 98
- Rf: 91
- R{1-15}: 89
- MR 0.6
- MDER 0.55
Optical
- medium
- beam angle 23°
- ≤ 1.0 3
- SVM ≤ 0.4 3
Electrical
- DALI-2
- 48 V
- fixture 18.2 W
- optical inset 16.4 W
- PC3
- 1 DALI Addr.
Physical
- length 217 mm
- width 19 mm
- height 19 mm
- 0.17 kg

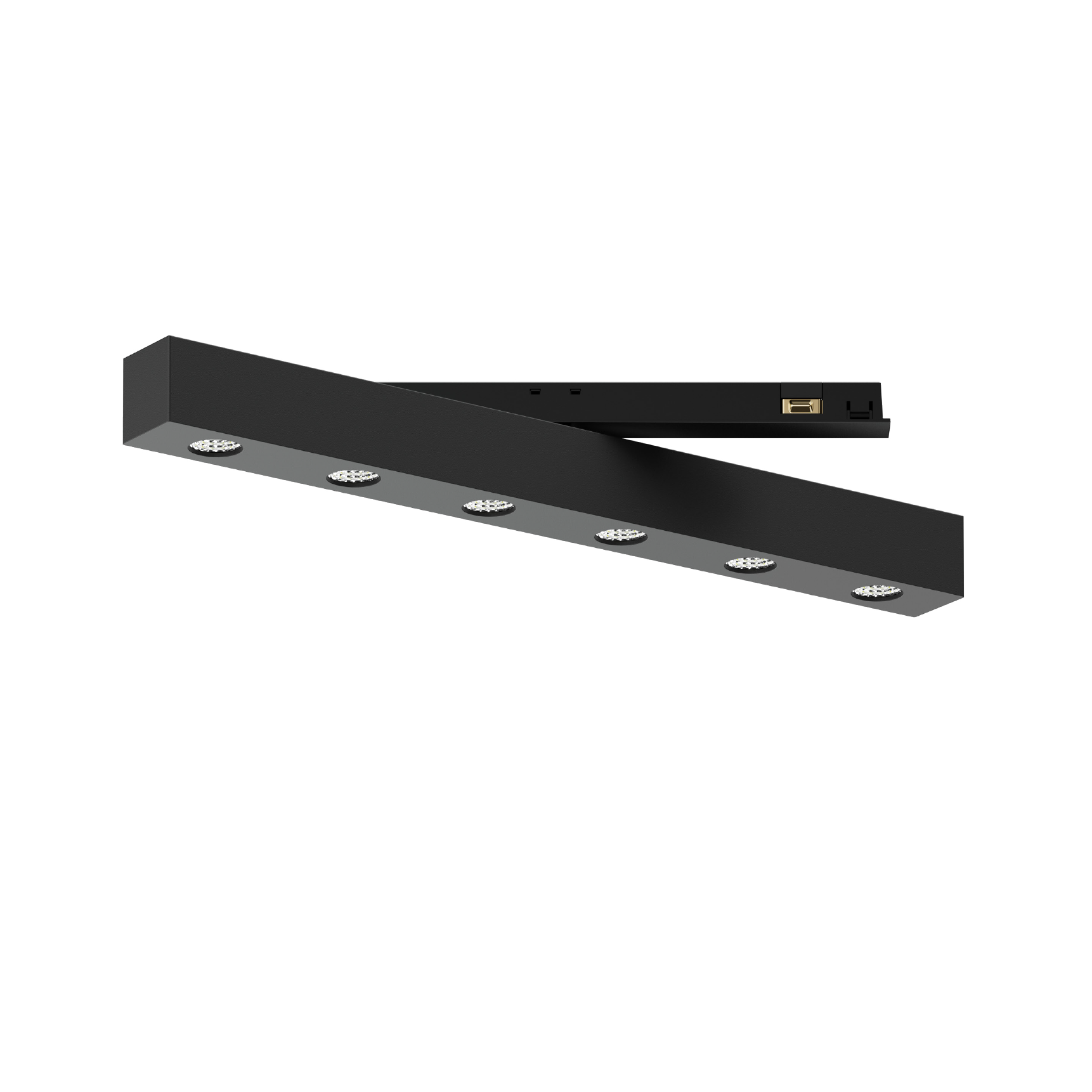

Linear light inset made of aluminium; surface jet black powder coated; light inset 360° rotatable; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; fitted with single LED light points; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; precise radiation characteristic with 23° beam; degree of protection IP20; PC3; 48 V; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
