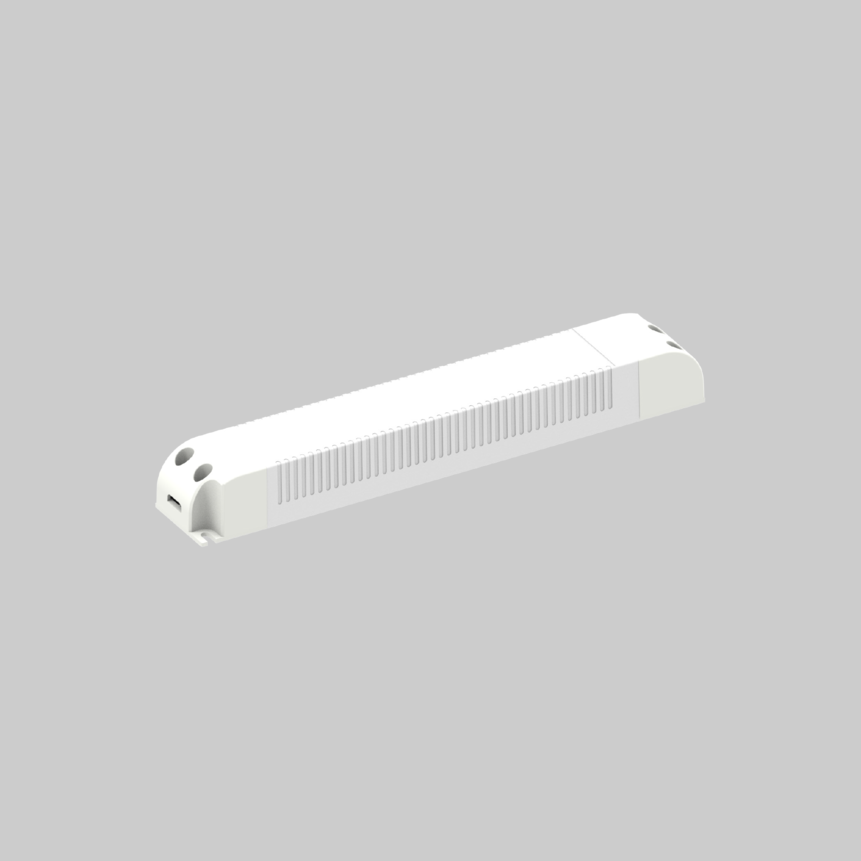

POWER SUPPLY 24V UL
011-9282310
Electrical
- non DIM
- PC2
- 60 W
- non DIM
- min 120 V AC
- max 277 V AC
- η 88 %
- Not yet specified! (use PM Converter Output Window)
- min 50 Hz
- max 60 Hz
- constant current 350 mA
Physical
- length 250 mm
- width 40 mm
- height 30 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
C10
C13
C16
Number of Converters
15
20
25
15
20
25
