INDIRECT EXTENSION low power MOVE IT PRO;INDIRECT EXTENSION high power MOVE IT PRO

INDIRECT EXTENSION low power MOVE IT PRO

086-6800430B

New

Quickinfo

indirect extension low power

Colour

General

  • indirect extension low power
  • white
  • IP20
  • 374 lm

LED

  • 2700 K
  • CRI ≥ 80
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • MR 0.48
  • MDER 0.44

Optical

  • UGR < 10
  • ≥65° <1500 cd/m²

Electrical

  • 2.8 W
  • PC3
  • 134 lm/W

Physical

  • length 250 mm
  • width 24 mm
  • height 6 mm

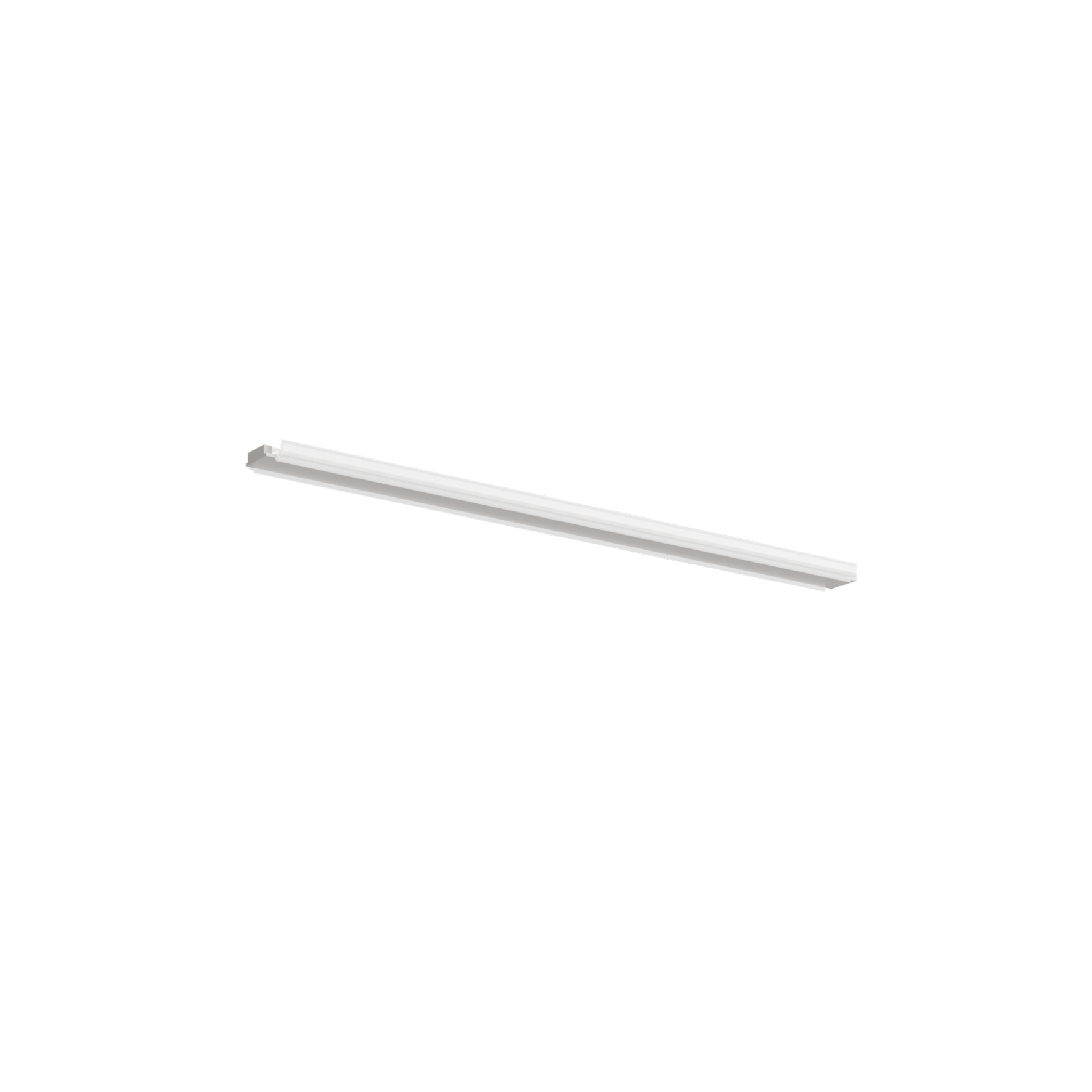

Linear light inset made of plastic; light inset can be installed flexibly and without tools; flush with profile system; power supplied via INDIRECT MOVE IT PRO inset; with indirect light component for additional accentuation of the ceiling; high quality lens system for maximum, homogeneous ceiling illumination; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC3; light source replaceable by an authorized professional;
