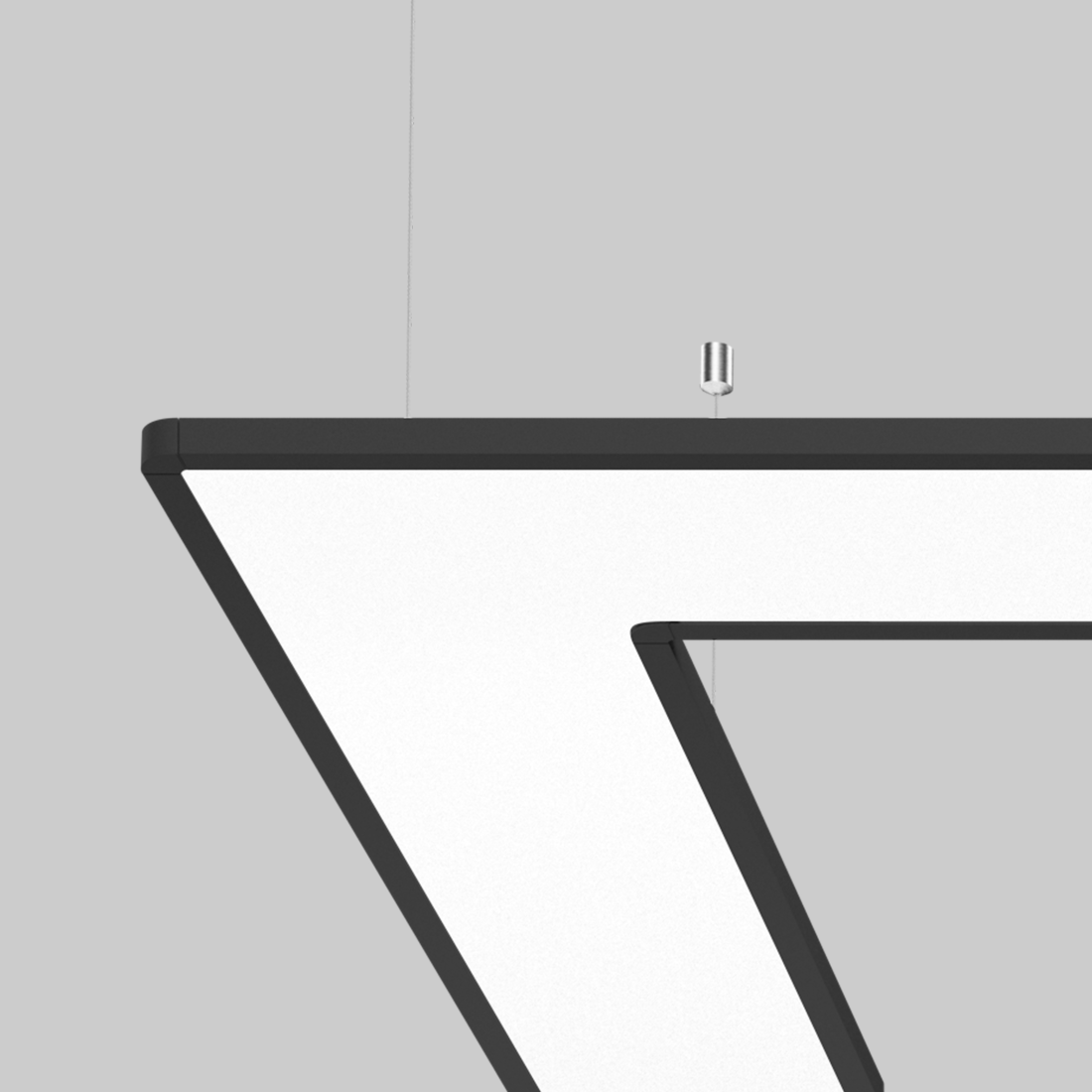

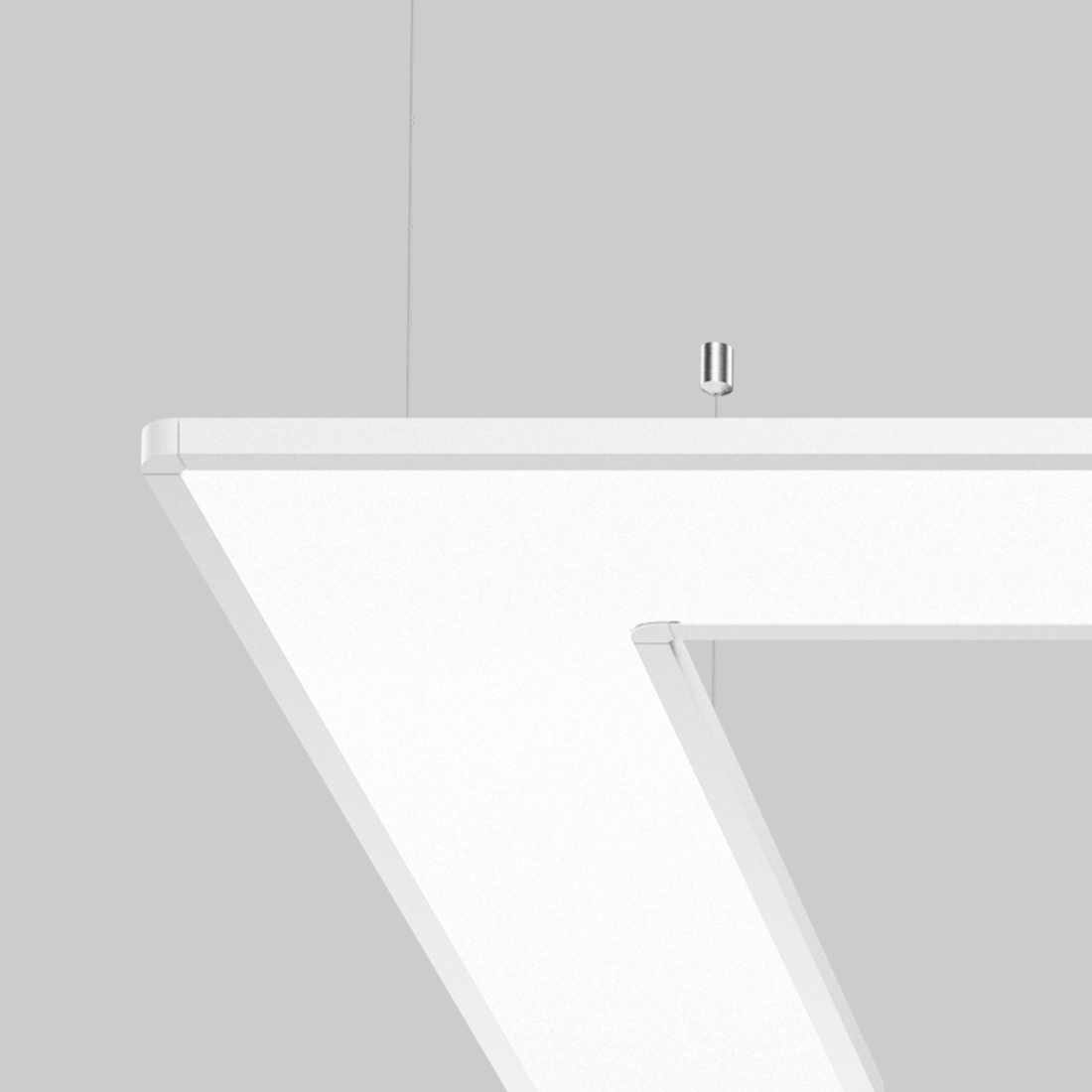

TASK S CORNER direct suspended system;TASK S CORNER direct / indirect power suspended system;TASK S CORNER direct / indirect soft suspended system
TASK S CURVE direct suspended system;TASK S CURVE direct / indirect power suspended system;TASK S CURVE direct / indirect soft suspended system
TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system
TASK S CORNER direct suspended system;TASK S CORNER direct / indirect power suspended system;TASK S CORNER direct / indirect soft suspended system
TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system
TASK S CURVE direct suspended system;TASK S CURVE direct / indirect power suspended system;TASK S CURVE direct / indirect soft suspended system

TASK S

suspended system

Infos rapides

3000 K, 4000 K, tunable white
CRI ≥ 80, 90 / 3 SDCM
UGR ≤ 19
jusqu'à 8,270 lm/↑ 4,470 lm
jusqu'à 122 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, DALI-2 sensor
Microprismatic
IP20

Couleur

  • Dessin simple

    Distribution de la lumière

    Données sur les produits et documents de spécification

    Téléchargement global
    • ROLF
    • ULD

    Description

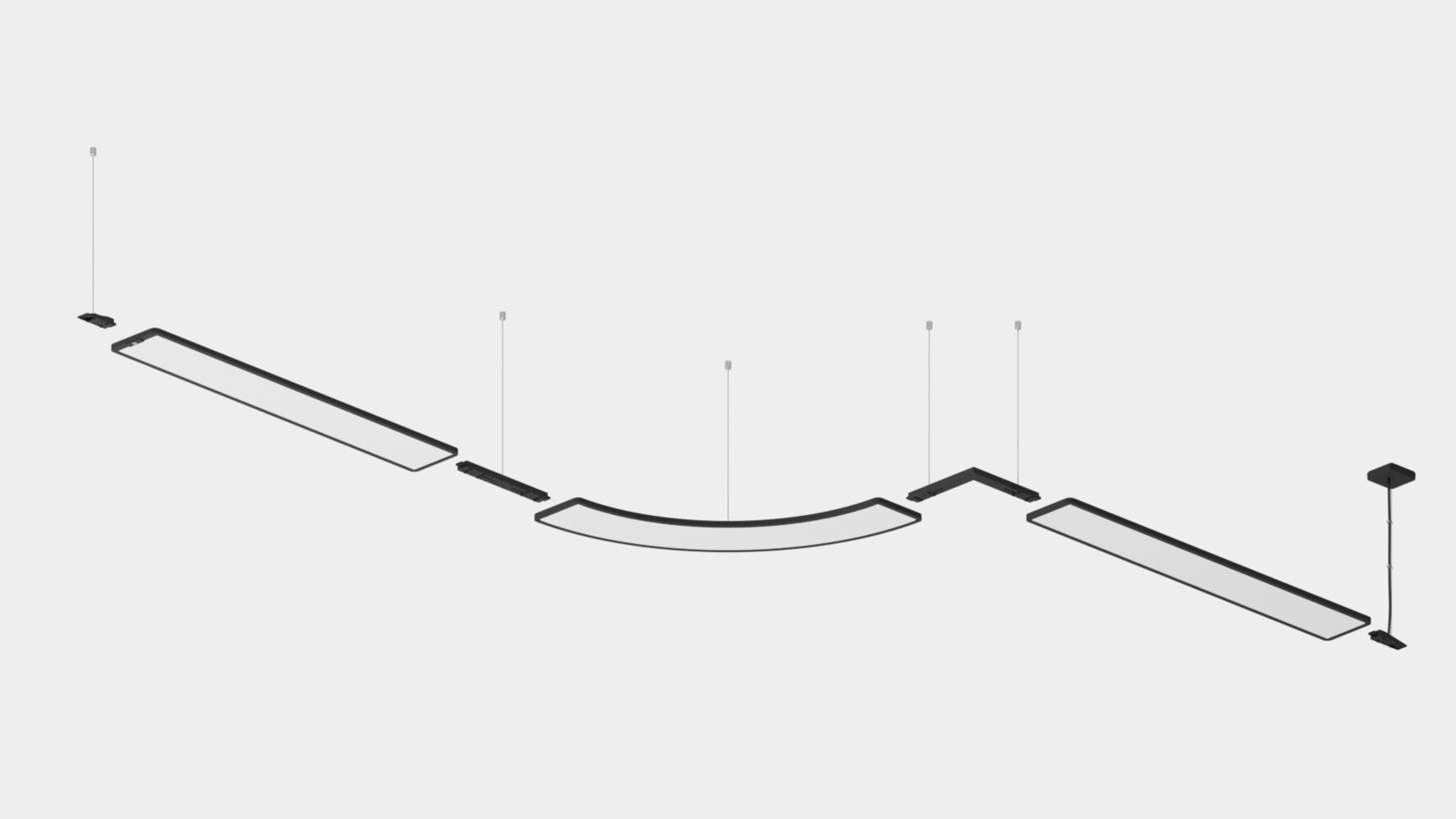

    Corps du luminaire en aluminium avec bords arrondis ; différentes variantes : forme de construction au choix rectangulaire, en forme de L ou comme segment de quart-de-cercle ; forme extrêm. plate (15 mm seulement) ; pour systèmes d’éclairage continus ; surface thermolaquée ; suspension à câble réglable en hauteur sans outil ; système de montage rapide, convivial et sans outil ; distribution de lumière directe ou directe/indirecte par LGP-Body (Light Guiding Prism) ; lumière couplée latéralement par gravure laser, dirigée vers le bas ou vers le haut et le bas ; guidage lumière au moyen de matériau réflecteur hautement réfléchissant ; en option : partie indirecte avec platines dédiées pour un flux lumineux accru et un éclairage maximal du plafond ; éclairage parfaitement homogène ; LED économes en énergie à restitution de couleur élevée ; cache-piton pour câblage continu ; accessoires doté de propriétés d'absorption acoustique

    DiiA® standards 251, 252, 253

    DIN EN 12464-1 UGR ≤ 19

    système à clic

    connecteur système

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (facultatif)

    System components

    Click to see components

    TASK S CURVE direct suspended system;TASK S CURVE direct / indirect power suspended system;TASK S CURVE direct / indirect soft suspended system

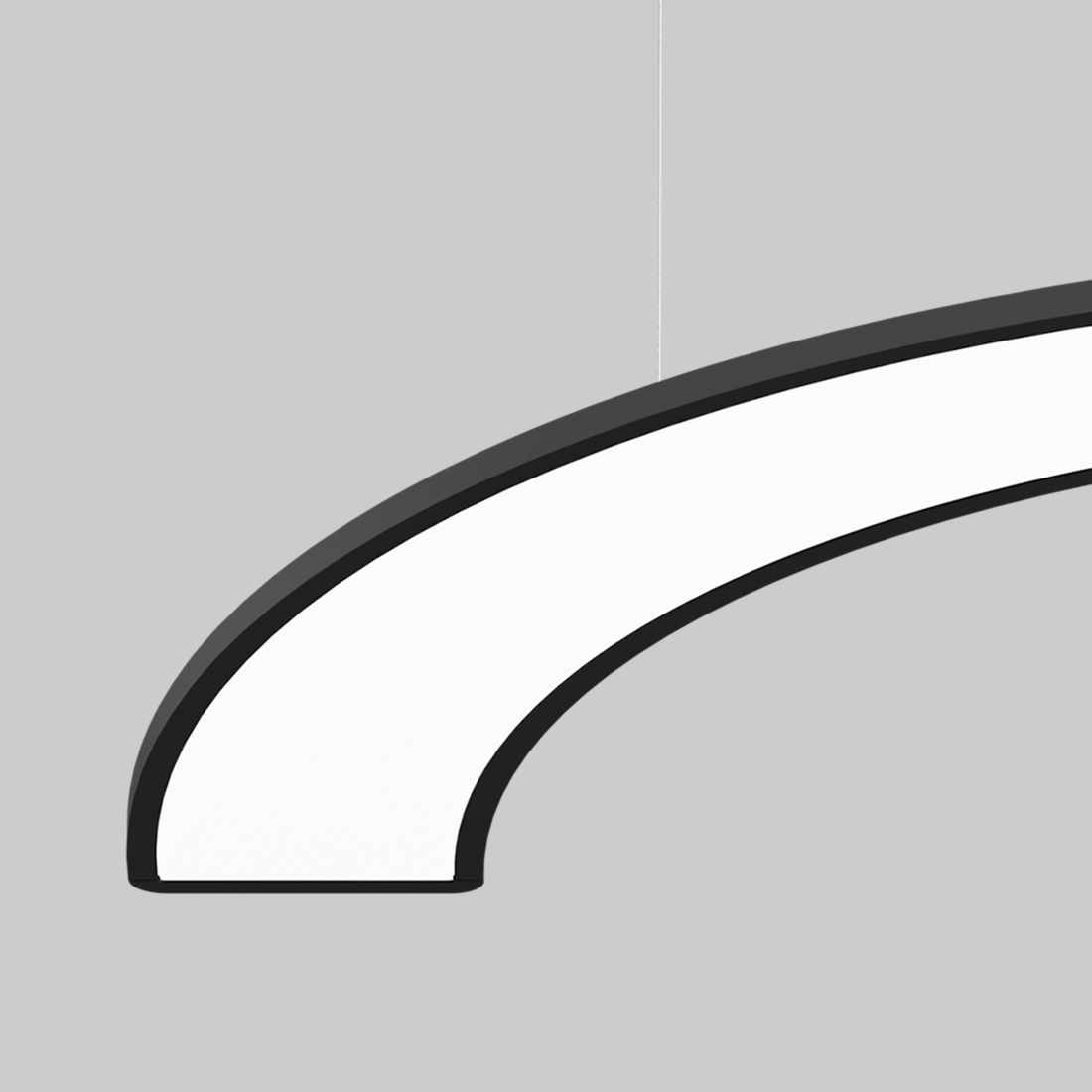

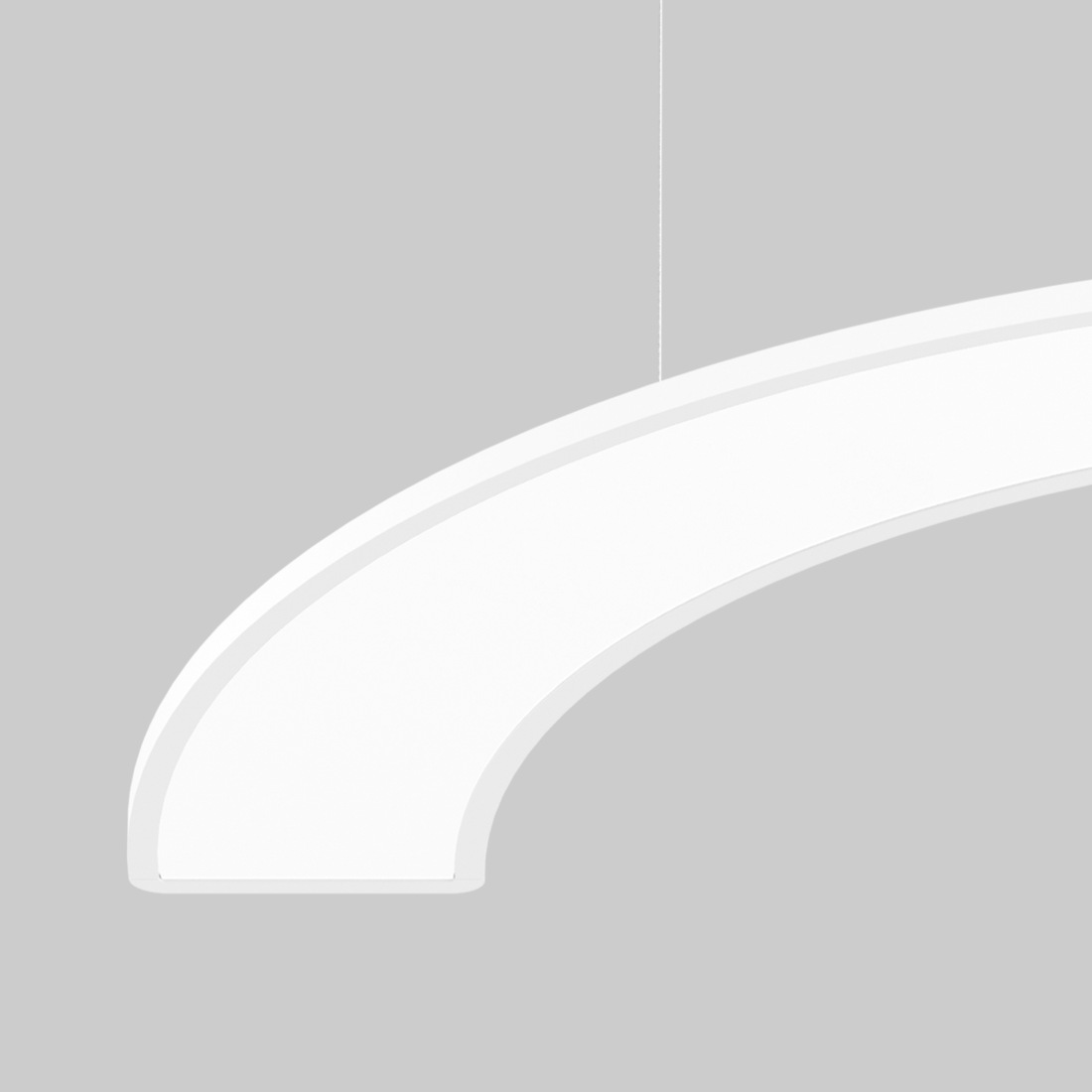

    TASK S curve direct suspended system

    3000 K, 4000 K, tunable white
    CRI ≥ 80, 90 / 3 SDCM
    UGR ≤ 19
    jusqu'à 8,270 lm/↑ 4,470 lm
    jusqu'à 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 sensor
    Microprismatic
    IP20
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

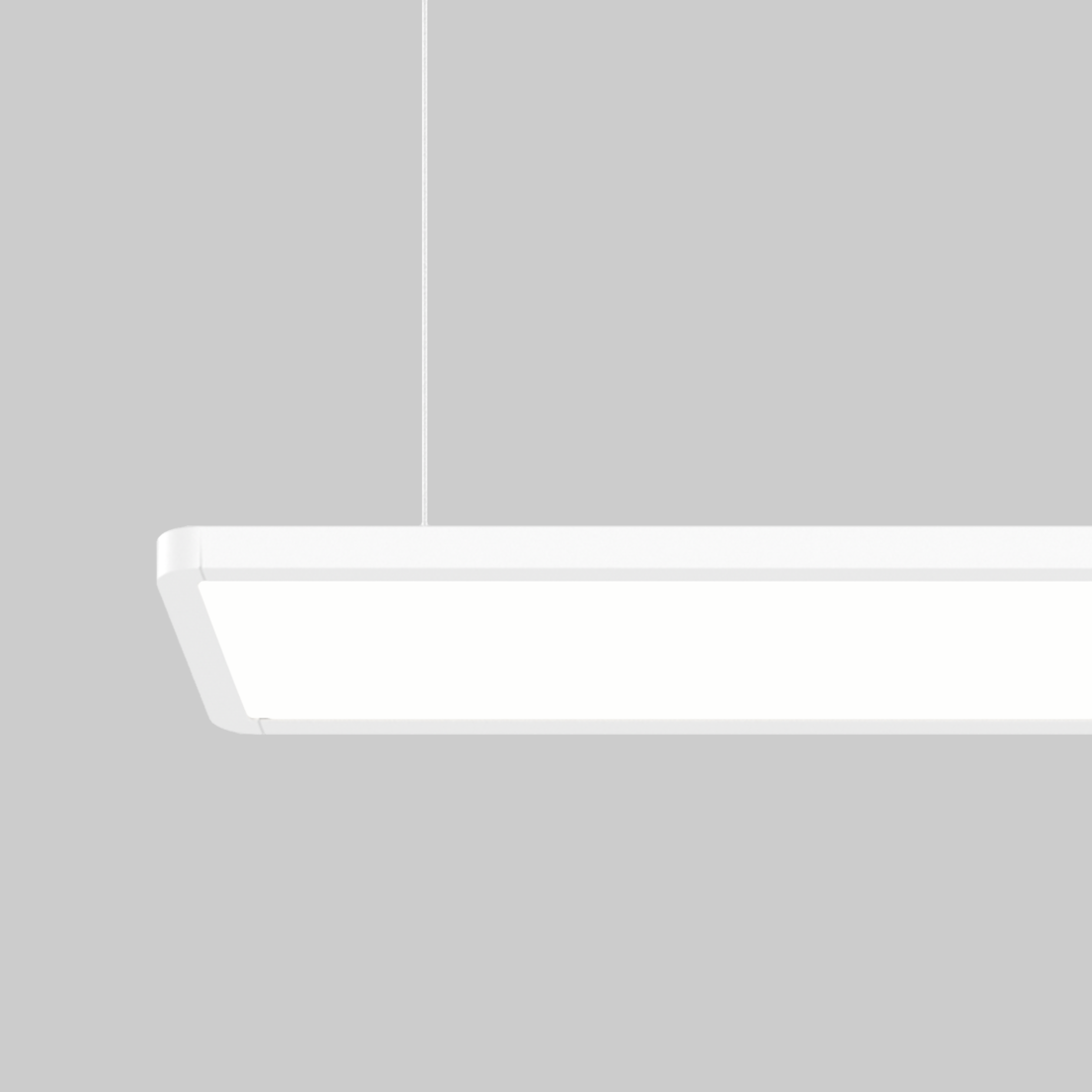

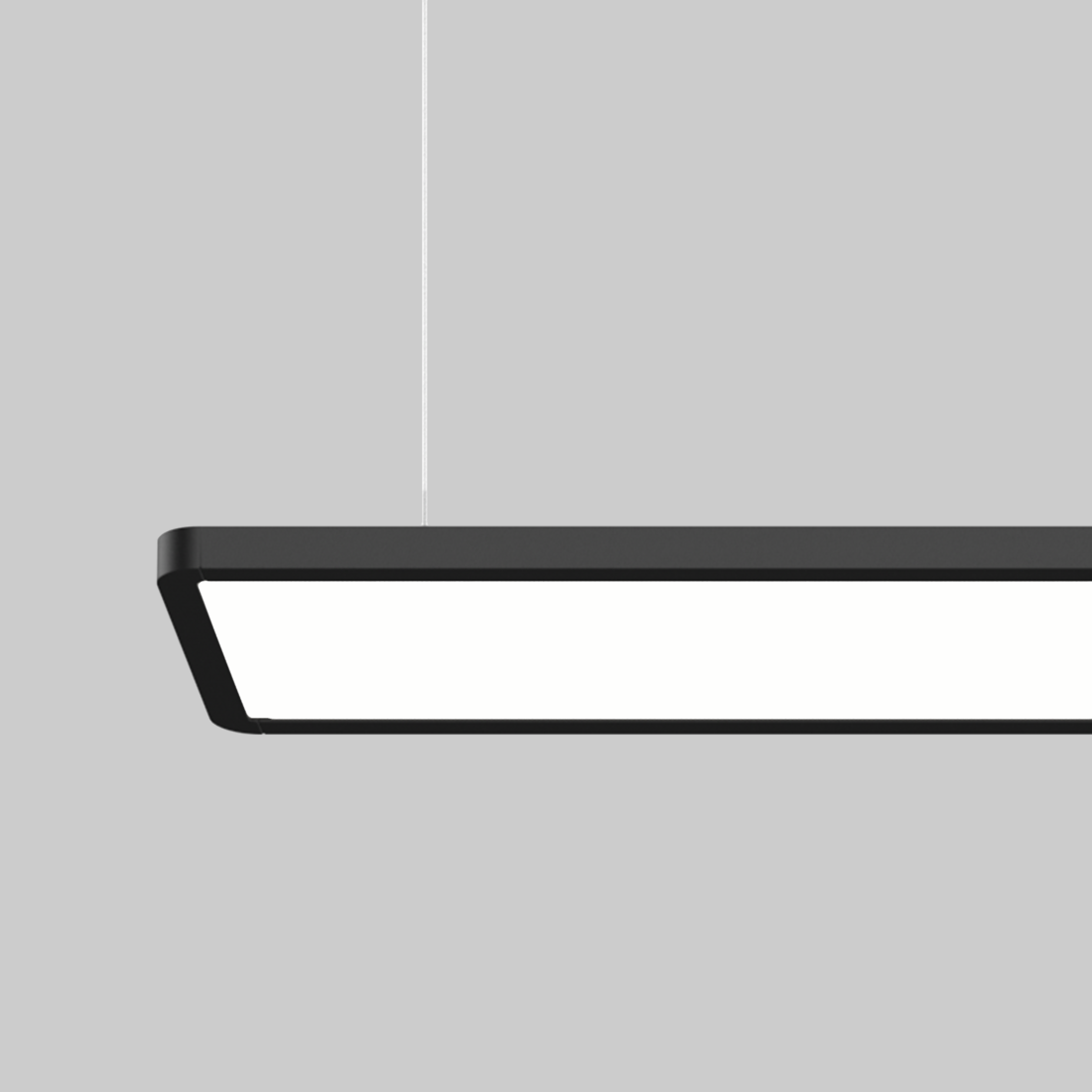

    TASK S linear direct / indirect power suspended system

    3000 K, 4000 K, tunable white
    CRI ≥ 80, 90 / 3 SDCM
    UGR ≤ 19
    jusqu'à 8,270 lm/↑ 4,470 lm
    jusqu'à 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 sensor
    Microprismatic
    IP20

    TASK LINEAR CONNECTOR

    90° | mécanique, 90° | mécanique et électrique, mécanique, mécanique et électrique

    CABLE SUSPENSION

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Produits et codes

    Filtre
    103
    lm/W
    122
    lm/W
    1460
    lm
    3110
    lm
    327
    lm
    4470
    lm
    1180
    mm
    2324
    mm
    12.9
    W
    117
    W
    0.61
    1.01
    0.56
    0.92

    Couleur

  • TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, 3000 K, 49 W, 106 lm/W, 1 180 mm
    DALI-2
    blanc, 4000 K, 49 W, 110 lm/W, 1 180 mm
    DALI-2
    blanc, 3000 K, 61 W, 106 lm/W, 1 457 mm
    DALI-2
    blanc, 4000 K, 61 W, 110 lm/W, 1 457 mm
    DALI-2
    blanc, 3000 K, 71 W, 107 lm/W, 1 748 mm
    DALI-2
    blanc, 4000 K, 71 W, 111 lm/W, 1 748 mm
    DALI-2
    blanc, 3000 K, 92 W, 113 lm/W, 2 315 mm
    DALI-2
    blanc, 4000 K, 92 W, 117 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, 3000 K, 49 W, 106 lm/W, 1 180 mm
    DALI-2
    noir, 4000 K, 49 W, 110 lm/W, 1 180 mm
    DALI-2
    noir, 3000 K, 61 W, 106 lm/W, 1 457 mm
    DALI-2
    noir, 4000 K, 61 W, 110 lm/W, 1 457 mm
    DALI-2
    noir, 3000 K, 71 W, 107 lm/W, 1 748 mm
    DALI-2
    noir, 4000 K, 71 W, 111 lm/W, 1 748 mm
    DALI-2
    noir, 3000 K, 92 W, 113 lm/W, 2 315 mm
    DALI-2
    noir, 4000 K, 92 W, 117 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, 3000 K, 42 W, 114 lm/W, 1 180 mm
    DALI-2
    blanc, 4000 K, 42 W, 121 lm/W, 1 180 mm
    DALI-2
    blanc, tunable white, 62 W, 103 lm/W, 1 180 mm
    DALI-2
    blanc, 3000 K, 53 W, 113 lm/W, 1 457 mm
    DALI-2
    blanc, 4000 K, 53 W, 120 lm/W, 1 457 mm
    DALI-2
    blanc, tunable white, 77 W, 103 lm/W, 1 457 mm
    DALI-2
    blanc, 3000 K, 63 W, 114 lm/W, 1 748 mm
    DALI-2
    blanc, 4000 K, 63 W, 121 lm/W, 1 748 mm
    DALI-2
    blanc, tunable white, 85 W, 105 lm/W, 1 748 mm
    DALI-2
    blanc, 3000 K, 84 W, 114 lm/W, 2 315 mm
    DALI-2
    blanc, 4000 K, 84 W, 121 lm/W, 2 315 mm
    DALI-2
    blanc, tunable white, 117 W, 109 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, 3000 K, 42 W, 114 lm/W, 1 180 mm
    DALI-2
    noir, 4000 K, 42 W, 121 lm/W, 1 180 mm
    DALI-2
    noir, tunable white, 62 W, 103 lm/W, 1 180 mm
    DALI-2
    noir, 3000 K, 53 W, 113 lm/W, 1 457 mm
    DALI-2
    noir, 4000 K, 53 W, 120 lm/W, 1 457 mm
    DALI-2
    noir, tunable white, 77 W, 103 lm/W, 1 457 mm
    DALI-2
    noir, 3000 K, 63 W, 114 lm/W, 1 748 mm
    DALI-2
    noir, 4000 K, 63 W, 121 lm/W, 1 748 mm
    DALI-2
    noir, tunable white, 85 W, 105 lm/W, 1 748 mm
    DALI-2
    noir, 3000 K, 84 W, 114 lm/W, 2 315 mm
    DALI-2
    noir, 4000 K, 84 W, 121 lm/W, 2 315 mm
    DALI-2
    noir, tunable white, 117 W, 109 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, 3000 K, 19,5 W, 114 lm/W, 1 180 mm
    DALI-2
    blanc, 4000 K, 19,5 W, 122 lm/W, 1 180 mm
    DALI-2
    blanc, 3000 K, 24,4 W, 114 lm/W, 1 457 mm
    DALI-2
    blanc, 4000 K, 24,4 W, 122 lm/W, 1 457 mm
    DALI-2
    blanc, 3000 K, 29,2 W, 115 lm/W, 1 748 mm
    DALI-2
    blanc, 4000 K, 29,2 W, 122 lm/W, 1 748 mm
    DALI-2
    blanc, 3000 K, 39 W, 114 lm/W, 2 315 mm
    DALI-2
    blanc, 4000 K, 39 W, 122 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, 3000 K, 19,5 W, 114 lm/W, 1 180 mm
    DALI-2
    noir, 4000 K, 19,5 W, 122 lm/W, 1 180 mm
    DALI-2
    noir, 3000 K, 24,4 W, 114 lm/W, 1 457 mm
    DALI-2
    noir, 4000 K, 24,4 W, 122 lm/W, 1 457 mm
    DALI-2
    noir, 3000 K, 29,2 W, 115 lm/W, 1 748 mm
    DALI-2
    noir, 4000 K, 29,2 W, 122 lm/W, 1 748 mm
    DALI-2
    noir, 3000 K, 39 W, 114 lm/W, 2 315 mm
    DALI-2
    noir, 4000 K, 39 W, 122 lm/W, 2 315 mm
    DALI-2
    TASK S LINEAR direct suspended system;TASK S LINEAR direct / indirect power suspended system;TASK S LINEAR direct / indirect soft suspended system;TASK S LINEAR sensor direct suspended system;TASK S LINEAR sensor direct / indirect power suspended system;TASK S LINEAR sensor direct / indirect soft suspended system;TASK S LINEAR sensor direct / indirect TW power suspended system;TASK S LINEAR direct / indirect TW power suspended system

    TASK S linear direct suspended system

    TASK S linear direct suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, 3000 K, 12,9 W, 113 lm/W, 1 180 mm
    DALI-2
