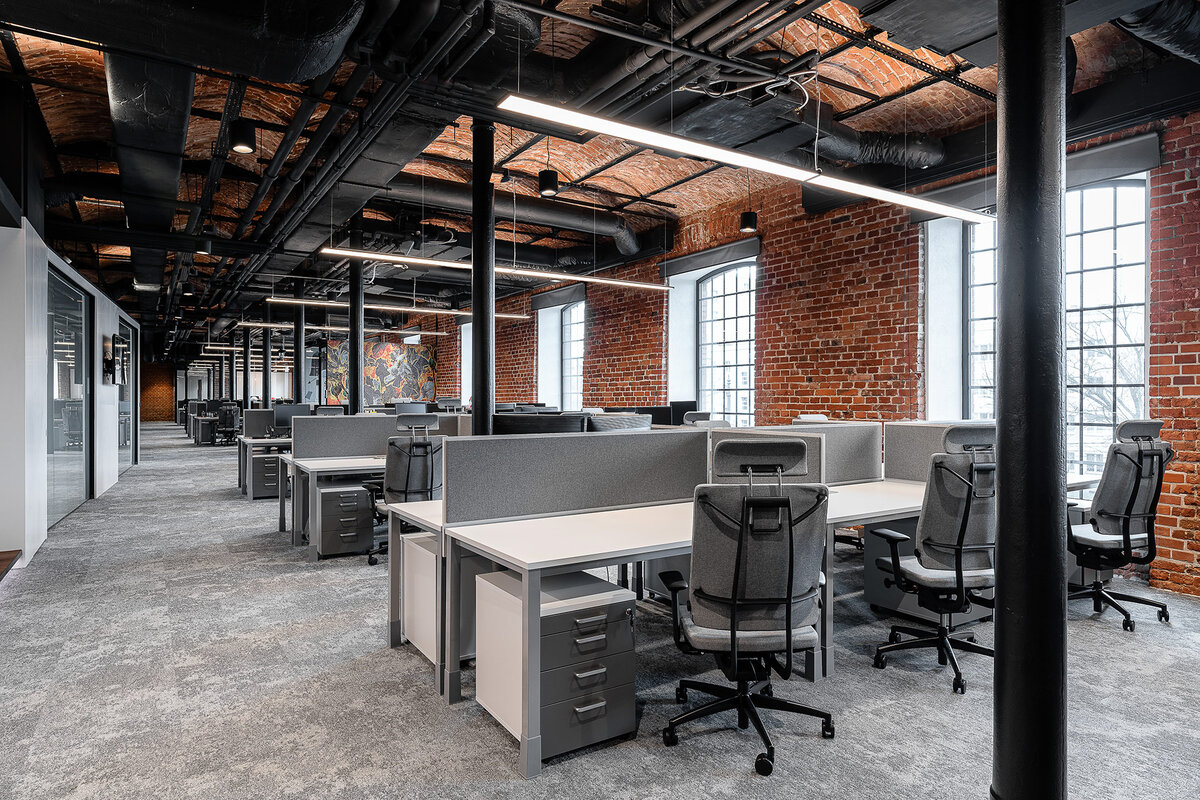

Office Clariant

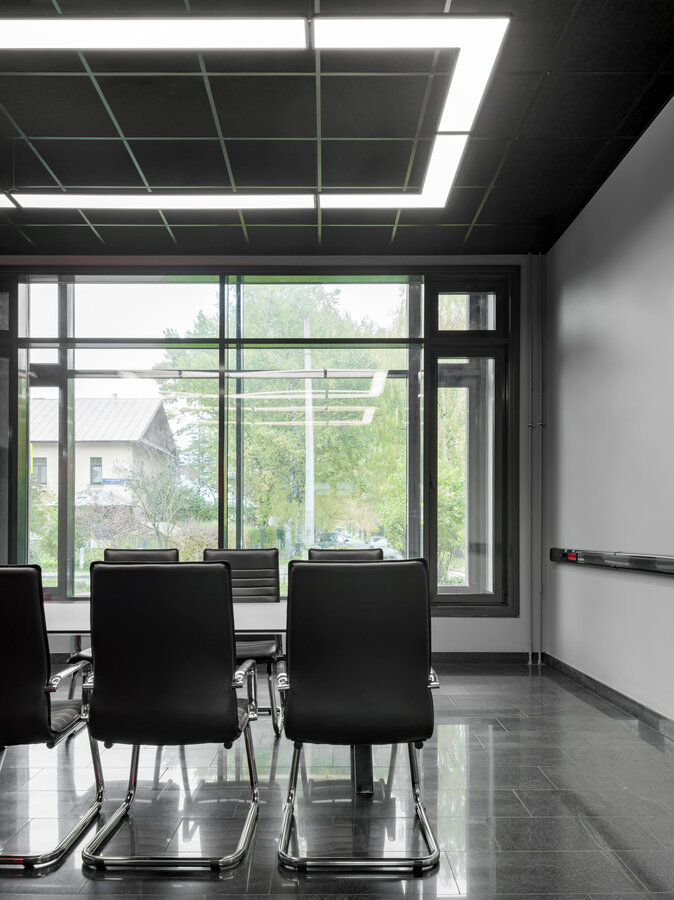

Training Center
Training Center
Training Center
Ultra-slim and versatile

TASK S

suspended system

Información rápida

3000 K, 4000 K, tunable white 2700 K - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR ≤ 19
hasta ↓ 8,920 lm/↑ 4,820 lm
hasta 122 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
Microprismatic
IP20 / CP1 / 220-240 V

Color

    • Productos del sistema
    Luminaria individual

    Plano simple

    Distribución de la luz

    Datos de productos y documentos de licitación

    Descargar todo
    Descargar todo
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Descripción

    Cuerpo de luminaria de aluminio con cantos redondeados; diferentes variantes: forma opcionalmente rectangular, en L o como segmento de cuarto de círculo; perfil extra plano (sólo 15 mm); para sistemas de iluminación continuos; superficie con recubrimiento de pintura en polvo; suspensión cable altura regulable sin herram.; sistema de montaje rápido sin herramientas; distribución de luz directa o directa/indirecta a través de cuerpo LGP (Light Guiding Prism); la luz acoplada lateralmente se orienta hacia abajo o hacia arriba y hacia abajo por medio de un grabado por láser; orientación luz por medio de un elemento altamente reflectante; opcional: proporción indirecta con pletinas propias para un flujo luminoso aumentado y una iluminación máxima del techo; iluminación homogénea; LEDS de alta eficiencia que proporcionan una alta reproducción cromática; baldaquino para cableado pasante; disponible accesorio para la absorción del ruido

    DiiA® standards 251, 252, 253

    DIN EN 12464-1 UGR ≤ 19

    sistema de clic

    conector de sistema

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (opcional)

    System components

    Click to see components

    TASK S curve direct / indirect power suspended system, TASK S curve direct suspended system

    TASK S curve direct suspended system

    3000 K, 4000 K, tunable white 2700 K - 6500 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR ≤ 19
    hasta ↓ 8,920 lm/↑ 4,820 lm
    hasta 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    Microprismatic
    IP20 / CP1 / 220-240 V
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    3000 K, 4000 K, tunable white 2700 K - 6500 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR ≤ 19
    hasta ↓ 8,920 lm/↑ 4,820 lm
    hasta 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    Microprismatic
    IP20 / CP1 / 220-240 V
    LINEAR CONNECTOR

    TASK LINEAR CONNECTOR

    90° | mecánico, 90° | mecánico y eléctrico, mecánico, mecánico y eléctrico
    CABLE SUSPENSION

    CABLE SUSPENSION

    Productos y códigos

    Filtro
    103
    lm/W
    122
    lm/W
    1460
    lm
    3110
    lm
    327
    lm
    4820
    lm
    12.9
    W
    130
    W
    0.61
    1.01
    0.56
    0.92

    Color

    • TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 49 W, 106 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 49 W, 110 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 71 W, 107 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 71 W, 111 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 92 W, 113 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 92 W, 117 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 49 W, 106 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 49 W, 110 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 71 W, 107 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 71 W, 111 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 92 W, 113 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 92 W, 117 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 42 W, 114 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 42 W, 121 lm/W, length 1.180 mm
    DALI-2
    blanco, tunable white, system 62 W, 103 lm/W, length 1.180 mm
    DALI-2 DT8
    blanco, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2
    blanco, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8
    blanco, 3000 K, system 63 W, 114 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 63 W, 121 lm/W, length 1.748 mm
    DALI-2
    blanco, tunable white, system 85 W, 105 lm/W, length 1.748 mm
    DALI-2 DT8
    blanco, 3000 K, system 84 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 84 W, 121 lm/W, length 2.315 mm
    DALI-2
    blanco, tunable white, system 130 W, 106 lm/W, length 2.315 mm
    DALI-2 DT8
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 42 W, 114 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 42 W, 121 lm/W, length 1.180 mm
    DALI-2
    negro, tunable white, system 62 W, 103 lm/W, length 1.180 mm
    DALI-2 DT8
    negro, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2
    negro, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8
    negro, 3000 K, system 63 W, 114 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 63 W, 121 lm/W, length 1.748 mm
    DALI-2
    negro, tunable white, system 85 W, 105 lm/W, length 1.748 mm
    DALI-2 DT8
    negro, 3000 K, system 84 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 84 W, 121 lm/W, length 2.315 mm
    DALI-2
    negro, tunable white, system 117 W, 109 lm/W, length 2.315 mm
    DALI-2 DT8
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 19,5 W, 114 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 19,5 W, 122 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 29,2 W, 115 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 29,2 W, 122 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 39 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 39 W, 122 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 19,5 W, 114 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 19,5 W, 122 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 29,2 W, 115 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 29,2 W, 122 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 39 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 39 W, 122 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct suspended system

    TASK S linear direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 12,9 W, 113 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 12,9 W, 120 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 19,3 W, 113 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 19,3 W, 121 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 25,7 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 25,7 W, 121 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct suspended system

    TASK S linear direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 12,9 W, 113 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 12,9 W, 120 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 19,3 W, 113 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 19,3 W, 121 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 25,7 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 25,7 W, 121 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 49 W, 106 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 49 W, 110 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 71 W, 107 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 71 W, 111 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 92 W, 113 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 92 W, 117 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 49 W, 106 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 49 W, 110 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 71 W, 107 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 71 W, 111 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 92 W, 113 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 92 W, 117 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 42 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 42 W, 121 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 62 W, 103 lm/W, length 1.189 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 63 W, 114 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 63 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 85 W, 105 lm/W, length 1.757 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 84 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 84 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 117 W, 109 lm/W, length 2.324 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 42 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 42 W, 121 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 62 W, 103 lm/W, length 1.189 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 63 W, 114 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 63 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 85 W, 105 lm/W, length 1.757 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 84 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 84 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 117 W, 109 lm/W, length 2.324 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect soft suspended system

    TASK S linear sensor direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 19,5 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 19,5 W, 122 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 29,2 W, 115 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 29,2 W, 122 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 39 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 39 W, 122 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect soft suspended system

    TASK S linear sensor direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 19,5 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 19,5 W, 122 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 29,2 W, 115 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 29,2 W, 122 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 39 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 39 W, 122 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct suspended system

    TASK S linear sensor direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 12,9 W, 113 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 12,9 W, 120 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 19,3 W, 113 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 19,3 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 25,7 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 25,7 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct suspended system

    TASK S linear sensor direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 12,9 W, 113 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 12,9 W, 120 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 19,3 W, 113 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 19,3 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 25,7 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 25,7 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor

    Accesorios

    Suspensiones

    número de artículo
    color
    dimensiones
    longitud de cable
    END PIECE incl. cable suspension
    059-2792117
    blanco puro
    RAL 9010
    longitud 106 mm
    ancho 36 mm
    0,13 kg
    END PIECE incl. cable suspension
    059-2792118
    negro intenso
    RAL 9005
    longitud 106 mm
    ancho 36 mm
    0,09 kg
    CABLE SUSPENSION
    059-2792127
    blanco puro
    RAL 9010
    0,04 kg

    Alimentador

    número de artículo
    color
    dimensiones
    POWER FEEDER incl. cable suspension
    059-2792217
    blanco puro
    RAL 9010
    longitud 106 mm
    ancho 36 mm
    altura 1.500 mm
    0,38 kg
    POWER FEEDER incl. cable suspension
    059-2792218
    negro intenso
    RAL 9005
    longitud 106 mm
    ancho 36 mm
    altura 1.500 mm
    0,4 kg
    MIDDLE POWER FEEDER
    059-2792517
    blanco puro
    RAL 9010
    longitud 100 mm
    ancho 100 mm
    altura 1.500 mm
    0,46 kg
    MIDDLE POWER FEEDER
    059-2792518
    negro intenso
    RAL 9005
    longitud 100 mm
    ancho 100 mm
    altura 1.500 mm
    0,6 kg

    Componentes eléctricos

    número de artículo
    color
    tipo
    dimensiones
    longitud de cable
    SYSTEM CONNECTOR cable suspension
    059-2792307
    blanco puro
    RAL 9010
    L 1200 mm | mecánico y eléctrico recortable
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,09 kg
    SYSTEM CONNECTOR cable suspension
    059-2792308
    negro intenso
    RAL 9005
    L 1200 mm | mecánico y eléctrico recortable
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,02 kg
    SYSTEM CONNECTOR cable suspension
    059-2792327
    blanco puro
    RAL 9010
    L 800 mm | mecánico y eléctrico
    longitud 800 mm
    ancho 36 mm
    altura 18 mm
    0,86 kg
    SYSTEM CONNECTOR cable suspension
    059-2792328
    negro intenso
    RAL 9005
    L 800 mm | mecánico y eléctrico
    longitud 800 mm
    ancho 36 mm
    altura 18 mm
    0,89 kg
    SYSTEM CONNECTOR cable suspension
    059-2792337
    blanco puro
    RAL 9010
    L 1200 mm | mecánico y eléctrico
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,02 kg
    SYSTEM CONNECTOR cable suspension
    059-2792338
    negro intenso
    RAL 9005
    L 1200 mm | mecánico y eléctrico
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1 kg
    SYSTEM CONNECTOR cable suspension
    059-2792347
    blanco puro
    RAL 9010
    L 2400 mm | mecánico y eléctrico recortable
    longitud 2.400 mm
    ancho 36 mm
    altura 18 mm
    1,86 kg
    SYSTEM CONNECTOR cable suspension
    059-2792348
    negro intenso
    RAL 9005
    L 2400 mm | mecánico y eléctrico recortable
    longitud 2.400 mm
    ancho 36 mm
    altura 18 mm
    1,81 kg

    Montaje

    número de artículo
    color
    dimensiones
    longitud de cable
    LINEAR CONNECTOR cable suspension
    059-2792317
    blanco puro
    RAL 9010
    0,23 kg
    LINEAR CONNECTOR cable suspension
    059-2792318
    negro intenso
    RAL 9005
    0,27 kg
    LINEAR CONNECTOR cable suspension
    059-2792417
    blanco puro
    RAL 9010
    0,2 kg
    LINEAR CONNECTOR cable suspension
    059-2792418
    negro intenso
    RAL 9005
    0,24 kg
    CORNER CONNECTOR cable suspension
    059-2792717
    blanco puro
    RAL 9010
    longitud 254 mm
    ancho 254 mm
    0,45 kg
    CORNER CONNECTOR cable suspension
    059-2792718
    negro intenso
    RAL 9005
    longitud 254 mm
    ancho 254 mm
    0,45 kg
    CORNER CONNECTOR cable suspension
    059-2792817
    blanco puro
    RAL 9010
    longitud 254 mm
    ancho 254 mm
    CORNER CONNECTOR cable suspension
    059-2792818
    negro intenso
    RAL 9005
    longitud 254 mm
    ancho 254 mm

    Productos similares

    TASK

    round surface

    TASK

    round suspended

    TASK

    square surface

    TASK

    square suspended

    TASK

    ceiling

    TASK

    suspended

    TASK S

    suspended

    TASK

    angular suspended

    TASK

    circle suspended

    TASK

    acoustic round
