TASK S

suspended

Información rápida

3000 K, 4000 K, tunable white
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR < 16, UGR < 19
hasta 5,410 lm/↑ 3,270 lm
hasta 126 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, ESSENTIAL sensor (brillantez y presencia)
Microprismatic
front IP20

Color

  • Plano simple

    Distribución de la luz

    Datos de productos y documentos de licitación

    Descargar todo
    • ROLF
    • ULD

    Descripción

    Cuerpo de luminaria rectangular de aluminio con cantos redondeados; perfil extra plano (sólo 15 mm); superficie con recubrimiento de pintura en polvo; suspens. cable de 1500 mm con altura regul. sin herram.; incluido cable de alimentación transparente; distribución de luz directa o directa/indirecta a través de cuerpo LGP (Light Guiding Prism); la luz acoplada lateralmente se orienta hacia abajo o hacia arriba y hacia abajo por medio de un grabado por láser; orientación luz por medio de un elemento altamente reflectante; opcional: proporción indirecta con pletinas propias para un flujo luminoso aumentado y una iluminación máxima del techo; iluminación homogénea; LEDS de alta eficiencia que proporcionan una alta reproducción cromática; baldaquino con abertura de 2 orificios para integrar el cableado y sencilla conexión

    DiiA® standards 251, 252, 253

    iluminación directa / indirecta

    DIN EN 12464-1 UGR ≤ 19

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (opcional)

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Productos y códigos

    Filtro
    114
    lm/W
    126
    lm/W
    327
    lm
    3270
    lm
    1180
    mm
    2324
    mm
    19.5
    W
    71
    W
    0.61
    1.01
    0.55
    0.92

    Color

  • TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable

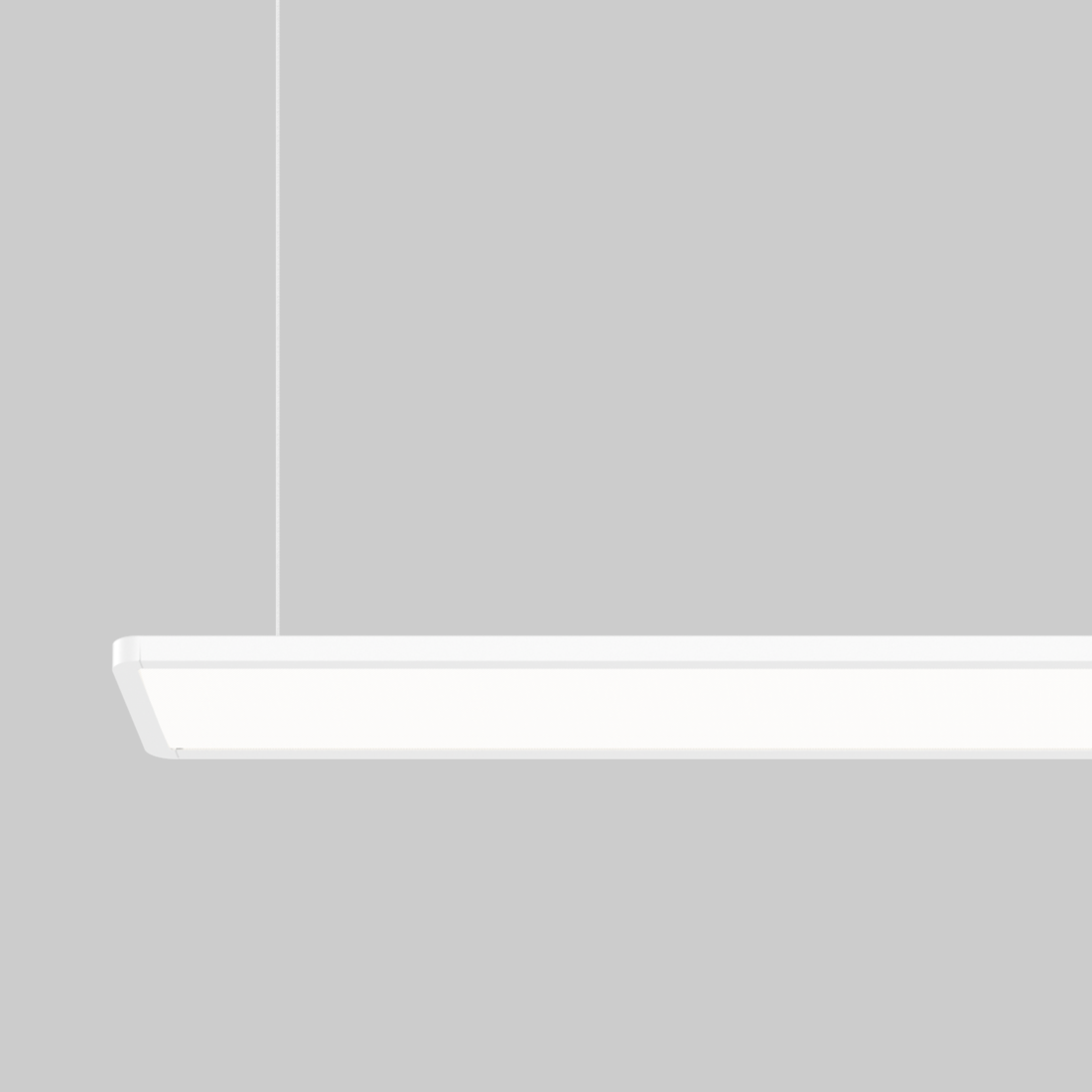

    blanco, 3000 K, 120 lm/W, 1.180 mm
    DALI-2
    blanco, 4000 K, 125 lm/W, 1.180 mm
    DALI-2
    blanco, 3000 K, 120 lm/W, 1.448 mm
    DALI-2
    blanco, 4000 K, 125 lm/W, 1.448 mm
    DALI-2
    blanco, 3000 K, 121 lm/W, 1.748 mm
    DALI-2
    blanco, 4000 K, 126 lm/W, 1.748 mm
    DALI-2
    blanco, 3000 K, 119 lm/W, 2.315 mm
    DALI-2
    blanco, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable

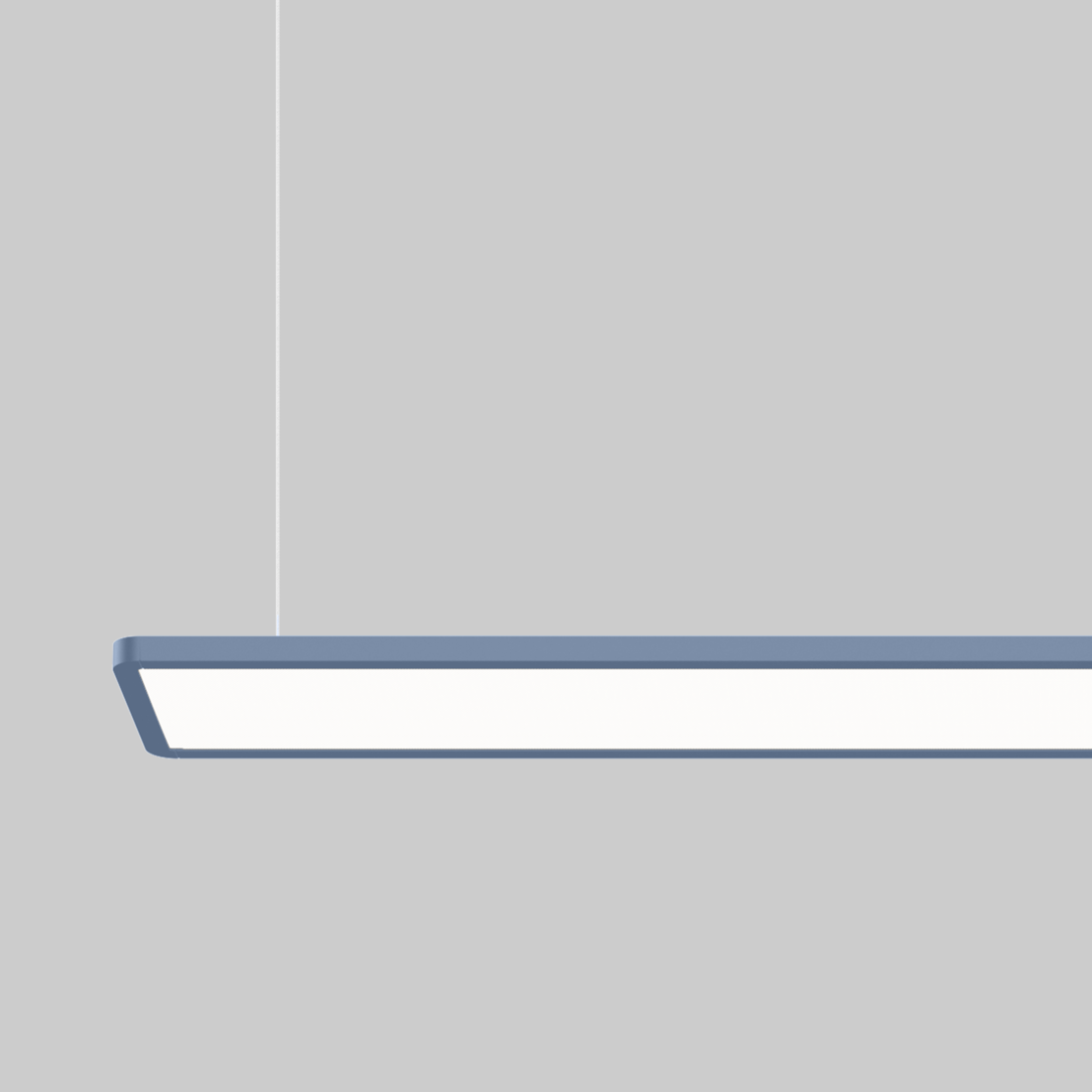

    colores especiales, 3000 K, 120 lm/W, 1.180 mm
    DALI-2
    colores especiales, 4000 K, 125 lm/W, 1.180 mm
    DALI-2
    colores especiales, 3000 K, 120 lm/W, 1.448 mm
    DALI-2
    colores especiales, 4000 K, 125 lm/W, 1.448 mm
    DALI-2
    colores especiales, 3000 K, 121 lm/W, 1.748 mm
    DALI-2
    colores especiales, 4000 K, 126 lm/W, 1.748 mm
    DALI-2
    colores especiales, 3000 K, 119 lm/W, 2.315 mm
    DALI-2
    colores especiales, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    TASK S direct / indirect TW power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable

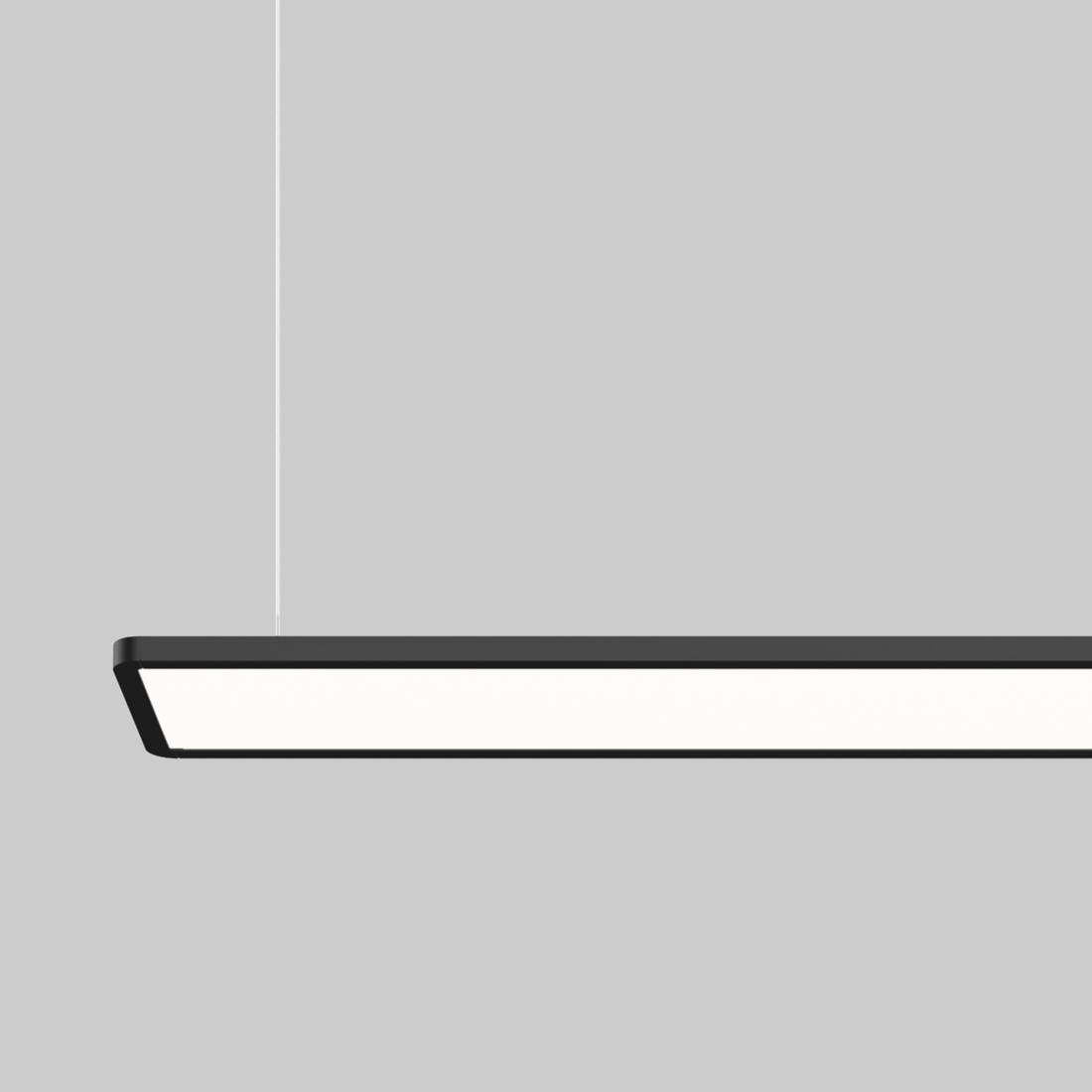

    negro, 3000 K, 120 lm/W, 1.180 mm
    DALI-2
    negro, 4000 K, 125 lm/W, 1.180 mm
    DALI-2
    negro, 3000 K, 120 lm/W, 1.448 mm
    DALI-2
    negro, 4000 K, 125 lm/W, 1.448 mm
    DALI-2
    negro, 3000 K, 121 lm/W, 1.748 mm
    DALI-2
    negro, 4000 K, 126 lm/W, 1.748 mm
    DALI-2
    negro, 3000 K, 119 lm/W, 2.315 mm
    DALI-2
    negro, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect power suspended

    TASK S direct / indirect power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, 116 lm/W, 1.180 mm
    DALI-2
    blanco, 4000 K, 123 lm/W, 1.180 mm
    DALI-2
    blanco, tunable white, 116 lm/W, 1.180 mm
    DALI-2
    blanco, 3000 K, 116 lm/W, 1.448 mm
    DALI-2
    blanco, 4000 K, 124 lm/W, 1.448 mm
    DALI-2
    blanco, tunable white, 119 lm/W, 1.448 mm
    DALI-2
    blanco, 3000 K, 117 lm/W, 1.748 mm
    DALI-2
    blanco, 4000 K, 125 lm/W, 1.748 mm
    DALI-2
    blanco, tunable white, 119 lm/W, 1.748 mm
    DALI-2
    blanco, 3000 K, 116 lm/W, 2.315 mm
    DALI-2
    blanco, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    blanco, tunable white, 118 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect power suspended

    TASK S direct / indirect power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    colores especiales, 3000 K, 116 lm/W, 1.180 mm
    DALI-2
    colores especiales, 4000 K, 123 lm/W, 1.180 mm
    DALI-2
    colores especiales, tunable white, 116 lm/W, 1.180 mm
    DALI-2
    colores especiales, 3000 K, 116 lm/W, 1.448 mm
    DALI-2
    colores especiales, 4000 K, 124 lm/W, 1.448 mm
    DALI-2
    colores especiales, tunable white, 119 lm/W, 1.448 mm
    DALI-2
    colores especiales, 3000 K, 117 lm/W, 1.748 mm
    DALI-2
    colores especiales, 4000 K, 125 lm/W, 1.748 mm
    DALI-2
    colores especiales, tunable white, 119 lm/W, 1.748 mm
    DALI-2
    colores especiales, 3000 K, 116 lm/W, 2.315 mm
    DALI-2
    colores especiales, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    colores especiales, tunable white, 118 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect power suspended

    TASK S direct / indirect power suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, 116 lm/W, 1.180 mm
    DALI-2
    negro, 4000 K, 123 lm/W, 1.180 mm
    DALI-2
    negro, tunable white, 116 lm/W, 1.180 mm
    DALI-2
    negro, 3000 K, 116 lm/W, 1.448 mm
    DALI-2
    negro, 4000 K, 124 lm/W, 1.448 mm
    DALI-2
    negro, tunable white, 119 lm/W, 1.448 mm
    DALI-2
    negro, 3000 K, 117 lm/W, 1.748 mm
    DALI-2
    negro, 4000 K, 125 lm/W, 1.748 mm
    DALI-2
    negro, tunable white, 119 lm/W, 1.748 mm
    DALI-2
    negro, 3000 K, 116 lm/W, 2.315 mm
    DALI-2
    negro, 4000 K, 124 lm/W, 2.315 mm
    DALI-2
    negro, tunable white, 118 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect soft suspended

    TASK S direct / indirect soft suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, 114 lm/W, 1.180 mm
    DALI-2
    blanco, 4000 K, 122 lm/W, 1.180 mm
    DALI-2
    blanco, 3000 K, 114 lm/W, 1.448 mm
    DALI-2
    blanco, 4000 K, 122 lm/W, 1.448 mm
    DALI-2
    blanco, 3000 K, 115 lm/W, 1.748 mm
    DALI-2
    blanco, 4000 K, 122 lm/W, 1.748 mm
    DALI-2
    blanco, 3000 K, 114 lm/W, 2.315 mm
    DALI-2
    blanco, 4000 K, 122 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect soft suspended

    TASK S direct / indirect soft suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    colores especiales, 3000 K, 114 lm/W, 1.180 mm
    DALI-2
    colores especiales, 4000 K, 122 lm/W, 1.180 mm
    DALI-2
    colores especiales, 3000 K, 114 lm/W, 1.448 mm
    DALI-2
    colores especiales, 4000 K, 122 lm/W, 1.448 mm
    DALI-2
    colores especiales, 3000 K, 115 lm/W, 1.748 mm
    DALI-2
    colores especiales, 4000 K, 122 lm/W, 1.748 mm
    DALI-2
    colores especiales, 3000 K, 114 lm/W, 2.315 mm
    DALI-2
    colores especiales, 4000 K, 122 lm/W, 2.315 mm
    DALI-2
    TASK S direct / indirect power suspended;TASK S direct / indirect soft suspended;TASK S sensor direct / indirect power suspended;TASK S sensor direct / indirect soft suspended;TASK S direct / indirect TW power suspended;TASK S sensor direct / indirect TW power suspended

    TASK S direct / indirect soft suspended

    TASK S direct / indirect soft suspended

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, 114 lm/W, 1.180 mm
    DALI-2
    negro, 4000 K, 122 lm/W, 1.180 mm
    DALI-2
