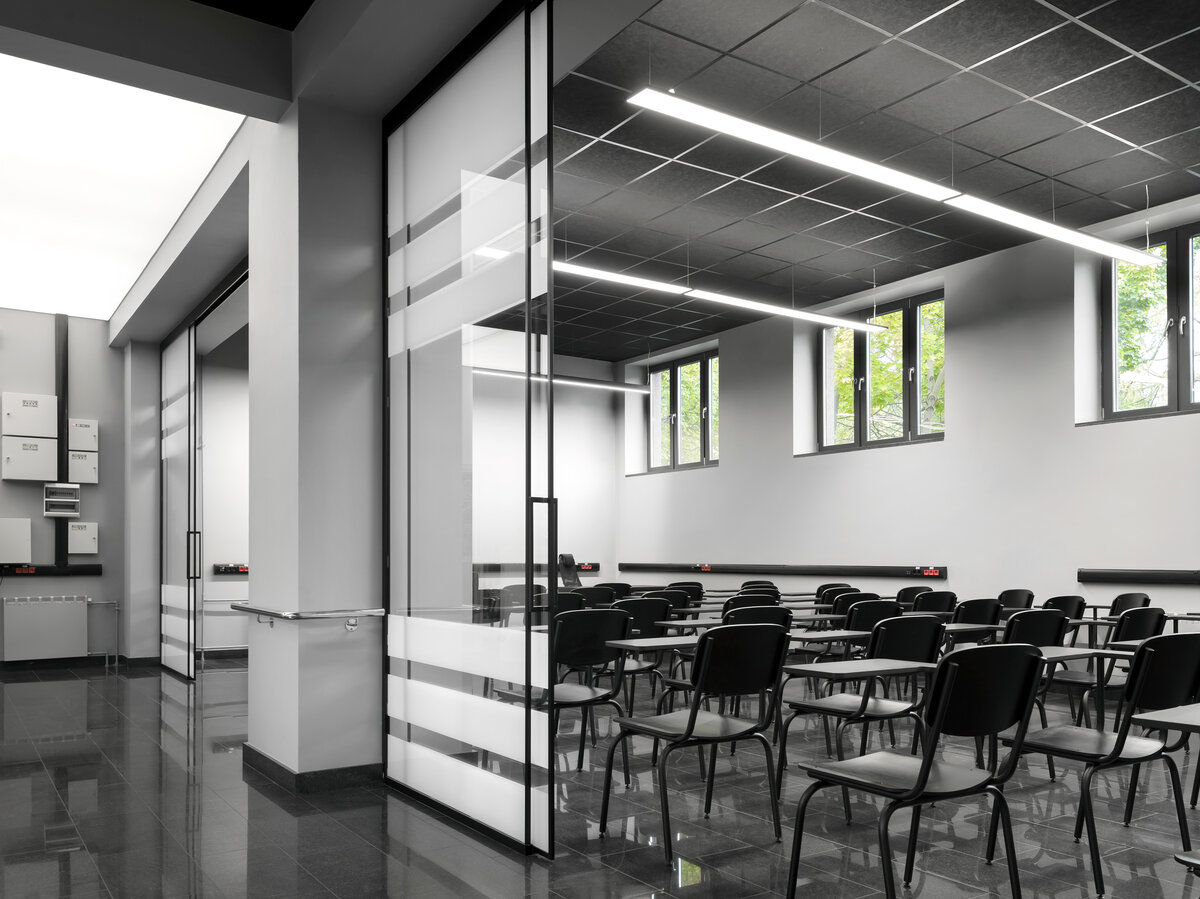

Training Center
Training Center
Training Center
Ultra-slim and versatile

TASK S

suspended system

Información rápida

3000 K, 4000 K, tunable white
CRI ≥ 80, CRI ≥ 90 / 3 SDCM SDCM
UGR ≤ 19
hasta ↓ 8,920 lm/↑ 4,820 lm
hasta 122 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
Microprismatic
IP20 / CP1 / 220-240 V

Color

    • Productos del sistema
    Luminaria individual

    Plano simple

    Distribución de la luz

    Datos de productos y documentos de licitación

    Descargar todo
    Descargar todo
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Descripción

    Cuerpo de luminaria de aluminio con cantos redondeados; diferentes variantes: forma opcionalmente rectangular, en L o como segmento de cuarto de círculo; perfil extra plano (sólo 15 mm); para sistemas de iluminación continuos; superficie con recubrimiento de pintura en polvo; suspensión cable altura regulable sin herram.; sistema de montaje rápido sin herramientas; distribución de luz directa o directa/indirecta a través de cuerpo LGP (Light Guiding Prism); la luz acoplada lateralmente se orienta hacia abajo o hacia arriba y hacia abajo por medio de un grabado por láser; orientación luz por medio de un elemento altamente reflectante; opcional: proporción indirecta con pletinas propias para un flujo luminoso aumentado y una iluminación máxima del techo; iluminación homogénea; LEDS de alta eficiencia que proporcionan una alta reproducción cromática; baldaquino para cableado pasante; disponible accesorio para la absorción del ruido

    DiiA® standards 251, 252, 253

    DIN EN 12464-1 UGR ≤ 19

    sistema de clic

    conector de sistema

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (opcional)

    System components

    Click to see components

    TASK S curve direct / indirect power suspended system, TASK S curve direct suspended system

    TASK S curve direct suspended system

    3000 K, 4000 K, tunable white
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM SDCM
    UGR ≤ 19
    hasta ↓ 8,920 lm/↑ 4,820 lm
    hasta 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    Microprismatic
    IP20 / CP1 / 220-240 V
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    3000 K, 4000 K, tunable white
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM SDCM
    UGR ≤ 19
    hasta ↓ 8,920 lm/↑ 4,820 lm
    hasta 122 lm/W
    L85 / 50000 h, L90 / 50000 h
    DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor, DALI-2 DT8, DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    Microprismatic
    IP20 / CP1 / 220-240 V
    LINEAR CONNECTOR

    TASK LINEAR CONNECTOR

    90° | mecánico, 90° | mecánico y eléctrico, mecánico, mecánico y eléctrico
    CABLE SUSPENSION

    CABLE SUSPENSION

    Productos y códigos

    Filtro
    103
    lm/W
    122
    lm/W
    1460
    lm
    3110
    lm
    327
    lm
    4820
    lm
    12.9
    W
    130
    W
    0.61
    1.01
    0.56
    0.92

    Color

    • TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 49 W, 106 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 49 W, 110 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 71 W, 107 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 71 W, 111 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 92 W, 113 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 92 W, 117 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect TW power suspended system

    TASK S linear direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 49 W, 106 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 49 W, 110 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 71 W, 107 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 71 W, 111 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 92 W, 113 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 92 W, 117 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 42 W, 114 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 42 W, 121 lm/W, length 1.180 mm
    DALI-2
    blanco, tunable white, system 62 W, 103 lm/W, length 1.180 mm
    DALI-2 DT8
    blanco, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2
    blanco, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8
    blanco, 3000 K, system 63 W, 114 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 63 W, 121 lm/W, length 1.748 mm
    DALI-2
    blanco, tunable white, system 85 W, 105 lm/W, length 1.748 mm
    DALI-2 DT8
    blanco, 3000 K, system 84 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 84 W, 121 lm/W, length 2.315 mm
    DALI-2
    blanco, tunable white, system 130 W, 106 lm/W, length 2.315 mm
    DALI-2 DT8
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 42 W, 114 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 42 W, 121 lm/W, length 1.180 mm
    DALI-2
    negro, tunable white, system 62 W, 103 lm/W, length 1.180 mm
    DALI-2 DT8
    negro, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2
    negro, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8
    negro, 3000 K, system 63 W, 114 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 63 W, 121 lm/W, length 1.748 mm
    DALI-2
    negro, tunable white, system 85 W, 105 lm/W, length 1.748 mm
    DALI-2 DT8
    negro, 3000 K, system 84 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 84 W, 121 lm/W, length 2.315 mm
    DALI-2
    negro, tunable white, system 117 W, 109 lm/W, length 2.315 mm
    DALI-2 DT8
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 19,5 W, 114 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 19,5 W, 122 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 29,2 W, 115 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 29,2 W, 122 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 39 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 39 W, 122 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct / indirect soft suspended system

    TASK S linear direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 19,5 W, 114 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 19,5 W, 122 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 29,2 W, 115 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 29,2 W, 122 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 39 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 39 W, 122 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct suspended system

    TASK S linear direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 12,9 W, 113 lm/W, length 1.180 mm
    DALI-2
    blanco, 4000 K, system 12,9 W, 120 lm/W, length 1.180 mm
    DALI-2
    blanco, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2
    blanco, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2
    blanco, 3000 K, system 19,3 W, 113 lm/W, length 1.748 mm
    DALI-2
    blanco, 4000 K, system 19,3 W, 121 lm/W, length 1.748 mm
    DALI-2
    blanco, 3000 K, system 25,7 W, 114 lm/W, length 2.315 mm
    DALI-2
    blanco, 4000 K, system 25,7 W, 121 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear direct suspended system

    TASK S linear direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 12,9 W, 113 lm/W, length 1.180 mm
    DALI-2
    negro, 4000 K, system 12,9 W, 120 lm/W, length 1.180 mm
    DALI-2
    negro, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2
    negro, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2
    negro, 3000 K, system 19,3 W, 113 lm/W, length 1.748 mm
    DALI-2
    negro, 4000 K, system 19,3 W, 121 lm/W, length 1.748 mm
    DALI-2
    negro, 3000 K, system 25,7 W, 114 lm/W, length 2.315 mm
    DALI-2
    negro, 4000 K, system 25,7 W, 121 lm/W, length 2.315 mm
    DALI-2
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 49 W, 106 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 49 W, 110 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 71 W, 107 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 71 W, 111 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 92 W, 113 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 92 W, 117 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    TASK S linear sensor direct / indirect TW power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 49 W, 106 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 49 W, 110 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 61 W, 106 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 61 W, 110 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 71 W, 107 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 71 W, 111 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 92 W, 113 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 92 W, 117 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 42 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 42 W, 121 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 62 W, 103 lm/W, length 1.189 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 63 W, 114 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 63 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 85 W, 105 lm/W, length 1.757 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 84 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 84 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, tunable white, system 117 W, 109 lm/W, length 2.324 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    TASK S linear sensor direct / indirect power suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 42 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 42 W, 121 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 62 W, 103 lm/W, length 1.189 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 53 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 53 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 77 W, 103 lm/W, length 1.457 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 63 W, 114 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 63 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 85 W, 105 lm/W, length 1.757 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 84 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 84 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, tunable white, system 117 W, 109 lm/W, length 2.324 mm
    DALI-2 DT8 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect soft suspended system

    TASK S linear sensor direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 19,5 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 19,5 W, 122 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 29,2 W, 115 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 29,2 W, 122 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 39 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 39 W, 122 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct / indirect soft suspended system

    TASK S linear sensor direct / indirect soft suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 19,5 W, 114 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 19,5 W, 122 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 24,4 W, 114 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 24,4 W, 122 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 29,2 W, 115 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 29,2 W, 122 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 39 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 39 W, 122 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct suspended system

    TASK S linear sensor direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    blanco, 3000 K, system 12,9 W, 113 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 12,9 W, 120 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 19,3 W, 113 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 19,3 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 3000 K, system 25,7 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    blanco, 4000 K, system 25,7 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    TASK S linear direct / indirect TW power suspended system, TASK S linear direct suspended system, TASK S linear sensor direct suspended system, TASK S linear sensor direct / indirect TW power suspended system, TASK S linear direct / indirect soft suspended system, TASK S linear sensor direct / indirect power suspended system, TASK S linear sensor direct / indirect soft suspended system, TASK S linear direct / indirect power suspended system

    TASK S linear sensor direct suspended system

    TASK S linear sensor direct suspended system

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    negro, 3000 K, system 12,9 W, 113 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 12,9 W, 120 lm/W, length 1.189 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 16,1 W, 113 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 16,1 W, 120 lm/W, length 1.457 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 19,3 W, 113 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 19,3 W, 121 lm/W, length 1.757 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 3000 K, system 25,7 W, 114 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor
    negro, 4000 K, system 25,7 W, 121 lm/W, length 2.324 mm
    DALI-2 / DALI-2 ESSENTIAL sensor

    Accesorios

    accessory.category.suspensions

    número de artículo
    color
    tipo
    dimensiones
    longitud de cable
    END PIECE
    059-2792117
    blanco puro
    RAL 9010
    suspensión de cable
    longitud 106 mm
    ancho 36 mm
    0,13 kg
    longitud de cable 1500 mm
    END PIECE
    059-2792118
    negro intenso
    RAL 9005
    suspensión de cable
    longitud 106 mm
    ancho 36 mm
    0,09 kg
    longitud de cable 1500 mm
    CABLE SUSPENSION
    059-2792127
    blanco puro
    RAL 9010
    0,04 kg
    longitud de cable 1500 mm

    accessory.category.electrical feeder

    número de artículo
    color
    tipo
    dimensiones
    POWER FEEDER
    059-2792217
    blanco puro
    RAL 9010
    5 x 1,5 mm²
    longitud 106 mm
    ancho 36 mm
    altura 1.500 mm
    0,38 kg
    POWER FEEDER
    059-2792218
    negro intenso
    RAL 9005
    5 x 1,5 mm²
    longitud 106 mm
    ancho 36 mm
    altura 1.500 mm
    0,4 kg
    MIDDLE POWER FEEDER
    059-2792517
    blanco puro
    RAL 9010
    5 x 1,5 mm²
    longitud 100 mm
    ancho 100 mm
    altura 1.500 mm
    0,46 kg
    MIDDLE POWER FEEDER
    059-2792518
    negro intenso
    RAL 9005
    5 x 1,5 mm²
    longitud 100 mm
    ancho 100 mm
    altura 1.500 mm
    0,6 kg

    accessory.category.electrical components

    número de artículo
    color
    tipo
    dimensiones
    tipo de montaje
    longitud de cable
    SYSTEM CONNECTOR
    059-2792307
    blanco puro
    RAL 9010
    L 1200 mm | mecánico y eléctrico recortable
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,09 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792308
    negro intenso
    RAL 9005
    L 1200 mm | mecánico y eléctrico recortable
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,02 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792327
    blanco puro
    RAL 9010
    L 800 mm | mecánico y eléctrico
    longitud 800 mm
    ancho 36 mm
    altura 18 mm
    0,86 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792328
    negro intenso
    RAL 9005
    L 800 mm | mecánico y eléctrico
    longitud 800 mm
    ancho 36 mm
    altura 18 mm
    0,89 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792337
    blanco puro
    RAL 9010
    L 1200 mm | mecánico y eléctrico
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1,02 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792338
    negro intenso
    RAL 9005
    L 1200 mm | mecánico y eléctrico
    longitud 1.200 mm
    ancho 36 mm
    altura 18 mm
    1 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792347
    blanco puro
    RAL 9010
    L 2400 mm | mecánico y eléctrico recortable
    longitud 2.400 mm
    ancho 36 mm
    altura 18 mm
    1,86 kg
    Suspensión
    longitud de cable 1500 mm
    SYSTEM CONNECTOR
    059-2792348
    negro intenso
    RAL 9005
    L 2400 mm | mecánico y eléctrico recortable
    longitud 2.400 mm
    ancho 36 mm
    altura 18 mm
    1,81 kg
    Suspensión
    longitud de cable 1500 mm

    accessory.category.mounting

    número de artículo
    color
    dimensiones
    LINEAR CONNECTOR
    059-2792317
    blanco puro
    RAL 9010
    0,23 kg
    LINEAR CONNECTOR
    059-2792318
    negro intenso
    RAL 9005
    0,27 kg
    LINEAR CONNECTOR
    059-2792417
    blanco puro
    RAL 9010
    0,2 kg
    LINEAR CONNECTOR
    059-2792418
    negro intenso
    RAL 9005
    0,24 kg
    CORNER CONNECTOR
    059-2792717
    blanco puro
    RAL 9010
    longitud 254 mm
    ancho 254 mm
    0,45 kg
    CORNER CONNECTOR
    059-2792718
    negro intenso
    RAL 9005
    longitud 254 mm
    ancho 254 mm
    0,45 kg
    CORNER CONNECTOR
    059-2792817
    blanco puro
    RAL 9010
    longitud 254 mm
    ancho 254 mm
    CORNER CONNECTOR
    059-2792818
    negro intenso
    RAL 9005
    longitud 254 mm
    ancho 254 mm

    Productos similares

    TASK

    round surface

    TASK

    round suspended

    TASK

    square surface

    TASK

    square suspended

    TASK

    ceiling

    TASK

    suspended

    TASK S

    suspended

    TASK

    angular suspended

    TASK

    circle suspended

    TASK

    acoustic round
