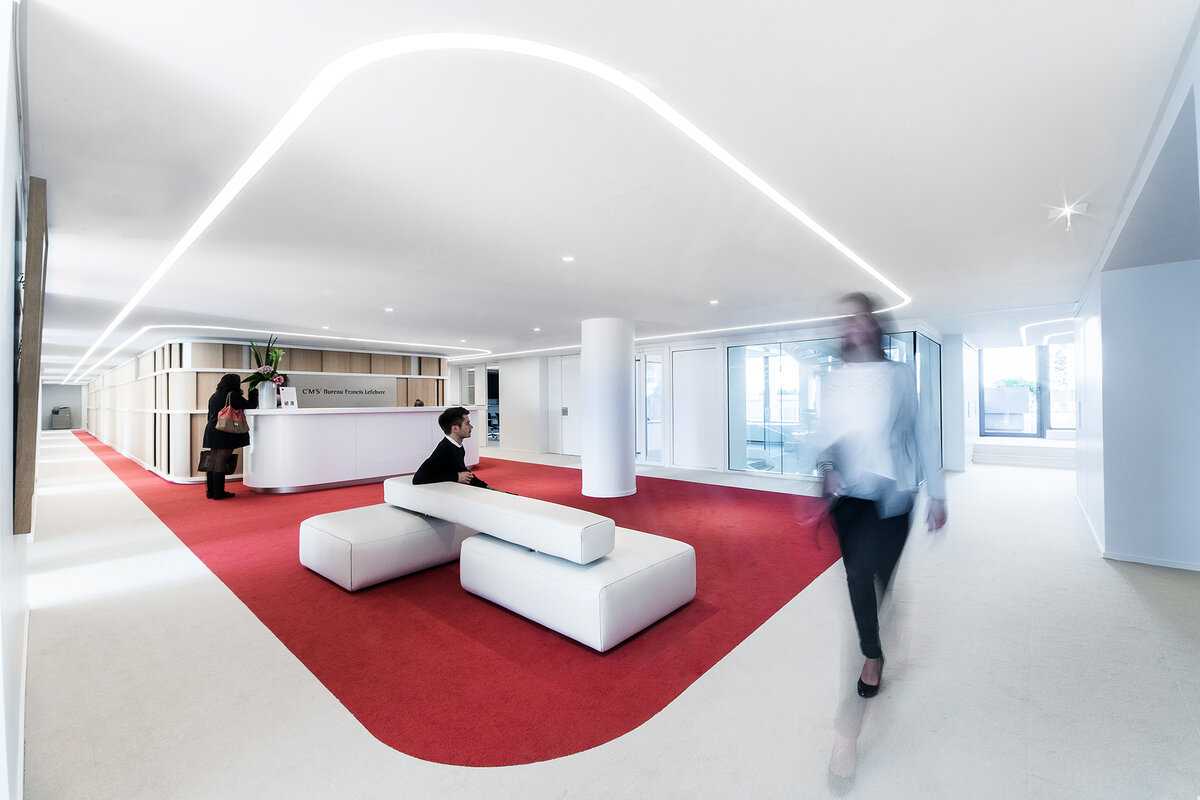

CMS BUREAU FRANCIS LEFEBVRE

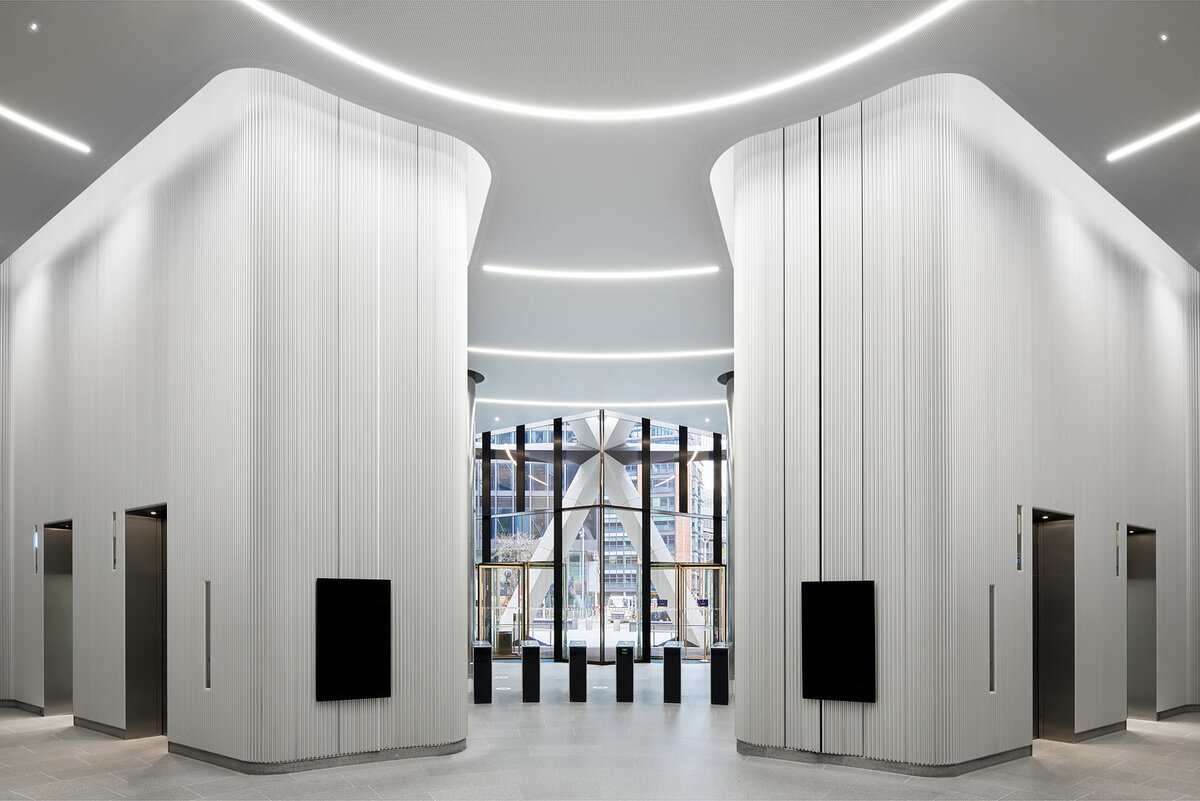

30 St Mary Axe

FRAME 60

trim system

Quickinfo

3000 K, 4000 K, tunable white
CRI ≥ 80, CRI ≥ 90 / 3 SDCM SDCM
UGR ≤ 19
bis zu 146 lm/W
L90 / 50000 h
DALI-2, DALI-2 DT8, nicht dimmbar
High Performance Opal, Microprismatic
IP20 / SK1 / 220-240 V

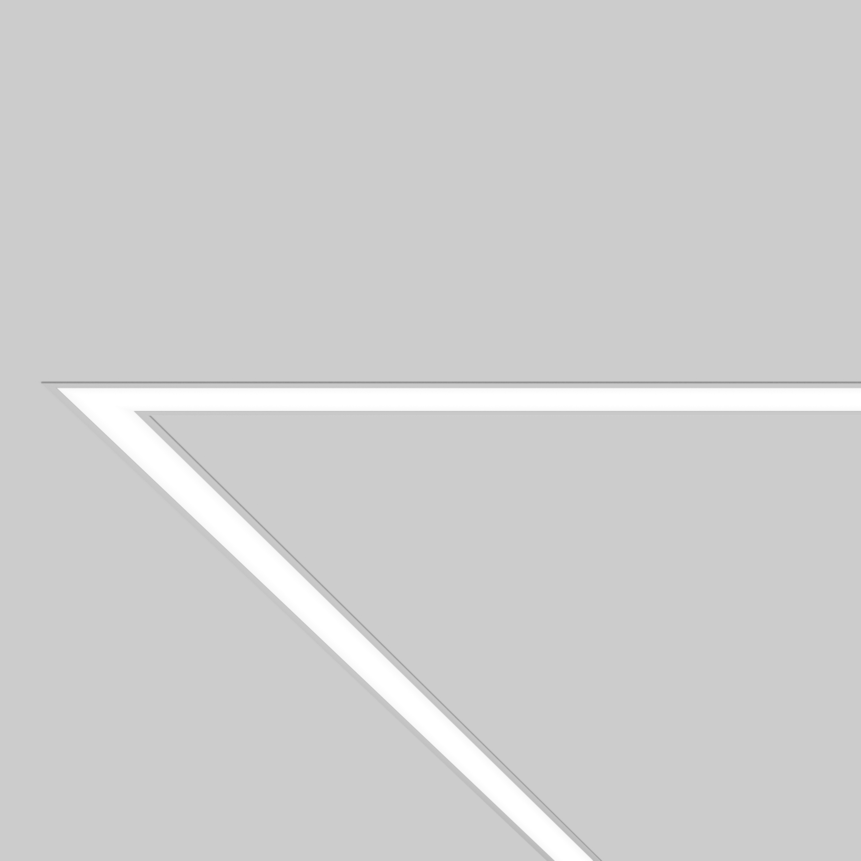

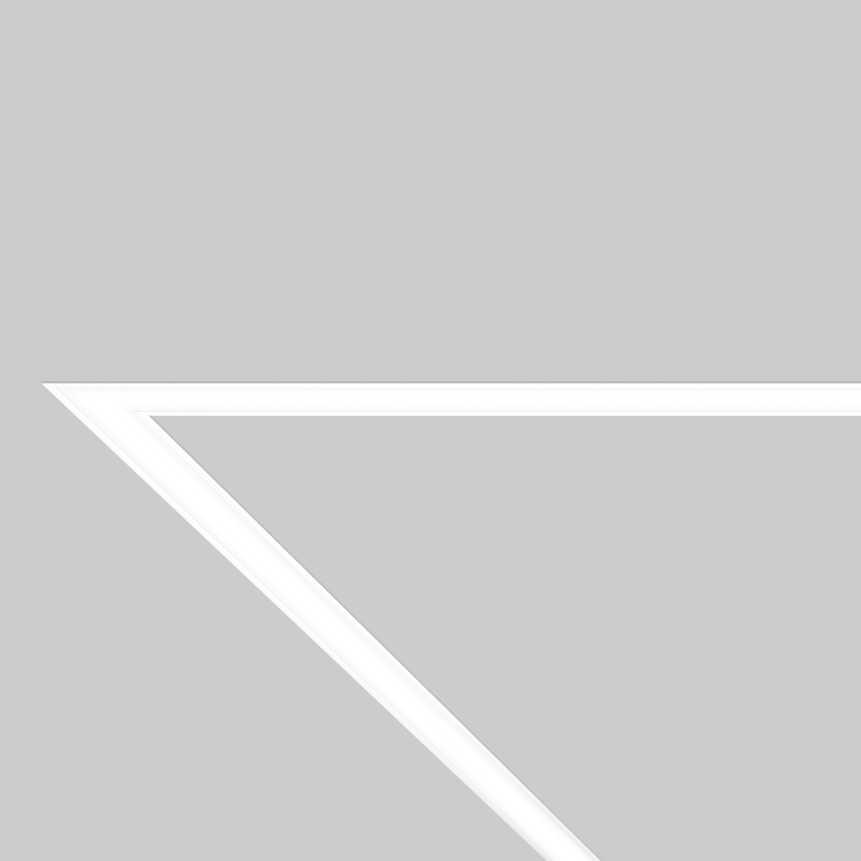

Farbe

    • Produkte und Artikelnummern

    Skizze

    Lichtverteilung

    Produktdaten & Ausschreibungsunterlagen

    Gesamtdownload
    Gesamtdownload
    • ROLF
    • ULD

    Beschreibung

    Leuchtenkörper aus Aluminiumstrangpressprofil; Einbauleuchte mit umlaufendem Rand; ausgelegt für durchgehende Lichtsysteme; geeignet für Deckenstärken von 8-25 mm; Oberfläche pulverbeschichtet; Leuchtenprofil für Montage vorab lieferbar; restliche Leuchtenkomponenten werkzeuglos montierbar; Lichteinsatz bestehend aus hochreflektierend lackiertem Strangpressprofil für verbessertes Thermomanagement; optional flexibel ablängbarer Lichteinsatz; HPO (High Performance Opal) Abdeckung für homogene Ausleuchtung; mikroprismatische PMMA-Abdeckung inkl. Diffusorfolie zur Reduktion der Leuchtdichte bei homogener Ausleuchtung; Wallwasher Lichteinsatz; energieeffiziente LEDs mit sehr guter Farbwiedergabe

    DiiA® standards 251, 252, 253

    Einzelleuchte

    wallwasher Einsatz

    Betoneinbaugehäuse

    flexibler Einsatz

    mikroprismatisch UGR ≤ 19

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (optional)

    Produkte und Artikelnummern

    Filter
    86
    lm/W
    146
    lm/W
    616
    lm
    8110
    lm
    6.9
    W
    58
    W
    0.48
    0.81
    0.44
    0.74

    Farbe

    • FRAME 60 high lumen trim system, FRAME 60 mid lumen trim system

    FRAME 60 high lumen trim system

    FRAME 60 high lumen trim system

    Status
    Artikelnummer(n)
    Typ
    Dimming
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, length 872 mm
    DALI-2 DT8
    Grau, High Performance Opal, tunable white, CRI ≥ 80, system 19 W, 2.260 lm, 2.590 lm/m, 119 lm/W, length 872 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, length 872 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 25,3 W, 2.620 lm, 2.230 lm/m, 104 lm/W, length 1.172 mm
    DALI-2 DT8
    Grau, High Performance Opal, tunable white, CRI ≥ 80, system 25,3 W, 3.010 lm, 2.570 lm/m, 119 lm/W, length 1.172 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 25,3 W, 2.610 lm, 2.230 lm/m, 103 lm/W, length 1.172 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, length 1.472 mm
    DALI-2 DT8
    Grau, High Performance Opal, tunable white, CRI ≥ 80, system 31 W, 3.760 lm, 2.550 lm/m, 121 lm/W, length 1.472 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, length 1.472 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 49 W, 5.240 lm, 2.230 lm/m, 107 lm/W, length 2.344 mm
    DALI-2 DT8
    Grau, High Performance Opal, tunable white, CRI ≥ 80, system 49 W, 6.020 lm, 2.570 lm/m, 123 lm/W, length 2.344 mm
    DALI-2 DT8
    Grau, Microprismatic, tunable white, CRI ≥ 80, system 49 W, 5.230 lm, 2.230 lm/m, 107 lm/W, length 2.344 mm
    DALI-2 DT8
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 12,1 W, 1.190 lm, 2.080 lm/m, 98 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 12,1 W, 1.190 lm, 2.080 lm/m, 98 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 12,1 W, 1.290 lm, 2.250 lm/m, 107 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 12,1 W, 1.290 lm, 2.250 lm/m, 107 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 12,1 W, 1.380 lm, 2.420 lm/m, 114 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 12,1 W, 1.380 lm, 2.420 lm/m, 114 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 12,1 W, 1.370 lm, 2.390 lm/m, 113 lm/W, length 572 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 12,1 W, 1.570 lm, 2.750 lm/m, 130 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 12,1 W, 1.370 lm, 2.390 lm/m, 113 lm/W, length 572 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 12,1 W, 1.370 lm, 2.390 lm/m, 113 lm/W, length 572 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 12,1 W, 1.570 lm, 2.750 lm/m, 130 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 12,1 W, 1.370 lm, 2.390 lm/m, 113 lm/W, length 572 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 17,5 W, 1.560 lm, 1.780 lm/m, 89 lm/W, length 872 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 17,5 W, 1.790 lm, 2.050 lm/m, 102 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 17,5 W, 1.550 lm, 1.780 lm/m, 89 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 17,5 W, 1.560 lm, 1.780 lm/m, 89 lm/W, length 872 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 17,5 W, 1.790 lm, 2.050 lm/m, 102 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 17,5 W, 1.550 lm, 1.780 lm/m, 89 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 17,5 W, 1.680 lm, 1.930 lm/m, 96 lm/W, length 872 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 17,5 W, 1.930 lm, 2.210 lm/m, 110 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 17,5 W, 1.680 lm, 1.920 lm/m, 96 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 17,5 W, 1.680 lm, 1.930 lm/m, 96 lm/W, length 872 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 17,5 W, 1.930 lm, 2.210 lm/m, 110 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 17,5 W, 1.680 lm, 1.920 lm/m, 96 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, length 872 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 17,5 W, 2.360 lm, 2.710 lm/m, 135 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, length 872 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, length 872 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 17,5 W, 2.360 lm, 2.710 lm/m, 135 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, length 872 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 23,3 W, 2.380 lm, 2.030 lm/m, 102 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, length 1.172 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 23,3 W, 2.380 lm, 2.030 lm/m, 102 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 23,3 W, 2.570 lm, 2.200 lm/m, 110 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 23,3 W, 2.570 lm, 2.200 lm/m, 110 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.410 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 23,3 W, 2.760 lm, 2.360 lm/m, 118 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.400 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.410 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 23,3 W, 2.760 lm, 2.360 lm/m, 118 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.400 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.740 lm, 2.340 lm/m, 118 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 23,3 W, 3.150 lm, 2.680 lm/m, 135 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.730 lm, 2.330 lm/m, 117 lm/W, length 1.172 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.740 lm, 2.340 lm/m, 118 lm/W, length 1.172 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 23,3 W, 3.150 lm, 2.680 lm/m, 135 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.730 lm, 2.330 lm/m, 117 lm/W, length 1.172 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 29,1 W, 3.010 lm, 2.040 lm/m, 103 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 29,1 W, 3.460 lm, 2.350 lm/m, 119 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 29,1 W, 3.000 lm, 2.040 lm/m, 103 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 29,1 W, 3.010 lm, 2.040 lm/m, 103 lm/W, length 1.472 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 29,1 W, 3.460 lm, 2.350 lm/m, 119 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 29,1 W, 3.000 lm, 2.040 lm/m, 103 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 29,1 W, 3.930 lm, 2.670 lm/m, 135 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 29,1 W, 3.930 lm, 2.670 lm/m, 135 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, length 2.344 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 45 W, 4.810 lm, 2.050 lm/m, 107 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 5.530 lm, 2.360 lm/m, 123 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 45 W, 4.800 lm, 2.050 lm/m, 107 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 45 W, 4.810 lm, 2.050 lm/m, 107 lm/W, length 2.344 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 5.530 lm, 2.360 lm/m, 123 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 45 W, 4.800 lm, 2.050 lm/m, 107 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.480 lm, 2.340 lm/m, 122 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 6.290 lm, 2.680 lm/m, 140 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.470 lm, 2.330 lm/m, 122 lm/W, length 2.344 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.480 lm, 2.340 lm/m, 122 lm/W, length 2.344 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 6.290 lm, 2.680 lm/m, 140 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.470 lm, 2.330 lm/m, 122 lm/W, length 2.344 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 58 W, 5.350 lm, 1.780 lm/m, 92 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 58 W, 6.140 lm, 2.050 lm/m, 106 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 58 W, 5.340 lm, 1.780 lm/m, 92 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 58 W, 5.350 lm, 1.780 lm/m, 92 lm/W, length 3.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 90, system 58 W, 6.140 lm, 2.050 lm/m, 106 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 90, system 58 W, 5.340 lm, 1.780 lm/m, 92 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 58 W, 5.780 lm, 1.930 lm/m, 100 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 58 W, 6.640 lm, 2.210 lm/m, 114 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 58 W, 5.770 lm, 1.920 lm/m, 99 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 58 W, 5.780 lm, 1.930 lm/m, 100 lm/W, length 3.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 90, system 58 W, 6.640 lm, 2.210 lm/m, 114 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 90, system 58 W, 5.770 lm, 1.920 lm/m, 99 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 58 W, 6.200 lm, 2.070 lm/m, 107 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 58 W, 7.130 lm, 2.380 lm/m, 123 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 58 W, 6.190 lm, 2.070 lm/m, 107 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 58 W, 6.200 lm, 2.070 lm/m, 107 lm/W, length 3.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, CRI ≥ 80, system 58 W, 7.130 lm, 2.380 lm/m, 123 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, CRI ≥ 80, system 58 W, 6.190 lm, 2.070 lm/m, 107 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.060 lm, 2.360 lm/m, 122 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 58 W, 8.110 lm, 2.710 lm/m, 140 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.050 lm, 2.350 lm/m, 122 lm/W, length 3.000 mm
    nicht dimmbar
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.060 lm, 2.360 lm/m, 122 lm/W, length 3.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, CRI ≥ 80, system 58 W, 8.110 lm, 2.710 lm/m, 140 lm/W, length 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.050 lm, 2.350 lm/m, 122 lm/W, length 3.000 mm
    DALI-2
    FRAME 60 high lumen trim system, FRAME 60 mid lumen trim system

    FRAME 60 high lumen trim system

    FRAME 60 high lumen trim system

    Status
    Artikelnummer(n)
    Typ
    Dimming
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, length 872 mm
    DALI-2 DT8
    Weiß, High Performance Opal, tunable white, CRI ≥ 80, system 19 W, 2.260 lm, 2.590 lm/m, 119 lm/W, length 872 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, length 872 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 25,3 W, 2.620 lm, 2.230 lm/m, 104 lm/W, length 1.172 mm
    DALI-2 DT8
    Weiß, High Performance Opal, tunable white, CRI ≥ 80, system 25,3 W, 3.010 lm, 2.570 lm/m, 119 lm/W, length 1.172 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 25,3 W, 2.610 lm, 2.230 lm/m, 103 lm/W, length 1.172 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, length 1.472 mm
    DALI-2 DT8
    Weiß, High Performance Opal, tunable white, CRI ≥ 80, system 31 W, 3.760 lm, 2.550 lm/m, 121 lm/W, length 1.472 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, length 1.472 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 49 W, 5.240 lm, 2.230 lm/m, 107 lm/W, length 2.344 mm
    DALI-2 DT8
    Weiß, High Performance Opal, tunable white, CRI ≥ 80, system 49 W, 6.020 lm, 2.570 lm/m, 123 lm/W, length 2.344 mm
    DALI-2 DT8
    Weiß, Microprismatic, tunable white, CRI ≥ 80, system 49 W, 5.230 lm, 2.230 lm/m, 107 lm/W, length 2.344 mm
    DALI-2 DT8
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 12,1 W, 1.190 lm, 2.080 lm/m, 98 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 12,1 W, 1.190 lm, 2.080 lm/m, 98 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 12,1 W, 1.040 lm, 1.810 lm/m, 86 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 12,1 W, 1.290 lm, 2.250 lm/m, 107 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 12,1 W, 1.290 lm, 2.250 lm/m, 107 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 12,1 W, 1.120 lm, 1.960 lm/m, 93 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 12,1 W, 1.380 lm, 2.420 lm/m, 114 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 12,1 W, 1.380 lm, 2.420 lm/m, 114 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 12,1 W, 1.200 lm, 2.100 lm/m, 99 lm/W, length 572 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 12,1 W, 1.370 lm, 2.390 lm/m, 113 lm/W, length 572 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 12,1 W, 1.570 lm, 2.750 lm/m, 130 lm/W, length 572 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 17,5 W, 1.680 lm, 1.930 lm/m, 96 lm/W, length 872 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, length 872 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, length 872 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, length 872 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, length 872 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 17,5 W, 2.360 lm, 2.710 lm/m, 135 lm/W, length 872 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, length 1.172 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 23,3 W, 2.760 lm, 2.360 lm/m, 118 lm/W, length 1.172 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.410 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 23,3 W, 2.400 lm, 2.050 lm/m, 103 lm/W, length 1.172 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.740 lm, 2.340 lm/m, 118 lm/W, length 1.172 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 23,3 W, 3.150 lm, 2.680 lm/m, 135 lm/W, length 1.172 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 23,3 W, 2.730 lm, 2.330 lm/m, 117 lm/W, length 1.172 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 29,1 W, 3.000 lm, 2.040 lm/m, 103 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 29,1 W, 3.930 lm, 2.670 lm/m, 135 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, length 1.472 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, length 2.344 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 90, system 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, length 2.344 mm
    DALI-2
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 5.530 lm, 2.360 lm/m, 123 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 45 W, 4.800 lm, 2.050 lm/m, 107 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.480 lm, 2.340 lm/m, 122 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 6.290 lm, 2.680 lm/m, 140 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.470 lm, 2.330 lm/m, 122 lm/W, length 2.344 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.480 lm, 2.340 lm/m, 122 lm/W, length 2.344 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 6.290 lm, 2.680 lm/m, 140 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 45 W, 5.470 lm, 2.330 lm/m, 122 lm/W, length 2.344 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 90, system 58 W, 5.350 lm, 1.780 lm/m, 92 lm/W, length 3.000 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 90, system 58 W, 6.140 lm, 2.050 lm/m, 106 lm/W, length 3.000 mm
    nicht dimmbar
    Weiß, High Performance Opal, 3000 K, CRI ≥ 80, system 58 W, 7.130 lm, 2.380 lm/m, 123 lm/W, length 3.000 mm
    DALI-2
    Weiß, Microprismatic, 3000 K, CRI ≥ 80, system 58 W, 6.190 lm, 2.070 lm/m, 107 lm/W, length 3.000 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.060 lm, 2.360 lm/m, 122 lm/W, length 3.000 mm
    nicht dimmbar
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 58 W, 8.110 lm, 2.710 lm/m, 140 lm/W, length 3.000 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.050 lm, 2.350 lm/m, 122 lm/W, length 3.000 mm
    nicht dimmbar
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.060 lm, 2.360 lm/m, 122 lm/W, length 3.000 mm
    DALI-2
    Weiß, High Performance Opal, 4000 K, CRI ≥ 80, system 58 W, 8.110 lm, 2.710 lm/m, 140 lm/W, length 3.000 mm
    DALI-2
    Weiß, Microprismatic, 4000 K, CRI ≥ 80, system 58 W, 7.050 lm, 2.350 lm/m, 122 lm/W, length 3.000 mm
    DALI-2

    Zubehör

    Optisch

    Artikelnummer
    Typ
    Abmessungen
    LIGHT OPTIC COVER
    006-16062G
    mikroprismatisch (UGR<19)*
    Länge 570 mm
    Breite 55 mm
    0,22 kg
    LIGHT OPTIC COVER
    006-16062H
    opal high performance
    Länge 570 mm
    Breite 55 mm
    0,1 kg
    LIGHT OPTIC COVER
    006-16062Z
    mikroprismatisch
    Länge 570 mm
    Breite 55 mm
    0,25 kg
    LIGHT OPTIC COVER
    006-16092G
    mikroprismatisch (UGR<19)*
    Länge 870 mm
    Breite 55 mm
    0,3 kg
    LIGHT OPTIC COVER
    006-16092H
    opal high performance
    Länge 870 mm
    Breite 55 mm
    0,14 kg
    LIGHT OPTIC COVER
    006-16092Z
    mikroprismatisch
    Länge 870 mm
    Breite 55 mm
    0,3 kg
    LIGHT OPTIC COVER
    006-16122G
    mikroprismatisch (UGR<19)*
    Länge 1.171 mm
    Breite 55 mm
    0,37 kg
    LIGHT OPTIC COVER
    006-16122H
    opal high performance
    Länge 1.171 mm
    Breite 55 mm
    0,2 kg
    LIGHT OPTIC COVER
    006-16122Z
    mikroprismatisch
    Länge 1.171 mm
    Breite 55 mm
    0,4 kg
    LIGHT OPTIC COVER
    006-16152G
    mikroprismatisch (UGR<19)*
    Länge 1.470 mm
    Breite 55 mm
    0,48 kg
    LIGHT OPTIC COVER
    006-16152H
    opal high performance
    Länge 1.470 mm
    Breite 55 mm
    0,24 kg
    LIGHT OPTIC COVER
    006-16152Z
    mikroprismatisch
    Länge 1.470 mm
    Breite 55 mm
    0,5 kg
    LIGHT OPTIC COVER
    006-16232G
    mikroprismatisch (UGR<19)*
    Länge 2.342 mm
    Breite 55 mm
    0,78 kg
    LIGHT OPTIC COVER
    006-16232H
    opal high performance
    Länge 2.342 mm
    Breite 55 mm
    0,36 kg
    LIGHT OPTIC COVER
    006-16232Z
    mikroprismatisch
    Länge 2.342 mm
    Breite 55 mm
    0,8 kg
    LIGHT OPTIC COVER
    006-16302G
    mikroprismatisch (UGR<19)*
    Länge 2.997 mm
    Breite 55 mm
    1 kg
    LIGHT OPTIC COVER
    006-16302H
    opal high performance
    Länge 2.997 mm
    Breite 55 mm
    0,5 kg
    LIGHT OPTIC COVER
    006-16302Z
    mikroprismatisch
    Länge 2.997 mm
    Breite 55 mm
    1 kg

    Montage

    Artikelnummer
    Farbe
    Abmessungen
    INSTALLATION CHANNEL
    035-00637
    Verkehrsweiß
    Länge 572 mm
    Breite 77 mm
    Höhe 76 mm
    0,8 kg
    INSTALLATION CHANNEL
    035-0063G
    Weiß Aluminium
    Länge 572 mm
    Breite 77 mm
    Höhe 76 mm
    0,8 kg
    INSTALLATION CHANNEL
    035-00937
    Verkehrsweiß
    Länge 872 mm
    Breite 77 mm
    Höhe 76 mm
    1,28 kg
    INSTALLATION CHANNEL
    035-0093G
    Weiß Aluminium
    Länge 872 mm
    Breite 77 mm
    Höhe 76 mm
    1,2 kg
    INSTALLATION CHANNEL
    035-01237
    Verkehrsweiß
    Länge 1.172 mm
    Breite 77 mm
    Höhe 76 mm
    1,74 kg
    INSTALLATION CHANNEL
    035-0123G
    Weiß Aluminium
    Länge 1.172 mm
    Breite 77 mm
    Höhe 76 mm
    1,6 kg
    INSTALLATION CHANNEL
    035-01537
    Verkehrsweiß
    Länge 1.472 mm
    Breite 77 mm
    Höhe 76 mm
    2 kg
    INSTALLATION CHANNEL
    035-0153G
    Weiß Aluminium
    Länge 1.472 mm
    Breite 77 mm
    Höhe 76 mm
    2 kg
    INSTALLATION CHANNEL
    035-02537
    Verkehrsweiß
    Länge 2.344 mm
    Breite 77 mm
    Höhe 76 mm
    3,2 kg
    INSTALLATION CHANNEL
    035-0253G
    Weiß Aluminium
    Länge 2.344 mm
    Breite 77 mm
    Höhe 76 mm
    3,2 kg
    INSTALLATION CHANNEL
    035-03037
    Verkehrsweiß
    Länge 3.000 mm
    Breite 77 mm
    Höhe 76 mm
    4,6 kg
    INSTALLATION CHANNEL
    035-0303G
    Weiß Aluminium
    Länge 3.000 mm
    Breite 77 mm
    Höhe 76 mm
    4,1 kg

    Elektrische Kabel

    Artikelnummer
    Typ
    Abmessungen
    THROUGH WIRE
    004-90003
    3 x 1,5 mm² | 10 Stück
    0,14 kg
    THROUGH WIRE
    004-90005
    5 x 1,5 mm² | 10 Stück
    0,3 kg

    Montage

    Artikelnummer
    Farbe
    Abmessungen
    Montageart
    LINEAR CONNECTOR
    005-40046
    Länge 46 mm
    Breite 80 mm
    0,06 kg
    LINEAR CONNECTOR
    005-40046.10
    Länge 46 mm
    Breite 80 mm
    0,52 kg
    OPAL COVER LINEAR CONNECTOR
    006-14000
    Länge 46 mm
    Breite 80 mm
    0,01 kg
    MOUNTING BRACKET
    035-10200
    Breite 79 mm
    0,06 kg
    Einbau mit Rand
    MOUNTING BRACKET
    035-10200.25
    Breite 79 mm
    1,96 kg
    Einbau mit Rand
    END CAPS
    035-13137
    Verkehrsweiß
    RAL 9016
    Länge 77 mm
    Breite 76 mm
    0,15 kg
    Einbau randlos
    END CAPS
    035-1313G
    Weiß Aluminium
    RAL 9006
    Länge 77 mm
    Breite 76 mm
    0,15 kg
    Einbau randlos

    Ähnliche Produkte

    MINO 60

    surface

    MINO 60

    ceiling offset

    MINO 60

    suspended

    MINO 60

    ceiling / suspended system

    MINO 60

    CURVE ceiling / suspended system

    MINO 60

    direct / indirect suspended system

    FRAME 60

    trim

    MOVE IT 10

    trimless system

    MOVE IT 10

    surface system

    MOVE IT 10

    square / round suspended system
