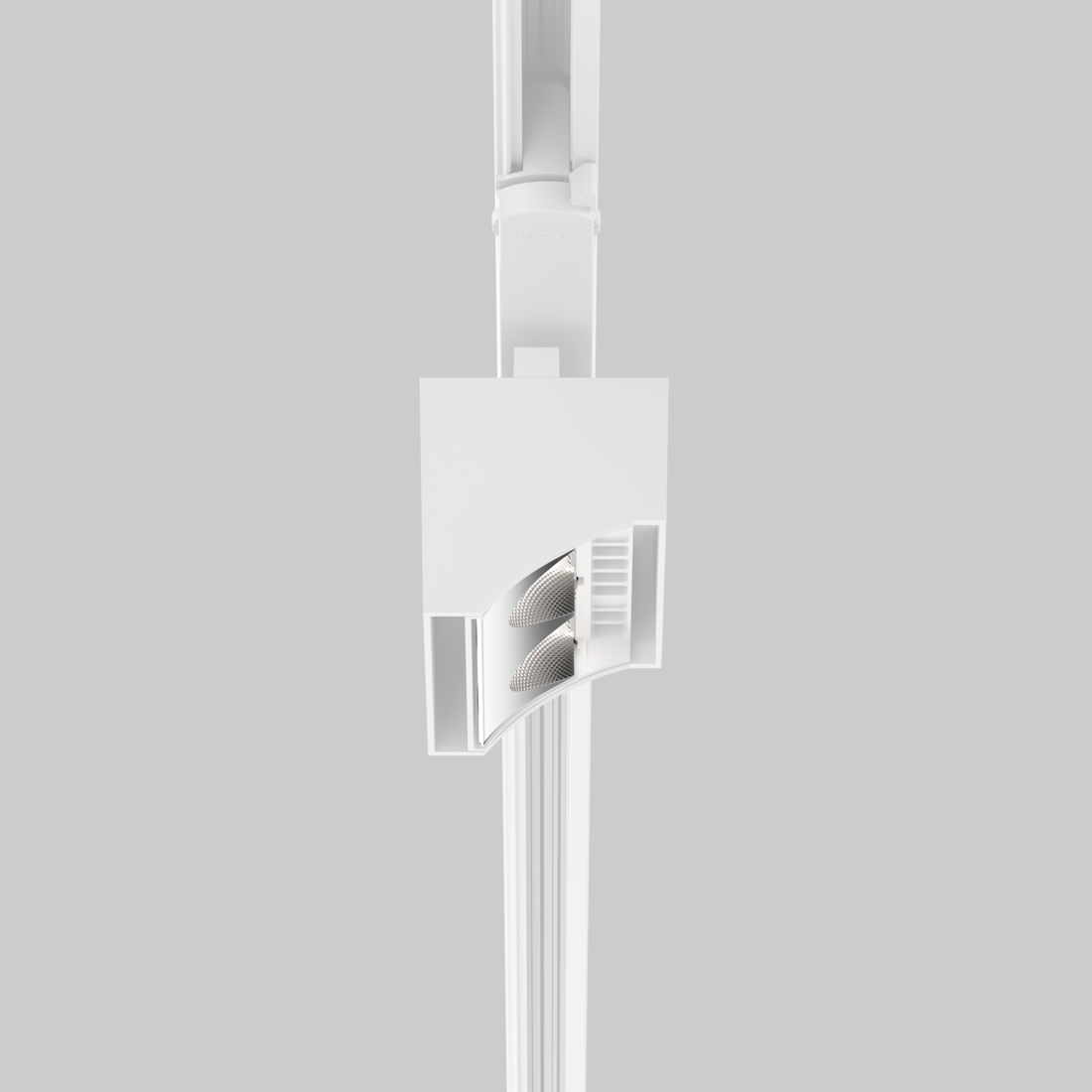

SQUADRO single-sided wallwasher track
SQUADRO single-sided wallwasher track

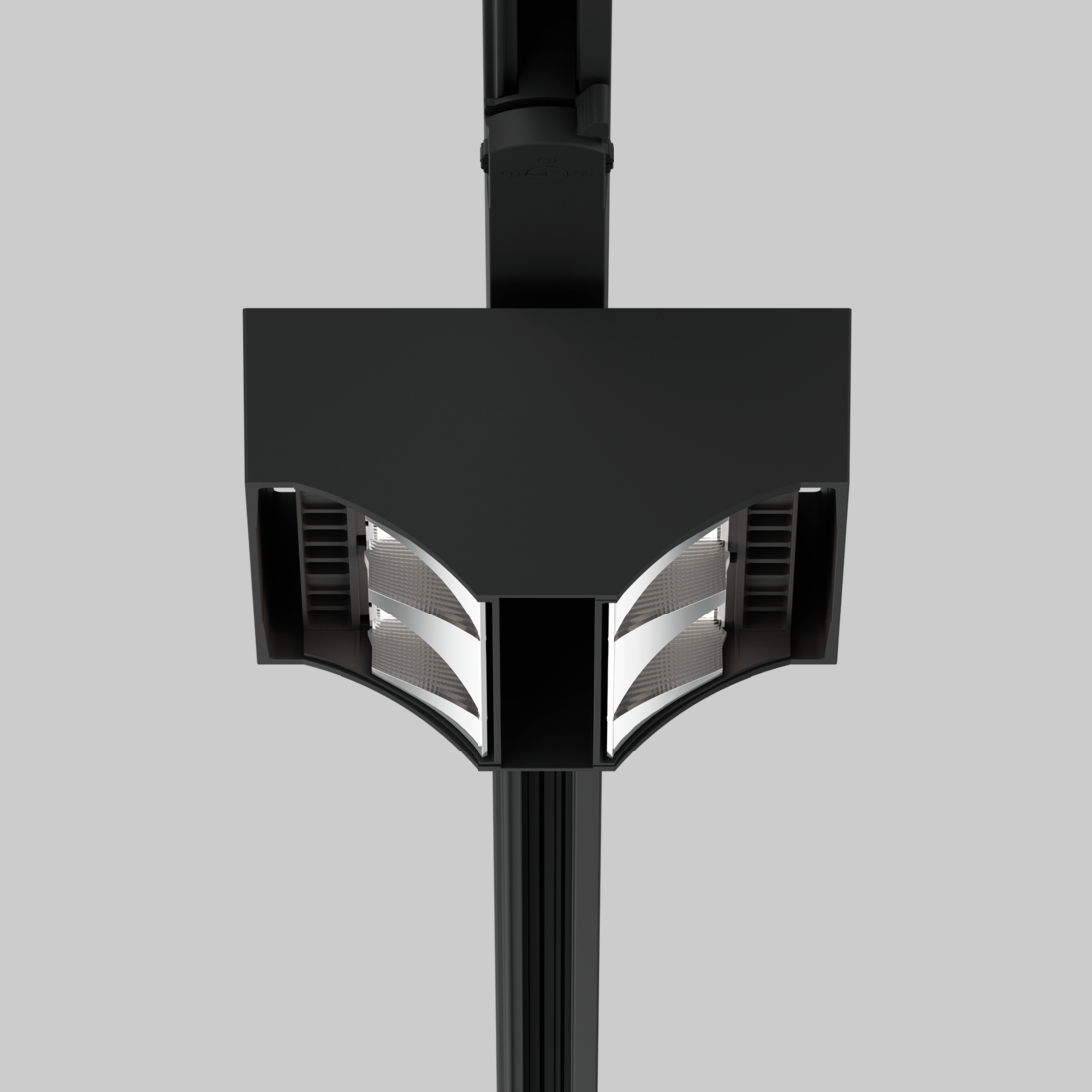

SQUADRO double-sided wallwasher track
SQUADRO double-sided wallwasher track
SQUADRO double-sided wallwasher track
SQUADRO single-sided wallwasher track
SQUADRO single-sided wallwasher track
SQUADRO double-sided wallwasher track
SQUADRO double-sided wallwasher track
SQUADRO double-sided wallwasher track
SQUADRO (right) replaces a 3.6 m light band with better light output

SQUADRO wallwasher

track 2 lamps

Informazioni rapide

3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2 SDCM
fino a 139 lm/W
L80 / 50000 h
DALI-2, non DIM
IP20

Colore

    • Prodotti e codici
    Scopri la famiglia

    Disegno semplice

    Distribuzione della luce

    Dati relativi ai prodotti e documenti di specifica

    Download intero
    Download intero
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Descrizione

    Faretto da binario elettrificato in pressofusione di alluminio in 2 varianti (2 o 2x2 punti luce) e con 2 diversi moduli d’illuminazione (per shelf floor washer e wall floor washer); verniciatura a polvere; Faretto per corridoi con riflettori multipli in tecnologia speciale di forma amorfa, con ottica sfaccettata per luce direzionata con la massima precisione; illuminazione di precisione di scaffali e corridoi, ottima schermatura longitudinale per il massimo comfort visivo nei corridoi, moduli luce regolabili; tecnologia COB (Chip on Board) per la massima efficienza; LED efficienti con alta resa cromatica; vetro protettivo IP 40 disponibile come accessorio; incluso accessorio per il posizionamento in linea del corpo illuminante

    compatibile con MOVE IT PRO

    DiiA® standards 251, 252, 253

    fino a 139 lm/W (high efficiency)

    riflettore non abbagliante in senso longitudinale e trasversale

    orientabile +20° fino a -15°

    Prodotti e codici

    Filtro
    136
    lm/W
    139
    lm/W
    4910
    lm
    9970
    lm
    36
    W
    72
    W
    0.54
    0.78
    0.49
    0.71

    Colore

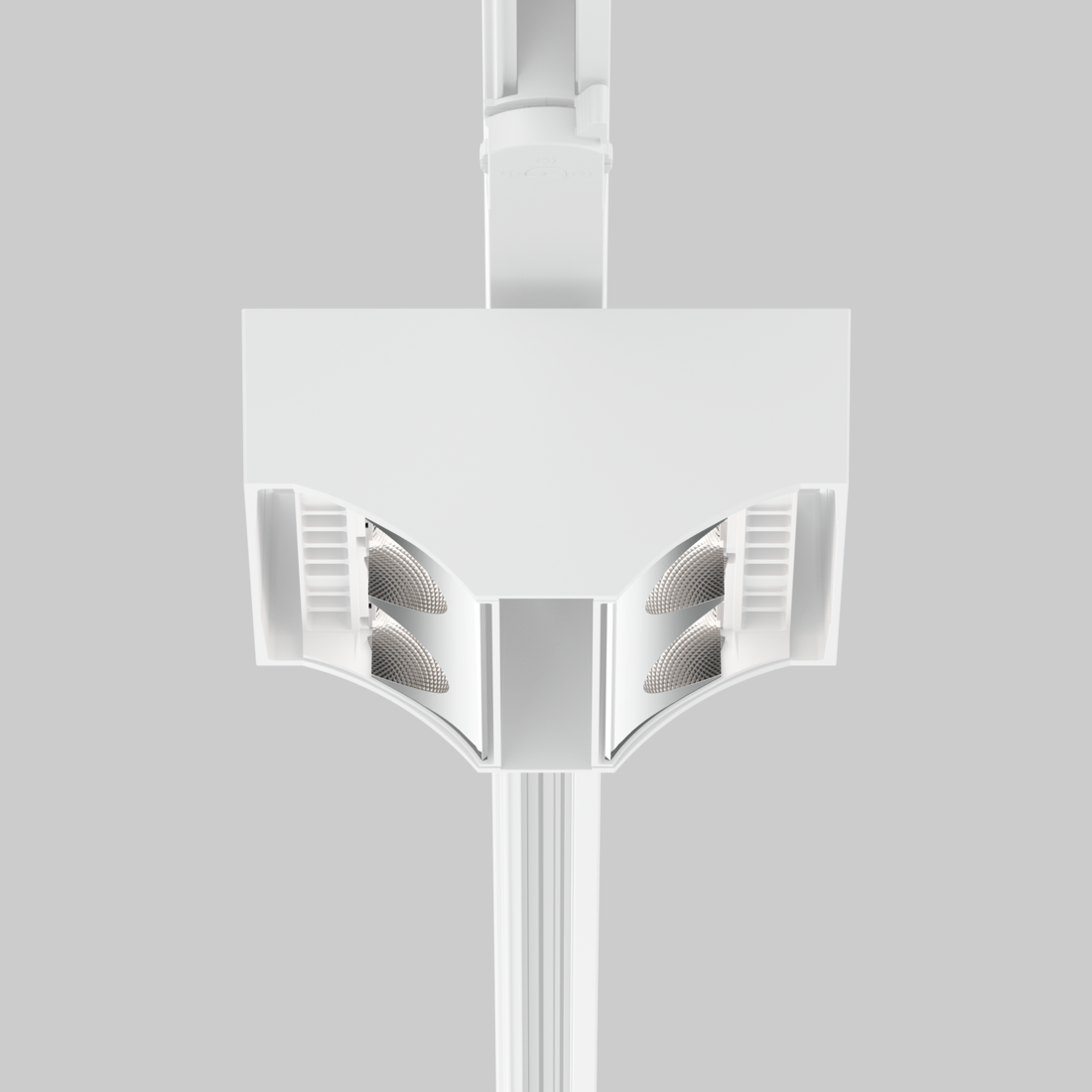

    • SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track parete

    SQUADRO double-sided wallwasher track parete

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bilaterale
    bianco, wall floor washer, 3000 K, system 72 W, 137 lm/W
    non DIM
    bilaterale
    bianco, wall floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    bilaterale
    bianco, wall floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM

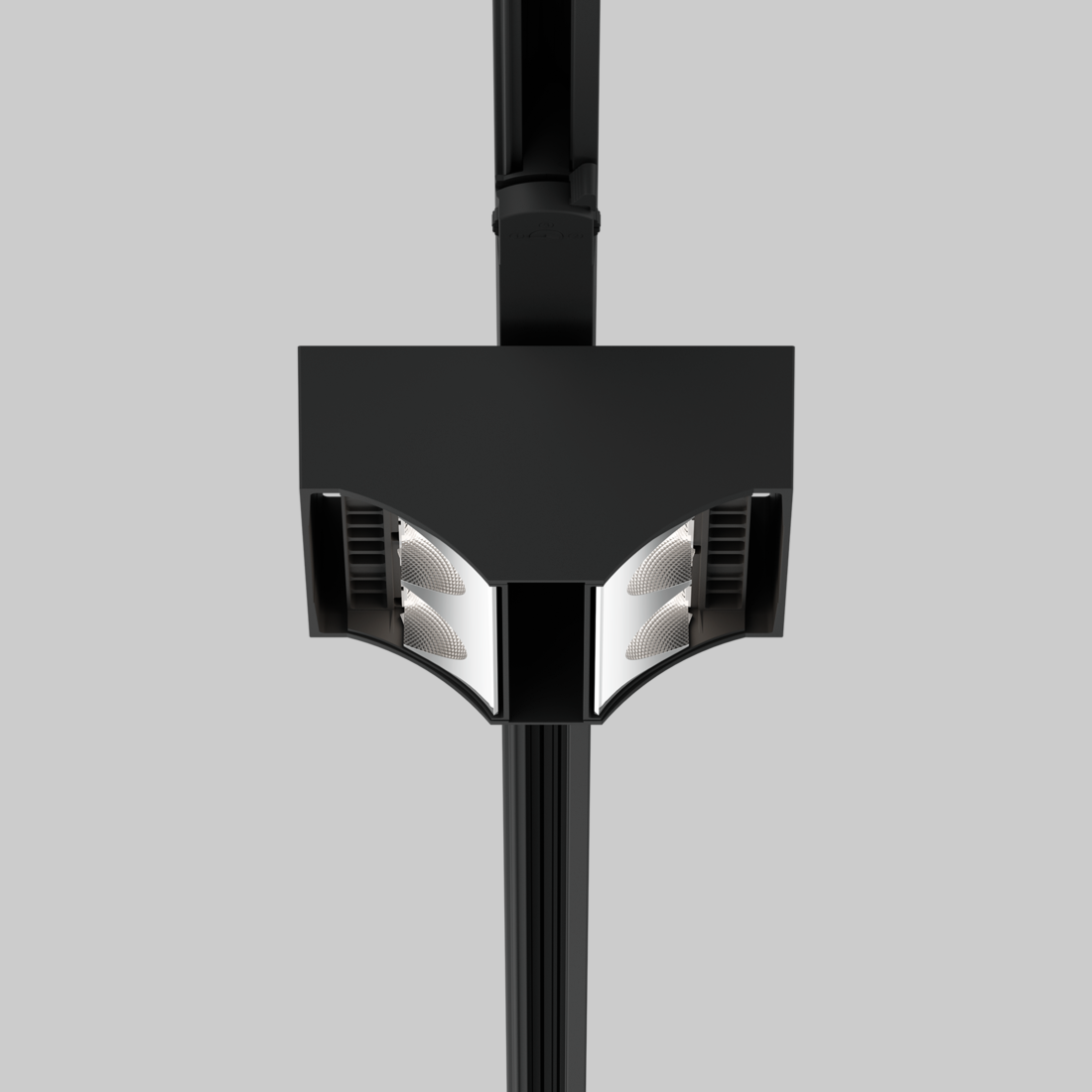

    SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track parete

    SQUADRO double-sided wallwasher track parete

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bilaterale
    nero, wall floor washer, 3000 K, system 72 W, 137 lm/W
    non DIM
    bilaterale
    nero, wall floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    bilaterale
    nero, wall floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM

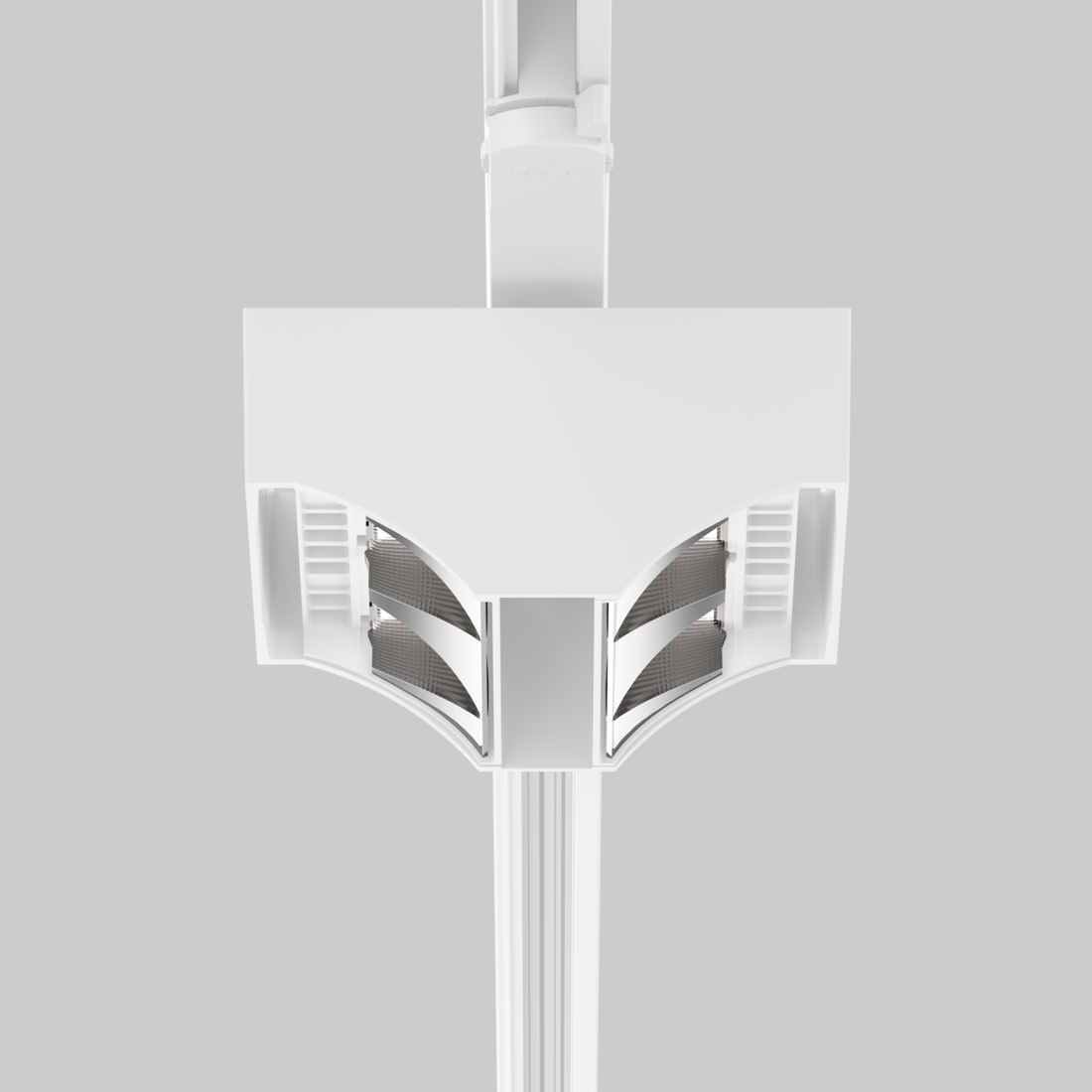

    SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track scaffale

    SQUADRO double-sided wallwasher track scaffale

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bilaterale
    bianco, shelf floor washer, 3000 K, system 72 W, 136 lm/W
    non DIM
    bilaterale
    bianco, shelf floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    bilaterale
    bianco, shelf floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM
    SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track scaffale

    SQUADRO double-sided wallwasher track scaffale

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bilaterale
    nero, shelf floor washer, 3000 K, system 72 W, 136 lm/W
    non DIM
    bilaterale
    nero, shelf floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    bilaterale
    nero, shelf floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM

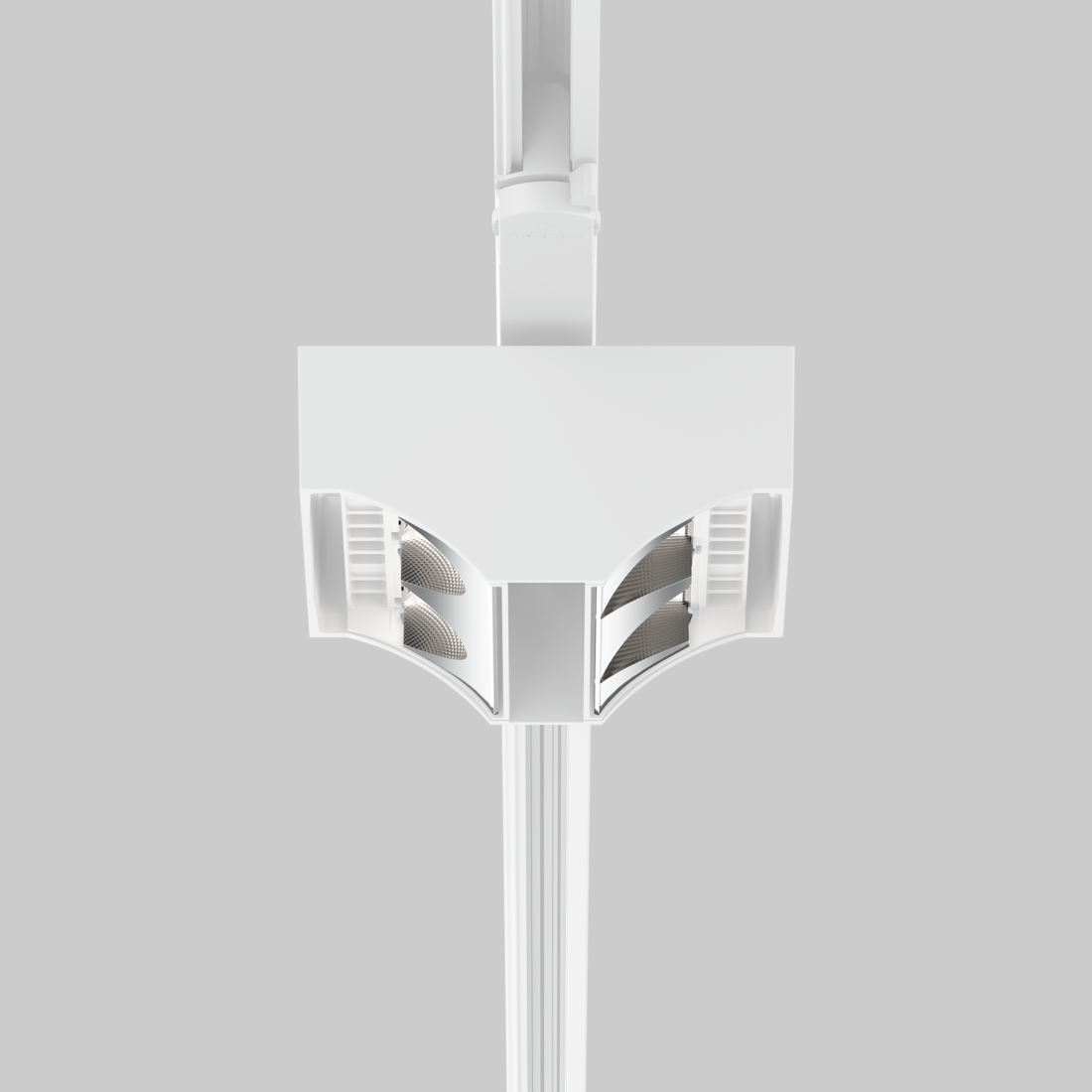

    SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track shelf / wall

    SQUADRO double-sided wallwasher track shelf / wall

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bilaterale
    bianco, shelf / wall floor washer, 3000 K, system 72 W, 137 lm/W
    non DIM
    unilaterale wall floor
    bianco, shelf / wall floor washer, 3000 K, system 36 W, 137 lm/W
    non DIM
    unilaterale shelf floor
    bianco, shelf / wall floor washer, 3000 K, system 36 W, 136 lm/W
    non DIM
    unilaterale wall floor
    bianco, shelf / wall floor washer, 4000 K, system 36 W, 139 lm/W
    non DIM
    unilaterale shelf floor
    bianco, shelf / wall floor washer, 4000 K, system 36 W, 138 lm/W
    non DIM
    bilaterale
    bianco, shelf / wall floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    unilaterale wall floor
    bianco, shelf / wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    bilaterale
    bianco, shelf / wall floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM
    unilaterale shelf floor
    bianco, shelf / wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM

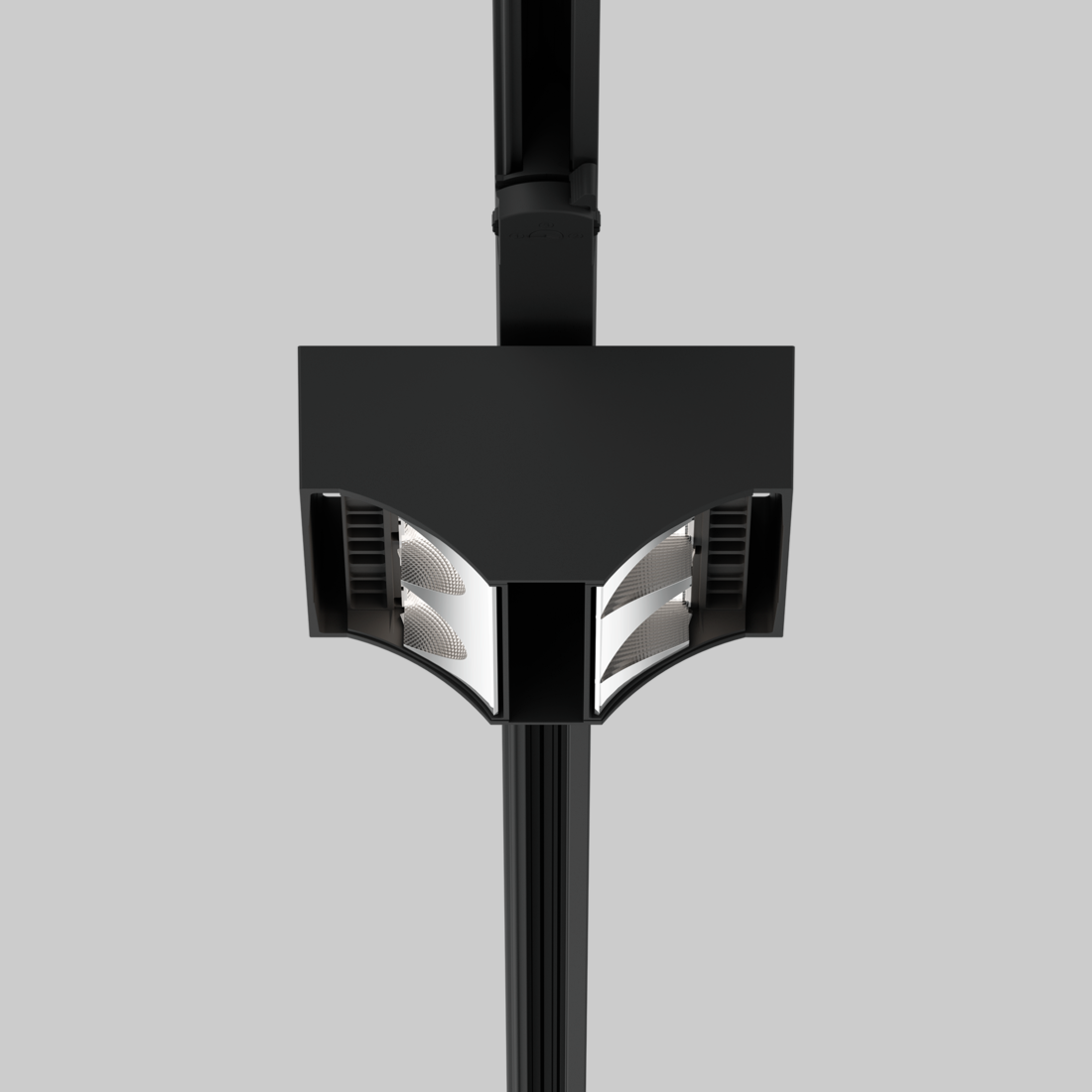

    SQUADRO double-sided wallwasher track

    SQUADRO double-sided wallwasher track shelf / wall

    SQUADRO double-sided wallwasher track shelf / wall

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    unilaterale shelf floor
    nero, shelf / wall floor washer, 3000 K, system 36 W, 136 lm/W
    non DIM
    unilaterale wall floor
    nero, shelf / wall floor washer, 3000 K, system 36 W, 137 lm/W
    non DIM
    bilaterale
    nero, shelf / wall floor washer, 3000 K, system 72 W, 137 lm/W
    non DIM
    bilaterale
    nero, shelf / wall floor washer, 4000 K, system 72 W, 138 lm/W
    non DIM
    unilaterale shelf floor
    nero, shelf / wall floor washer, 4000 K, system 36 W, 138 lm/W
    non DIM
    unilaterale wall floor
    nero, shelf / wall floor washer, 4000 K, system 36 W, 139 lm/W
    non DIM
    bilaterale
    nero, shelf / wall floor washer, 3500 K, system 72 W, 138 lm/W
    non DIM
    unilaterale wall floor
    nero, shelf / wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    unilaterale shelf floor
    nero, shelf / wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    SQUADRO single-sided wallwasher track

    SQUADRO single-sided wallwasher track parete

    SQUADRO single-sided wallwasher track parete

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bianco, wall floor washer, 3000 K, system 36 W, 137 lm/W
    non DIM
    bianco, wall floor washer, 3000 K, system 36 W, 137 lm/W
    DALI-2
    bianco, wall floor washer, 4000 K, system 36 W, 139 lm/W
    non DIM
    bianco, wall floor washer, 4000 K, system 36 W, 139 lm/W
    DALI-2
    bianco, wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    bianco, wall floor washer, 3500 K, system 36 W, 138 lm/W
    DALI-2

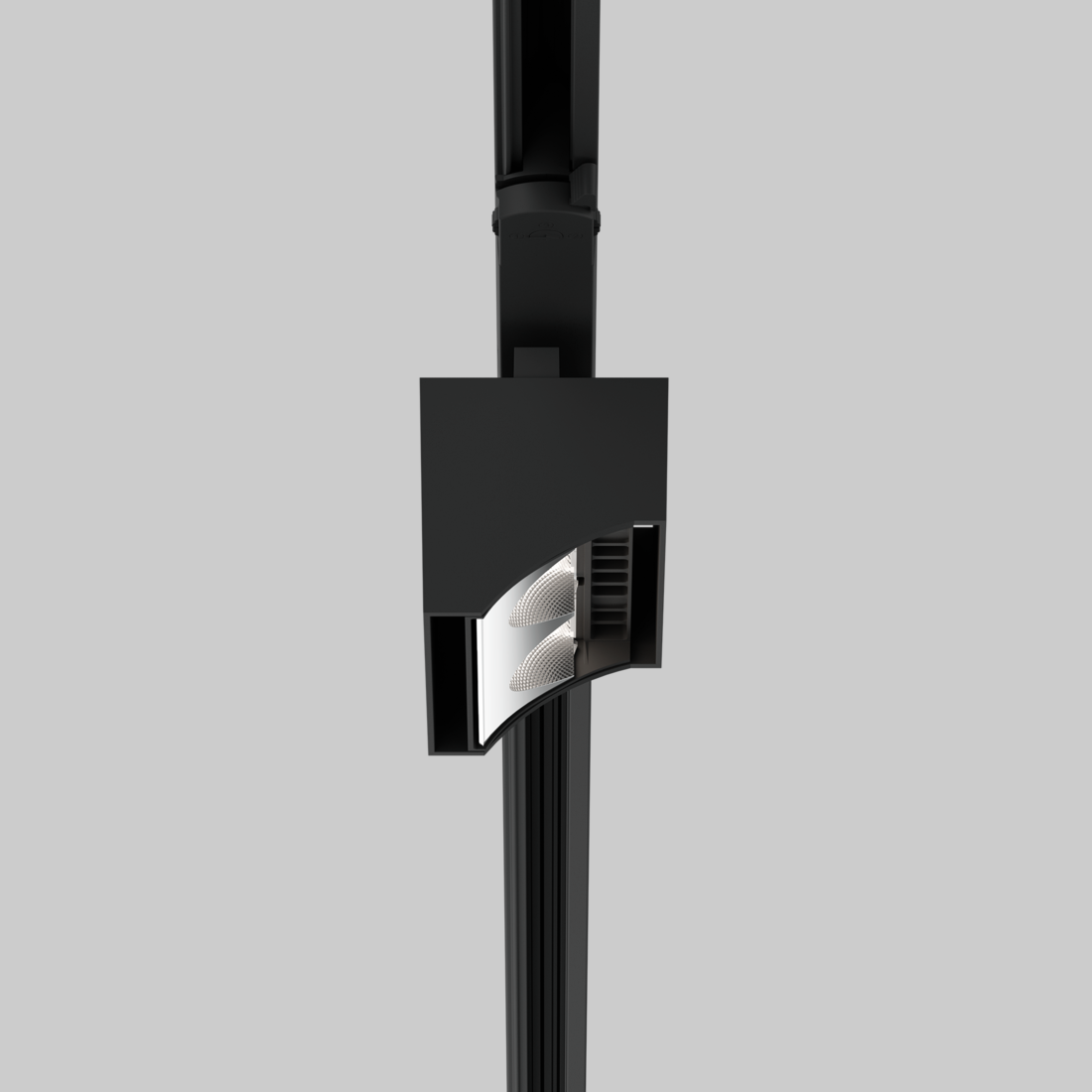

    SQUADRO single-sided wallwasher track

    SQUADRO single-sided wallwasher track parete

    SQUADRO single-sided wallwasher track parete

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    nero, wall floor washer, 3000 K, system 36 W, 137 lm/W
    non DIM
    nero, wall floor washer, 3000 K, system 36 W, 137 lm/W
    DALI-2
    nero, wall floor washer, 4000 K, system 36 W, 139 lm/W
    non DIM
    nero, wall floor washer, 4000 K, system 36 W, 139 lm/W
    DALI-2
    nero, wall floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    nero, wall floor washer, 3500 K, system 36 W, 138 lm/W
    DALI-2

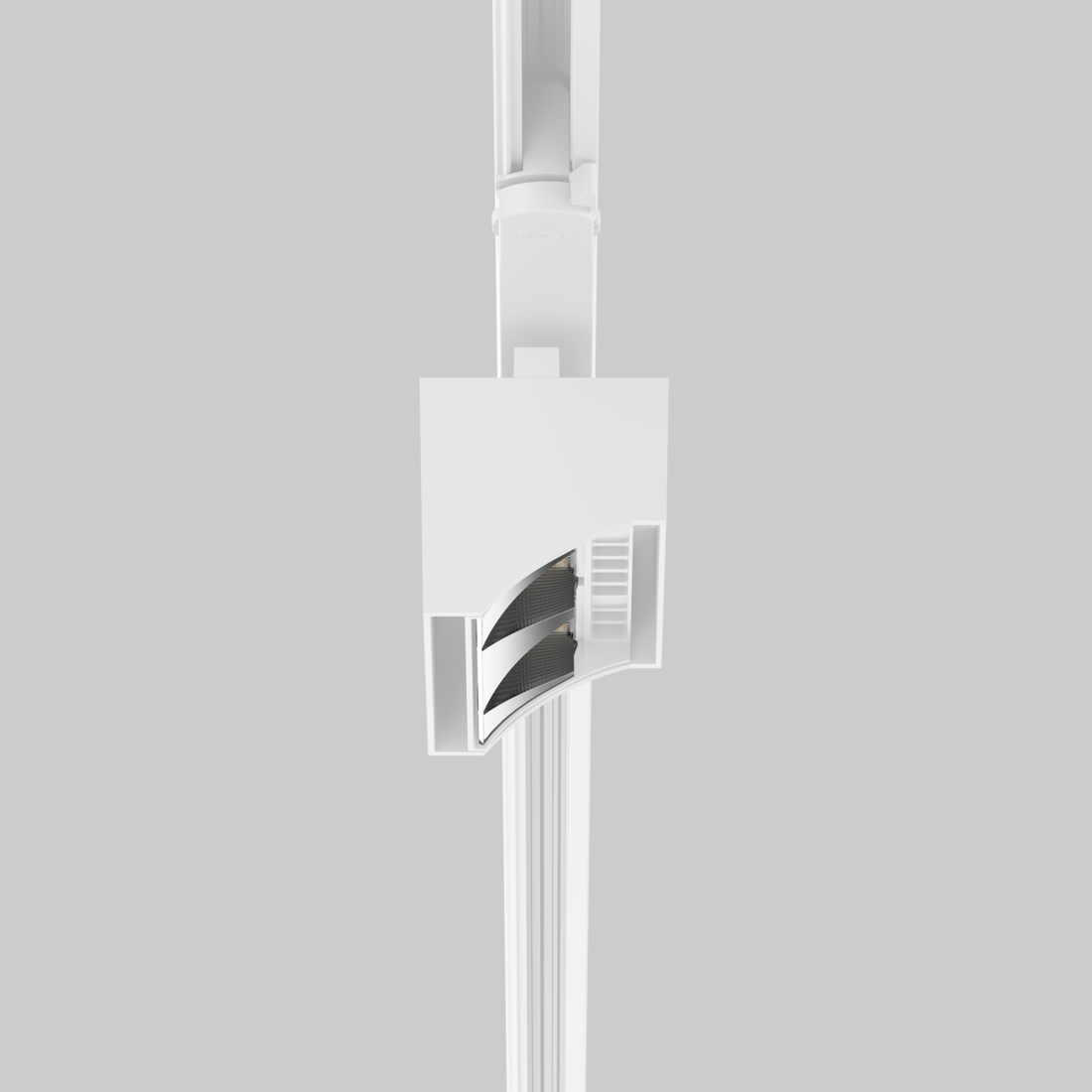

    SQUADRO single-sided wallwasher track

    SQUADRO single-sided wallwasher track scaffale

    SQUADRO single-sided wallwasher track scaffale

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    bianco, shelf floor washer, 3000 K, system 36 W, 136 lm/W
    non DIM
    bianco, shelf floor washer, 3000 K, system 36 W, 136 lm/W
    DALI-2
    bianco, shelf floor washer, 4000 K, system 36 W, 138 lm/W
    non DIM
    bianco, shelf floor washer, 4000 K, system 36 W, 138 lm/W
    DALI-2
    bianco, shelf floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    bianco, shelf floor washer, 3500 K, system 36 W, 138 lm/W
    DALI-2

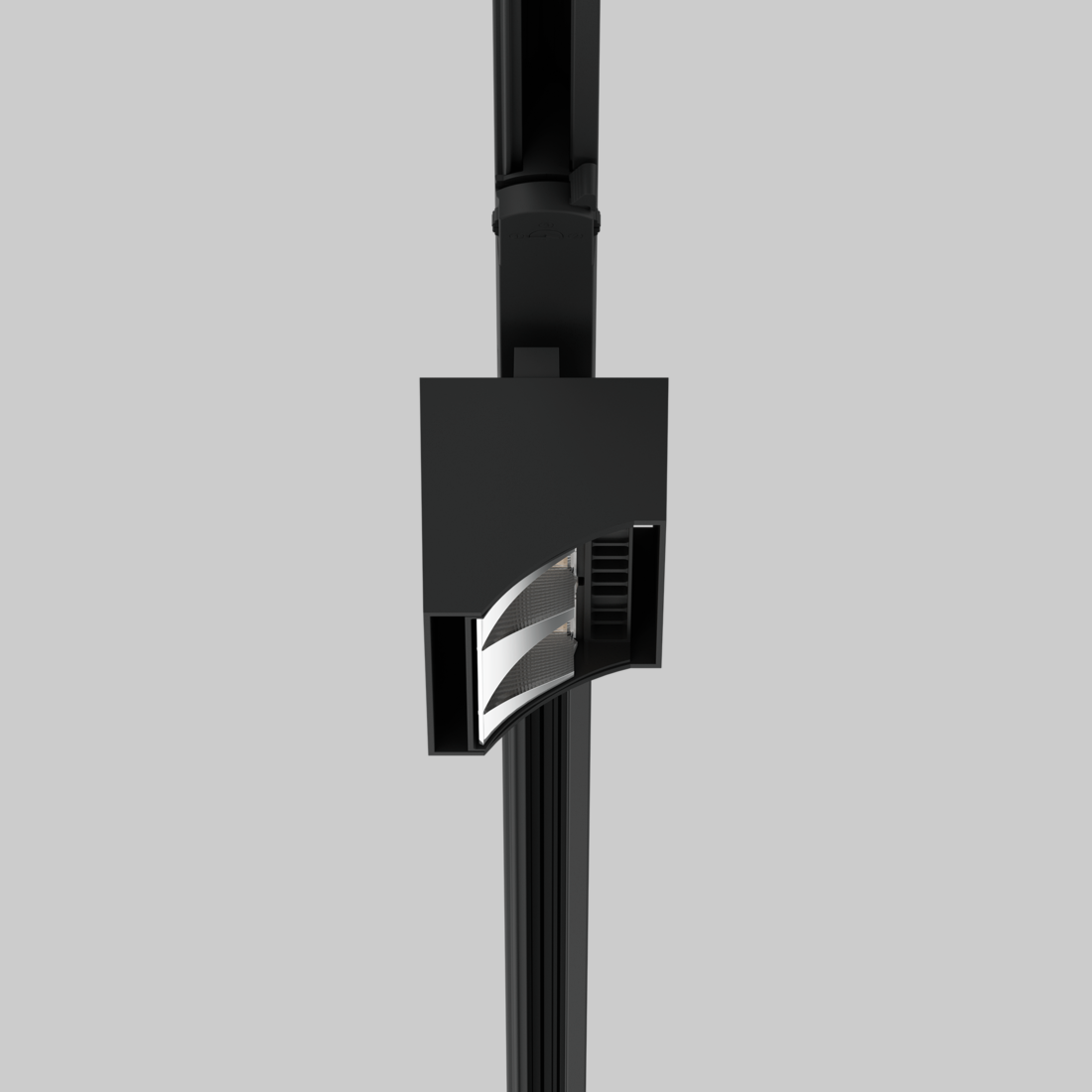

    SQUADRO single-sided wallwasher track

    SQUADRO single-sided wallwasher track scaffale

    SQUADRO single-sided wallwasher track scaffale

    Stato
    N. articolo/i
    Variante
    Tipo
    Dimming
    nero, shelf floor washer, 3000 K, system 36 W, 136 lm/W
    non DIM
    nero, shelf floor washer, 3000 K, system 36 W, 136 lm/W
    DALI-2
    nero, shelf floor washer, 4000 K, system 36 W, 138 lm/W
    non DIM
    nero, shelf floor washer, 4000 K, system 36 W, 138 lm/W
    DALI-2
    nero, shelf floor washer, 3500 K, system 36 W, 138 lm/W
    non DIM
    nero, shelf floor washer, 3500 K, system 36 W, 138 lm/W
    DALI-2

    Accessori

    Ottico

    numero di articolo
    tipo
    dimensioni
    IP40 PROTECTION GLASS
    049-2910010
    1 x 2 lamps / single-sided
    0,04 kg
    IP40 PROTECTION GLASS
    049-2920010
    2 x 2 lampade / emissione 2 lati
    0,01 kg
