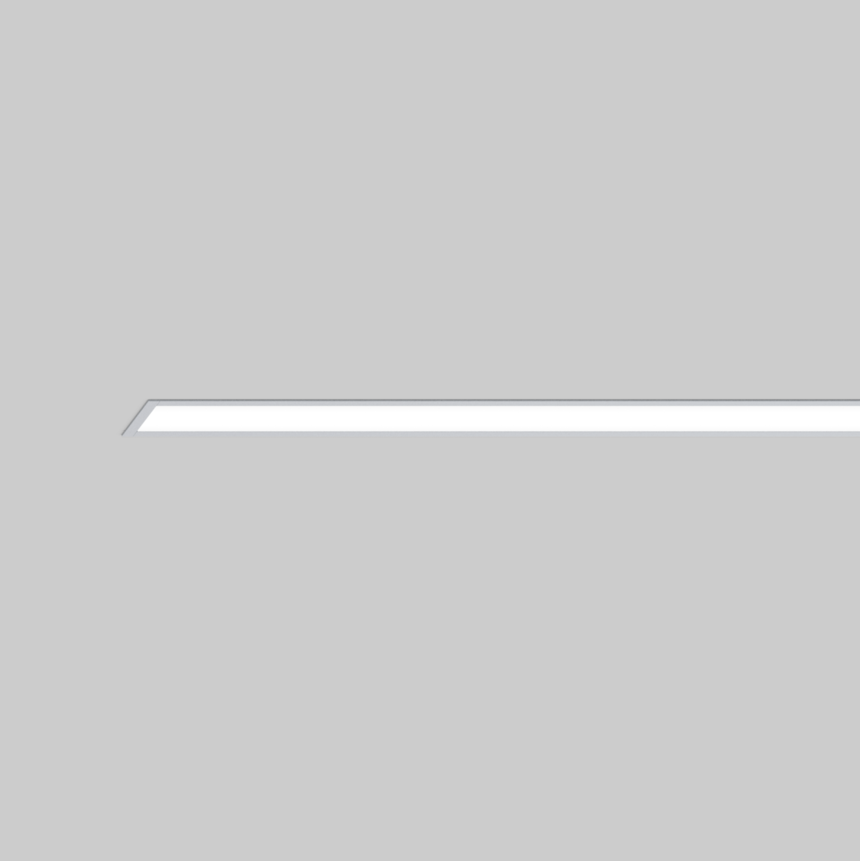

FRAME 60 HIGH LUMEN trim;FRAME 60 MID LUMEN trim

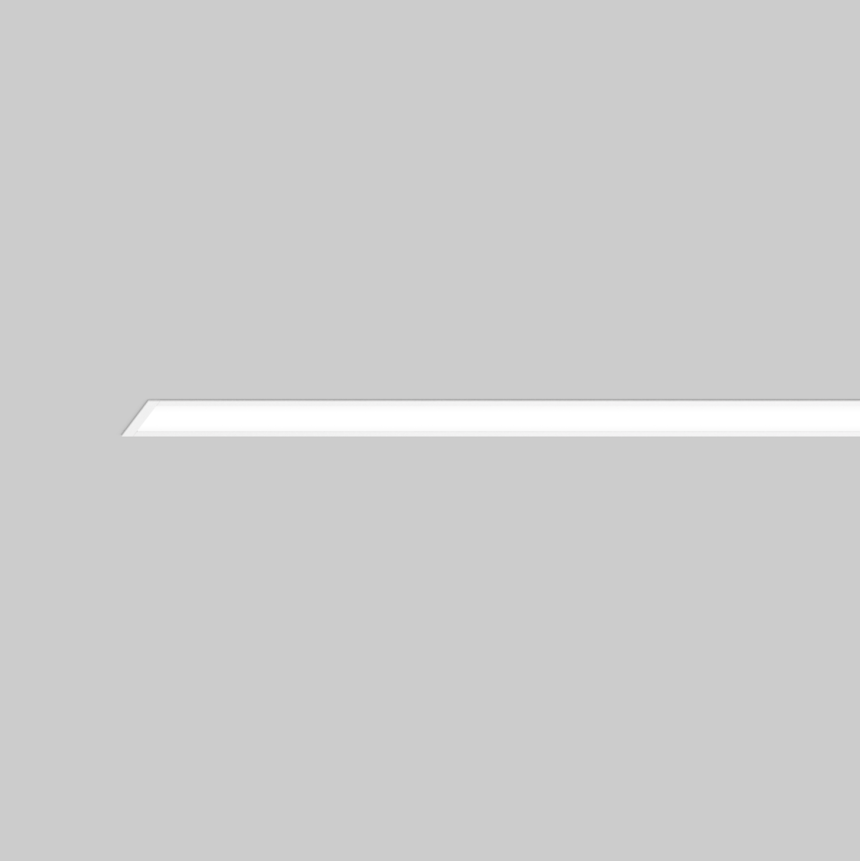

FRAME 60 HIGH LUMEN trim;FRAME 60 MID LUMEN trim

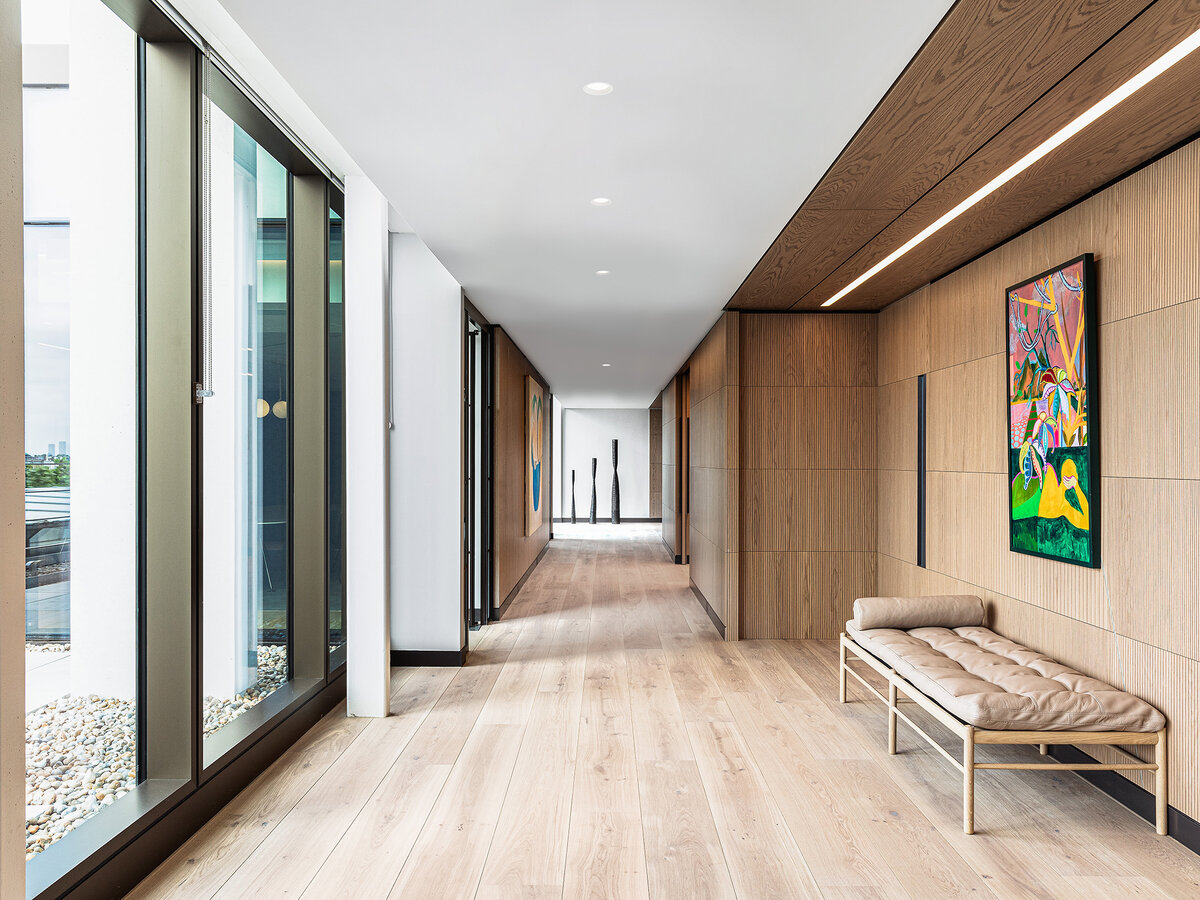

Office Ashurst
Office Ashurst
Office Ashurst
INSTITUTO DE EMPRESA

FRAME 60

trim

Informazioni rapide

3000 K, 4000 K, tunable white
CRI ≥ 80, 90 / 3 SDCM
UGR ≤ 19
fino a 125 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, Microprismatic
IP20

Colore

    • Prodotti e codici

    Disegno semplice

    Distribuzione della luce

    Dati relativi ai prodotti e documenti di specifica

    Download intero
    Download intero
    • ROLF
    • ULD

    Descrizione

    Corpo illuminante in profilo di alluminio estruso; apparecchio da incasso con bordo perimetrale; per soffitti di spessore 8-25 mm; verniciatura a polvere; profilo consegnabile in anticIP o; restanti componenti montabili senza utensili; unità d’illuminazione in profilo di alluminio estruso con verniciatura altamente riflettente per gestione termica migliorata; diffusore HPO (High Performance Opal) per un’illuminazione omogenea; rifrattore in PMMA a microprismi incl. pellicola di diffusione per ridurre la luminanza mantenendo l’illuminazione omogenea; LED ad efficienza energetica con elevata resa cromatica

    DiiA® standards 251, 252, 253

    soluzione di sistema

    microprismatico UGR ≤ 19

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (opzionale)

    Prodotti e codici

    Filtro
    82
    lm/W
    125
    lm/W
    723
    lm
    6320
    lm
    593
    mm
    2365
    mm
    8.7
    W
    58
    W
    0.54
    1.07
    0.49
    0.97

    Colore

    • FRAME 60 HIGH LUMEN trim;FRAME 60 MID LUMEN trim

    FRAME 60 high lumen trim

    FRAME 60 high lumen trim

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, Microprismatic, tunable white, 80, 2.300 lm/m, 21,7 W, 2.010 lm, 93 lm/W, 893 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, 80, 2.640 lm/m, 21,7 W, 2.300 lm, 106 lm/W, 893 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.300 lm/m, 21,7 W, 2.000 lm, 92 lm/W, 893 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.280 lm/m, 29 W, 2.670 lm, 92 lm/W, 1.193 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, 80, 2.620 lm/m, 29 W, 3.070 lm, 106 lm/W, 1.193 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.280 lm/m, 29 W, 2.670 lm, 92 lm/W, 1.193 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.270 lm/m, 36 W, 3.340 lm, 93 lm/W, 1.493 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, 80, 2.610 lm/m, 36 W, 3.840 lm, 107 lm/W, 1.493 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.270 lm/m, 36 W, 3.340 lm, 93 lm/W, 1.493 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.280 lm/m, 58 W, 5.350 lm, 92 lm/W, 2.365 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, 80, 2.620 lm/m, 58 W, 6.140 lm, 106 lm/W, 2.365 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, 80, 2.280 lm/m, 58 W, 5.340 lm, 92 lm/W, 2.365 mm
    DALI-2 DT8
    bianco, Microprismatic, 3000 K, 90, 2.090 lm/m, 13,9 W, 1.200 lm, 86 lm/W, 593 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 90, 2.400 lm/m, 13,9 W, 1.370 lm, 99 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.090 lm/m, 13,9 W, 1.190 lm, 86 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.090 lm/m, 13,9 W, 1.200 lm, 86 lm/W, 593 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 90, 2.400 lm/m, 13,9 W, 1.370 lm, 99 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.090 lm/m, 13,9 W, 1.190 lm, 86 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.160 lm/m, 13,9 W, 1.240 lm, 89 lm/W, 593 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 90, 2.480 lm/m, 13,9 W, 1.420 lm, 102 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.160 lm/m, 13,9 W, 1.230 lm, 88 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.160 lm/m, 13,9 W, 1.240 lm, 89 lm/W, 593 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 90, 2.480 lm/m, 13,9 W, 1.420 lm, 102 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.160 lm/m, 13,9 W, 1.230 lm, 88 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 593 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 80, 2.610 lm/m, 13,8 W, 1.490 lm, 108 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 593 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 80, 2.610 lm/m, 13,8 W, 1.490 lm, 108 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 593 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 80, 2.760 lm/m, 13,8 W, 1.580 lm, 114 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 593 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 593 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 80, 2.760 lm/m, 13,8 W, 1.580 lm, 114 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 593 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.060 lm/m, 20,8 W, 1.790 lm, 86 lm/W, 893 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 90, 2.370 lm/m, 20,8 W, 2.060 lm, 99 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.060 lm/m, 20,8 W, 1.790 lm, 86 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.060 lm/m, 20,8 W, 1.790 lm, 86 lm/W, 893 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 90, 2.370 lm/m, 20,8 W, 2.060 lm, 99 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.060 lm/m, 20,8 W, 1.790 lm, 86 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.120 lm/m, 20,8 W, 1.850 lm, 89 lm/W, 893 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 90, 2.440 lm/m, 20,8 W, 2.130 lm, 102 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.120 lm/m, 20,8 W, 1.850 lm, 89 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.120 lm/m, 20,8 W, 1.850 lm, 89 lm/W, 893 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 90, 2.440 lm/m, 20,8 W, 2.130 lm, 102 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.120 lm/m, 20,8 W, 1.850 lm, 89 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.230 lm/m, 20,6 W, 1.950 lm, 95 lm/W, 893 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 80, 2.570 lm/m, 20,6 W, 2.240 lm, 109 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.230 lm/m, 20,6 W, 1.940 lm, 94 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.230 lm/m, 20,6 W, 1.950 lm, 95 lm/W, 893 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 80, 2.570 lm/m, 20,6 W, 2.240 lm, 109 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.230 lm/m, 20,6 W, 1.940 lm, 94 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 893 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 80, 2.720 lm/m, 20,6 W, 2.370 lm, 115 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 893 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 893 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 80, 2.720 lm/m, 20,6 W, 2.370 lm, 115 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 893 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.040 lm/m, 27,7 W, 2.390 lm, 86 lm/W, 1.193 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 90, 2.350 lm/m, 27,7 W, 2.750 lm, 99 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.040 lm/m, 27,7 W, 2.390 lm, 86 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.040 lm/m, 27,7 W, 2.390 lm, 86 lm/W, 1.193 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 90, 2.350 lm/m, 27,7 W, 2.750 lm, 99 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.040 lm/m, 27,7 W, 2.390 lm, 86 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.110 lm/m, 27,7 W, 2.470 lm, 89 lm/W, 1.193 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 90, 2.420 lm/m, 27,7 W, 2.840 lm, 103 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.100 lm/m, 27,7 W, 2.470 lm, 89 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.110 lm/m, 27,7 W, 2.470 lm, 89 lm/W, 1.193 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 90, 2.420 lm/m, 27,7 W, 2.840 lm, 103 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.100 lm/m, 27,7 W, 2.470 lm, 89 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.210 lm/m, 27,5 W, 2.600 lm, 95 lm/W, 1.193 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 80, 2.540 lm/m, 27,5 W, 2.980 lm, 108 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.210 lm/m, 27,5 W, 2.590 lm, 94 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.210 lm/m, 27,5 W, 2.600 lm, 95 lm/W, 1.193 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 80, 2.540 lm/m, 27,5 W, 2.980 lm, 108 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.210 lm/m, 27,5 W, 2.590 lm, 94 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.350 lm/m, 27,5 W, 2.750 lm, 100 lm/W, 1.193 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 80, 2.690 lm/m, 27,5 W, 3.160 lm, 115 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.340 lm/m, 27,5 W, 2.740 lm, 100 lm/W, 1.193 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.350 lm/m, 27,5 W, 2.750 lm, 100 lm/W, 1.193 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 80, 2.690 lm/m, 27,5 W, 3.160 lm, 115 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.340 lm/m, 27,5 W, 2.740 lm, 100 lm/W, 1.193 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.030 lm/m, 35 W, 2.990 lm, 85 lm/W, 1.493 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 90, 2.340 lm/m, 35 W, 3.440 lm, 98 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.030 lm/m, 35 W, 2.990 lm, 85 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 3000 K, 90, 2.030 lm/m, 35 W, 2.990 lm, 85 lm/W, 1.493 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 90, 2.340 lm/m, 35 W, 3.440 lm, 98 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 90, 2.030 lm/m, 35 W, 2.990 lm, 85 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.100 lm/m, 35 W, 3.090 lm, 88 lm/W, 1.493 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 90, 2.410 lm/m, 35 W, 3.550 lm, 101 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.090 lm/m, 35 W, 3.080 lm, 88 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 4000 K, 90, 2.100 lm/m, 35 W, 3.090 lm, 88 lm/W, 1.493 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 90, 2.410 lm/m, 35 W, 3.550 lm, 101 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 90, 2.090 lm/m, 35 W, 3.080 lm, 88 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.493 mm
    non DIM
    bianco, High Performance Opal, 3000 K, 80, 2.530 lm/m, 34 W, 3.730 lm, 110 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 3000 K, 80, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.493 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, 80, 2.530 lm/m, 34 W, 3.730 lm, 110 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 3000 K, 80, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.330 lm/m, 34 W, 3.440 lm, 101 lm/W, 1.493 mm
    non DIM
    bianco, High Performance Opal, 4000 K, 80, 2.680 lm/m, 34 W, 3.950 lm, 116 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.330 lm/m, 34 W, 3.430 lm, 101 lm/W, 1.493 mm
    non DIM
    bianco, Microprismatic, 4000 K, 80, 2.330 lm/m, 34 W, 3.440 lm, 101 lm/W, 1.493 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, 80, 2.680 lm/m, 34 W, 3.950 lm, 116 lm/W, 1.493 mm
    DALI-2
    bianco, Microprismatic, 4000 K, 80, 2.330 lm/m, 34 W, 3.430 lm, 101 lm/W, 1.493 mm
    DALI-2
