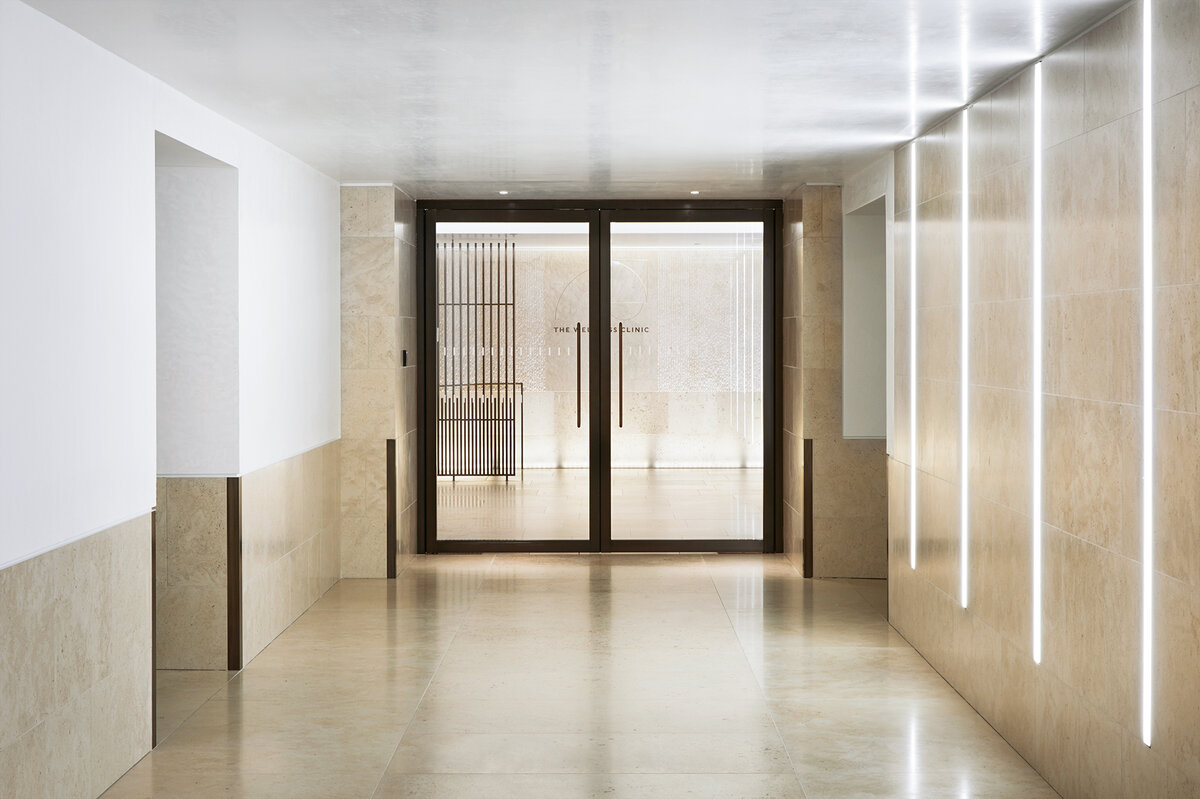

Harrods Wellnes Clinic

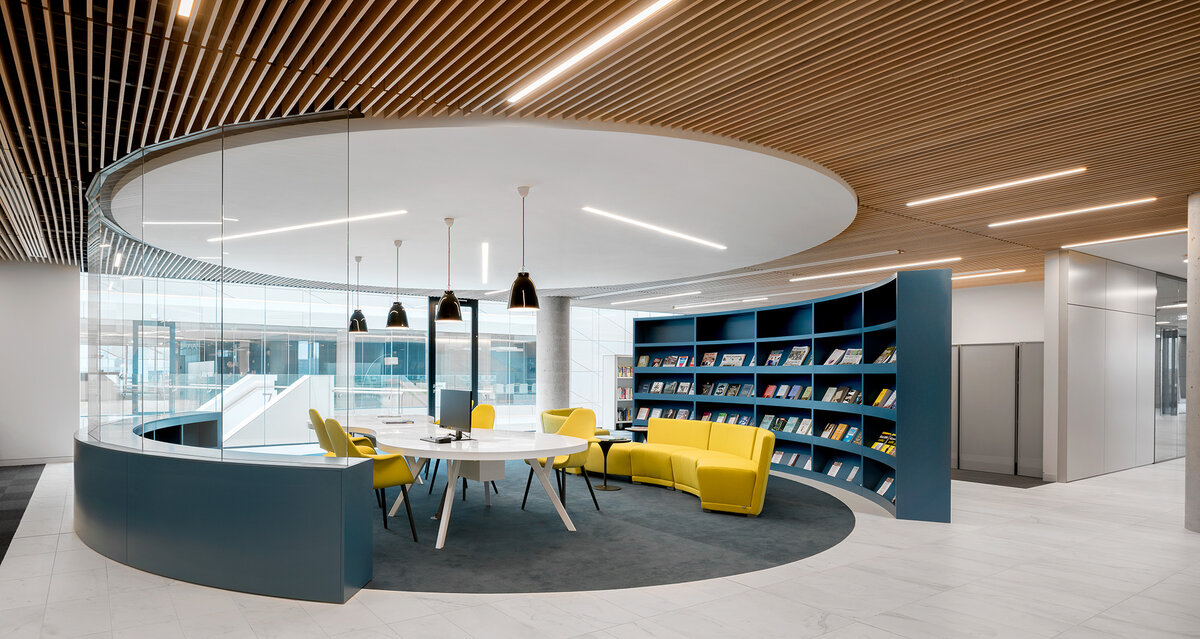

Bank of Ireland

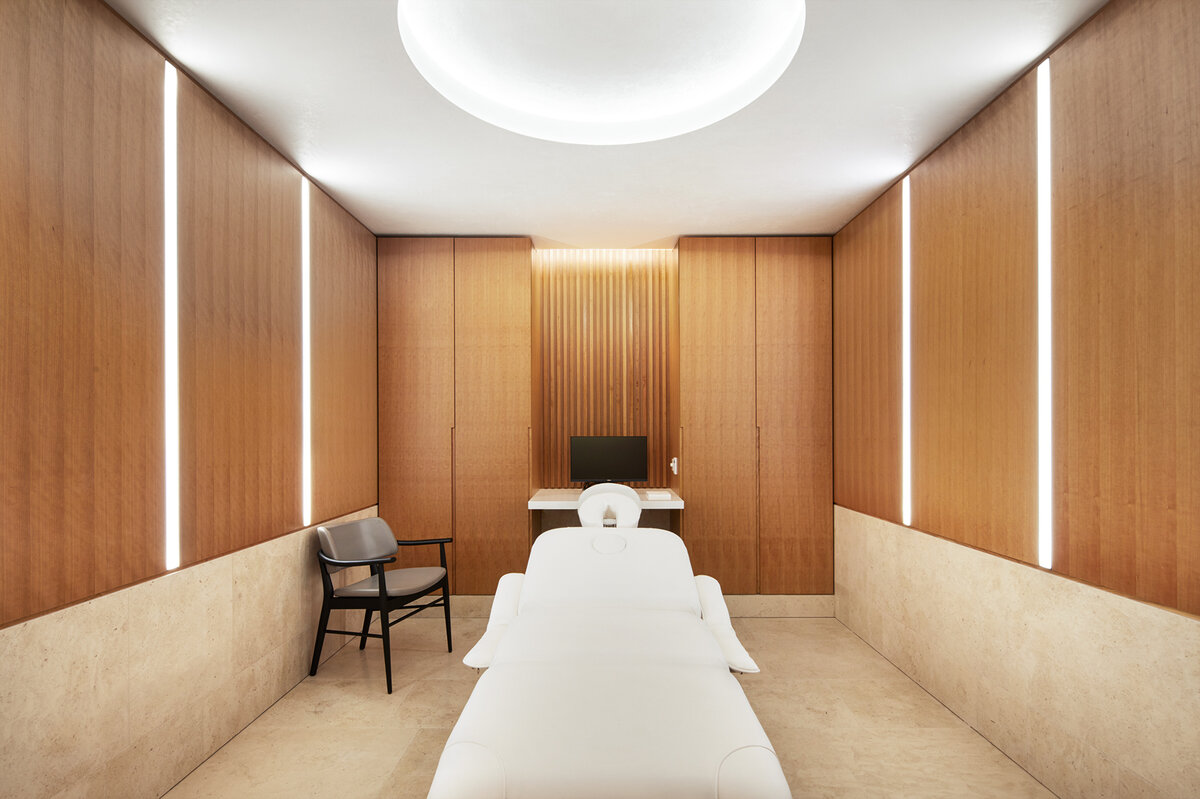

Harrods Wellnes Clinic

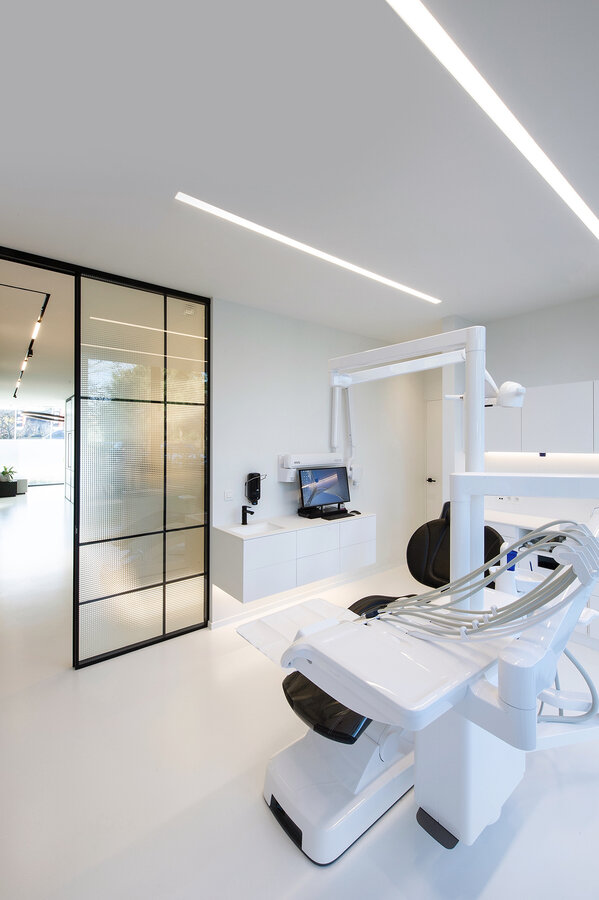

Dental Practice Coornaert- (Tantartscentrum Atlas)

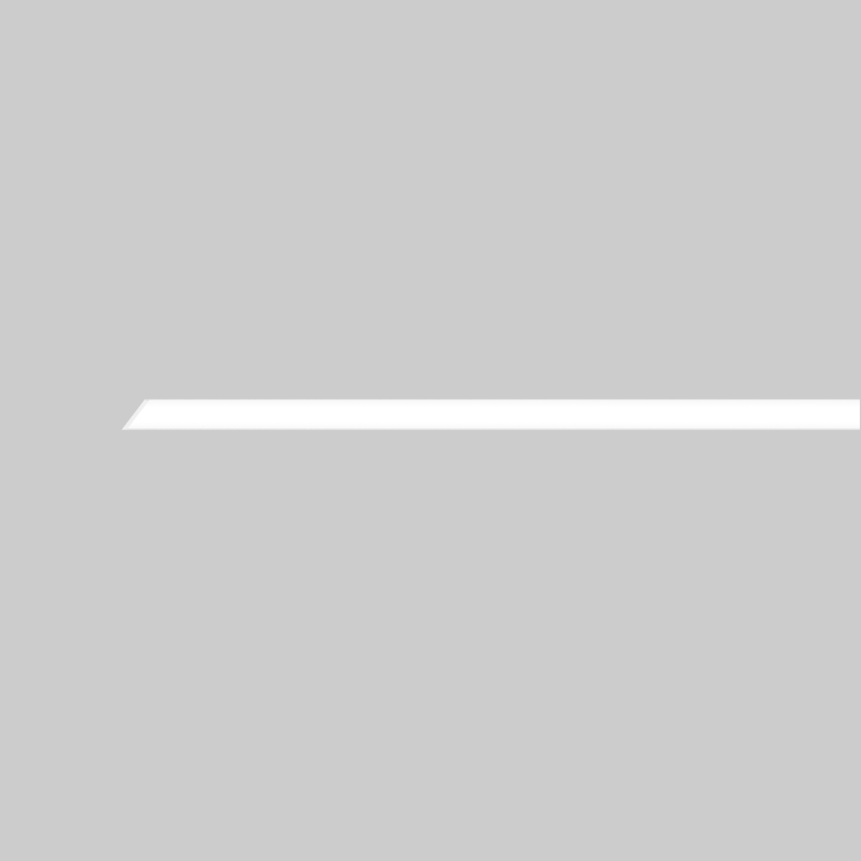

MINIMAL 60

trimless

Phase-out

Informazioni rapide

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
fino a 125 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal, Microprismatic
IP20

Colore

    • Prodotti e codici

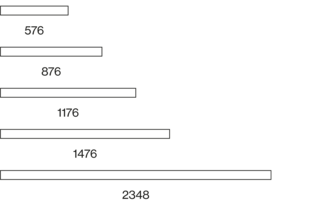

    Disegno semplice

    Distribuzione della luce

    Dati relativi ai prodotti e documenti di specifica

    Download intero
    Download intero

    Descrizione

    Corpo illuminante in profilo di alluminio estruso; per incasso a scomparsa in soffitti di cartongesso; bordatura speciale scanalata per una migliore aderenza dello stucco; per soffitti di spessore 8-25 mm; verniciatura a polvere; profilo consegnabile in anticipo; restanti componenti montabili senza utensili; unità d’illuminazione in profilo di alluminio estruso con verniciatura altamente riflettente per gestione termica migliorata; diffusore HPO (High Performance Opal) per un’illuminazione omogenea; rifrattore in PMMA a microprismi incl. pellicola di diffusione per ridurre la luminanza mantenendo l’illuminazione omogenea; LED ad efficienza energetica con elevata resa cromatica

    DiiA® standards 251, 252, 253

    soluzione di sistema

    microprismatico UGR ≤ 19

    tunable white 2700 – 6500 K (opzionale)

    CRI ≥ 98 XPECTRUM (opzionale)

    Prodotti e codici

    Filtro
    90
    lm/W
    125
    lm/W
    784
    lm
    6320
    lm
    576
    mm
    2348
    mm
    8.7
    W
    55
    W
    0.54
    0.72
    0.49
    0.66

    Colore

    • MINIMAL 60 HIGH LUMEN trimless;MINIMAL 60 MID LUMEN trimless

    MINIMAL 60 high lumen trimless

    MINIMAL 60 high lumen trimless

    Stato
    N. articolo/i
    Tipo
    Dimming
    Microprismatic, 3000 K, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 576 mm
    non DIM
    High Performance Opal, 3000 K, 2.610 lm/m, 13,8 W, 1.490 lm, 108 lm/W, 576 mm
    non DIM
    Microprismatic, 3000 K, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 576 mm
    non DIM
    Microprismatic, 3000 K, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 576 mm
    DALI-2
    High Performance Opal, 3000 K, 2.610 lm/m, 13,8 W, 1.490 lm, 108 lm/W, 576 mm
    DALI-2
    Microprismatic, 3000 K, 2.270 lm/m, 13,8 W, 1.300 lm, 94 lm/W, 576 mm
    DALI-2
    Microprismatic, 4000 K, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 576 mm
    non DIM
    High Performance Opal, 4000 K, 2.760 lm/m, 13,8 W, 1.580 lm, 114 lm/W, 576 mm
    non DIM
    Microprismatic, 4000 K, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 576 mm
    non DIM
    Microprismatic, 4000 K, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 576 mm
    DALI-2
    High Performance Opal, 4000 K, 2.760 lm/m, 13,8 W, 1.580 lm, 114 lm/W, 576 mm
    DALI-2
    Microprismatic, 4000 K, 2.400 lm/m, 13,8 W, 1.370 lm, 99 lm/W, 576 mm
    DALI-2
    Microprismatic, 3000 K, 2.230 lm/m, 20,6 W, 1.950 lm, 95 lm/W, 876 mm
    non DIM
    High Performance Opal, 3000 K, 2.570 lm/m, 20,6 W, 2.240 lm, 109 lm/W, 876 mm
    non DIM
    Microprismatic, 3000 K, 2.230 lm/m, 20,6 W, 1.940 lm, 94 lm/W, 876 mm
    non DIM
    Microprismatic, 3000 K, 2.230 lm/m, 20,6 W, 1.950 lm, 95 lm/W, 876 mm
    DALI-2
    High Performance Opal, 3000 K, 2.570 lm/m, 20,6 W, 2.240 lm, 109 lm/W, 876 mm
    DALI-2
    Microprismatic, 3000 K, 2.230 lm/m, 20,6 W, 1.940 lm, 94 lm/W, 876 mm
    DALI-2
    Microprismatic, 4000 K, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 876 mm
    non DIM
    High Performance Opal, 4000 K, 2.720 lm/m, 20,6 W, 2.370 lm, 115 lm/W, 876 mm
    non DIM
    Microprismatic, 4000 K, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 876 mm
    non DIM
    Microprismatic, 4000 K, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 876 mm
    DALI-2
    High Performance Opal, 4000 K, 2.720 lm/m, 20,6 W, 2.370 lm, 115 lm/W, 876 mm
    DALI-2
    Microprismatic, 4000 K, 2.360 lm/m, 20,6 W, 2.060 lm, 100 lm/W, 876 mm
    DALI-2
    Microprismatic, 3000 K, 2.210 lm/m, 27,5 W, 2.600 lm, 95 lm/W, 1.176 mm
    non DIM
    High Performance Opal, 3000 K, 2.540 lm/m, 27,5 W, 2.980 lm, 108 lm/W, 1.176 mm
    non DIM
    Microprismatic, 3000 K, 2.210 lm/m, 27,5 W, 2.590 lm, 94 lm/W, 1.176 mm
    non DIM
    Microprismatic, 3000 K, 2.210 lm/m, 27,5 W, 2.600 lm, 95 lm/W, 1.176 mm
    DALI-2
    High Performance Opal, 3000 K, 2.540 lm/m, 27,5 W, 2.980 lm, 108 lm/W, 1.176 mm
    DALI-2
    Microprismatic, 3000 K, 2.210 lm/m, 27,5 W, 2.590 lm, 94 lm/W, 1.176 mm
    DALI-2
    Microprismatic, 4000 K, 2.350 lm/m, 27,5 W, 2.750 lm, 100 lm/W, 1.176 mm
    non DIM
    High Performance Opal, 4000 K, 2.690 lm/m, 27,5 W, 3.160 lm, 115 lm/W, 1.176 mm
    non DIM
    Microprismatic, 4000 K, 2.340 lm/m, 27,5 W, 2.740 lm, 100 lm/W, 1.176 mm
    non DIM
    Microprismatic, 4000 K, 2.350 lm/m, 27,5 W, 2.750 lm, 100 lm/W, 1.176 mm
    DALI-2
    High Performance Opal, 4000 K, 2.690 lm/m, 27,5 W, 3.160 lm, 115 lm/W, 1.176 mm
    DALI-2
    Microprismatic, 4000 K, 2.340 lm/m, 27,5 W, 2.740 lm, 100 lm/W, 1.176 mm
    DALI-2
    Microprismatic, 3000 K, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.476 mm
    non DIM
    High Performance Opal, 3000 K, 2.530 lm/m, 34 W, 3.730 lm, 110 lm/W, 1.476 mm
    non DIM
    Microprismatic, 3000 K, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.476 mm
    non DIM
    Microprismatic, 3000 K, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.476 mm
    DALI-2
    High Performance Opal, 3000 K, 2.530 lm/m, 34 W, 3.730 lm, 110 lm/W, 1.476 mm
    DALI-2
    Microprismatic, 3000 K, 2.200 lm/m, 34 W, 3.240 lm, 95 lm/W, 1.476 mm
    DALI-2
    Microprismatic, 4000 K, 2.330 lm/m, 34 W, 3.440 lm, 101 lm/W, 1.476 mm
    non DIM
    High Performance Opal, 4000 K, 2.680 lm/m, 34 W, 3.950 lm, 116 lm/W, 1.476 mm
    non DIM
    Microprismatic, 4000 K, 2.330 lm/m, 34 W, 3.430 lm, 101 lm/W, 1.476 mm
    non DIM
    Microprismatic, 4000 K, 2.330 lm/m, 34 W, 3.440 lm, 101 lm/W, 1.476 mm
    DALI-2
    High Performance Opal, 4000 K, 2.680 lm/m, 34 W, 3.950 lm, 116 lm/W, 1.476 mm
    DALI-2
    Microprismatic, 4000 K, 2.330 lm/m, 34 W, 3.430 lm, 101 lm/W, 1.476 mm
    DALI-2
    Microprismatic, 3000 K, 2.210 lm/m, 55 W, 5.190 lm, 94 lm/W, 2.348 mm
    non DIM
    High Performance Opal, 3000 K, 2.540 lm/m, 55 W, 5.960 lm, 108 lm/W, 2.348 mm
    non DIM
    Microprismatic, 3000 K, 2.210 lm/m, 55 W, 5.180 lm, 94 lm/W, 2.348 mm
    non DIM
    Microprismatic, 3000 K, 2.210 lm/m, 55 W, 5.190 lm, 94 lm/W, 2.348 mm
    DALI-2
    High Performance Opal, 3000 K, 2.540 lm/m, 55 W, 5.960 lm, 108 lm/W, 2.348 mm
    DALI-2
    Microprismatic, 3000 K, 2.210 lm/m, 55 W, 5.180 lm, 94 lm/W, 2.348 mm
    DALI-2
    Microprismatic, 4000 K, 2.350 lm/m, 55 W, 5.500 lm, 100 lm/W, 2.348 mm
    non DIM
    High Performance Opal, 4000 K, 2.690 lm/m, 55 W, 6.320 lm, 115 lm/W, 2.348 mm
    non DIM
    Microprismatic, 4000 K, 2.340 lm/m, 55 W, 5.490 lm, 100 lm/W, 2.348 mm
    non DIM
    Microprismatic, 4000 K, 2.350 lm/m, 55 W, 5.500 lm, 100 lm/W, 2.348 mm
    DALI-2
    High Performance Opal, 4000 K, 2.690 lm/m, 55 W, 6.320 lm, 115 lm/W, 2.348 mm
    DALI-2
    Microprismatic, 4000 K, 2.340 lm/m, 55 W, 5.490 lm, 100 lm/W, 2.348 mm
    DALI-2
    MINIMAL 60 HIGH LUMEN trimless;MINIMAL 60 MID LUMEN trimless

    MINIMAL 60 mid lumen trimless

    MINIMAL 60 mid lumen trimless

    Stato
    N. articolo/i
    Tipo
    Dimming
    Microprismatic, 3000 K, 1.370 lm/m, 8,7 W, 785 lm, 90 lm/W, 576 mm
    non DIM
    High Performance Opal, 3000 K, 1.580 lm/m, 8,7 W, 902 lm, 104 lm/W, 576 mm
    non DIM
    Microprismatic, 3000 K, 1.370 lm/m, 8,7 W, 784 lm, 90 lm/W, 576 mm
    non DIM
    Microprismatic, 4000 K, 1.450 lm/m, 8,7 W, 831 lm, 96 lm/W, 576 mm
    non DIM
    High Performance Opal, 4000 K, 1.670 lm/m, 8,7 W, 955 lm, 110 lm/W, 576 mm
    non DIM
    Microprismatic, 4000 K, 1.450 lm/m, 8,7 W, 830 lm, 95 lm/W, 576 mm
    non DIM
    Microprismatic, 3000 K, 1.350 lm/m, 13 W, 1.180 lm, 91 lm/W, 876 mm
    non DIM
    High Performance Opal, 3000 K, 1.550 lm/m, 13 W, 1.350 lm, 104 lm/W, 876 mm
    non DIM
    Microprismatic, 3000 K, 1.350 lm/m, 13 W, 1.180 lm, 91 lm/W, 876 mm
    non DIM
    Microprismatic, 4000 K, 1.430 lm/m, 13 W, 1.250 lm, 96 lm/W, 876 mm
    non DIM
    High Performance Opal, 4000 K, 1.640 lm/m, 13 W, 1.430 lm, 110 lm/W, 876 mm
    non DIM
    Microprismatic, 4000 K, 1.430 lm/m, 13 W, 1.240 lm, 95 lm/W, 876 mm
    non DIM
    Microprismatic, 3000 K, 1.340 lm/m, 15,3 W, 1.570 lm, 103 lm/W, 1.176 mm
    non DIM
    High Performance Opal, 3000 K, 1.540 lm/m, 15,3 W, 1.800 lm, 118 lm/W, 1.176 mm
    non DIM
    Microprismatic, 3000 K, 1.340 lm/m, 15,3 W, 1.570 lm, 103 lm/W, 1.176 mm
    non DIM
    Microprismatic, 4000 K, 1.420 lm/m, 15,3 W, 1.660 lm, 108 lm/W, 1.176 mm
    non DIM
    High Performance Opal, 4000 K, 1.630 lm/m, 15,3 W, 1.910 lm, 125 lm/W, 1.176 mm
    non DIM
    Microprismatic, 4000 K, 1.420 lm/m, 15,3 W, 1.660 lm, 108 lm/W, 1.176 mm
    non DIM
    Microprismatic, 3000 K, 1.330 lm/m, 19,2 W, 1.960 lm, 102 lm/W, 1.476 mm
    non DIM
    High Performance Opal, 3000 K, 1.530 lm/m, 19,2 W, 2.250 lm, 117 lm/W, 1.476 mm
    non DIM
    Microprismatic, 3000 K, 1.330 lm/m, 19,2 W, 1.960 lm, 102 lm/W, 1.476 mm
    non DIM
    Microprismatic, 4000 K, 1.410 lm/m, 19,2 W, 2.080 lm, 108 lm/W, 1.476 mm
    non DIM
    High Performance Opal, 4000 K, 1.620 lm/m, 19,2 W, 2.390 lm, 124 lm/W, 1.476 mm
    non DIM
    Microprismatic, 4000 K, 1.410 lm/m, 19,2 W, 2.070 lm, 108 lm/W, 1.476 mm
    non DIM
    Microprismatic, 3000 K, 1.340 lm/m, 31 W, 3.140 lm, 101 lm/W, 2.348 mm
    non DIM
    High Performance Opal, 3000 K, 1.540 lm/m, 31 W, 3.610 lm, 116 lm/W, 2.348 mm
    non DIM
    Microprismatic, 3000 K, 1.340 lm/m, 31 W, 3.140 lm, 101 lm/W, 2.348 mm
    non DIM
    Microprismatic, 4000 K, 1.420 lm/m, 31 W, 3.320 lm, 107 lm/W, 2.348 mm
    non DIM
    High Performance Opal, 4000 K, 1.630 lm/m, 31 W, 3.820 lm, 123 lm/W, 2.348 mm
    non DIM
    Microprismatic, 4000 K, 1.420 lm/m, 31 W, 3.320 lm, 107 lm/W, 2.348 mm
    non DIM

    Accessori

    036-04066

    CONCRETE INSTALLATION HOUSING

    635 mm
    MINIMAL 60 trimless
    036-04096

    CONCRETE INSTALLATION HOUSING

    935 mm
    MINIMAL 60 trimless
    036-04126

    CONCRETE INSTALLATION HOUSING

    1235 mm
    MINIMAL 60 trimless
    036-04156

    CONCRETE INSTALLATION HOUSING

    1535 mm
    MINIMAL 60 trimless
    036-04236

    CONCRETE INSTALLATION HOUSING

    2407 mm
    MINIMAL 60 trimless
