Sensor technology

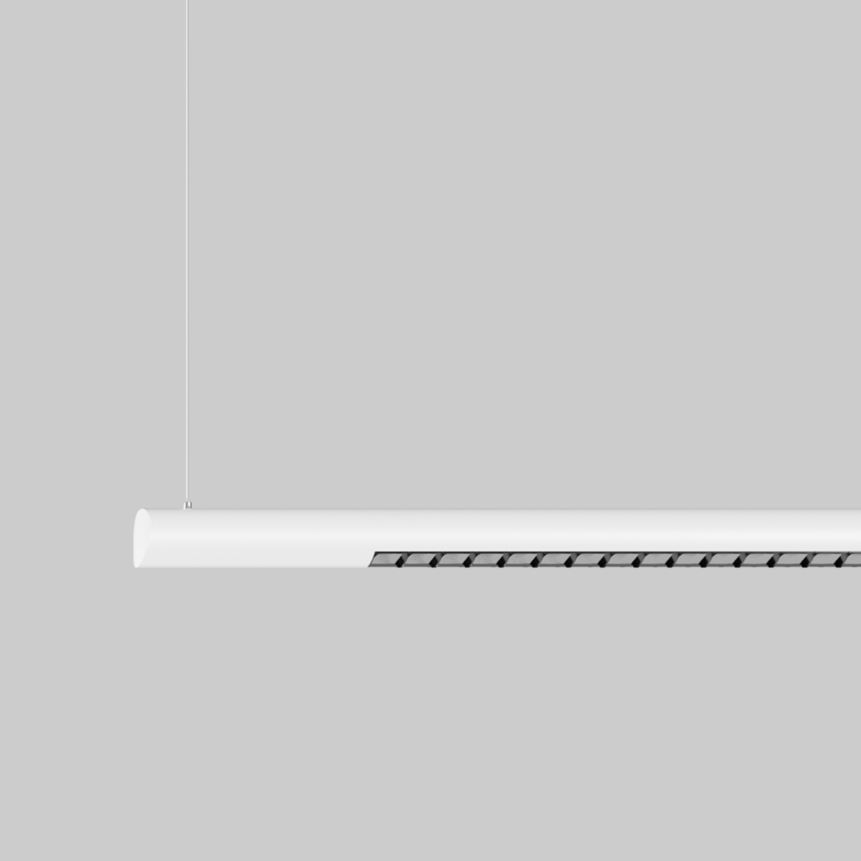

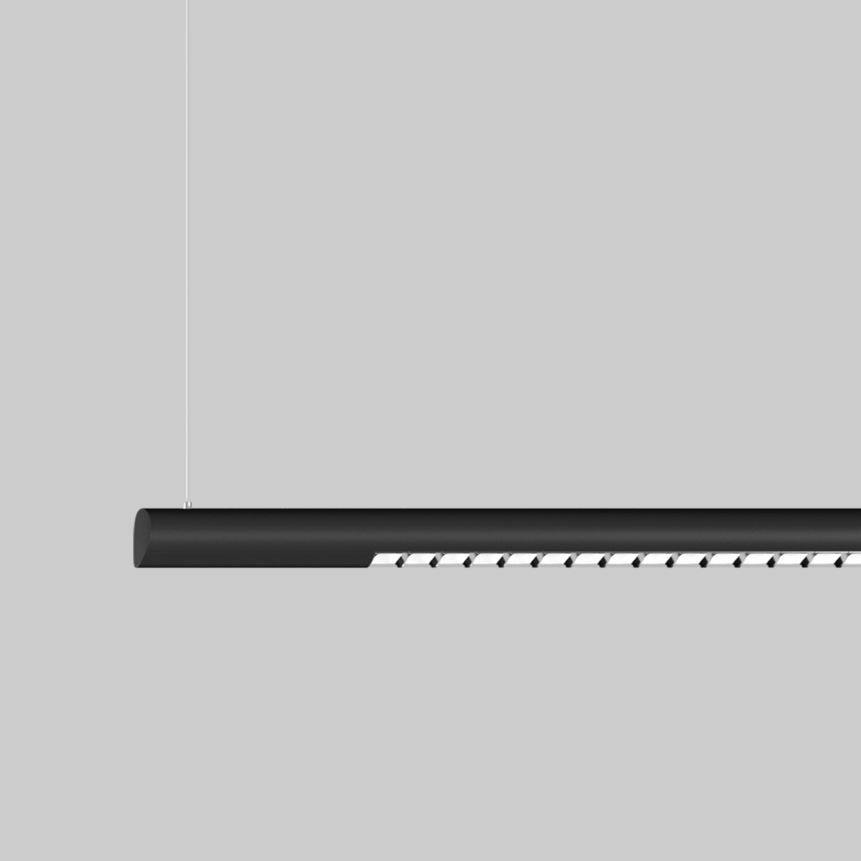

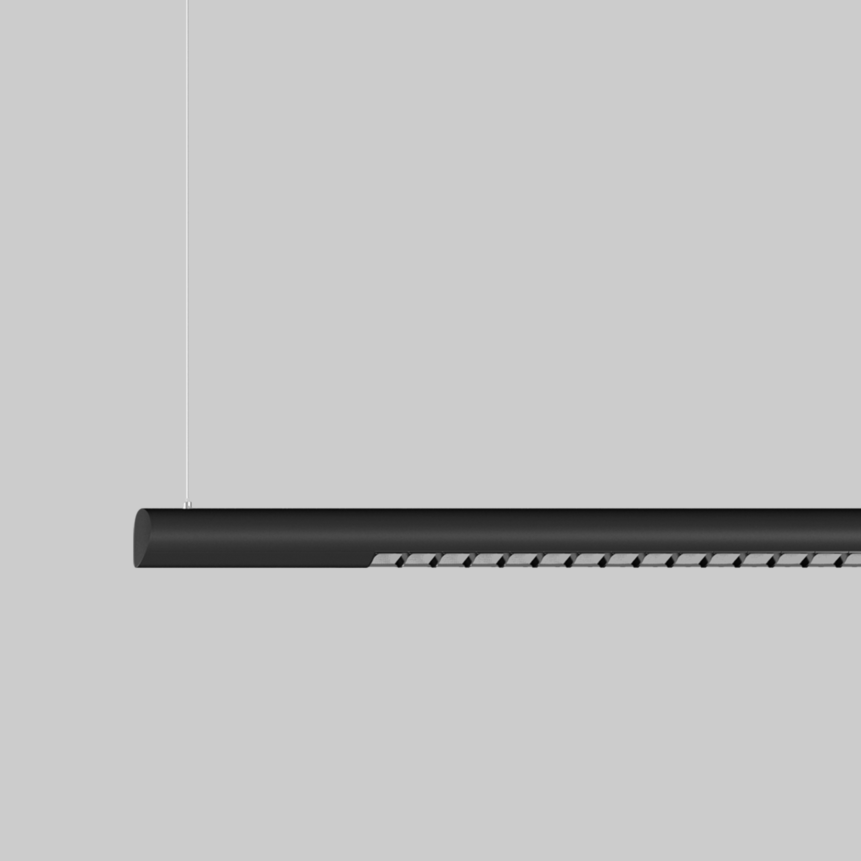

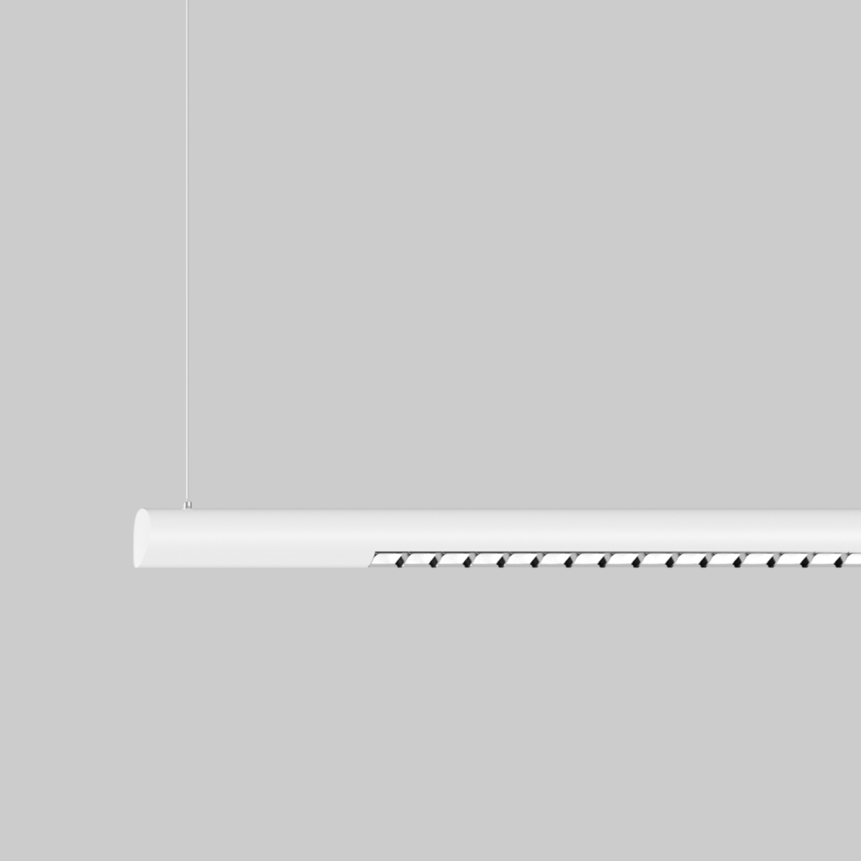

SETA

ceiling / suspended system

Infos rapides

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 13, 19
jusqu'à 7,220 lm/↑ 8,350 lm
jusqu'à 164 lm/W
L90 / 50000 h
DALI-2, DALI-2 sensor
Reflector
IP20

Couleur

    • Produits du système
    Luminaire individuel

    Dessin simple

    Distribution de la lumière

    Données sur les produits et documents de spécification

    Téléchargement global
    Téléchargement global
    • ROLF
    • ULD

    Description

    Corps de luminaire en profil extrudé en alu, version rond (seulement ø 61mm) ; aucune vis visible ; conçu pour les systèmes d'éclairage ; forme linéaire ; surface thermolaquée ; pour montage au plafond en saillie ou pour montage suspendu ; suspension par câble ; réglage en hauteur sans outil ; fixation au luminaire au moyen de clips à ressort ; incl. conduit d'alimentation transparent ; profil extrudé pour une meilleure gestion de la température ; réflecteur ultra-brillant avec optique à facettes ; au choix avec caractéristique de rayonnement direct ou direct / indirect ; dispositif d'éclairage indirect avec platines dédiées et optique de lentille de grande qualité pour un éclairage maximal et homogène du plafond, contrôlable séparément ; LED économes en énergie à restitution de couleur élevée

    DiiA® standards 251, 252, 253

    design spécial capuchon & réflecteur

    connecteur d’angle

    DIN EN 12464-1 UGR ≤ 19

    éclairage sans éblouissement direct et indirect à 170°

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (facultatif)

    System components

    Click to see components

    SETA END CAPS

    SETA SYSTEM CONNECTOR

    90° | câblage continu 5 × 1.5 mm² incl.

    CABLE SUSPENSION

    CANOPY / FEEDER CABLE

    5 x 1,5 mm²

    SETA BLIND COVER

    250 mm, 500 mm

    SETA ceiling / suspended system

    3000 K, 4000 K
    CRI ≥ 80 / 3 SDCM
    UGR ≤ 13, 19
    jusqu'à 7,220 lm/↑ 8,350 lm
    jusqu'à 164 lm/W
    L90 / 50000 h
    DALI-2, DALI-2 sensor
    Reflector
    IP20

    Produits et codes

    Filtre
    106
    lm/W
    164
    lm/W
    3170
    lm
    7240
    lm
    3710
    lm
    8350
    lm
    1700
    mm
    3400
    mm
    22.6
    W
    113
    W
    0.54
    0.72
    0.49
    0.66

    Couleur

    • Réflecteur

    • SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect TW power suspended system

    SETA linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome, 3000 K, 113 W, 123 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 3000 K, 113 W, 123 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome, 4000 K, 113 W, 126 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 4000 K, 113 W, 126 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect TW power suspended system

    SETA linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome, 3000 K, 113 W, 123 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 3000 K, 113 W, 123 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome, 4000 K, 113 W, 126 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 4000 K, 113 W, 126 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect TW power suspended system

    SETA linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome foncé, 3000 K, 113 W, 106 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 3000 K, 113 W, 106 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome foncé, 4000 K, 113 W, 108 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 4000 K, 113 W, 108 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect TW power suspended system

    SETA linear direct / indirect TW power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome foncé, 3000 K, 113 W, 106 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 3000 K, 113 W, 106 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome foncé, 4000 K, 113 W, 108 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 4000 K, 113 W, 108 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect power suspended system

    SETA linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome, 3000 K, 51 W, 135 lm/W, 1 700 mm
    DALI-2
    blanc, chrome, 4000 K, 51 W, 154 lm/W, 1 700 mm
    DALI-2
    blanc, chrome, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect power suspended system

    SETA linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome, 3000 K, 51 W, 135 lm/W, 1 700 mm
    DALI-2
    noir, chrome, 4000 K, 51 W, 154 lm/W, 1 700 mm
    DALI-2
    noir, chrome, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect power suspended system

    SETA linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome foncé, 3000 K, 51 W, 135 lm/W, 1 700 mm
    DALI-2
    blanc, chrome foncé, 4000 K, 51 W, 154 lm/W, 1 700 mm
    DALI-2
    blanc, chrome foncé, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome foncé, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct / indirect power suspended system

    SETA linear direct / indirect power suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome foncé, 3000 K, 51 W, 135 lm/W, 1 700 mm
    DALI-2
    noir, chrome foncé, 4000 K, 51 W, 154 lm/W, 1 700 mm
    DALI-2
    noir, chrome foncé, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 3000 K, 95 W, 144 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome foncé, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 4000 K, 95 W, 164 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct ceiling / suspended system

    SETA linear direct ceiling / suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome, 3000 K, 22,6 W, 140 lm/W, 1 700 mm
    DALI-2
    blanc, chrome, 4000 K, 22,6 W, 160 lm/W, 1 700 mm
    DALI-2
    blanc, chrome, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2
    blanc, chrome, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct ceiling / suspended system

    SETA linear direct ceiling / suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome, 3000 K, 22,6 W, 140 lm/W, 1 700 mm
    DALI-2
    noir, chrome, 4000 K, 22,6 W, 160 lm/W, 1 700 mm
    DALI-2
    noir, chrome, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2
    noir, chrome, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct ceiling / suspended system

    SETA linear direct ceiling / suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, chrome foncé, 3000 K, 22,6 W, 141 lm/W, 1 700 mm
    DALI-2
    blanc, chrome foncé, 4000 K, 22,6 W, 160 lm/W, 1 700 mm
    DALI-2
    blanc, chrome foncé, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2 sensor
    blanc, chrome foncé, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2
    blanc, chrome foncé, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2 sensor
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA linear direct ceiling / suspended system

    SETA linear direct ceiling / suspended system

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, chrome foncé, 3000 K, 22,6 W, 141 lm/W, 1 700 mm
    DALI-2
    noir, chrome foncé, 4000 K, 22,6 W, 160 lm/W, 1 700 mm
    DALI-2
    noir, chrome foncé, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 3000 K, 45 W, 141 lm/W, 3 400 mm
    DALI-2 sensor
    noir, chrome foncé, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2
    noir, chrome foncé, 4000 K, 45 W, 161 lm/W, 3 400 mm
    DALI-2 sensor

    Accessoires
