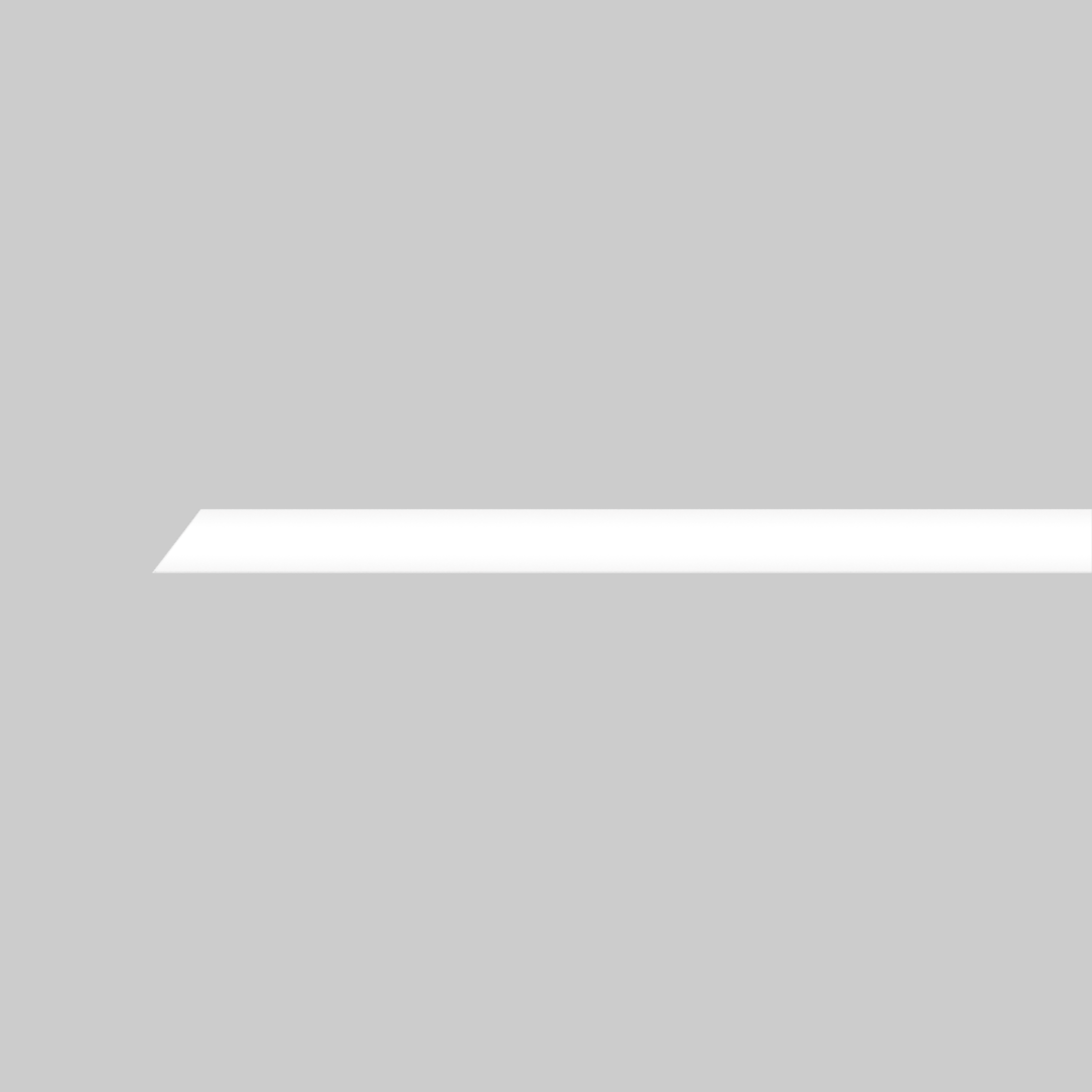

MINIMAL 100 mid lumen trimless, MINIMAL 100 high lumen trimless
Mensa Zeisigstraße Hamburg

MINIMAL 100

trimless

Información rápida

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
hasta 3,090 lm/m
hasta 140 lm/W
L90 / 50000 h
DALI-2, non atenuable
High Performance Opal, Microprismatic
IP20

Color

    • Productos y códigos

    Plano simple

    Distribución de la luz

    Datos de productos y documentos de licitación

    Descargar todo
    Descargar todo
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Descripción

    Cuerpo de lámpara de perfil extrusionado de aluminio; apropiada para montaje sin marco en techos de yeso; con diseño especial en los bordes para facilitar una mejor fijación del producto ; apropiada para grosores de techo entre 8-25 mm; superficie con recubrimiento de pintura en polvo; Perfil disponible para pre-montaje; resto de componentes luminosos montables sin herramienta; elemento de luz formado por perfil extruido con acabado altamente reflectante para una gestión térmica mejorada; difusor opal de alta calidad que proporciona una iluminación uniforme; cubierta microprismática de PMMA con lámina difusora para la reducción de iluminancia y un alumbrado homogéneo; LEDS de alta eficiencia que proporcionan una alta reproducción cromática

    DiiA® standards 251, 252, 253

    solución modular

    DIN EN 12464-1 UGR ≤ 19

    tunable white 2700 – 6500 K (opcional)

    CRI ≥ 98 XPECTRUM (opcional)

    Productos y códigos

    Filtro
    104
    lm/W
    140
    lm/W
    906
    lm
    7070
    lm
    8.7
    W
    55
    W
    0.54
    0.72
    0.49
    0.66

    Color

    • MINIMAL 100 mid lumen trimless, MINIMAL 100 high lumen trimless

    MINIMAL 100 high lumen trimless

    MINIMAL 100 high lumen trimless

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 13,8 W, 109 lm/W, length 576 mm
    non atenuable
    High Performance Opal, 3000 K, system 13,8 W, 121 lm/W, length 576 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 13,8 W, 112 lm/W, length 576 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 13,8 W, 109 lm/W, length 576 mm
    DALI-2
    High Performance Opal, 3000 K, system 13,8 W, 121 lm/W, length 576 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic, system 13,8 W, 112 lm/W, length 576 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 13,8 W, 115 lm/W, length 576 mm
    non atenuable
    High Performance Opal, 4000 K, system 13,8 W, 128 lm/W, length 576 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 13,8 W, 118 lm/W, length 576 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 13,8 W, 115 lm/W, length 576 mm
    DALI-2
    High Performance Opal, 4000 K, system 13,8 W, 128 lm/W, length 576 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic, system 13,8 W, 118 lm/W, length 576 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 20,6 W, 109 lm/W, length 876 mm
    non atenuable
    High Performance Opal, 3000 K, system 20,6 W, 122 lm/W, length 876 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 20,6 W, 112 lm/W, length 876 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 20,6 W, 109 lm/W, length 876 mm
    DALI-2
    High Performance Opal, 3000 K, system 20,6 W, 122 lm/W, length 876 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic, system 20,6 W, 112 lm/W, length 876 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 20,6 W, 116 lm/W, length 876 mm
    non atenuable
    High Performance Opal, 4000 K, system 20,6 W, 129 lm/W, length 876 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 20,6 W, 119 lm/W, length 876 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 20,6 W, 116 lm/W, length 876 mm
    DALI-2
    High Performance Opal, 4000 K, system 20,6 W, 129 lm/W, length 876 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic, system 20,6 W, 119 lm/W, length 876 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 27,5 W, 109 lm/W, length 1.176 mm
    non atenuable
    High Performance Opal, 3000 K, system 27,5 W, 121 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 27,5 W, 112 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 27,5 W, 109 lm/W, length 1.176 mm
    DALI-2
    High Performance Opal, 3000 K, system 27,5 W, 121 lm/W, length 1.176 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic, system 27,5 W, 112 lm/W, length 1.176 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 27,5 W, 115 lm/W, length 1.176 mm
    non atenuable
    High Performance Opal, 4000 K, system 27,5 W, 129 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 27,5 W, 119 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 27,5 W, 115 lm/W, length 1.176 mm
    DALI-2
    High Performance Opal, 4000 K, system 27,5 W, 129 lm/W, length 1.176 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic, system 27,5 W, 119 lm/W, length 1.176 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 34 W, 110 lm/W, length 1.476 mm
    non atenuable
    High Performance Opal, 3000 K, system 34 W, 123 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 34 W, 113 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 34 W, 110 lm/W, length 1.476 mm
    DALI-2
    High Performance Opal, 3000 K, system 34 W, 123 lm/W, length 1.476 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic, system 34 W, 113 lm/W, length 1.476 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 34 W, 117 lm/W, length 1.476 mm
    non atenuable
    High Performance Opal, 4000 K, system 34 W, 130 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 34 W, 120 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 34 W, 117 lm/W, length 1.476 mm
    DALI-2
    High Performance Opal, 4000 K, system 34 W, 130 lm/W, length 1.476 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic, system 34 W, 120 lm/W, length 1.476 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 55 W, 109 lm/W, length 2.348 mm
    non atenuable
    High Performance Opal, 3000 K, system 55 W, 121 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 55 W, 112 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 55 W, 109 lm/W, length 2.348 mm
    DALI-2
    High Performance Opal, 3000 K, system 55 W, 121 lm/W, length 2.348 mm
    DALI-2
    Microprismatic, 3000 K, microprismatic, system 55 W, 112 lm/W, length 2.348 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 55 W, 115 lm/W, length 2.348 mm
    non atenuable
    High Performance Opal, 4000 K, system 55 W, 129 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 55 W, 119 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 55 W, 115 lm/W, length 2.348 mm
    DALI-2
    High Performance Opal, 4000 K, system 55 W, 129 lm/W, length 2.348 mm
    DALI-2
    Microprismatic, 4000 K, microprismatic, system 55 W, 119 lm/W, length 2.348 mm
    DALI-2
    MINIMAL 100 mid lumen trimless, MINIMAL 100 high lumen trimless

    MINIMAL 100 mid lumen trimless

    MINIMAL 100 mid lumen trimless

    Estado
    Número(s) de artículo
    Tipo
    Dimmable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 8,7 W, 104 lm/W, length 576 mm
    non atenuable
    High Performance Opal, 3000 K, system 8,7 W, 116 lm/W, length 576 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 8,7 W, 107 lm/W, length 576 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 8,7 W, 110 lm/W, length 576 mm
    non atenuable
    High Performance Opal, 4000 K, system 8,7 W, 123 lm/W, length 576 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 8,7 W, 113 lm/W, length 576 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 13 W, 105 lm/W, length 876 mm
    non atenuable
    High Performance Opal, 3000 K, system 13 W, 117 lm/W, length 876 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 13 W, 108 lm/W, length 876 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 13 W, 111 lm/W, length 876 mm
    non atenuable
    High Performance Opal, 4000 K, system 13 W, 123 lm/W, length 876 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 13 W, 114 lm/W, length 876 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 15,3 W, 118 lm/W, length 1.176 mm
    non atenuable
    High Performance Opal, 3000 K, system 15,3 W, 132 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 15,3 W, 122 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 15,3 W, 125 lm/W, length 1.176 mm
    non atenuable
    High Performance Opal, 4000 K, system 15,3 W, 140 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 15,3 W, 129 lm/W, length 1.176 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 19,2 W, 118 lm/W, length 1.476 mm
    non atenuable
    High Performance Opal, 3000 K, system 19,2 W, 132 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 19,2 W, 121 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 19,2 W, 125 lm/W, length 1.476 mm
    non atenuable
    High Performance Opal, 4000 K, system 19,2 W, 139 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 19,2 W, 129 lm/W, length 1.476 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic (UGR ≤ 19), system 31 W, 117 lm/W, length 2.348 mm
    non atenuable
    High Performance Opal, 3000 K, system 31 W, 130 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 3000 K, microprismatic, system 31 W, 120 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic (UGR ≤ 19), system 31 W, 124 lm/W, length 2.348 mm
    non atenuable
    High Performance Opal, 4000 K, system 31 W, 138 lm/W, length 2.348 mm
    non atenuable
    Microprismatic, 4000 K, microprismatic, system 31 W, 127 lm/W, length 2.348 mm
    non atenuable

    Accesorios

    Montaje

    número de artículo
    dimensiones
    CONCRETE INSTALLATION HOUSING
    036-05066
    longitud 635 mm
    ancho 116 mm
    altura 94 mm
    1,72 kg
    CONCRETE INSTALLATION HOUSING
    036-05096
    longitud 935 mm
    ancho 116 mm
    altura 94 mm
    2,38 kg
    CONCRETE INSTALLATION HOUSING
    036-05126
    longitud 1.235 mm
    ancho 116 mm
    altura 94 mm
    2,64 kg
    CONCRETE INSTALLATION HOUSING
    036-05156
    longitud 1.535 mm
    ancho 116 mm
    altura 94 mm
    3,8 kg
    CONCRETE INSTALLATION HOUSING
    036-05236
    longitud 2.407 mm
    ancho 116 mm
    altura 94 mm
    5,8 kg
