MINO 60 CURVE

ceiling / suspended system

Infos rapides

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM SDCM
jusqu'à 145 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal, Microprismatic
IP20 / CP1 / 220-240 V

Couleur

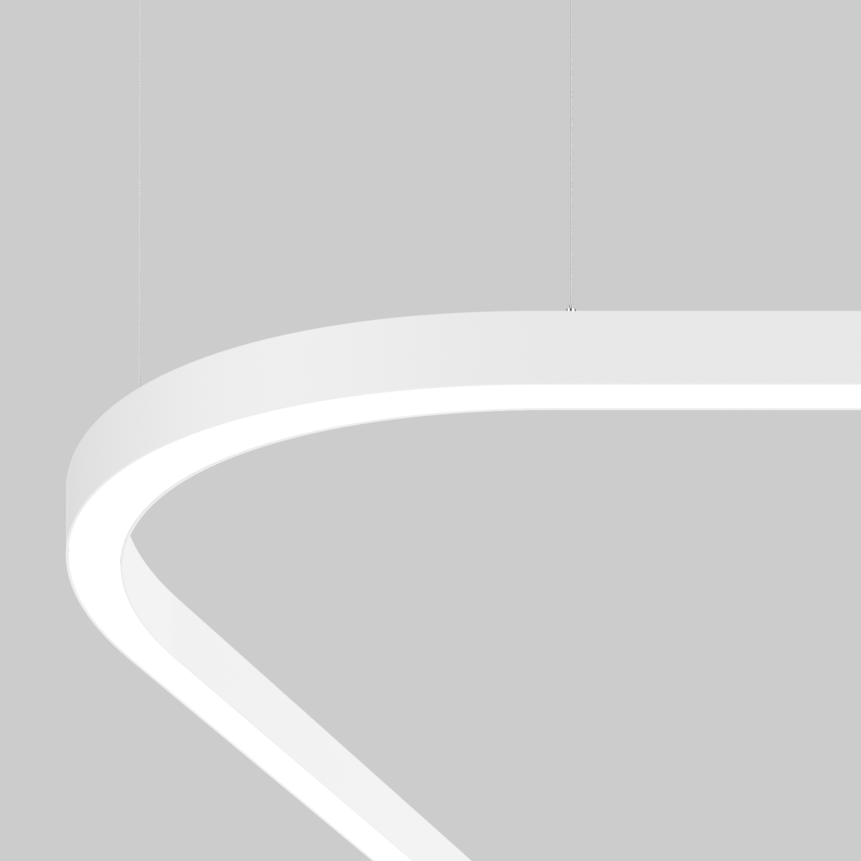

blanc

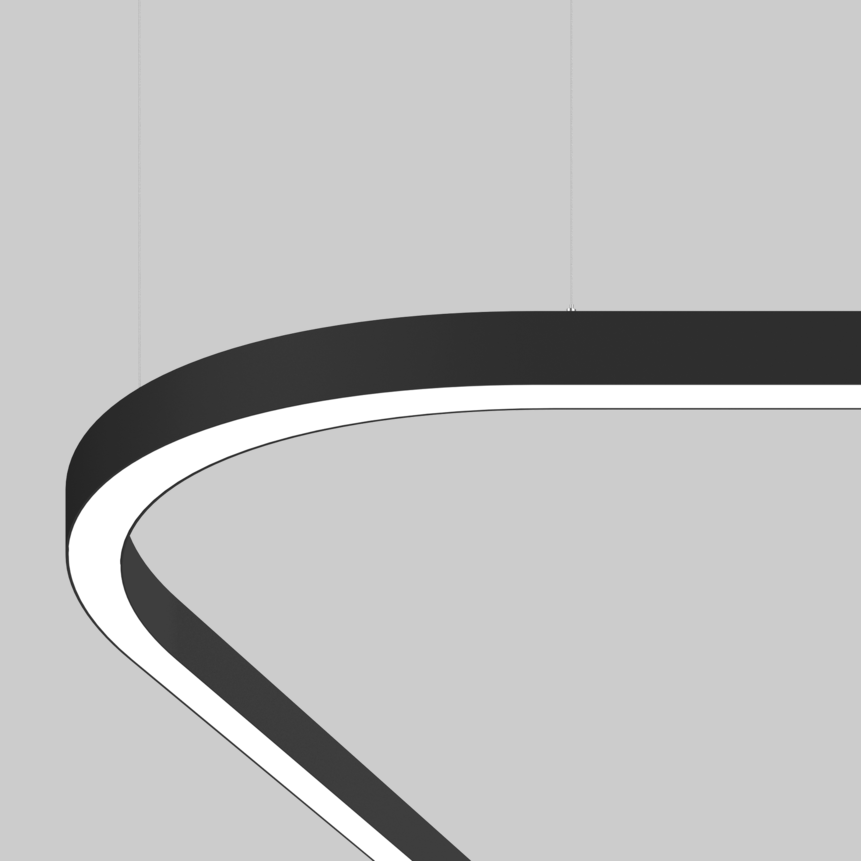

noir

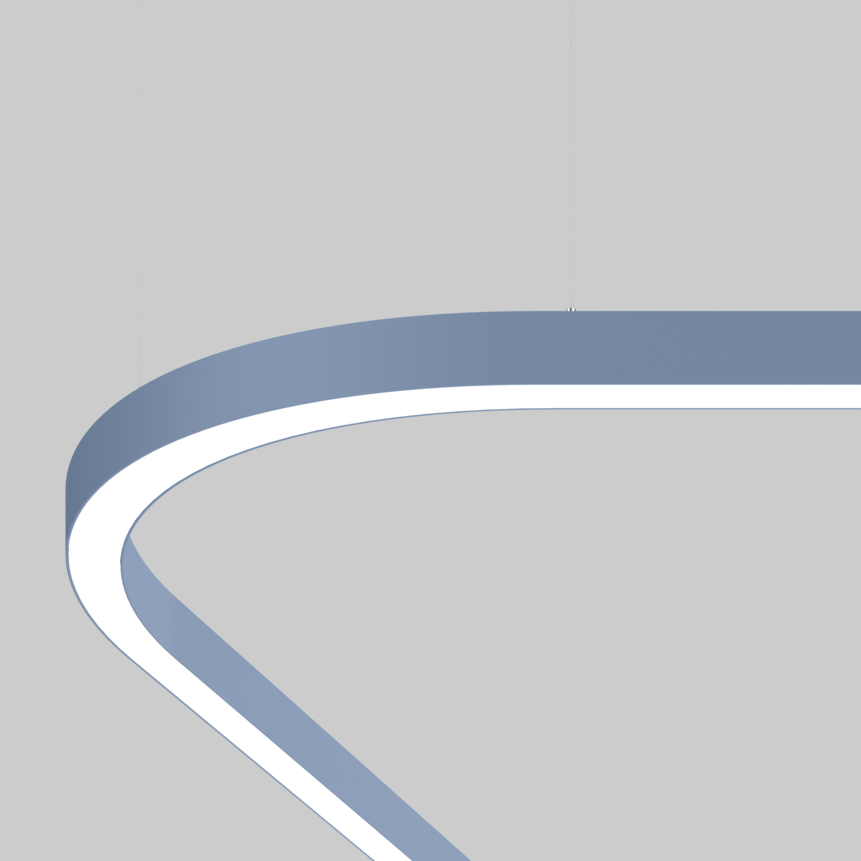

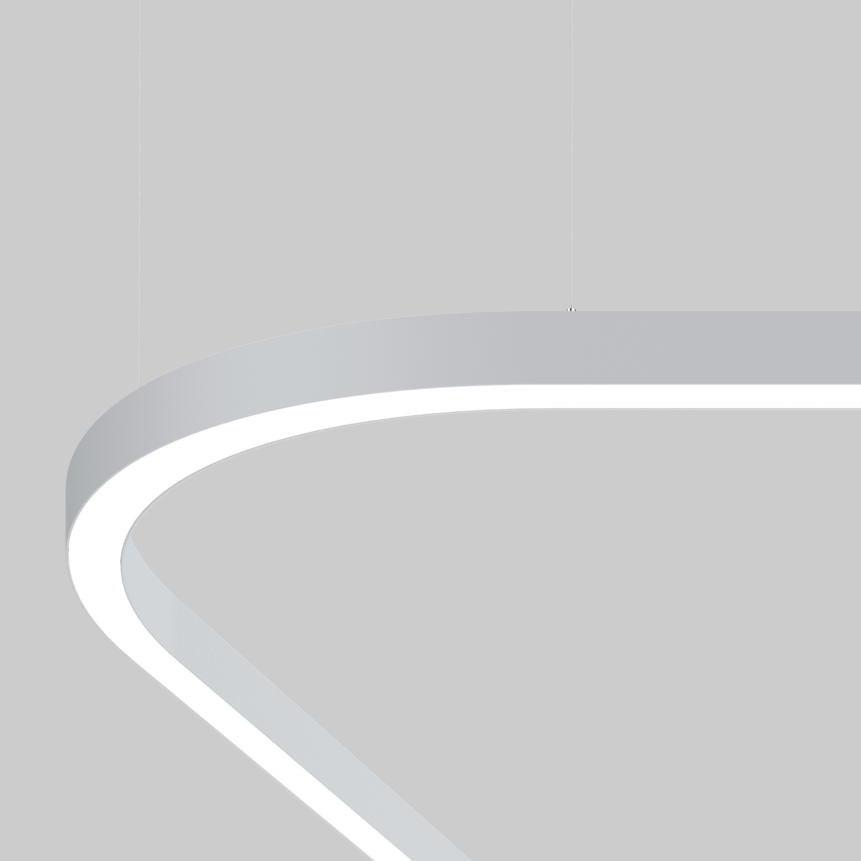

gris

couleurs spéciales

Produits et codes

Dessin simple

Distribution de la lumière

Downloads & links

Données sur les produits et documents de spécification

Page(s) du catalogue

DWG - 2D

Téléchargement global

Téléchargement collectif

IES
LDT
GLDF

3DS
DWG - 3D
Revit BIM data

Description

Segment rond en profil d’aluminium roulé, version arête, soudé sans trace visible ; aucune vis visible ; conçu pour système d’éclairage continu ; surface thermolaquée ; profilé de luminaire pour montage livrable avant ; composants restants du luminaire montable sans outil ; suspension par câble ; réglage en hauteur sans outil au luminaire ; fixation au luminaire au moyen de clips à ressort ; positionnement libre ; incl. conduit d'alimentation ; élément lumineux composé d'aluminium moulé laqué hautement réfléchissant pour une gestion thermique améliorée ; cache HPO (High Performance Opal) pour éclairage homogène ; cache PMMA microprismatique, avec film diffusant inclus pour réduire la brillance avec un éclairage homogène ; LED économes en énergie à restitution de couleur élevée

DiiA^® standards 251, 252, 253

microprismatique UGR ≤ 19

CRI ≥ 98 XPECTRUM (facultatif)

Produits et codes

Filtre

Couleur

blanc

noir

gris

couleurs spéciales

MINO 60 CURVE 45° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

DALI-2

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

DALI-2

blanc, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

DALI-2

MINO 60 CURVE 45° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

DALI-2

MINO 60 CURVE 45° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

gris, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

DALI-2

gris, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

DALI-2

gris, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

DALI-2

MINO 60 CURVE 45° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

noir, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 750 mm, system 11,9 W, 114 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 750 mm, system 11,9 W, 99 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 750 mm, system 11,9 W, 130 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 750 mm, system 11,9 W, 113 lm/W

DALI-2

noir, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 22,1 W, 119 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 1 500 mm, system 22,1 W, 103 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 22,1 W, 135 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 1 500 mm, system 22,1 W, 118 lm/W

DALI-2

noir, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 43 W, 122 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 3 000 mm, system 43 W, 106 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 43 W, 139 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 3 000 mm, system 43 W, 121 lm/W

DALI-2

MINO 60 CURVE 45° mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 7,9 W, 119 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 7,9 W, 103 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 7,9 W, 135 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 7,9 W, 118 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 16,1 W, 123 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 16,1 W, 107 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 16,1 W, 140 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 1 500 mm, system 16,1 W, 121 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 31 W, 127 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 3 000 mm, system 31 W, 111 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 31 W, 145 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 3 000 mm, system 31 W, 126 lm/W

non DIM

MINO 60 CURVE 45° mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 750 mm, system 7,9 W, 119 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 750 mm, system 7,9 W, 103 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 750 mm, system 7,9 W, 135 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 750 mm, system 7,9 W, 118 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 16,1 W, 123 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 1 500 mm, system 16,1 W, 107 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 16,1 W, 140 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 1 500 mm, system 16,1 W, 121 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 31 W, 127 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 3 000 mm, system 31 W, 111 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 31 W, 145 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 3 000 mm, system 31 W, 126 lm/W

non DIM

MINO 60 CURVE 45° mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

gris, High Performance Opal, 3000 K, centerline radius 750 mm, system 7,9 W, 119 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 750 mm, system 7,9 W, 103 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 750 mm, system 7,9 W, 135 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 750 mm, system 7,9 W, 118 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 16,1 W, 123 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 1 500 mm, system 16,1 W, 107 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 16,1 W, 140 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 1 500 mm, system 16,1 W, 121 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 31 W, 127 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 3 000 mm, system 31 W, 111 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 31 W, 145 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 3 000 mm, system 31 W, 126 lm/W

non DIM

MINO 60 CURVE 45° mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

noir, High Performance Opal, 3000 K, centerline radius 750 mm, system 7,9 W, 119 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 750 mm, system 7,9 W, 103 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 750 mm, system 7,9 W, 135 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 750 mm, system 7,9 W, 118 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 16,1 W, 123 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 1 500 mm, system 16,1 W, 107 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 16,1 W, 140 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 1 500 mm, system 16,1 W, 121 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 3 000 mm, system 31 W, 127 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 3 000 mm, system 31 W, 111 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 3 000 mm, system 31 W, 145 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 3 000 mm, system 31 W, 126 lm/W

non DIM

MINO 60 CURVE 90° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

DALI-2

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

DALI-2

blanc, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

DALI-2

blanc, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

DALI-2

blanc, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

DALI-2

blanc, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

DALI-2

MINO 60 CURVE 90° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

non DIM

couleurs spéciales, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

non DIM

couleurs spéciales, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

DALI-2

couleurs spéciales, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

non DIM

couleurs spéciales, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

non DIM

couleurs spéciales, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

DALI-2

couleurs spéciales, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

DALI-2

MINO 60 CURVE 90° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

gris, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

DALI-2

gris, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

DALI-2

gris, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

non DIM

gris, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

non DIM

gris, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

DALI-2

gris, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

DALI-2

gris, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

non DIM

gris, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

non DIM

gris, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

DALI-2

gris, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

DALI-2

MINO 60 CURVE 90° high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

noir, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 750 mm, system 22,1 W, 119 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 750 mm, system 22,1 W, 103 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 750 mm, system 22,1 W, 135 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 750 mm, system 22,1 W, 118 lm/W

DALI-2

noir, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 43 W, 122 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 1 500 mm, system 43 W, 106 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 1 500 mm, system 43 W, 139 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 1 500 mm, system 43 W, 121 lm/W

DALI-2

noir, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

non DIM

noir, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

non DIM

noir, High Performance Opal, 3000 K, centerline radius 500 mm, system 13,8 W, 119 lm/W

DALI-2

noir, Microprismatic, 3000 K, centerline radius 500 mm, system 13,8 W, 104 lm/W

DALI-2

noir, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

non DIM

noir, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

non DIM

noir, High Performance Opal, 4000 K, centerline radius 500 mm, system 13,8 W, 136 lm/W

DALI-2

noir, Microprismatic, 4000 K, centerline radius 500 mm, system 13,8 W, 117 lm/W

DALI-2

MINO 60 CURVE 90° mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Type

Dimming

blanc, High Performance Opal, 3000 K, centerline radius 750 mm, system 16,1 W, 123 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 750 mm, system 16,1 W, 107 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 750 mm, system 16,1 W, 140 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 750 mm, system 16,1 W, 121 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 1 500 mm, system 31 W, 127 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 1 500 mm, system 31 W, 111 lm/W

non DIM

blanc, High Performance Opal, 3000 K, centerline radius 500 mm, system 10,4 W, 118 lm/W

non DIM

blanc, Microprismatic, 3000 K, centerline radius 500 mm, system 10,4 W, 103 lm/W

non DIM

blanc, High Performance Opal, 4000 K, centerline radius 500 mm, system 10,4 W, 135 lm/W

non DIM

blanc, Microprismatic, 4000 K, centerline radius 500 mm, system 10,4 W, 117 lm/W

non DIM

Accessoires

accessory-tab.all
Montage
Suspension
Électrique

Câble électrique

numéro d'article

coloris

type

dimensions

longueur du câble d'alimentation

THROUGH WIRE

004-90003

3 x 1,5 mm² | 10 pièces

0,14 kg

THROUGH WIRE

004-90005

5 x 1,5 mm² | 10 pièces

0,3 kg

CANOPY / FEEDER CABLE

005-2212317

blanc signalisation

RAL 9016

3 x 1,5 mm²

longueur 90 mm

largeur 90 mm

hauteur 22 mm

0,23 kg

longueur de l'alimentation 1 500 mm

CANOPY / FEEDER CABLE

005-2212318

noir profond

RAL 9005

3 x 1,5 mm²

longueur 90 mm

largeur 90 mm

hauteur 22 mm

0,23 kg

longueur de l'alimentation 1 500 mm

CANOPY / FEEDER CABLE

005-2212417

blanc pur

RAL 9010

5 x 1,5 mm²

longueur 90 mm

largeur 90 mm

hauteur 22 mm

0,29 kg

longueur de l'alimentation 1 500 mm

CANOPY / FEEDER CABLE

005-2212418

noir profond

RAL 9005

5 x 1,5 mm²

longueur 90 mm

largeur 90 mm

hauteur 22 mm

0,29 kg

longueur de l'alimentation 1 500 mm

Suspensions

numéro d'article

dimensions

longueur du câble

CABLE SUSPENSION

005-2122110

largeur 46 mm

0,01 kg

longueur du câble 1500 mm

Montage

numéro d'article

coloris

dimensions

type de montage

CABLE RAIL

005-2491110

diamètre 1 200 mm

hauteur 22 mm

0,06 kg

LINEAR CONNECTOR

005-40158

longueur 40 mm

largeur 18 mm

0,5 kg

LINEAR CONNECTOR

005-40159

longueur 40 mm

largeur 18 mm

0,1 kg

OPAL COVER LINEAR CONNECTOR

006-14000

longueur 46 mm

largeur 80 mm

0,01 kg

END CAPS

034-0902017

blanc signalisation

RAL 9016

longueur 60 mm

largeur 80 mm

hauteur 8 mm

0,1 kg

encastré sans bord

END CAPS

034-0902018

noir profond

RAL 9005

longueur 60 mm

largeur 80 mm

hauteur 8 mm

0,1 kg

encastré sans bord

END CAPS

034-090201G

aluminium blanc

RAL 9006

longueur 60 mm

largeur 80 mm

hauteur 8 mm

0,1 kg

encastré sans bord

END CAPS

034-090201X

couleurs spéciales

longueur 60 mm

largeur 80 mm

hauteur 8 mm

0,1 kg

encastré sans bord

CEILING CLIP

034-11636

transparent

longueur 10 mm

largeur 46 mm

0,01 kg

surface

MINO 60 CURVE

ceiling / suspended system

Infos rapides

Couleur

Dessin simple

Distribution de la lumière

Données sur les produits et documents de spécification

Description

Produits et codes

Couleur

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° high lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 45° mid lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° high lumen ceiling / suspended system

MINO 60 CURVE 90° mid lumen ceiling / suspended system

MINO 60 CURVE 90° mid lumen ceiling / suspended system

Accessoires

Câble électrique

Suspensions

Montage

Produits similaires
