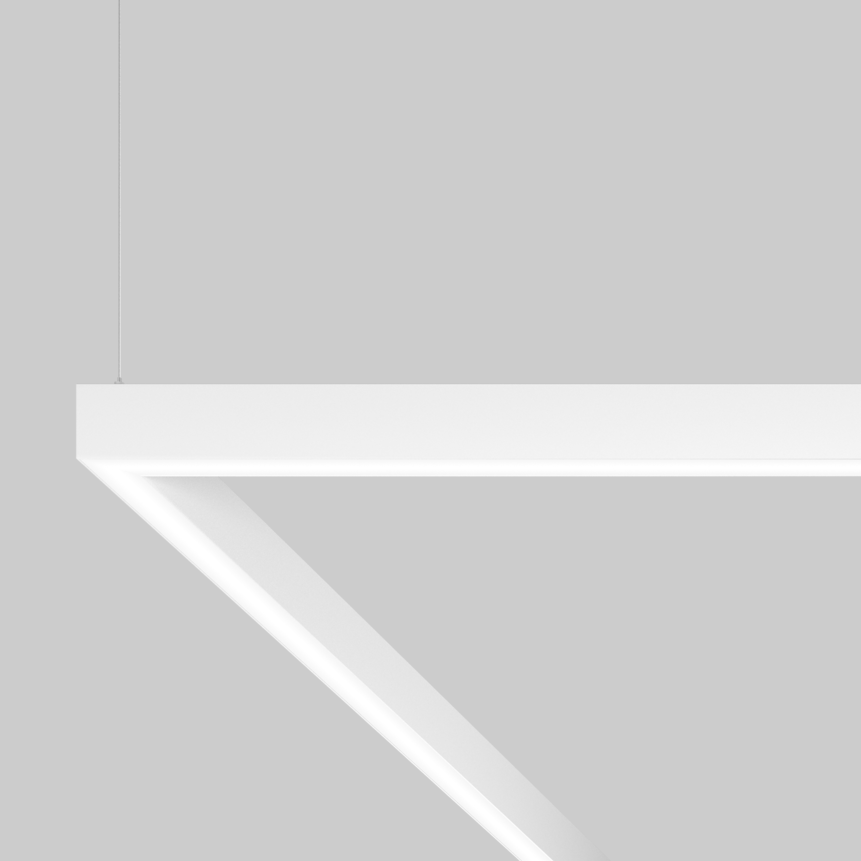

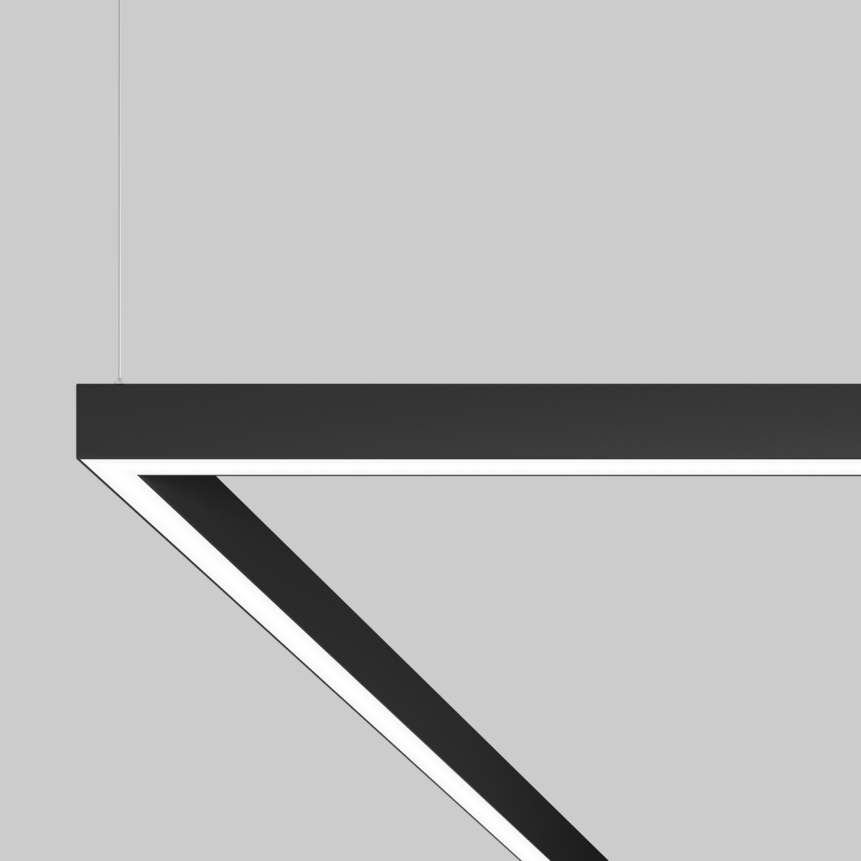

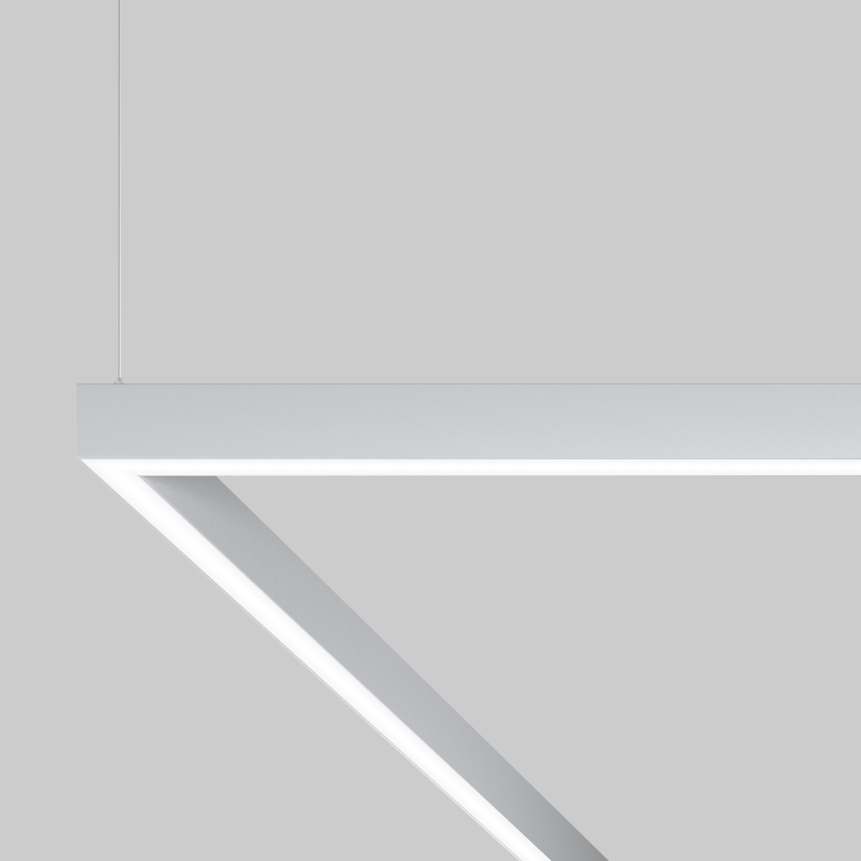

MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

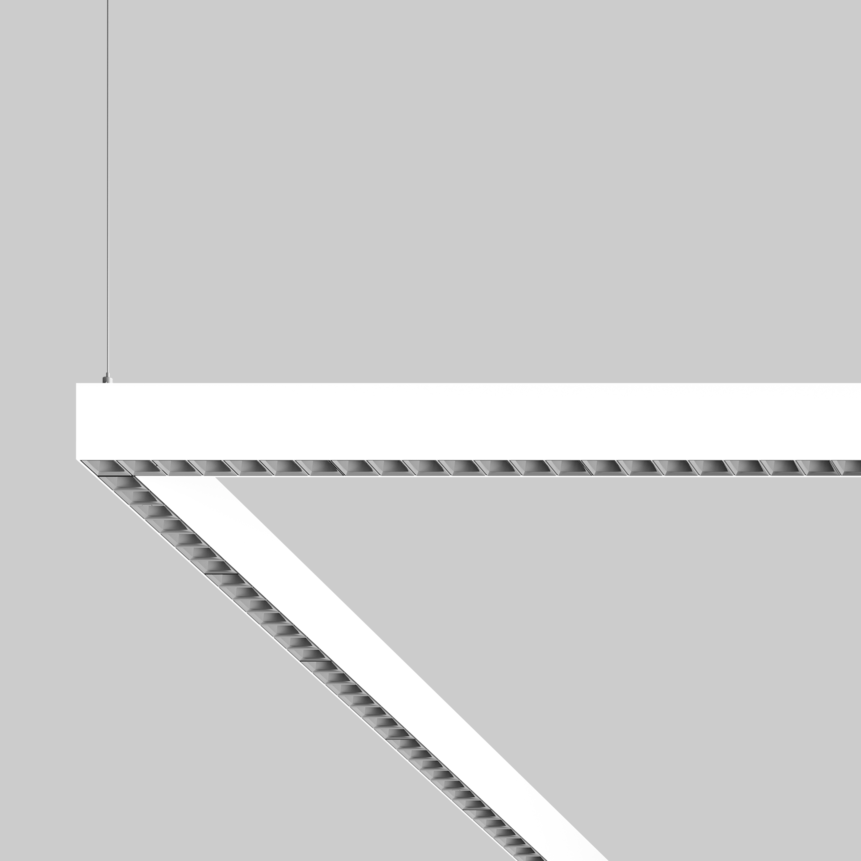

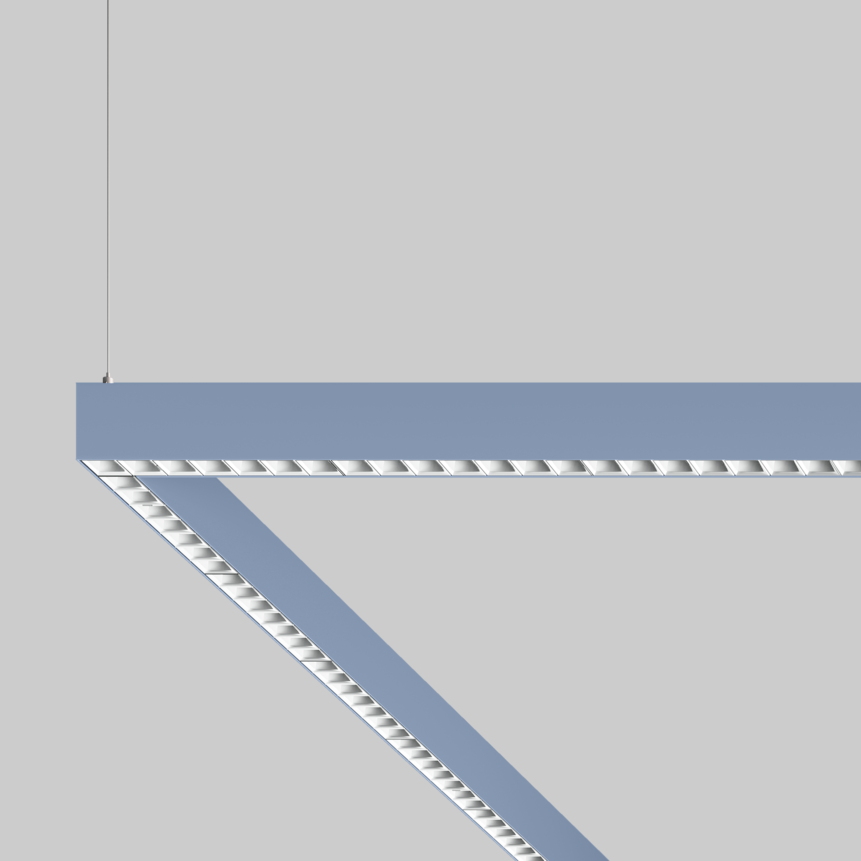

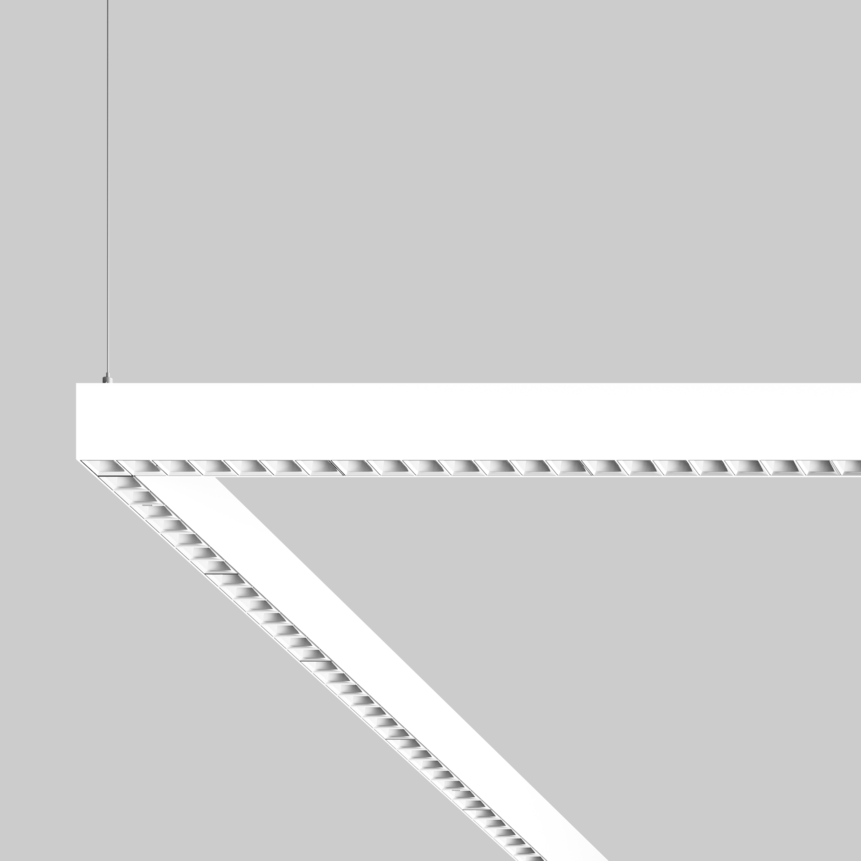

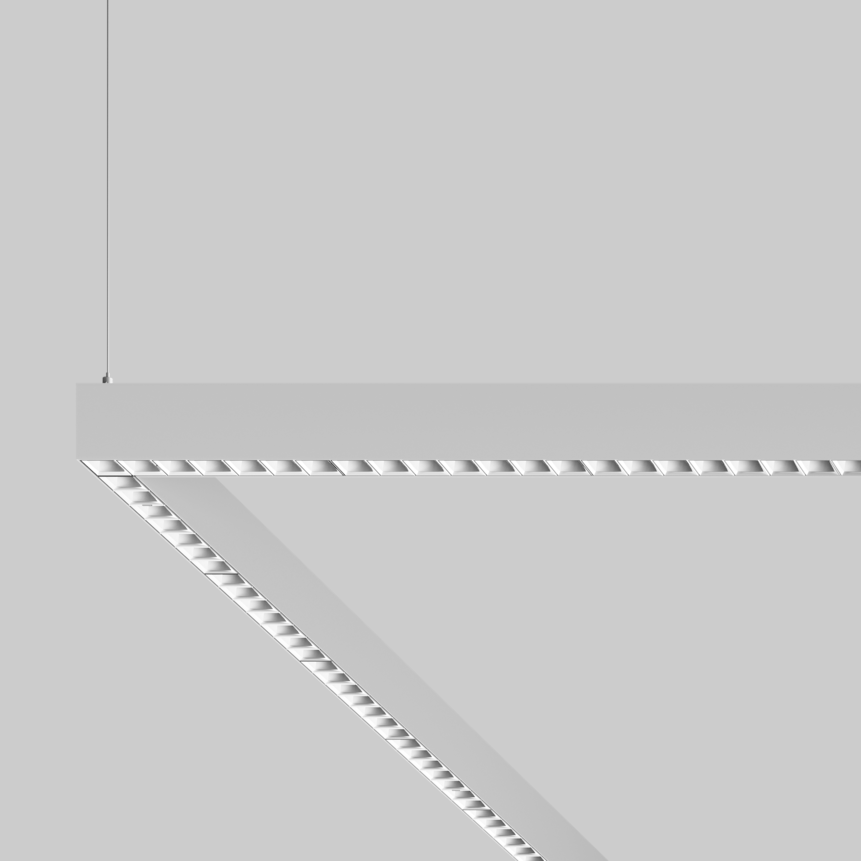

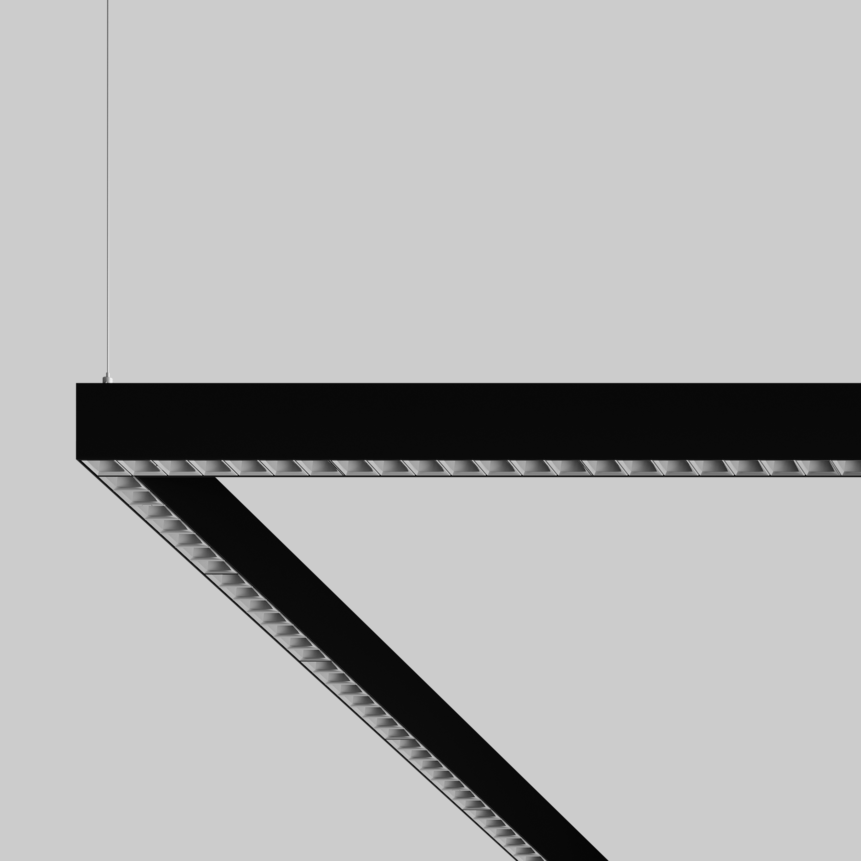

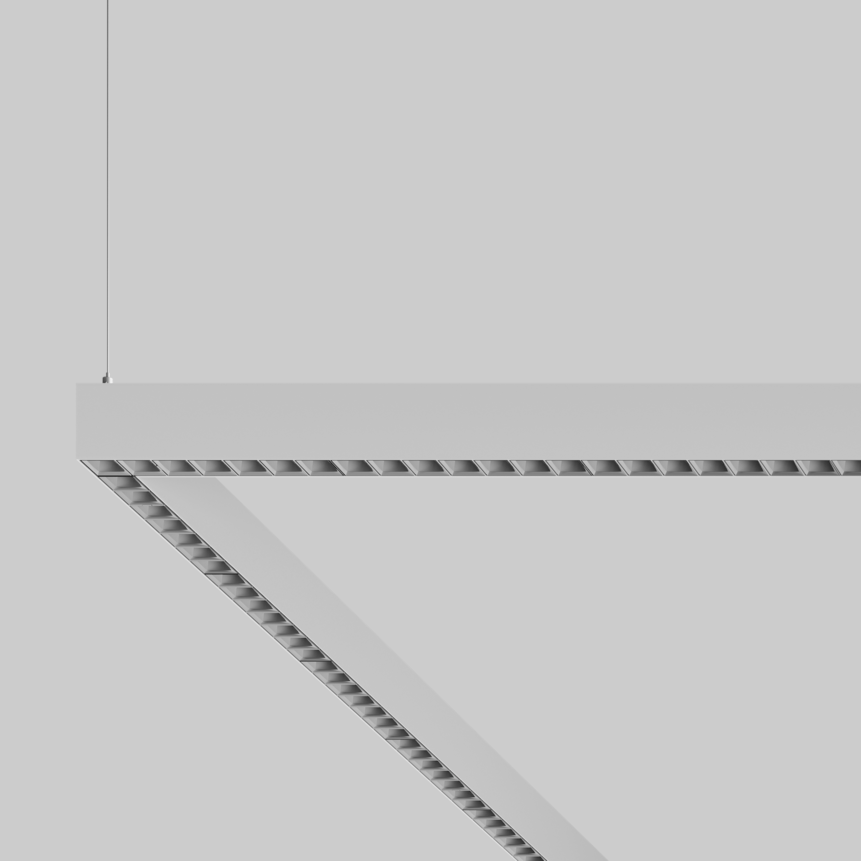

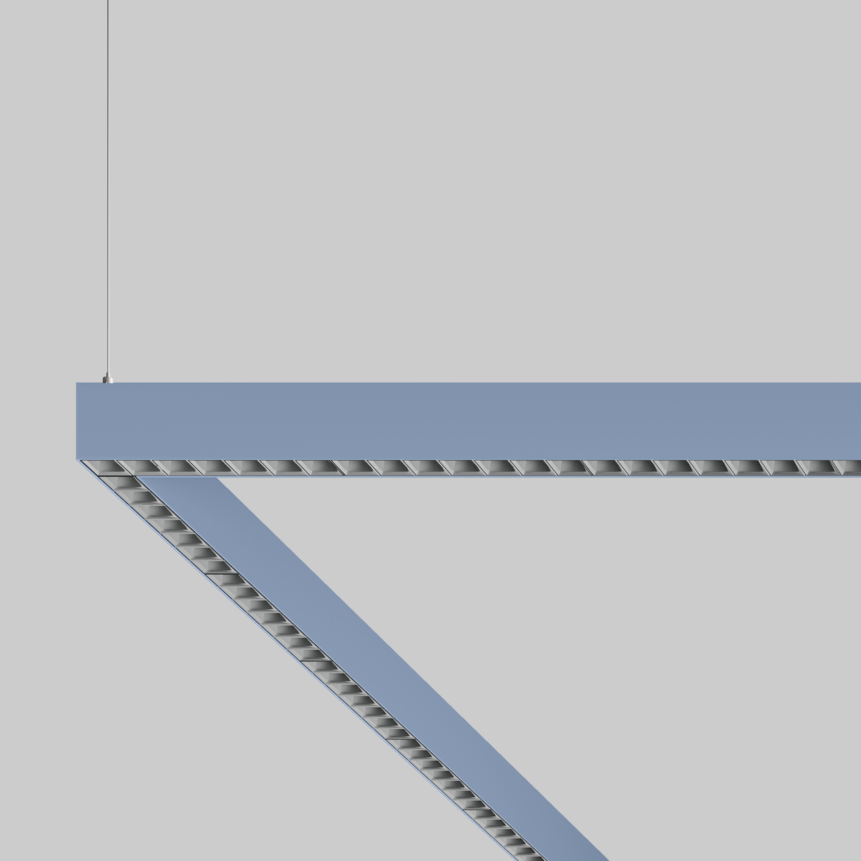

MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system
MINO 40 reflector ceiling / suspended system

MINO 40

ceiling / suspended system

Neu

Quickinfo

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
UGR < 19
bis zu 136 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Microprismatic, Reflector
front IP20

Verfügbar ab Q2/24

Systemkomponenten
Einzelleuchte

Skizze

Lichtverteilung

Produktdaten & Ausschreibungsunterlagen

Gesamtdownload
Gesamtdownload
  • ROLF
  • ULD

Beschreibung

Leuchtenkörper aus Aluminiumstrangpressprofil, kantige Ausführung; keine sichtbaren Schrauben; für Lichtsysteme; pulverbeschichtet; Leuchtenprofil für Montage vorab lieferbar; restliche Leuchtenkomponenten werkzeuglos montierbar; HPO (High Performance Opal) Abdeckung oder mikroprismatische Abdeckung in Lichteinsatzlänge oder durchgängige Abdeckung (beide separat zu bestellen); optional hochglänzender Reflektor mit Facettenoptik; vormontierte Stromschiene zur Spannungsversorgung im Leuchtenprofil; Lichteinsatz-Spannungsabgriff an der Stromschiene; Deckenanbau oder abgehängte Montage; werkzeuglose Höhenverstellung; inkl. Einspeiseleitung; Lichteinsatz aus hochreflektierend lackiertem Strangpressprofil, verbessertes Thermomanagement; energieeff. LEDs - sehr gute Farbwiedergabe; wahlweise Strahlereinsätze einsetzbar

DiiA® standards 251, 252, 253

snap-in system (Patent angemeldet)

DIN EN 12464-1 UGR ≤ 19

spotlight insets

flexibler Einsatz

System components

Click to see components

MINO 40 ceiling / suspended system

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
UGR < 19
bis zu 136 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Microprismatic, Reflector
front IP20

END CAPS

1 Paar

POWER FEEDER UNIT

END CAPS

1 Paar

CANOPY

CABLE SUSPENSION

FEEDER CABLE

SPOTLIGHTS PROFILES 40 system

3000 K, 4000 K
CRI ≥ 90 / 2, 3 SDCM
bis zu 84 lm/W
L80 / 50000 h
DALI-2
front IP20
Zum Produkt

INSTALLATION CHANNEL CORNER

1000 mm, 2000 mm, 3000 mm
Zum Produkt

LINEAR CONNECTOR

mechanisch, mechanisch & elektrisch

Produkte und Artikelnummern

Filter
92
lm/W
136
lm/W
1130
lm
6790
lm
12.1
W
54
W
0.61
0.81
0.55
0.74

Farbe

    • MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Grau, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    2000mm
    Grau, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    RAL Reinweiß, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Schwarz, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    2000mm
    Schwarz, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    MINO 40 flex high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Spezialfarben, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    2000mm
    Spezialfarben, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Grau, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    1000mm
    Grau, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    2000mm
    Grau, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Grau, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    RAL Reinweiß, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Reinweiß, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Reinweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    1000mm
    RAL Verkehrsweiß, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    RAL Verkehrsweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Schwarz, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    1000mm
    Schwarz, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    2000mm
    Schwarz, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Schwarz, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 flex mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    1000mm
    Spezialfarben, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    1000mm
    Spezialfarben, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    2000mm
    Spezialfarben, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    2000mm
    Spezialfarben, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Grau, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, 116 lm/W, 3.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 103 lm/W, 3.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 126 lm/W, 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 111 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Reinweiß, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 3000 K, 116 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 103 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 126 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 111 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 116 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 103 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 126 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 111 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Schwarz, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    Schwarz, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Schwarz, High Performance Opal, 3000 K, 116 lm/W, 3.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 103 lm/W, 3.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 126 lm/W, 3.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 111 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    MINO 40 high lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Spezialfarben, High Performance Opal, 3000 K, 114 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 100 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 122 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 108 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 3000 K, 116 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 103 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 126 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 111 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Grau, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Grau, High Performance Opal, 3000 K, 120 lm/W, 3.000 mm
    DALI-2
    Grau, Microprismatic, 3000 K, 106 lm/W, 3.000 mm
    DALI-2
    Grau, High Performance Opal, 4000 K, 130 lm/W, 3.000 mm
    DALI-2
    Grau, Microprismatic, 4000 K, 114 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Reinweiß, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 3000 K, 120 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 3000 K, 106 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, High Performance Opal, 4000 K, 130 lm/W, 3.000 mm
    DALI-2
    RAL Reinweiß, Microprismatic, 4000 K, 114 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 3000 K, 120 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 3000 K, 106 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, High Performance Opal, 4000 K, 130 lm/W, 3.000 mm
    DALI-2
    RAL Verkehrsweiß, Microprismatic, 4000 K, 114 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Schwarz, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    Schwarz, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Schwarz, High Performance Opal, 3000 K, 120 lm/W, 3.000 mm
    DALI-2
    Schwarz, Microprismatic, 3000 K, 106 lm/W, 3.000 mm
    DALI-2
    Schwarz, High Performance Opal, 4000 K, 130 lm/W, 3.000 mm
    DALI-2
    Schwarz, Microprismatic, 4000 K, 114 lm/W, 3.000 mm
    DALI-2
    MINO 40 high lumen ceiling / suspended system;MINO 40 corner high lumen ceiling / suspended system;MINO 40 flex high lumen ceiling / suspended system;MINO 40 mid lumen ceiling / suspended system;MINO 40 corner mid lumen ceiling / suspended system;MINO 40 flex mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    MINO 40 mid lumen ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Spezialfarben, High Performance Opal, 3000 K, 112 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 99 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 121 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 107 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 3000 K, 116 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 103 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 126 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 111 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 3000 K, 120 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 3000 K, 106 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, High Performance Opal, 4000 K, 130 lm/W, 3.000 mm
    DALI-2
    Spezialfarben, Microprismatic, 4000 K, 114 lm/W, 3.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Grau, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 1.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 1.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 1.500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 1.500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 2.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 500 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 500 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 1.000 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 1.500 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 1.500 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 500 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 500 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 1.000 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 1.500 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 1.500 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 2.000 mm
    DALI-2
    RAL Verkehrsweiß, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 500 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 500 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 1.000 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 1.000 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 1.500 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 1.500 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 2.000 mm
    DALI-2
    Schwarz, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 500 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 500 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 124 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 134 lm/W, 1.000 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 1.500 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 1.500 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 3000 K, 126 lm/W, 2.000 mm
    DALI-2
    Spezialfarben, {{result_second_colour_label}} Chrom, Reflector, 4000 K, 136 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 3000 K, 93 lm/W, 500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 4000 K, 100 lm/W, 500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 3000 K, 92 lm/W, 1.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 4000 K, 100 lm/W, 1.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 3000 K, 94 lm/W, 1.500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 4000 K, 101 lm/W, 1.500 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 3000 K, 94 lm/W, 2.000 mm
    DALI-2
    Grau, {{result_second_colour_label}} Dunkles Chrom, Reflector, 4000 K, 101 lm/W, 2.000 mm
    DALI-2
    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    MINO 40 reflector ceiling / suspended system

    Status
    Artikelnummer(n)
    Variante
    Typ
    Dimming
    RAL Reinweiß, {{result_second_colour_label}} Dunkles Chrom, Reflector, 3000 K, 93 lm/W, 500 mm
    DALI-2
    RAL Reinweiß, {{result_second_colour_label}} Dunkles Chrom, Reflector, 4000 K, 101 lm/W, 1.500 mm
    DALI-2

    Zubehör

    006-4210010H

    LINEAR COVER

    1000 mm
    MILA system, FRAME / MINO 40 trim system
    006-4210010Z

    LINEAR COVER

    1000 mm
    MILA system
    006-4220010H

    LINEAR COVER

    2000 mm
    FRAME / MINO 40 trim system
    006-4230010H

    LINEAR COVER

    3000 mm
    FRAME / MINO 40 trim system
    042-1002017

    INSTALLATION CHANNEL

    1000 mm
    MINO 40 trim system
    Verkehrsweiß
    042-1002018

    INSTALLATION CHANNEL

    1000 mm
    MINO 40 trim system
    Tiefschwarz
    042-100201G

    INSTALLATION CHANNEL

    1000 mm
    MINO 40 trim system
    Weißes Aluminium
    042-100201X

    INSTALLATION CHANNEL

    1000 mm
    MINO 40 trim system
    Spezialfarben
    042-1004017

    INSTALLATION CHANNEL

    2000 mm
    MINO 40 trim system
    Verkehrsweiß
    042-1004018

    INSTALLATION CHANNEL

    2000 mm
    MINO 40 trim system
    Tiefschwarz
    042-100401G

    INSTALLATION CHANNEL

    2000 mm
    MINO 40 trim system
    Weißes Aluminium
    042-100401X

    INSTALLATION CHANNEL

    2000 mm
    MINO 40 trim system
    Spezialfarben
    042-1006017

    INSTALLATION CHANNEL

    3000 mm
    MINO 40 trim system
    Verkehrsweiß
    042-1006018

    INSTALLATION CHANNEL

    3000 mm
    MINO 40 trim system
    Tiefschwarz
    042-100601G

    INSTALLATION CHANNEL

    3000 mm
    MINO 40 trim system
    Weißes Aluminium
    042-100601X

    INSTALLATION CHANNEL

    3000 mm
    MINO 40 trim system
    Spezialfarben

    Ähnliche Produkte

    Neu

    FRAME 40

    trim
    Neu

    FRAME 40

    trim system
    Neu

    MINO 40

    surface
    Neu

    MINO 40

    suspended
    Neu

    SPOTLIGHTS

    PROFILES 40 system

    MOVE IT 10

    trimless system

    MOVE IT 10

    surface system

    MOVE IT 10

    square / round suspended system

    MOVE IT 10

    square / round pole system

    SPOT LINE

    MOVE IT 10
