MINO 40

ceiling / suspended system

Nouveau

Infos rapides

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
jusqu'à 142 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Microprismatic
IP20 / CP1 / 220-240 V

Couleur

blanc pur

blanc signalisation

noir

gris

couleurs spéciales

Produits et codes

Luminaire individuel

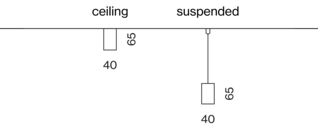

Dessin simple

Distribution de la lumière

Downloads & links

Données sur les produits et documents de spécification

Page(s) du catalogue
DWG - 2D

Brochure Couleurs spéciales

Téléchargement global

Téléchargement global

Téléchargement collectif

IES
LDT

ROLF
ULD

Description

Corps de luminaire en profil extrudé en alu, version arête ; aucune vis visible ; pour les systèmes d'éclairage ; thermolaquée ; profilé de luminaire pour montage livrable avant ; composants restants du luminaire montable sans outil ; cache HPO (High Performance Opal) ou cache microprismatique sur la longueur de l’insert ou cache continu (les deux à commander séparément) ; en option réflecteur ultra-brillant avec optique à facettes ; rail d’alimentation prémonté pour l'alim. en tension dans le profilé ; prélèvement de tension de l'insert sur le rail d’alim. ; applique plafond ou montage suspendu ; réglage en hauteur sans outil ; incl. conduit d'alimentation ; insert en profilé extrudé peint fortement réfléchissant, gestion améliorée de la température ; LED à haut rend. énerg. - excellent rendu coul. ; des inserts de spot peuvent être installés au choix

DiiA^® standards 251, 252, 253

snap-in system (brevet en cours)

DIN EN 12464-1 UGR ≤ 19

spotlight insets

insert souple

System components

Click to see components

MINO 40 ceiling / suspended system

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
jusqu'à 142 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Microprismatic
IP20 / CP1 / 220-240 V

MINO 40 ceiling / suspended system

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
jusqu'à 142 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Microprismatic
IP20 / CP1 / 220-240 V

SPOTLIGHTS PROFILES 40 system

3000 K, 4000 K
CRI ≥ 90 / 2, 3 SDCM
jusqu'à 104 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2
IP20 / CP1 / 220-240 V

CABLE SUSPENSION

MOVE IT SYSTEM | BETO SYSTEM | BASO SYSTEM CABLE SUSPENSION

CANOPY

MOVE IT SYSTEM CANOPY

END CAPS

PROFILES 40 End Caps

1 paire

MINO 40 MOUNTING

Aller au produit

Produits et codes

Filtre

Couleur

blanc pur

blanc signalisation

noir

gris

couleurs spéciales

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

RAL Blanc pur, High Performance Opal, 3000 K, 114 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc pur, Microprismatic, 3000 K, 100 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc pur, High Performance Opal, 4000 K, 122 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc pur, Microprismatic, 4000 K, 108 lm/W, length 1 000 mm

DALI-2

2000mm

RAL Blanc pur, High Performance Opal, 3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc pur, Microprismatic, 3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc pur, High Performance Opal, 4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc pur, Microprismatic, 4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

RAL Blanc signalisation, High Performance Opal, 3000 K, 114 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc signalisation, Microprismatic, 3000 K, 100 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc signalisation, High Performance Opal, 4000 K, 122 lm/W, length 1 000 mm

DALI-2

1000mm

RAL Blanc signalisation, Microprismatic, 4000 K, 108 lm/W, length 1 000 mm

DALI-2

2000mm

RAL Blanc signalisation, High Performance Opal, 3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc signalisation, Microprismatic, 3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc signalisation, High Performance Opal, 4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

RAL Blanc signalisation, Microprismatic, 4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

couleurs spéciales, High Performance Opal, 3000 K, 114 lm/W, length 1 000 mm

DALI-2

1000mm

couleurs spéciales, Microprismatic, 3000 K, 100 lm/W, length 1 000 mm

DALI-2

1000mm

couleurs spéciales, High Performance Opal, 4000 K, 122 lm/W, length 1 000 mm

DALI-2

1000mm

couleurs spéciales, Microprismatic, 4000 K, 108 lm/W, length 1 000 mm

DALI-2

2000mm

couleurs spéciales, High Performance Opal, 3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

couleurs spéciales, Microprismatic, 3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

couleurs spéciales, High Performance Opal, 4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

couleurs spéciales, Microprismatic, 4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

gris, High Performance Opal, 3000 K, 114 lm/W, length 1 000 mm

DALI-2

1000mm

gris, Microprismatic, 3000 K, 100 lm/W, length 1 000 mm

DALI-2

1000mm

gris, High Performance Opal, 4000 K, 122 lm/W, length 1 000 mm

DALI-2

1000mm

gris, Microprismatic, 4000 K, 108 lm/W, length 1 000 mm

DALI-2

2000mm

gris, High Performance Opal, 3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

gris, Microprismatic, 3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

gris, High Performance Opal, 4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

gris, Microprismatic, 4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

MINO 40 flex high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

noir, High Performance Opal, 3000 K, 114 lm/W, length 1 000 mm

DALI-2

1000mm

noir, Microprismatic, 3000 K, 100 lm/W, length 1 000 mm

DALI-2

1000mm

noir, High Performance Opal, 4000 K, 122 lm/W, length 1 000 mm

DALI-2

1000mm

noir, Microprismatic, 4000 K, 108 lm/W, length 1 000 mm

DALI-2

2000mm

noir, High Performance Opal, 3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

noir, Microprismatic, 3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

noir, High Performance Opal, 4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

noir, Microprismatic, 4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex mid lumen ceiling / suspended system

MINO 40 flex mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

1000mm

3000 K, 112 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 112 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 112 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 112 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 112 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 99 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 99 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 99 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 99 lm/W, length 1 000 mm

DALI-2

1000mm

3000 K, 99 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 121 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 121 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 121 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 121 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 121 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 107 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 107 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 107 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 107 lm/W, length 1 000 mm

DALI-2

1000mm

4000 K, 107 lm/W, length 1 000 mm

DALI-2

2000mm

3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 116 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

3000 K, 103 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 126 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 111 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 111 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 111 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 111 lm/W, length 2 000 mm

DALI-2

2000mm

4000 K, 111 lm/W, length 2 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

RAL Blanc pur, Microprismatic, 3000 K, 103 lm/W, length 3 000 mm

DALI-2

RAL Blanc pur, High Performance Opal, 4000 K, 126 lm/W, length 3 000 mm

DALI-2

RAL Blanc pur, Microprismatic, 4000 K, 111 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

RAL Blanc signalisation, Microprismatic, 3000 K, 103 lm/W, length 3 000 mm

DALI-2

RAL Blanc signalisation, High Performance Opal, 4000 K, 126 lm/W, length 3 000 mm

DALI-2

RAL Blanc signalisation, Microprismatic, 4000 K, 111 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

couleurs spéciales, High Performance Opal, 3000 K, 116 lm/W, length 3 000 mm

DALI-2

couleurs spéciales, Microprismatic, 3000 K, 103 lm/W, length 3 000 mm

DALI-2

couleurs spéciales, High Performance Opal, 4000 K, 126 lm/W, length 3 000 mm

DALI-2

couleurs spéciales, Microprismatic, 4000 K, 111 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

gris, Microprismatic, 3000 K, 103 lm/W, length 3 000 mm

DALI-2

gris, High Performance Opal, 4000 K, 126 lm/W, length 3 000 mm

DALI-2

gris, Microprismatic, 4000 K, 111 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

noir, Microprismatic, 3000 K, 103 lm/W, length 3 000 mm

DALI-2

noir, High Performance Opal, 4000 K, 126 lm/W, length 3 000 mm

DALI-2

noir, Microprismatic, 4000 K, 111 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

MINO 40 high lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

3000 K, 114 lm/W, length 1 000 mm

DALI-2

3000 K, 114 lm/W, length 1 000 mm

DALI-2

3000 K, 114 lm/W, length 1 000 mm

DALI-2

3000 K, 114 lm/W, length 1 000 mm

DALI-2

3000 K, 114 lm/W, length 1 000 mm

DALI-2

3000 K, 100 lm/W, length 1 000 mm

DALI-2

3000 K, 100 lm/W, length 1 000 mm

DALI-2

3000 K, 100 lm/W, length 1 000 mm

DALI-2

3000 K, 100 lm/W, length 1 000 mm

DALI-2

3000 K, 100 lm/W, length 1 000 mm

DALI-2

4000 K, 122 lm/W, length 1 000 mm

DALI-2

4000 K, 122 lm/W, length 1 000 mm

DALI-2

4000 K, 122 lm/W, length 1 000 mm

DALI-2

4000 K, 122 lm/W, length 1 000 mm

DALI-2

4000 K, 122 lm/W, length 1 000 mm

DALI-2

4000 K, 108 lm/W, length 1 000 mm

DALI-2

4000 K, 108 lm/W, length 1 000 mm

DALI-2

4000 K, 108 lm/W, length 1 000 mm

DALI-2

4000 K, 108 lm/W, length 1 000 mm

DALI-2

4000 K, 108 lm/W, length 1 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 3 000 mm

DALI-2

3000 K, 116 lm/W, length 3 000 mm

DALI-2

3000 K, 116 lm/W, length 3 000 mm

DALI-2

3000 K, 116 lm/W, length 3 000 mm

DALI-2

MINO 40 high lumen ceiling / suspended system, MINO 40 flex high lumen ceiling / suspended system, MINO 40 mid lumen ceiling / suspended system, MINO 40 flex mid lumen ceiling / suspended system

MINO 40 mid lumen ceiling / suspended system

MINO 40 mid lumen ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

3000 K, 112 lm/W, length 1 000 mm

DALI-2

3000 K, 112 lm/W, length 1 000 mm

DALI-2

3000 K, 112 lm/W, length 1 000 mm

DALI-2

3000 K, 112 lm/W, length 1 000 mm

DALI-2

3000 K, 112 lm/W, length 1 000 mm

DALI-2

3000 K, 99 lm/W, length 1 000 mm

DALI-2

3000 K, 99 lm/W, length 1 000 mm

DALI-2

3000 K, 99 lm/W, length 1 000 mm

DALI-2

3000 K, 99 lm/W, length 1 000 mm

DALI-2

3000 K, 99 lm/W, length 1 000 mm

DALI-2

4000 K, 121 lm/W, length 1 000 mm

DALI-2

4000 K, 121 lm/W, length 1 000 mm

DALI-2

4000 K, 121 lm/W, length 1 000 mm

DALI-2

4000 K, 121 lm/W, length 1 000 mm

DALI-2

4000 K, 121 lm/W, length 1 000 mm

DALI-2

4000 K, 107 lm/W, length 1 000 mm

DALI-2

4000 K, 107 lm/W, length 1 000 mm

DALI-2

4000 K, 107 lm/W, length 1 000 mm

DALI-2

4000 K, 107 lm/W, length 1 000 mm

DALI-2

4000 K, 107 lm/W, length 1 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 116 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

3000 K, 103 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 126 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

4000 K, 111 lm/W, length 2 000 mm

DALI-2

3000 K, 120 lm/W, length 3 000 mm

DALI-2

3000 K, 120 lm/W, length 3 000 mm

DALI-2

3000 K, 120 lm/W, length 3 000 mm

DALI-2

3000 K, 120 lm/W, length 3 000 mm

DALI-2

3000 K, 120 lm/W, length 3 000 mm

DALI-2

3000 K, 106 lm/W, length 3 000 mm

DALI-2

3000 K, 106 lm/W, length 3 000 mm

DALI-2

3000 K, 106 lm/W, length 3 000 mm

DALI-2

3000 K, 106 lm/W, length 3 000 mm

DALI-2

3000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 130 lm/W, length 3 000 mm

DALI-2

4000 K, 130 lm/W, length 3 000 mm

DALI-2

4000 K, 130 lm/W, length 3 000 mm

DALI-2

4000 K, 130 lm/W, length 3 000 mm

DALI-2

4000 K, 130 lm/W, length 3 000 mm

DALI-2

4000 K, 114 lm/W, length 3 000 mm

DALI-2

4000 K, 114 lm/W, length 3 000 mm

DALI-2

4000 K, 114 lm/W, length 3 000 mm

DALI-2

4000 K, 114 lm/W, length 3 000 mm

DALI-2

4000 K, 114 lm/W, length 3 000 mm

DALI-2

MINO 40 reflector ceiling / suspended system

MINO 40 reflector ceiling / suspended system

MINO 40 reflector ceiling / suspended system

Statut

Numéro(s) article(s)

Variante

Type

Dimming

3000 K, 93 lm/W, length 500 mm

DALI-2

3000 K, 93 lm/W, length 500 mm

DALI-2

3000 K, 93 lm/W, length 500 mm

DALI-2

3000 K, 93 lm/W, length 500 mm

DALI-2

3000 K, 93 lm/W, length 500 mm

DALI-2

4000 K, 100 lm/W, length 1 000 mm

DALI-2

4000 K, 100 lm/W, length 1 000 mm

DALI-2

4000 K, 100 lm/W, length 1 000 mm

DALI-2

4000 K, 100 lm/W, length 1 000 mm

DALI-2

4000 K, 134 lm/W, length 1 000 mm

DALI-2

4000 K, 134 lm/W, length 1 000 mm

DALI-2

4000 K, 134 lm/W, length 1 000 mm

DALI-2

4000 K, 134 lm/W, length 1 000 mm

DALI-2

4000 K, 101 lm/W, length 1 500 mm

DALI-2

4000 K, 101 lm/W, length 1 500 mm

DALI-2

4000 K, 101 lm/W, length 1 500 mm

DALI-2

4000 K, 101 lm/W, length 1 500 mm

DALI-2

4000 K, 101 lm/W, length 1 500 mm

DALI-2

4000 K, 136 lm/W, length 1 500 mm

DALI-2

4000 K, 136 lm/W, length 1 500 mm

DALI-2

4000 K, 136 lm/W, length 1 500 mm

DALI-2

4000 K, 136 lm/W, length 1 500 mm

DALI-2

4000 K, 136 lm/W, length 1 500 mm

DALI-2

4000 K, 101 lm/W, length 2 000 mm

DALI-2

4000 K, 101 lm/W, length 2 000 mm

DALI-2

4000 K, 101 lm/W, length 2 000 mm

DALI-2

4000 K, 101 lm/W, length 2 000 mm

DALI-2

4000 K, 101 lm/W, length 2 000 mm

DALI-2

4000 K, 136 lm/W, length 2 000 mm

DALI-2

4000 K, 136 lm/W, length 2 000 mm

DALI-2

4000 K, 136 lm/W, length 2 000 mm

DALI-2

4000 K, 136 lm/W, length 2 000 mm

DALI-2

4000 K, 136 lm/W, length 2 000 mm

DALI-2

3000 K, 98 lm/W, length 3 000 mm

DALI-2

3000 K, 98 lm/W, length 3 000 mm

DALI-2

3000 K, 131 lm/W, length 3 000 mm

DALI-2

3000 K, 131 lm/W, length 3 000 mm

DALI-2

3000 K, 131 lm/W, length 3 000 mm

DALI-2

3000 K, 131 lm/W, length 3 000 mm

DALI-2

3000 K, 131 lm/W, length 3 000 mm

DALI-2

4000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 106 lm/W, length 3 000 mm

DALI-2

4000 K, 142 lm/W, length 3 000 mm

DALI-2

4000 K, 142 lm/W, length 3 000 mm

DALI-2

4000 K, 142 lm/W, length 3 000 mm

DALI-2

4000 K, 142 lm/W, length 3 000 mm

DALI-2

4000 K, 142 lm/W, length 3 000 mm

DALI-2

1
2

Accessoires

Composants
Montage
Suspension
Électrique
Optique

INSTALLATION CHANNEL

MINO 40 INSTALLATION CHANNEL

LINEAR COVER, CONTINUOUS LINEAR COVER

MILA COVER

BLIND COVER, LINEAR COVER

FRAME / MINO 40 COVER

Produits du système

Inserts de spot
Profils linéaires

Nouvelle version

SPOTLIGHTS

PROFILES 40 system

Locations
Trouvez un site XAL à

Contact
Contactez-nous

UNICO Configurator
UNICO Configurator

UNICO Configurator
