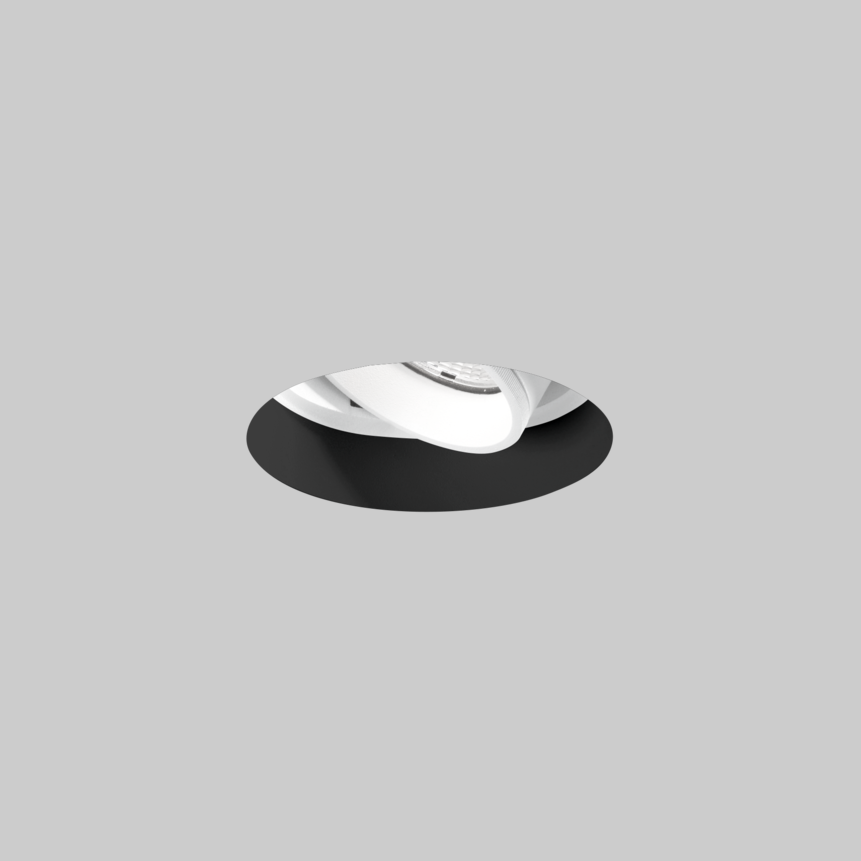

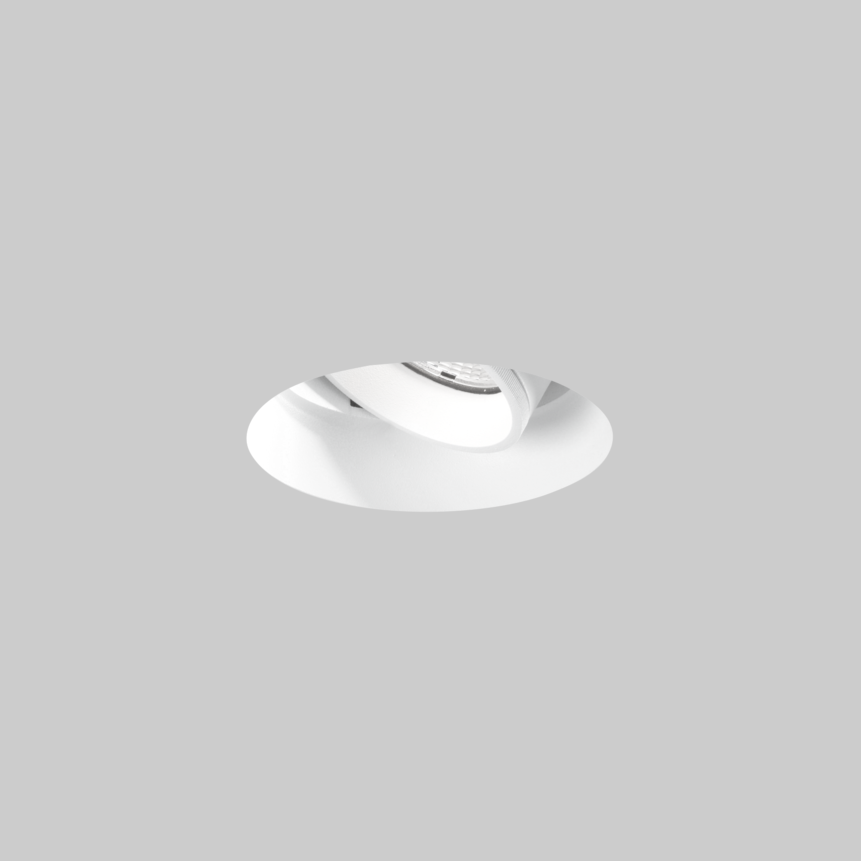

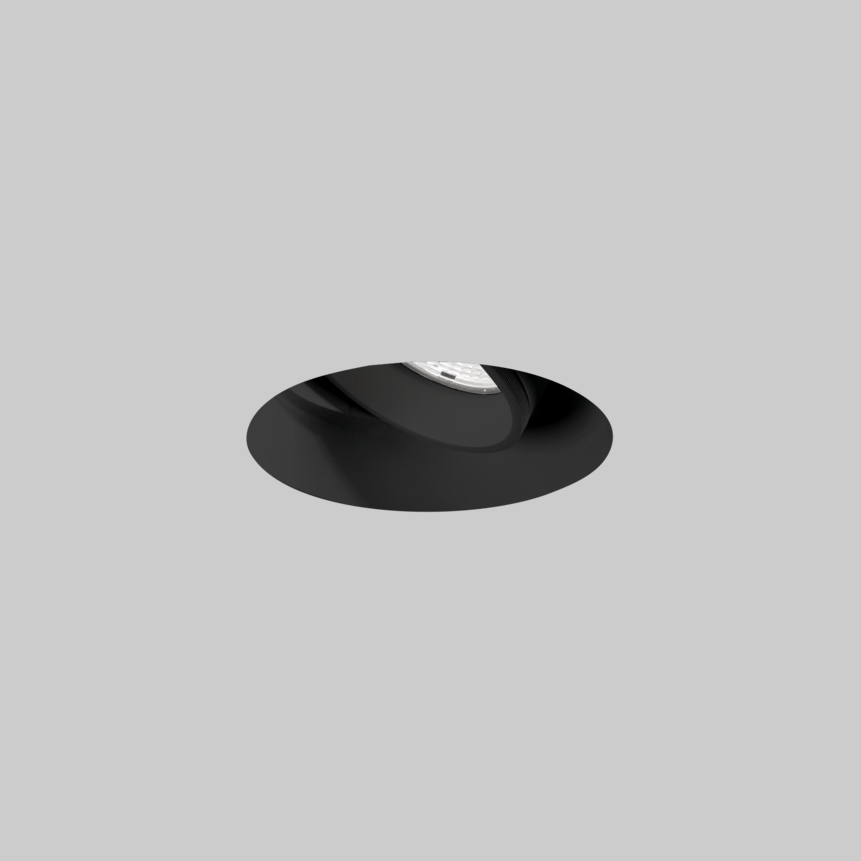

SASSO PRO 80 adjustable offset trimless
SASSO PRO 80 adjustable offset trimless

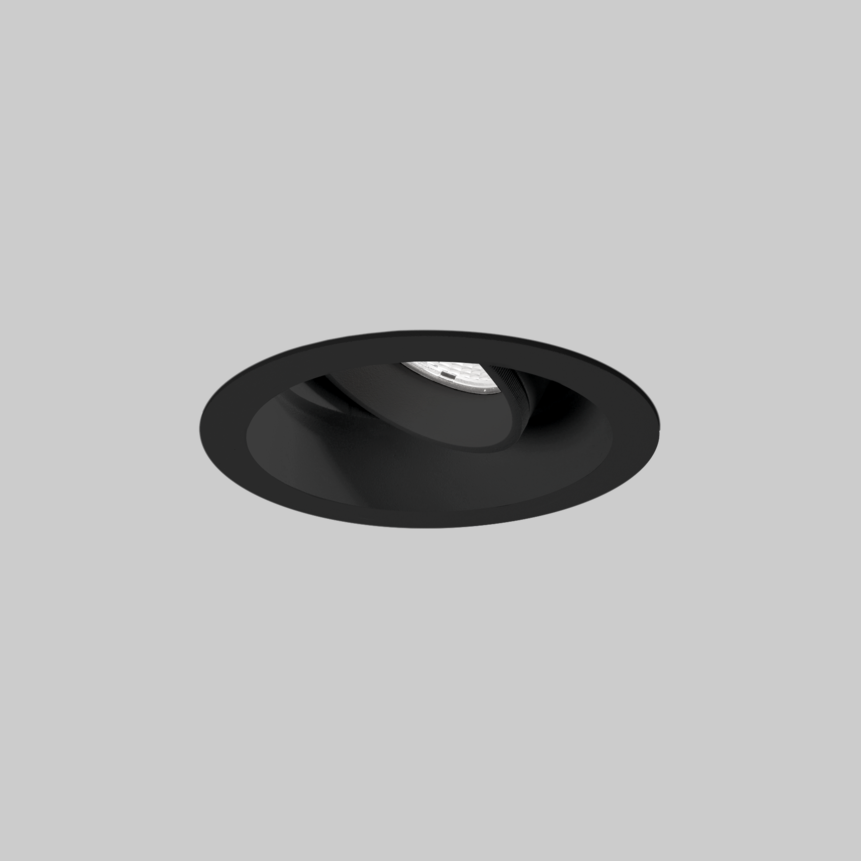

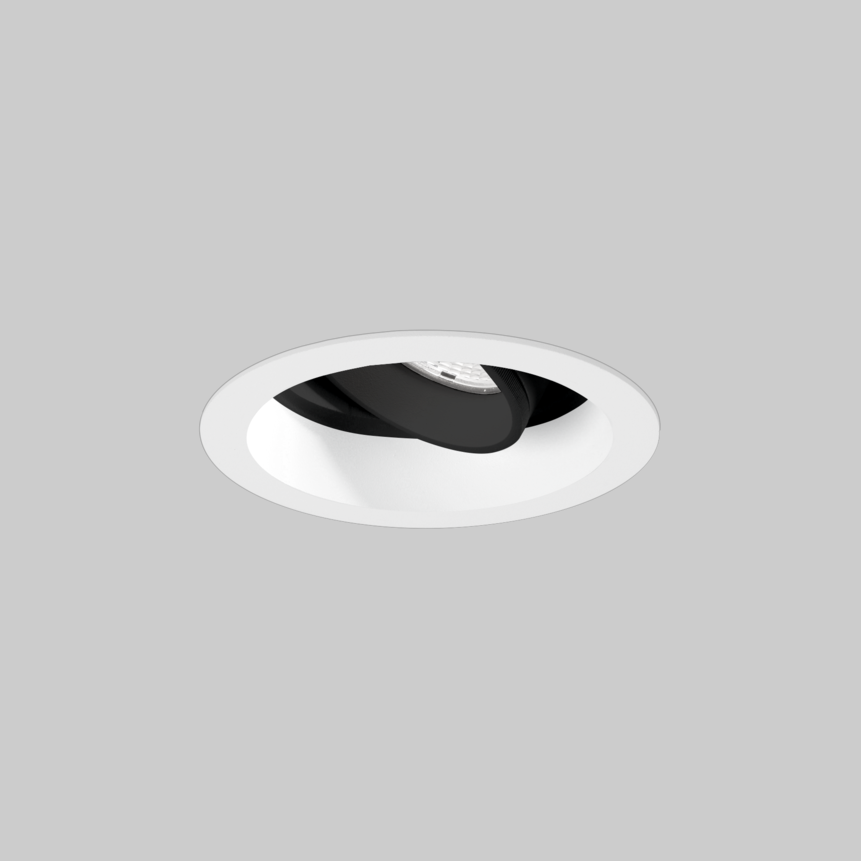

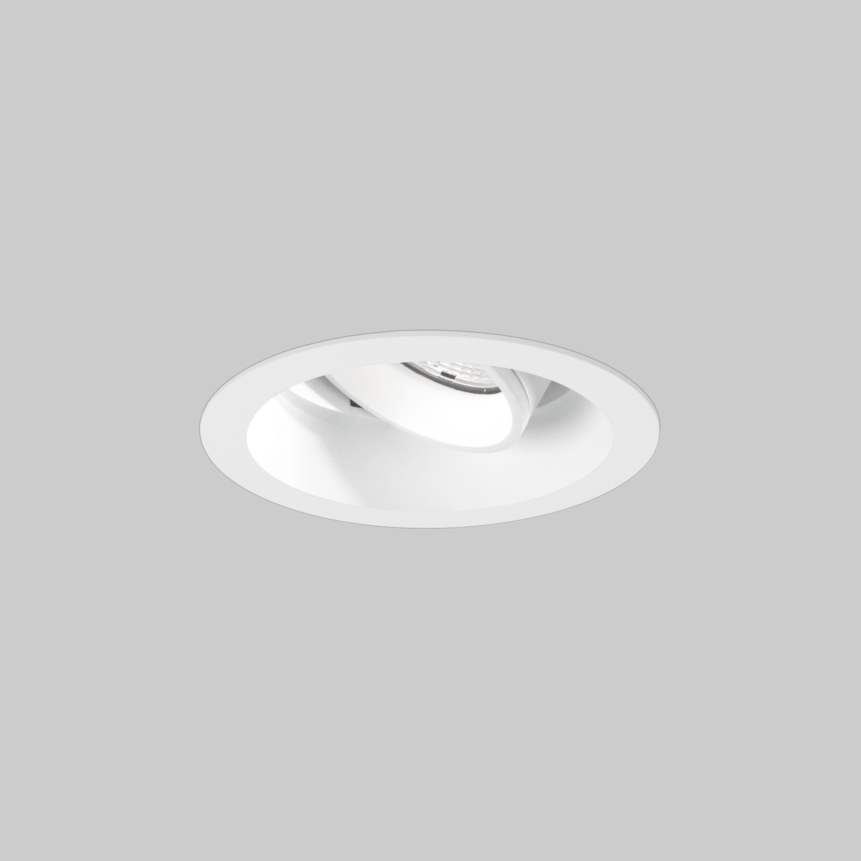

SASSO PRO 80 adjustable offset trim round
SASSO PRO 80 adjustable offset trim round
SASSO PRO 80 adjustable offset trimless
SASSO PRO 80 adjustable offset trimless
SASSO PRO 80 adjustable offset trim round
SASSO PRO 80 adjustable offset trim round

SASSO PRO 80 adjustable offset round

recessed

Infos rapides

2700 K, 3000 K, 4000 K, colour warm dimming
CRI ≥ 90, 95 / 2, 3, 4 SDCM
UGR ≤ 10, 19
jusqu'à 93 lm/W
L80 / 50000 h, L90 / 50000 h
DALI-2, non DIM
IP20

Couleur

  • Set de montage

  • Dessin simple

    Distribution de la lumière

    Données sur les produits et documents de spécification

    Téléchargement global
    • ROLF
    • ULD

    Description

    Spot rond encastrable en fonte d’aluminium injectée ; montage sans outil en kit de montage (sans bord ou avec bord continu) par système à déclic à bille ; surface thermolaquée ; module d'éclairage rotatif et orientable ; luminaire en retrait ; eléments optiques disponibles comme accessoires ; également possible avec une optique de lentilles de haute qualité présentant des caractéristiques de rayonnement précises ; ou un réflecteur de haute qualité avec une optique sphérique à facettes, caractéristiques de rayonnement précises avec deux angles de rayonnement différents ; Installation resp. remplacement sans outil ; avec technologie COB (Chip on Board) ou High-Power-LED pour efficacité maximale ; pas d'ombres multiples ; LED économes en énergie à restitution de couleur élevée

    DiiA® standards 251, 252, 253

    pivotant à 360°, orientable à 35°

    Colour Warm Dimming 1800 – 2700 K

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Produits et codes

    Filtre
    46
    lm/W
    93
    lm/W
    353
    lm
    1130
    lm
    87
    mm
    87
    mm
    98
    mm
    98
    mm
    6.5
    W
    12.2
    W
    0.49
    0.86
    0.44
    0.78

    Couleur

  • Set de montage

  • SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, Noir profond, flood 37°, 2700 K, 8,3 W, 88 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 2700 K, 8,3 W, 87 lm/W
    non DIM
    blanc, Noir profond, super spot 8°, 2700 K, 7,7 W, 46 lm/W
    non DIM
    blanc, Noir profond, flood 37°, 3000 K, 8,3 W, 92 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 3000 K, 8,3 W, 91 lm/W
    non DIM
    blanc, Noir profond, super spot 8°, 3000 K, 7,7 W, 49 lm/W
    non DIM
    blanc, Noir profond, flood 37°, 4000 K, 8,3 W, 93 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 4000 K, 8,3 W, 92 lm/W
    non DIM
    blanc, Noir profond, super spot 8°, 4000 K, 7,7 W, 53 lm/W
    non DIM
    blanc, Noir profond, medium 26°, colour warm dimming, 6,5 W, 58 lm/W
    DALI-2
    blanc, Noir profond, flood 37°, 2700 K, 12,2 W, 84 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 2700 K, 12,2 W, 83 lm/W
    non DIM
    blanc, Noir profond, flood 37°, 2700 K, 12,2 W, 84 lm/W
    DALI-2
    blanc, Noir profond, medium 26°, 2700 K, 12,2 W, 83 lm/W
    DALI-2
    blanc, Noir profond, flood 37°, 3000 K, 12,2 W, 87 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 3000 K, 12,2 W, 86 lm/W
    non DIM
    blanc, Noir profond, flood 37°, 3000 K, 12,2 W, 87 lm/W
    DALI-2
    blanc, Noir profond, medium 26°, 3000 K, 12,2 W, 86 lm/W
    DALI-2
    blanc, Noir profond, flood 37°, 4000 K, 12,2 W, 93 lm/W
    non DIM
    blanc, Noir profond, medium 26°, 4000 K, 12,2 W, 92 lm/W
    non DIM
    blanc, Noir profond, flood 37°, 4000 K, 12,2 W, 93 lm/W
    DALI-2
    blanc, Noir profond, medium 26°, 4000 K, 12,2 W, 92 lm/W
    DALI-2
    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, Noir profond, flood 37°, 2700 K, 8,3 W, 83 lm/W
    non DIM
    noir, Noir profond, medium 26°, 2700 K, 8,3 W, 83 lm/W
    non DIM
    noir, Noir profond, super spot 8°, 2700 K, 7,7 W, 46 lm/W
    non DIM
    noir, Noir profond, flood 37°, 3000 K, 8,3 W, 88 lm/W
    non DIM
    noir, Noir profond, medium 26°, 3000 K, 8,3 W, 87 lm/W
    non DIM
    noir, Noir profond, super spot 8°, 3000 K, 7,7 W, 49 lm/W
    non DIM
    noir, Noir profond, flood 37°, 4000 K, 8,3 W, 89 lm/W
    non DIM
    noir, Noir profond, medium 26°, 4000 K, 8,3 W, 88 lm/W
    non DIM
    noir, Noir profond, super spot 8°, 4000 K, 7,7 W, 53 lm/W
    non DIM
    noir, Noir profond, medium 26°, colour warm dimming, 6,5 W, 55 lm/W
    DALI-2
    noir, Noir profond, flood 37°, 2700 K, 12,2 W, 80 lm/W
    non DIM
    noir, Noir profond, medium 26°, 2700 K, 12,2 W, 79 lm/W
    non DIM
    noir, Noir profond, flood 37°, 2700 K, 12,2 W, 80 lm/W
    DALI-2
    noir, Noir profond, medium 26°, 2700 K, 12,2 W, 79 lm/W
    DALI-2
    noir, Noir profond, flood 37°, 3000 K, 12,2 W, 83 lm/W
    non DIM
    noir, Noir profond, medium 26°, 3000 K, 12,2 W, 82 lm/W
    non DIM
    noir, Noir profond, flood 37°, 3000 K, 12,2 W, 83 lm/W
    DALI-2
    noir, Noir profond, medium 26°, 3000 K, 12,2 W, 82 lm/W
    DALI-2
    noir, Noir profond, flood 37°, 4000 K, 12,2 W, 89 lm/W
    non DIM
    noir, Noir profond, medium 26°, 4000 K, 12,2 W, 88 lm/W
    non DIM
    noir, Noir profond, flood 37°, 4000 K, 12,2 W, 89 lm/W
    DALI-2
    noir, Noir profond, medium 26°, 4000 K, 12,2 W, 88 lm/W
    DALI-2
    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    blanc, blanc signalisation, flood 37°, 2700 K, 8,3 W, 88 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 2700 K, 8,3 W, 87 lm/W
    non DIM
    blanc, blanc signalisation, super spot 8°, 2700 K, 7,7 W, 46 lm/W
    non DIM
    blanc, blanc signalisation, flood 37°, 3000 K, 8,3 W, 92 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 3000 K, 8,3 W, 91 lm/W
    non DIM
    blanc, blanc signalisation, super spot 8°, 3000 K, 7,7 W, 49 lm/W
    non DIM
    blanc, blanc signalisation, flood 37°, 4000 K, 8,3 W, 93 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 4000 K, 8,3 W, 92 lm/W
    non DIM
    blanc, blanc signalisation, super spot 8°, 4000 K, 7,7 W, 53 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, colour warm dimming, 6,5 W, 58 lm/W
    DALI-2
    blanc, blanc signalisation, flood 37°, 2700 K, 12,2 W, 84 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 2700 K, 12,2 W, 83 lm/W
    non DIM
    blanc, blanc signalisation, flood 37°, 2700 K, 12,2 W, 84 lm/W
    DALI-2
    blanc, blanc signalisation, medium 26°, 2700 K, 12,2 W, 83 lm/W
    DALI-2
    blanc, blanc signalisation, flood 37°, 3000 K, 12,2 W, 87 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 3000 K, 12,2 W, 86 lm/W
    non DIM
    blanc, blanc signalisation, flood 37°, 3000 K, 12,2 W, 87 lm/W
    DALI-2
    blanc, blanc signalisation, medium 26°, 3000 K, 12,2 W, 86 lm/W
    DALI-2
    blanc, blanc signalisation, flood 37°, 4000 K, 12,2 W, 93 lm/W
    non DIM
    blanc, blanc signalisation, medium 26°, 4000 K, 12,2 W, 92 lm/W
    non DIM
    blanc, blanc signalisation, flood 37°, 4000 K, 12,2 W, 93 lm/W
    DALI-2
    blanc, blanc signalisation, medium 26°, 4000 K, 12,2 W, 92 lm/W
    DALI-2
    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    SASSO PRO 80 adjustable offset trim round

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    noir, blanc signalisation, flood 37°, 2700 K, 8,3 W, 83 lm/W
    non DIM
    noir, blanc signalisation, medium 26°, 2700 K, 8,3 W, 83 lm/W
    non DIM
    noir, blanc signalisation, super spot 8°, 2700 K, 7,7 W, 46 lm/W
    non DIM
    noir, blanc signalisation, flood 37°, 3000 K, 8,3 W, 88 lm/W
    non DIM
    noir, blanc signalisation, medium 26°, 3000 K, 8,3 W, 87 lm/W
    non DIM
    noir, blanc signalisation, super spot 8°, 3000 K, 7,7 W, 49 lm/W
    non DIM
    noir, blanc signalisation, flood 37°, 4000 K, 8,3 W, 89 lm/W
    non DIM
    noir, blanc signalisation, medium 26°, 4000 K, 8,3 W, 88 lm/W
    non DIM
    noir, blanc signalisation, super spot 8°, 4000 K, 7,7 W, 53 lm/W
    non DIM
    noir, blanc signalisation, medium 26°, colour warm dimming, 6,5 W, 55 lm/W
    DALI-2
    noir, blanc signalisation, flood 37°, 2700 K, 12,2 W, 80 lm/W
    non DIM
    noir, blanc signalisation, medium 26°, 2700 K, 12,2 W, 79 lm/W
    non DIM
    noir, blanc signalisation, flood 37°, 2700 K, 12,2 W, 80 lm/W
    DALI-2
