MINO 60

surface

Infos rapides

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
jusqu'à 125 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal, Microprismatic
IP20

Couleur

    • Produits et codes

    Dessin simple

    Distribution de la lumière

    Données sur les produits et documents de spécification

    Téléchargement global
    Téléchargement global

    Description

    Corps de luminaire en profil extrudé en alu, version arête ; aucune vis visible ; surface thermolaquée ; Profilé de luminaire pour montage livrable avant ; composants restants du luminaire montable sans outil ; élément lumineux composé de profilé extrudé laqué hautement réfléchissant pour une gestion thermique améliorée ; cache HPO (High Performance Opal) pour éclairage homogène ; cache PMMA microprismatique, avec film diffusant inclus pour réduire la brillance avec un éclairage homogène ; LED économes en énergie à restitution de couleur élevée

    DiiA® standards 251, 252, 253

    boîtier d'installation en béton

    solution système

    microprismatique UGR ≤ 19

    tunable white 2700 – 6500 K (facultatif)

    CRI ≥ 98 XPECTRUM (facultatif)

    Produits et codes

    Filtre
    784
    lm
    6320
    lm
    580
    mm
    2352
    mm
    8.7
    W
    55
    W
    90
    lm/W
    125
    lm/W
    0.44
    0.6
    0.49
    0.66

    Couleur

    • MINO 60 HIGH LUMEN surface;MINO 60 MID LUMEN surface

    MINO 60 high lumen surface

    MINO 60 high lumen surface

    Numéro(s) article(s)
    Type
    Dimming

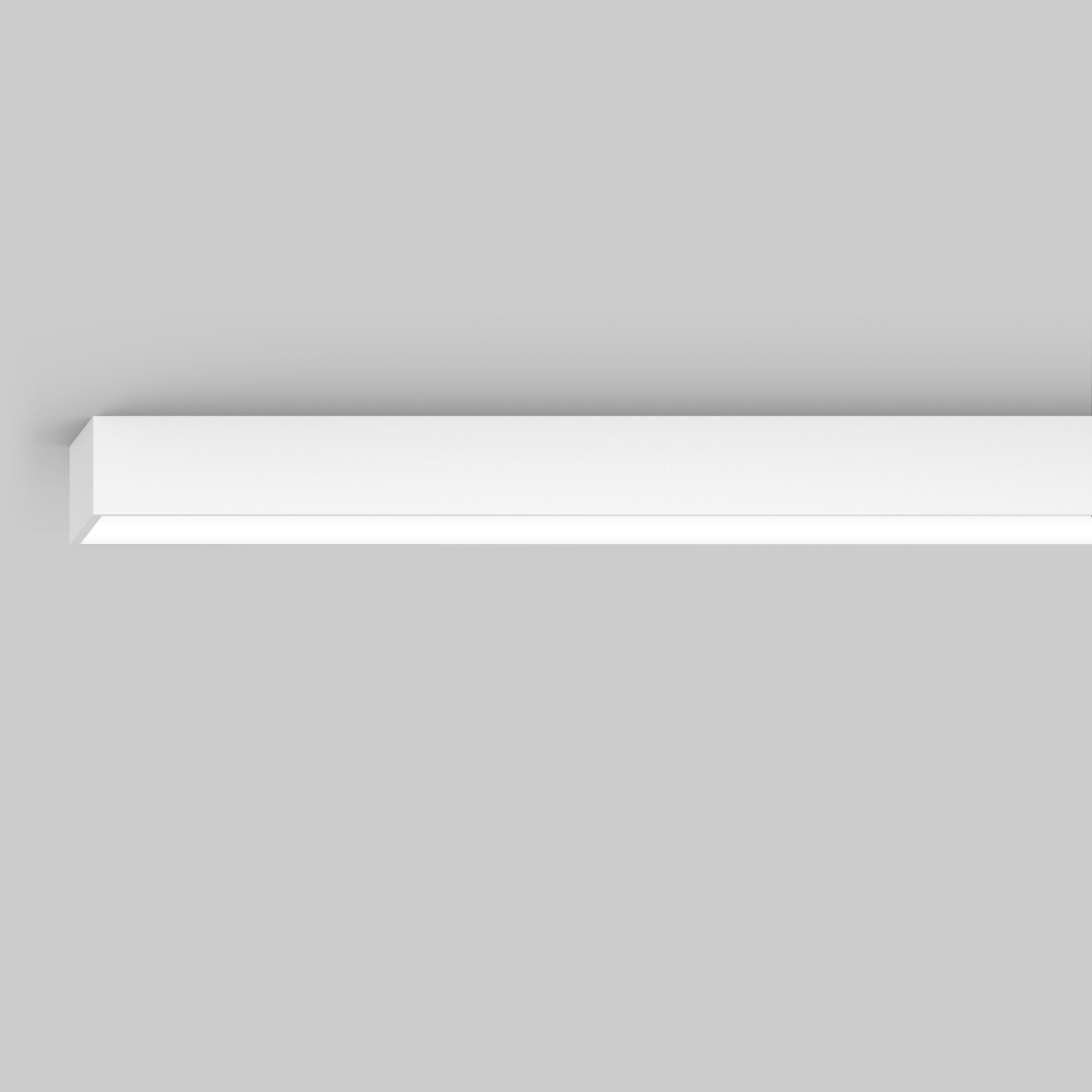

    blanc, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    blanc, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    blanc, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    blanc, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    blanc, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    non DIM
    blanc, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    DALI-2
    blanc, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    blanc, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    blanc, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    non DIM
    blanc, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    DALI-2
    blanc, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    non DIM
    blanc, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 340 lm/m, 27.5 W, 2,740 lm, 1 180 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    DALI-2
    blanc, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 340 lm/m, 27.5 W, 2,740 lm, 1 180 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,250 lm, 1 480 mm
    non DIM
    blanc, High Performance Opal, 3000 K, 2 530 lm/m, 34 W, 3,730 lm, 1 480 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,240 lm, 1 480 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,250 lm, 1 480 mm
    DALI-2
    blanc, High Performance Opal, 3000 K, 2 530 lm/m, 34 W, 3,730 lm, 1 480 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,240 lm, 1 480 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,440 lm, 1 480 mm
    non DIM
    blanc, High Performance Opal, 4000 K, 2 680 lm/m, 34 W, 3,950 lm, 1 480 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,430 lm, 1 480 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,440 lm, 1 480 mm
    DALI-2
    blanc, High Performance Opal, 4000 K, 2 680 lm/m, 34 W, 3,950 lm, 1 480 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,430 lm, 1 480 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 220 lm/m, 55 W, 5,190 lm, 2 352 mm
    non DIM
    blanc, High Performance Opal, 3000 K, 2 550 lm/m, 55 W, 5,970 lm, 2 352 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 210 lm/m, 55 W, 5,180 lm, 2 352 mm
    non DIM
    blanc, Microprismatic, 3000 K, 2 220 lm/m, 55 W, 5,190 lm, 2 352 mm
    DALI-2
    blanc, High Performance Opal, 3000 K, 2 550 lm/m, 55 W, 5,970 lm, 2 352 mm
    DALI-2
    blanc, Microprismatic, 3000 K, 2 210 lm/m, 55 W, 5,180 lm, 2 352 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 350 lm/m, 55 W, 5,500 lm, 2 352 mm
    non DIM
    blanc, High Performance Opal, 4000 K, 2 690 lm/m, 55 W, 6,320 lm, 2 352 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 340 lm/m, 55 W, 5,490 lm, 2 352 mm
    non DIM
    blanc, Microprismatic, 4000 K, 2 350 lm/m, 55 W, 5,500 lm, 2 352 mm
    DALI-2
    blanc, High Performance Opal, 4000 K, 2 690 lm/m, 55 W, 6,320 lm, 2 352 mm
    DALI-2
    blanc, Microprismatic, 4000 K, 2 340 lm/m, 55 W, 5,490 lm, 2 352 mm
    DALI-2
    MINO 60 HIGH LUMEN surface;MINO 60 MID LUMEN surface

    MINO 60 high lumen surface

    MINO 60 high lumen surface

    Numéro(s) article(s)
    Type
    Dimming

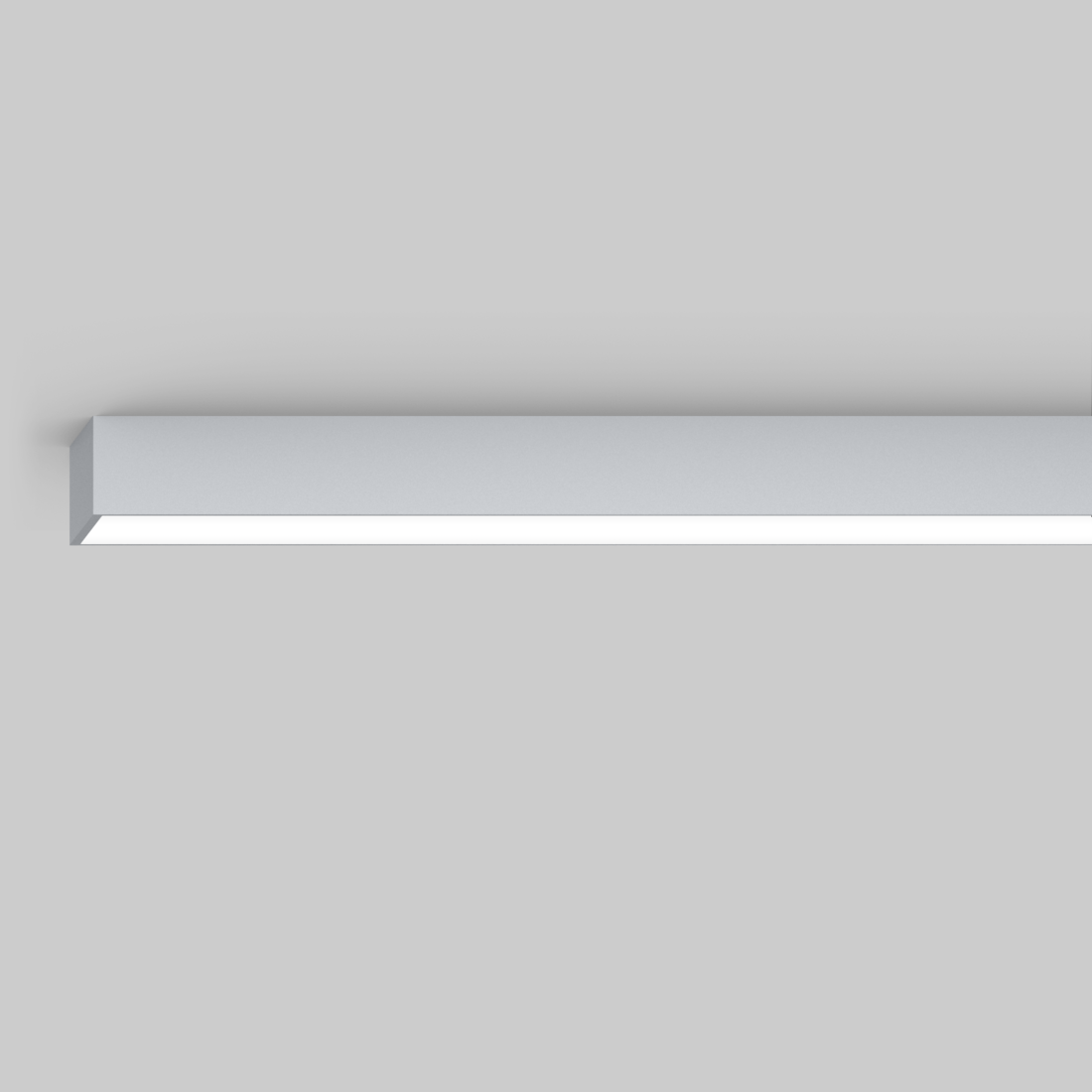

    gris, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    gris, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    gris, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    gris, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    gris, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    non DIM
    gris, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    DALI-2
    gris, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    gris, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    gris, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    non DIM
    gris, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    DALI-2
    gris, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    non DIM
    gris, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 340 lm/m, 27.5 W, 2,740 lm, 1 180 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    DALI-2
    gris, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 340 lm/m, 27.5 W, 2,740 lm, 1 180 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,250 lm, 1 480 mm
    non DIM
    gris, High Performance Opal, 3000 K, 2 530 lm/m, 34 W, 3,730 lm, 1 480 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,240 lm, 1 480 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,250 lm, 1 480 mm
    DALI-2
    gris, High Performance Opal, 3000 K, 2 530 lm/m, 34 W, 3,730 lm, 1 480 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 200 lm/m, 34 W, 3,240 lm, 1 480 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,440 lm, 1 480 mm
    non DIM
    gris, High Performance Opal, 4000 K, 2 680 lm/m, 34 W, 3,950 lm, 1 480 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,430 lm, 1 480 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,440 lm, 1 480 mm
    DALI-2
    gris, High Performance Opal, 4000 K, 2 680 lm/m, 34 W, 3,950 lm, 1 480 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 330 lm/m, 34 W, 3,430 lm, 1 480 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 220 lm/m, 55 W, 5,190 lm, 2 352 mm
    non DIM
    gris, High Performance Opal, 3000 K, 2 550 lm/m, 55 W, 5,970 lm, 2 352 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 210 lm/m, 55 W, 5,180 lm, 2 352 mm
    non DIM
    gris, Microprismatic, 3000 K, 2 220 lm/m, 55 W, 5,190 lm, 2 352 mm
    DALI-2
    gris, High Performance Opal, 3000 K, 2 550 lm/m, 55 W, 5,970 lm, 2 352 mm
    DALI-2
    gris, Microprismatic, 3000 K, 2 210 lm/m, 55 W, 5,180 lm, 2 352 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 350 lm/m, 55 W, 5,500 lm, 2 352 mm
    non DIM
    gris, High Performance Opal, 4000 K, 2 690 lm/m, 55 W, 6,320 lm, 2 352 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 340 lm/m, 55 W, 5,490 lm, 2 352 mm
    non DIM
    gris, Microprismatic, 4000 K, 2 350 lm/m, 55 W, 5,500 lm, 2 352 mm
    DALI-2
    gris, High Performance Opal, 4000 K, 2 690 lm/m, 55 W, 6,320 lm, 2 352 mm
    DALI-2
    gris, Microprismatic, 4000 K, 2 340 lm/m, 55 W, 5,490 lm, 2 352 mm
    DALI-2
    MINO 60 HIGH LUMEN surface;MINO 60 MID LUMEN surface

    MINO 60 high lumen surface

    MINO 60 high lumen surface

    Numéro(s) article(s)
    Type
    Dimming

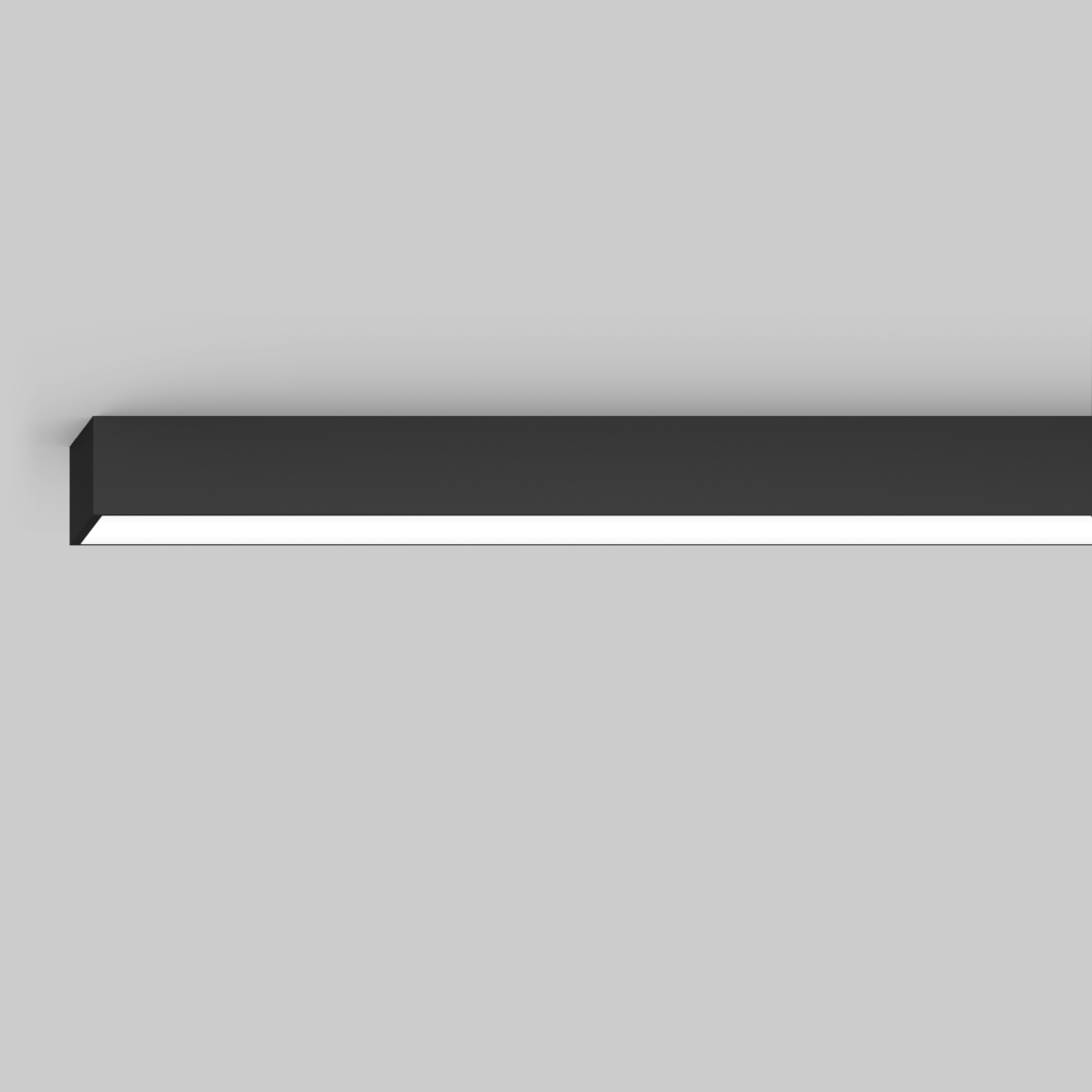

    noir, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    noir, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    noir, High Performance Opal, 3000 K, 2 610 lm/m, 13.8 W, 1,490 lm, 580 mm
    DALI-2
    noir, Microprismatic, 3000 K, 2 270 lm/m, 13.8 W, 1,300 lm, 580 mm
    DALI-2
    noir, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    noir, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    noir, High Performance Opal, 4000 K, 2 760 lm/m, 13.8 W, 1,580 lm, 580 mm
    DALI-2
    noir, Microprismatic, 4000 K, 2 400 lm/m, 13.8 W, 1,370 lm, 580 mm
    DALI-2
    noir, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    non DIM
    noir, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,950 lm, 880 mm
    DALI-2
    noir, High Performance Opal, 3000 K, 2 570 lm/m, 20.6 W, 2,240 lm, 880 mm
    DALI-2
    noir, Microprismatic, 3000 K, 2 230 lm/m, 20.6 W, 1,940 lm, 880 mm
    DALI-2
    noir, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    noir, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    noir, High Performance Opal, 4000 K, 2 720 lm/m, 20.6 W, 2,370 lm, 880 mm
    DALI-2
    noir, Microprismatic, 4000 K, 2 360 lm/m, 20.6 W, 2,060 lm, 880 mm
    DALI-2
    noir, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    non DIM
    noir, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    non DIM
    noir, Microprismatic, 3000 K, 2 220 lm/m, 27.5 W, 2,600 lm, 1 180 mm
    DALI-2
    noir, High Performance Opal, 3000 K, 2 550 lm/m, 27.5 W, 2,980 lm, 1 180 mm
    DALI-2
    noir, Microprismatic, 3000 K, 2 210 lm/m, 27.5 W, 2,590 lm, 1 180 mm
    DALI-2
    noir, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    non DIM
    noir, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 340 lm/m, 27.5 W, 2,740 lm, 1 180 mm
    non DIM
    noir, Microprismatic, 4000 K, 2 350 lm/m, 27.5 W, 2,750 lm, 1 180 mm
    DALI-2
    noir, High Performance Opal, 4000 K, 2 690 lm/m, 27.5 W, 3,160 lm, 1 180 mm
    DALI-2
