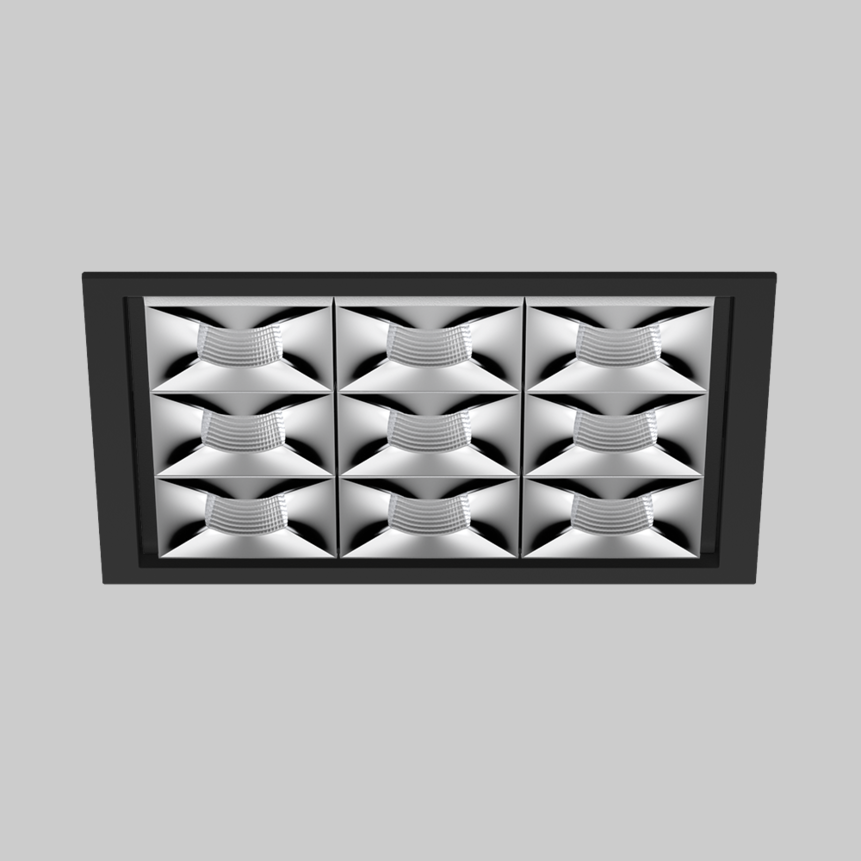

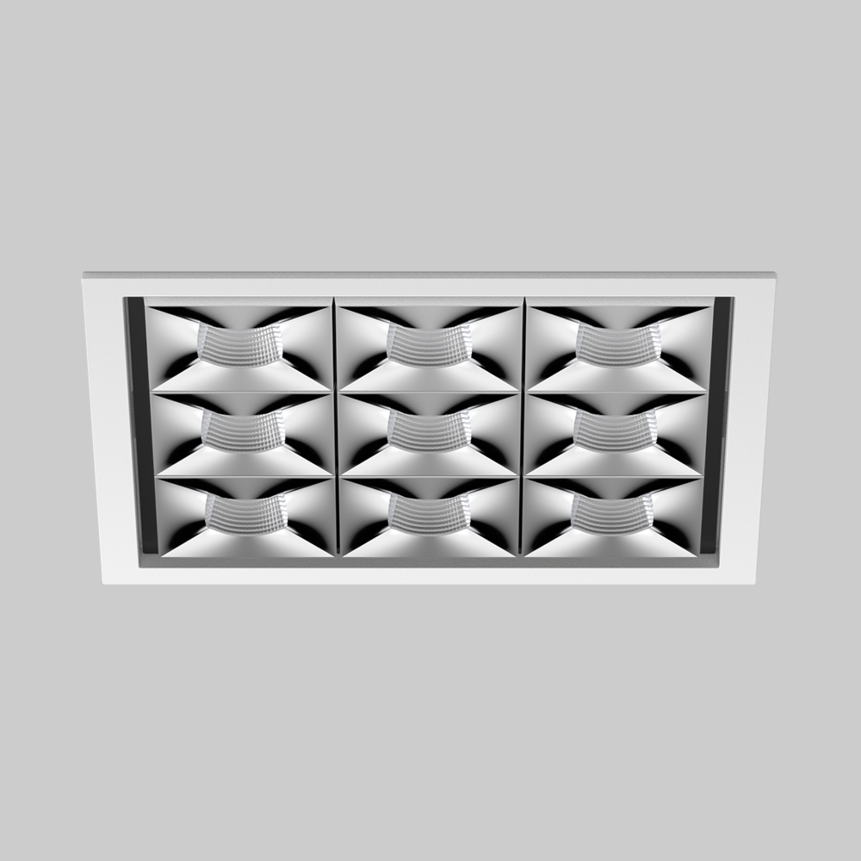

UNICO Q9 basic trim
UNICO Q9 basic trim
UNICO Q9 basic trimless
UNICO Q9 basic trim
UNICO Q9 basic trim
UNICO Q9 basic trimless
UNICO Q9 basic trim
UNICO Q9 basic trim
UNICO Q9 basic trimless

UNICO Q9 basic

recessed

Infos rapides

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
UGR ≤ 10, 16, 19
jusqu'à 116 lm/W
L90 / 50000 h
DALI-2, non DIM
IP20

Couleur

  • Set de montage

  • Dessin simple

    Distribution de la lumière

    Données sur les produits et documents de spécification

    Téléchargement global
    • ROLF
    • ULD

    Description

    Multi-Downlight carré en aluminium moulé sous pression pour encastrement ; équipé de neuf éléments optiques à choisir de façon personnalisée ou définis de manière fixe, spécifiques à chaque application ; montage sans outil en kit de montage par système à déclic à bille ; installation électrique facile par enfichage protégé contre les inversions de polarité ; convient aux épaisseurs de plafond de 2-25 mm ; surface thermolaquée ; encastrement possible dans différents boîtiers ; réflecteur de grande qualité avec surface à microfacettes, métallisée à l'aluminium ; caractéristique de diffusion précise avec différentes possibilités de répartitions symétriques de la lumière ; ou avec distribution asymétrique de la lumière ; High-Power-LED à grande efficacité énergétique, très bon rendu des couleurs ; sans distorsions

    DiiA® standards 251, 252, 253

    un luminaire, plusieurs scènes

    connecteur prise mâle / femelle

    réflecteur noir & or (facultatif)

    tunable white 2700 – 5000 K (facultatif)

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Produits et codes

    Filtre
    62
    lm/W
    116
    lm/W
    1860
    lm
    3480
    lm
    0.56
    0.81
    0.51
    0.74

    Couleur

  • Set de montage

  • UNICO Q9 basic trim

    UNICO Q9 basic trim medium

    UNICO Q9 basic trim medium

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    réflecteur chromé, Noir profond, medium round 33°, 2700 K, 29,9 W, 85 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium round 33°, 2700 K, 29,9 W, 85 lm/W
    DALI-2
    réflecteur chromé, Noir profond, medium round 33°, 3000 K, 29,9 W, 90 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium round 33°, 3000 K, 29,9 W, 90 lm/W
    DALI-2
    réflecteur chromé, Noir profond, medium round 33°, 4000 K, 29,9 W, 97 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium round 33°, 4000 K, 29,9 W, 97 lm/W
    DALI-2
    UNICO Q9 basic trim

    UNICO Q9 basic trim medium

    UNICO Q9 basic trim medium

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    réflecteur noir, Noir profond, medium round 33°, 2700 K, 29,9 W, 85 lm/W
    non DIM
    réflecteur noir, Noir profond, medium round 33°, 2700 K, 29,9 W, 85 lm/W
    DALI-2
    réflecteur noir, Noir profond, medium round 33°, 3000 K, 29,9 W, 90 lm/W
    non DIM
    réflecteur noir, Noir profond, medium round 33°, 3000 K, 29,9 W, 90 lm/W
    DALI-2
    réflecteur noir, Noir profond, medium round 33°, 4000 K, 29,9 W, 97 lm/W
    non DIM
    réflecteur noir, Noir profond, medium round 33°, 4000 K, 29,9 W, 97 lm/W
    DALI-2
    UNICO Q9 basic trim

    UNICO Q9 basic trim wallwasher

    UNICO Q9 basic trim wallwasher

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    réflecteur chromé, Noir profond, wallwasher, 2700 K, 29,9 W, 86 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher, 2700 K, 29,9 W, 86 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wallwasher, 3000 K, 29,9 W, 92 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher, 3000 K, 29,9 W, 92 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wallwasher, 4000 K, 29,9 W, 99 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher, 4000 K, 29,9 W, 99 lm/W
    DALI-2
    UNICO Q9 basic trim

    UNICO Q9 basic trim

    UNICO Q9 basic trim

    Statut
    Numéro(s) article(s)
    Type
    Dimming
    réflecteur chromé, Noir profond, wall floor, 2700 K, 29,9 W, 95 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall corridor, 2700 K, 29,9 W, 86 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood round 49°, 2700 K, 29,9 W, 97 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood round 72°, 2700 K, 29,9 W, 97 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium square 32°, 2700 K, 29,9 W, 83 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood square 56°, 2700 K, 29,9 W, 99 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood square 71°, 2700 K, 29,9 W, 102 lm/W
    non DIM
    réflecteur chromé, Noir profond, spot round 15°, 2700 K, 29,9 W, 62 lm/W
    non DIM
    réflecteur chromé, Noir profond, narrow medium round 22°, 2700 K, 29,9 W, 64 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher floor, 2700 K, 29,9 W, 90 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall floor, 2700 K, 29,9 W, 95 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wall corridor, 2700 K, 29,9 W, 86 lm/W
    DALI-2
    réflecteur chromé, Noir profond, flood round 49°, 2700 K, 29,9 W, 97 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wide flood round 72°, 2700 K, 29,9 W, 97 lm/W
    DALI-2
    réflecteur chromé, Noir profond, medium square 32°, 2700 K, 29,9 W, 83 lm/W
    DALI-2
    réflecteur chromé, Noir profond, flood square 56°, 2700 K, 29,9 W, 99 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wide flood square 71°, 2700 K, 29,9 W, 102 lm/W
    DALI-2
    réflecteur chromé, Noir profond, spot round 15°, 2700 K, 29,9 W, 62 lm/W
    DALI-2
    réflecteur chromé, Noir profond, narrow medium round 22°, 2700 K, 29,9 W, 64 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wallwasher floor, 2700 K, 29,9 W, 90 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wall floor, 3000 K, 29,9 W, 101 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall corridor, 3000 K, 29,9 W, 92 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood round 49°, 3000 K, 29,9 W, 104 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood round 72°, 3000 K, 29,9 W, 103 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium square 32°, 3000 K, 29,9 W, 89 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood square 56°, 3000 K, 29,9 W, 106 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood square 71°, 3000 K, 29,9 W, 108 lm/W
    non DIM
    réflecteur chromé, Noir profond, spot round 15°, 3000 K, 29,9 W, 67 lm/W
    non DIM
    réflecteur chromé, Noir profond, narrow medium round 22°, 3000 K, 29,9 W, 68 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher floor, 3000 K, 29,9 W, 96 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall floor, 3000 K, 29,9 W, 101 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wall corridor, 3000 K, 29,9 W, 92 lm/W
    DALI-2
    réflecteur chromé, Noir profond, flood round 49°, 3000 K, 29,9 W, 104 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wide flood round 72°, 3000 K, 29,9 W, 103 lm/W
    DALI-2
    réflecteur chromé, Noir profond, medium square 32°, 3000 K, 29,9 W, 89 lm/W
    DALI-2
    réflecteur chromé, Noir profond, flood square 56°, 3000 K, 29,9 W, 106 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wide flood square 71°, 3000 K, 29,9 W, 108 lm/W
    DALI-2
    réflecteur chromé, Noir profond, spot round 15°, 3000 K, 29,9 W, 67 lm/W
    DALI-2
    réflecteur chromé, Noir profond, narrow medium round 22°, 3000 K, 29,9 W, 68 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wallwasher floor, 3000 K, 29,9 W, 96 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wall floor, 4000 K, 29,9 W, 108 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall corridor, 4000 K, 29,9 W, 98 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood round 49°, 4000 K, 29,9 W, 111 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood round 72°, 4000 K, 29,9 W, 110 lm/W
    non DIM
    réflecteur chromé, Noir profond, medium square 32°, 4000 K, 29,9 W, 95 lm/W
    non DIM
    réflecteur chromé, Noir profond, flood square 56°, 4000 K, 29,9 W, 113 lm/W
    non DIM
    réflecteur chromé, Noir profond, wide flood square 71°, 4000 K, 29,9 W, 116 lm/W
    non DIM
    réflecteur chromé, Noir profond, spot round 15°, 4000 K, 29,9 W, 71 lm/W
    non DIM
    réflecteur chromé, Noir profond, narrow medium round 22°, 4000 K, 29,9 W, 73 lm/W
    non DIM
    réflecteur chromé, Noir profond, wallwasher floor, 4000 K, 29,9 W, 103 lm/W
    non DIM
    réflecteur chromé, Noir profond, wall floor, 4000 K, 29,9 W, 108 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wall corridor, 4000 K, 29,9 W, 98 lm/W
    DALI-2
    réflecteur chromé, Noir profond, flood round 49°, 4000 K, 29,9 W, 111 lm/W
    DALI-2
    réflecteur chromé, Noir profond, wide flood round 72°, 4000 K, 29,9 W, 110 lm/W
    DALI-2
