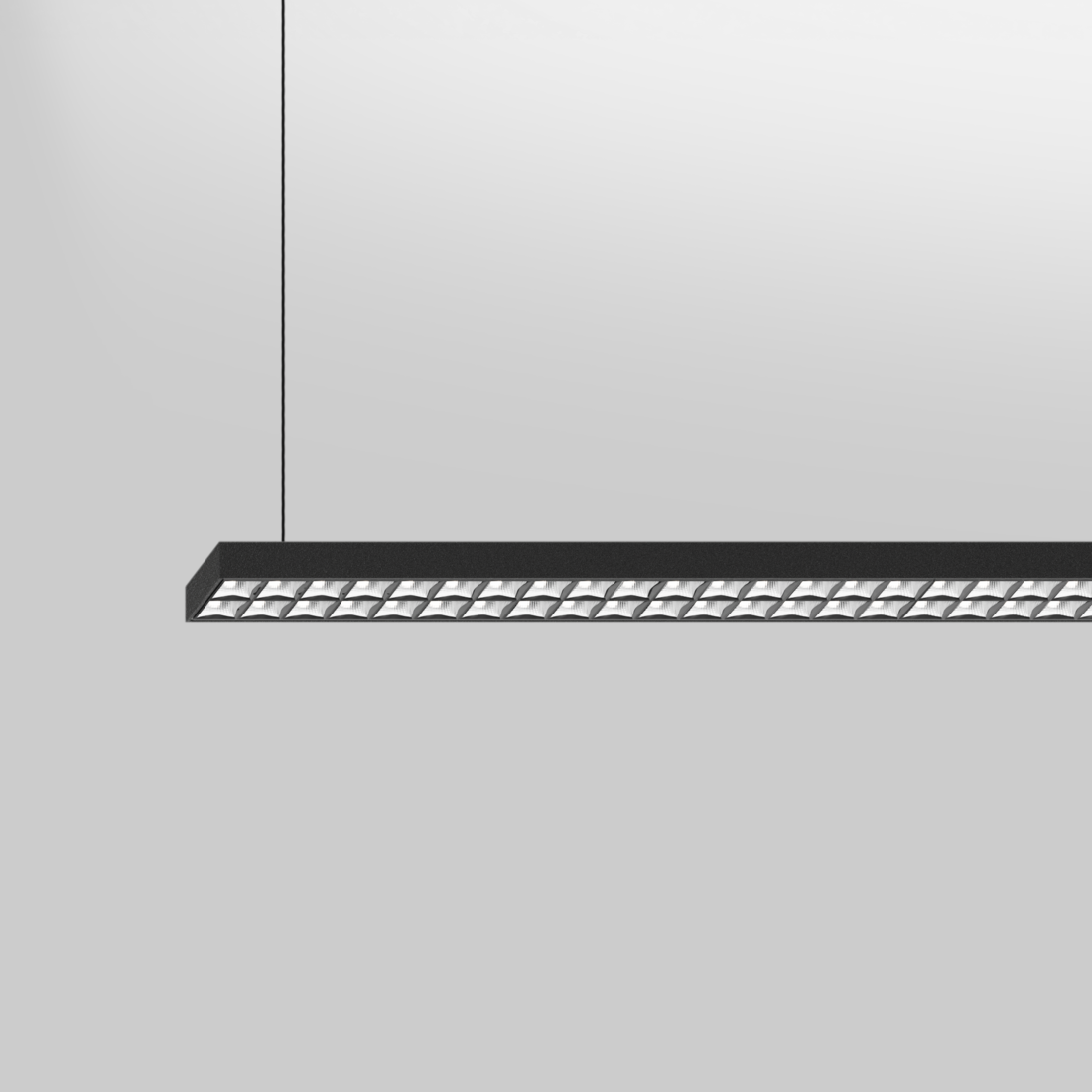

ENVIVA

suspended

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16
up to ↓ 3,110 lm / ↑ 3,030 lm
up to 144 lm/W
L90 / 100000 h
0-10 V, Triac
IP20

Cut sheet

Variants

Discover family

Simple drawing

Light distribution

Downloads & links

Cut sheet

Cut sheet

Download all

Aggregated downloads

Description

Luminaire housing from extruded aluminum profile, angular design; extremely slim design (only 1¾ x ⅝"); no visible screws; surface raw or powder coated; pendant light with cable suspension; can be adjusted to any height; incl. feeder cable; linear light inset made of plastic; fitted with single LED light points; good glare reduction due to recessed light point plane; despite this increased efficiency through special lens technology; inserted lenses with wide flood radiation characteristic; or high-quality reflector with micro-faceted, vapor phase aluminized surface; precise radiation characteristic with symmetrical light distribution; direct / indirect light distribution; efficient LEDs with excellent color rendering; canopy for through wiring; converter included in base

low-glare design (UGR ≤ 10)

up to 144 lm/W (high efficiency)

sustainable materials

Order codes & files

Filter

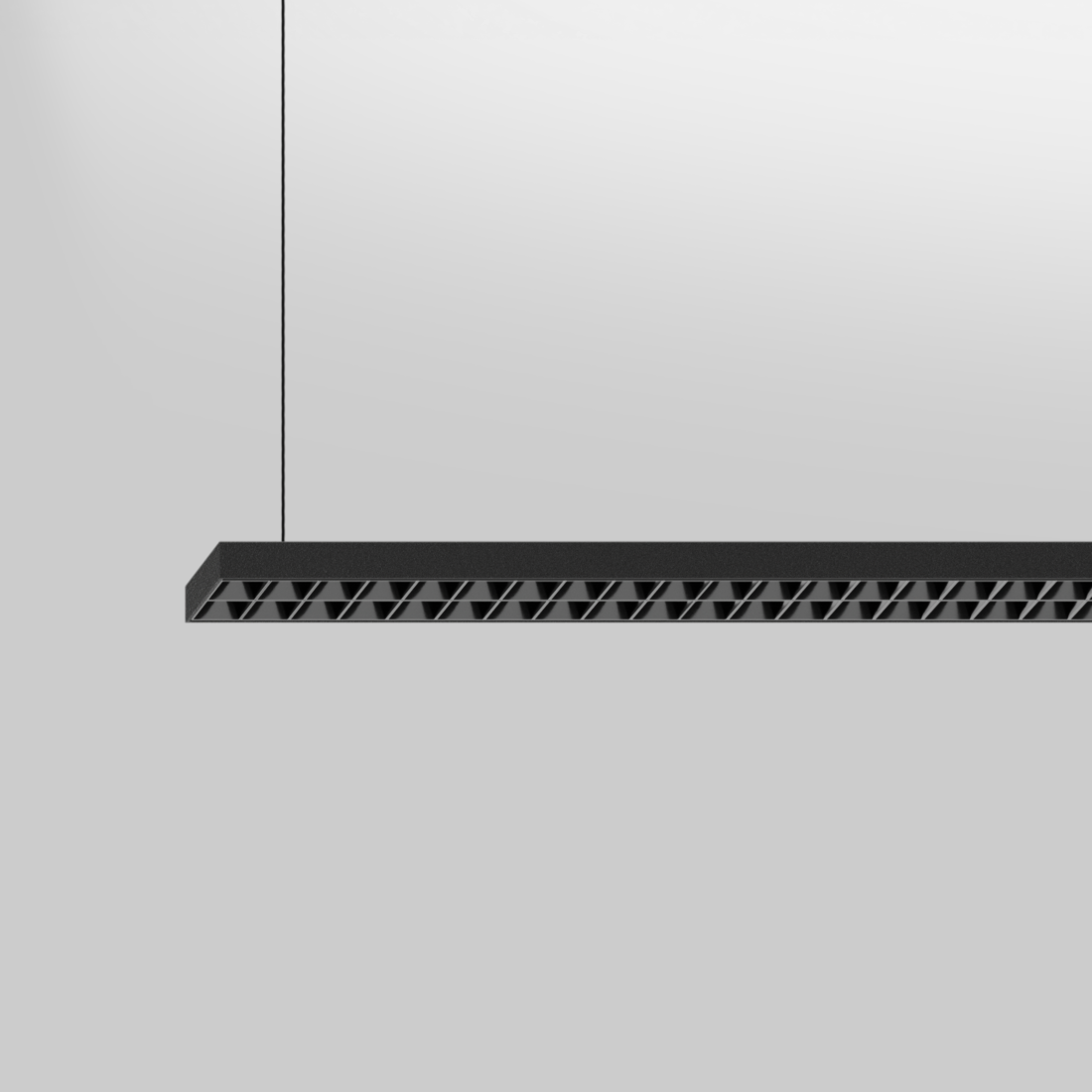

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

aluminium raw, Inset jet black, 2700 K, 125 lm/W

Triac

aluminium raw, Inset jet black, 2700 K, 125 lm/W

0-10 V

aluminium raw, Inset jet black, 3000 K, 125 lm/W

Triac

aluminium raw, Inset jet black, 3000 K, 125 lm/W

0-10 V

aluminium raw, Inset jet black, 3500 K, 125 lm/W

Triac

aluminium raw, Inset jet black, 3500 K, 125 lm/W

0-10 V

aluminium raw, Inset jet black, 4000 K, 136 lm/W

Triac

aluminium raw, Inset jet black, 4000 K, 136 lm/W

0-10 V

aluminium raw, Inset jet black, 2700 K, 129 lm/W

Triac

aluminium raw, Inset jet black, 2700 K, 129 lm/W

0-10 V

aluminium raw, Inset jet black, 3000 K, 129 lm/W

Triac

aluminium raw, Inset jet black, 3000 K, 129 lm/W

0-10 V

aluminium raw, Inset jet black, 3500 K, 129 lm/W

Triac

aluminium raw, Inset jet black, 3500 K, 129 lm/W

0-10 V

aluminium raw, Inset jet black, 4000 K, 139 lm/W

Triac

aluminium raw, Inset jet black, 4000 K, 139 lm/W

0-10 V

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

jet black, Inset jet black, 2700 K, 125 lm/W

Triac

jet black, Inset jet black, 2700 K, 125 lm/W

0-10 V

jet black, Inset jet black, 3000 K, 125 lm/W

Triac

jet black, Inset jet black, 3000 K, 125 lm/W

0-10 V

jet black, Inset jet black, 3500 K, 125 lm/W

Triac

jet black, Inset jet black, 3500 K, 125 lm/W

0-10 V

jet black, Inset jet black, 4000 K, 136 lm/W

Triac

jet black, Inset jet black, 4000 K, 136 lm/W

0-10 V

jet black, Inset jet black, 2700 K, 129 lm/W

Triac

jet black, Inset jet black, 2700 K, 129 lm/W

0-10 V

jet black, Inset jet black, 3000 K, 129 lm/W

Triac

jet black, Inset jet black, 3000 K, 129 lm/W

0-10 V

jet black, Inset jet black, 3500 K, 129 lm/W

Triac

jet black, Inset jet black, 3500 K, 129 lm/W

0-10 V

jet black, Inset jet black, 4000 K, 139 lm/W

Triac

jet black, Inset jet black, 4000 K, 139 lm/W

0-10 V

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

traffic white, Inset jet black, 2700 K, 125 lm/W

Triac

traffic white, Inset jet black, 2700 K, 125 lm/W

0-10 V

traffic white, Inset jet black, 3000 K, 125 lm/W

Triac

traffic white, Inset jet black, 3000 K, 125 lm/W

0-10 V

traffic white, Inset jet black, 3500 K, 125 lm/W

Triac

traffic white, Inset jet black, 3500 K, 125 lm/W

0-10 V

traffic white, Inset jet black, 4000 K, 136 lm/W

Triac

traffic white, Inset jet black, 4000 K, 136 lm/W

0-10 V

traffic white, Inset jet black, 2700 K, 129 lm/W

Triac

traffic white, Inset jet black, 2700 K, 129 lm/W

0-10 V

traffic white, Inset jet black, 3000 K, 129 lm/W

Triac

traffic white, Inset jet black, 3000 K, 129 lm/W

0-10 V

traffic white, Inset jet black, 3500 K, 129 lm/W

Triac

traffic white, Inset jet black, 3500 K, 129 lm/W

0-10 V

traffic white, Inset jet black, 4000 K, 139 lm/W

Triac

traffic white, Inset jet black, 4000 K, 139 lm/W

0-10 V

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

aluminium raw, Inset traffic white, 2700 K, 129 lm/W

Triac

aluminium raw, Inset traffic white, 2700 K, 129 lm/W

0-10 V

aluminium raw, Inset traffic white, 3000 K, 129 lm/W

Triac

aluminium raw, Inset traffic white, 3000 K, 129 lm/W

0-10 V

aluminium raw, Inset traffic white, 3500 K, 129 lm/W

Triac

aluminium raw, Inset traffic white, 3500 K, 129 lm/W

0-10 V

aluminium raw, Inset traffic white, 4000 K, 139 lm/W

Triac

aluminium raw, Inset traffic white, 4000 K, 139 lm/W

0-10 V

aluminium raw, Inset traffic white, 2700 K, 132 lm/W

Triac

aluminium raw, Inset traffic white, 2700 K, 132 lm/W

0-10 V

aluminium raw, Inset traffic white, 3000 K, 132 lm/W

Triac

aluminium raw, Inset traffic white, 3000 K, 132 lm/W

0-10 V

aluminium raw, Inset traffic white, 3500 K, 132 lm/W

Triac

aluminium raw, Inset traffic white, 3500 K, 132 lm/W

0-10 V

aluminium raw, Inset traffic white, 4000 K, 143 lm/W

Triac

aluminium raw, Inset traffic white, 4000 K, 143 lm/W

0-10 V

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

jet black, Inset traffic white, 2700 K, 129 lm/W

Triac

jet black, Inset traffic white, 2700 K, 129 lm/W

0-10 V

jet black, Inset traffic white, 3000 K, 129 lm/W

Triac

jet black, Inset traffic white, 3000 K, 129 lm/W

0-10 V

jet black, Inset traffic white, 3500 K, 129 lm/W

Triac

jet black, Inset traffic white, 3500 K, 129 lm/W

0-10 V

jet black, Inset traffic white, 4000 K, 139 lm/W

Triac

jet black, Inset traffic white, 4000 K, 139 lm/W

0-10 V

jet black, Inset traffic white, 2700 K, 132 lm/W

Triac

jet black, Inset traffic white, 2700 K, 132 lm/W

0-10 V

jet black, Inset traffic white, 3000 K, 132 lm/W

Triac

jet black, Inset traffic white, 3000 K, 132 lm/W

0-10 V

jet black, Inset traffic white, 3500 K, 132 lm/W

Triac

jet black, Inset traffic white, 3500 K, 132 lm/W

0-10 V

jet black, Inset traffic white, 4000 K, 143 lm/W

Triac

jet black, Inset traffic white, 4000 K, 143 lm/W

0-10 V

ENVIVA 4 spotline

Status

Article number(s)

Type

Dimming

traffic white, Inset traffic white, 2700 K, 129 lm/W

Triac

traffic white, Inset traffic white, 2700 K, 129 lm/W

0-10 V

traffic white, Inset traffic white, 3000 K, 129 lm/W

Triac

traffic white, Inset traffic white, 3000 K, 129 lm/W

0-10 V

traffic white, Inset traffic white, 3500 K, 129 lm/W

Triac

traffic white, Inset traffic white, 3500 K, 129 lm/W

0-10 V

traffic white, Inset traffic white, 4000 K, 139 lm/W

Triac

traffic white, Inset traffic white, 4000 K, 139 lm/W

0-10 V

traffic white, Inset traffic white, 2700 K, 132 lm/W

Triac

traffic white, Inset traffic white, 2700 K, 132 lm/W

0-10 V

traffic white, Inset traffic white, 3000 K, 132 lm/W

Triac

traffic white, Inset traffic white, 3000 K, 132 lm/W

0-10 V

traffic white, Inset traffic white, 3500 K, 132 lm/W

Triac

traffic white, Inset traffic white, 3500 K, 132 lm/W

0-10 V

traffic white, Inset traffic white, 4000 K, 143 lm/W

Triac

traffic white, Inset traffic white, 4000 K, 143 lm/W

0-10 V
