TUBO | SETA 60 CONEX

surface / suspended system

Nuova lunghezza

Informazioni rapide

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 10, 13, 16, 19
fino a 8,190 lm/↑ 9,080 lm
fino a 149 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Reflector
IP20
Prodotti di sistema
Scopri la famiglia

Disegno semplice

Distribuzione della luce

Dati relativi ai prodotti e documenti di specifica

Download intero
Download intero
  • ROLF
  • ULD

Descrizione

Sistema di illuminazione cilindrico in alluminio; verniciatura a polvere; montaggio a soffitto o a sospensione; regolazione altezza senza utensili; con cavo di alimentazione trasparente; collegamento elettrico degli apparecchi tramite sistema presa/spina; connettore opzionale (a L, a T o a X); collegamento dell'apparecchio ruotabile attorno al proprio asse, il che rende possibile realizzare qualsiasi angolo spaziale; a scelta cover cilindrica HPO (High Performance Opal) o riflettore ad alta lucentezza con design sfaccettato; orientamento della luce controllabile tramite un'ottica lenticolare di alta qualità per un'illuminazione omogenea (HPO); emissione diretta, indiretta e diretta/indiretta (riflettore); componente luce indir. PCB speciali e ottica lent. di alta qualità per un’illuminazione omog. del soffitto, contr. separ.; LED a risp. energ. - ottima resa cromatica

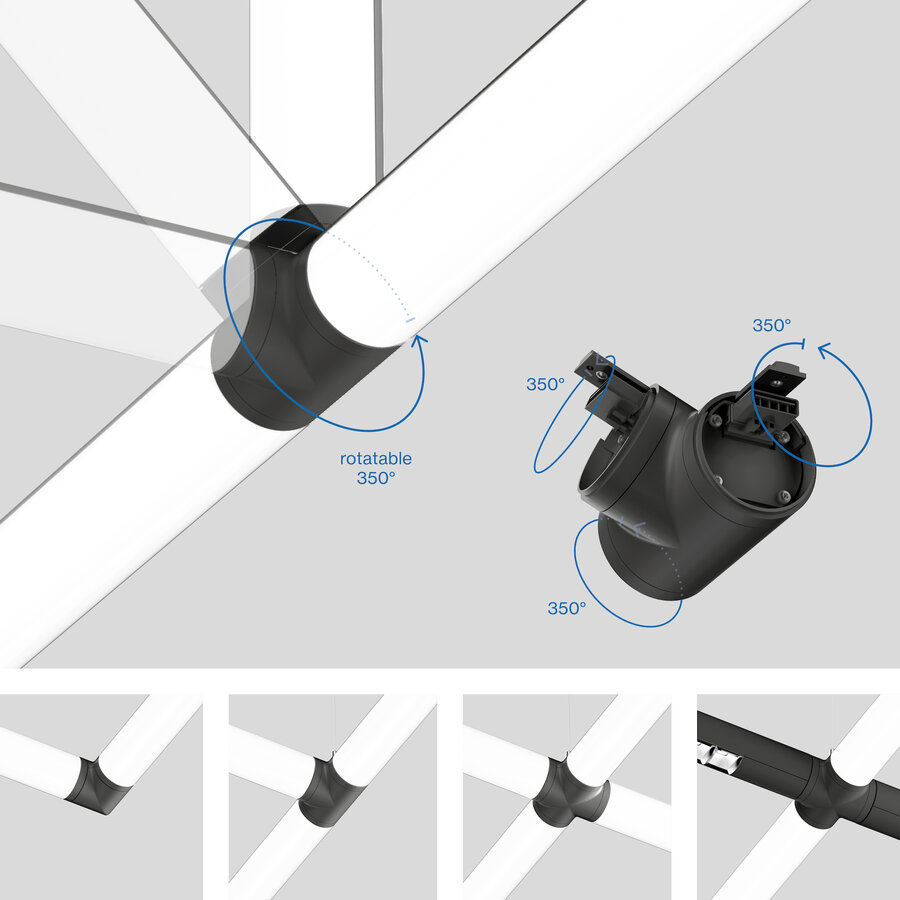

connettore CONEX

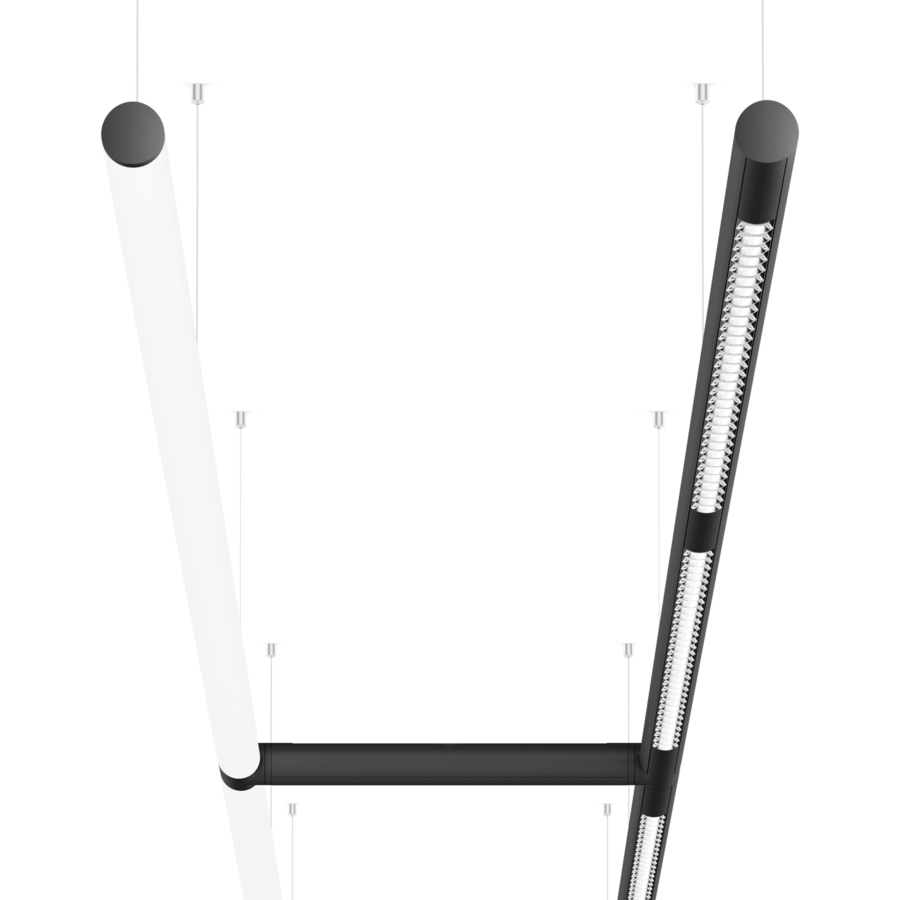

combinabile con TUBO & SETA

fino a 132 lm/W (high efficiency)

DIN EN 12464-1 UGR ≤ 19

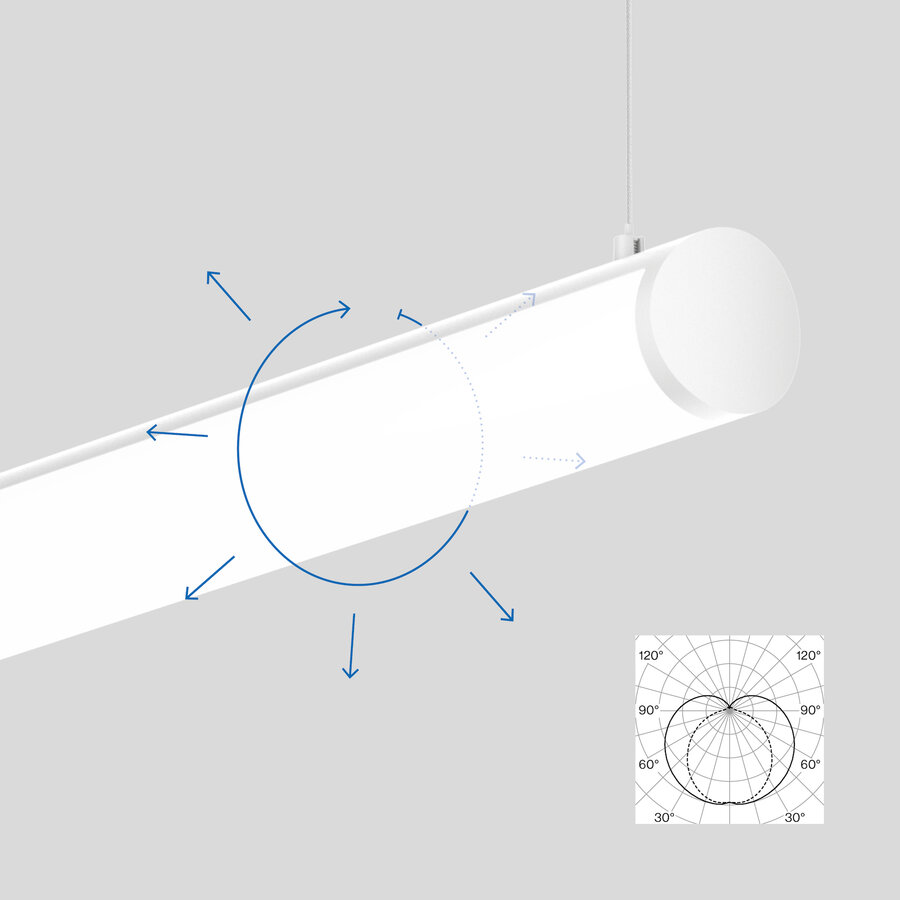

illuminazione diretta non abbagliante e indiretta a 170°

illuminazione omogenea

System components

Click to see components

SETA 60 indirect surface / suspended system;SETA 60 CONEX indirect surface / suspended system

SETA 60 CONEX indirect surface / suspended system

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 10, 13, 16, 19
fino a 8,190 lm/↑ 9,080 lm
fino a 149 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Reflector
IP20
TUBO 60 CONEX surface / suspended system;TUBO 60 surface / suspended system

TUBO 60 surface / suspended system

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 10, 13, 16, 19
fino a 8,190 lm/↑ 9,080 lm
fino a 149 lm/W
L90 / 50000 h
DALI-2
High Performance Opal, Reflector
IP20

BLIND CHANNEL CONEX system

con cablaggio passante

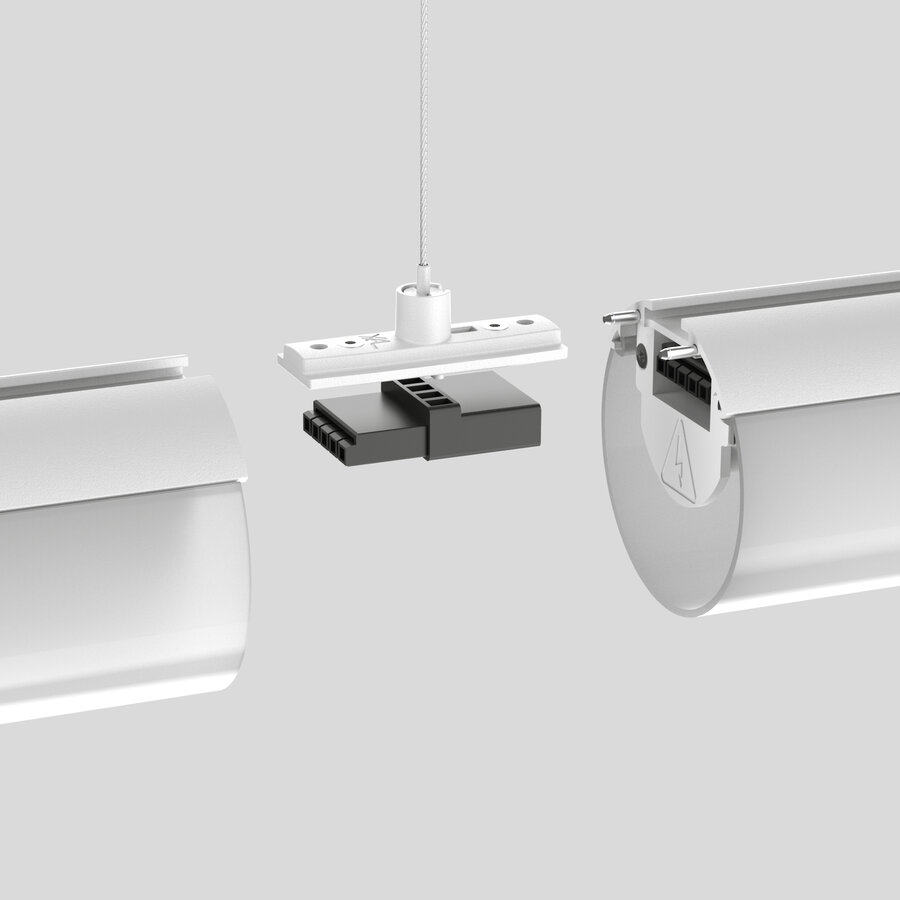

CONEX CONNECTOR

meccanico ed elettrico

TUBO END CAPS

5 × 1.5 mm²

TUBO CONNECTOR

1 pezzo, 10 pezzi, meccanico angolare 60° | con connettore cover opale, meccanico ed elettrico angolare 60° | con connettore cover opale, meccanico ed elettrico | con connettore cover opale, meccanico | connettore copertura opale incl.

TUBO 60 SUSPENSION

angular max. 60°

TUBO END CAPS

1 paio

Prodotti e codici

Filtro
95
lm/W
149
lm/W
1880
lm
9080
lm
3490
lm
9080
lm
1181
mm
2936
mm
19.6
W
118
W
0.56
0.72
0.51
0.65

Colore

    • Riflettore

    • SETA 60 indirect surface / suspended system;SETA 60 CONEX indirect surface / suspended system

    SETA 60 CONEX indirect surface / suspended system

    SETA 60 CONEX indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, 3000 K, 26,6 W, 131 lm/W, 1.181 mm
    DALI-2
    bianco, 4000 K, 26,6 W, 136 lm/W, 1.181 mm
    DALI-2
    bianco, 3000 K, 33 W, 132 lm/W, 1.474 mm
    DALI-2
    bianco, 4000 K, 33 W, 137 lm/W, 1.474 mm
    DALI-2
    bianco, 3000 K, 53 W, 132 lm/W, 2.351 mm
    DALI-2
    bianco, 4000 K, 53 W, 137 lm/W, 2.351 mm
    DALI-2
    bianco, 3000 K, 66 W, 132 lm/W, 2.936 mm
    DALI-2
    bianco, 4000 K, 66 W, 138 lm/W, 2.936 mm
    DALI-2
    SETA 60 indirect surface / suspended system;SETA 60 CONEX indirect surface / suspended system

    SETA 60 CONEX indirect surface / suspended system

    SETA 60 CONEX indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    nero, 3000 K, 26,6 W, 131 lm/W, 1.181 mm
    DALI-2
    nero, 4000 K, 26,6 W, 136 lm/W, 1.181 mm
    DALI-2
    nero, 3000 K, 33 W, 132 lm/W, 1.474 mm
    DALI-2
    nero, 4000 K, 33 W, 137 lm/W, 1.474 mm
    DALI-2
    nero, 3000 K, 53 W, 132 lm/W, 2.351 mm
    DALI-2
    nero, 4000 K, 53 W, 137 lm/W, 2.351 mm
    DALI-2
    nero, 3000 K, 66 W, 132 lm/W, 2.936 mm
    DALI-2
    nero, 4000 K, 66 W, 138 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, 3000 K, 46 W, 133 lm/W, 1.181 mm
    DALI-2
    bianco, 4000 K, 46 W, 138 lm/W, 1.181 mm
    DALI-2
    bianco, 3000 K, 56 W, 136 lm/W, 1.474 mm
    DALI-2
    bianco, 4000 K, 56 W, 149 lm/W, 1.474 mm
    DALI-2
    bianco, 3000 K, 93 W, 141 lm/W, 2.351 mm
    DALI-2
    bianco, 4000 K, 93 W, 147 lm/W, 2.351 mm
    DALI-2
    bianco, 3000 K, 118 W, 141 lm/W, 2.936 mm
    DALI-2
    bianco, 4000 K, 118 W, 146 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    nero, 3000 K, 46 W, 133 lm/W, 1.181 mm
    DALI-2
    nero, 4000 K, 46 W, 138 lm/W, 1.181 mm
    DALI-2
    nero, 3000 K, 56 W, 136 lm/W, 1.474 mm
    DALI-2
    nero, 4000 K, 56 W, 149 lm/W, 1.474 mm
    DALI-2
    nero, 3000 K, 93 W, 141 lm/W, 2.351 mm
    DALI-2
    nero, 4000 K, 93 W, 147 lm/W, 2.351 mm
    DALI-2
    nero, 3000 K, 118 W, 141 lm/W, 2.936 mm
    DALI-2
    nero, 4000 K, 118 W, 146 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, 3000 K, 46 W, 117 lm/W, 1.181 mm
    DALI-2
    bianco, 4000 K, 46 W, 121 lm/W, 1.181 mm
    DALI-2
    bianco, 3000 K, 56 W, 120 lm/W, 1.474 mm
    DALI-2
    bianco, 4000 K, 56 W, 132 lm/W, 1.474 mm
    DALI-2
    bianco, 3000 K, 93 W, 122 lm/W, 2.351 mm
    DALI-2
    bianco, 4000 K, 93 W, 127 lm/W, 2.351 mm
    DALI-2
    bianco, 3000 K, 118 W, 122 lm/W, 2.936 mm
    DALI-2
    bianco, 4000 K, 118 W, 127 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    SETA 60 CONEX reflector direct / indirect surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    nero, 3000 K, 46 W, 117 lm/W, 1.181 mm
    DALI-2
    nero, 4000 K, 46 W, 121 lm/W, 1.181 mm
    DALI-2
    nero, 3000 K, 56 W, 120 lm/W, 1.474 mm
    DALI-2
    nero, 4000 K, 56 W, 132 lm/W, 1.474 mm
    DALI-2
    nero, 3000 K, 93 W, 122 lm/W, 2.351 mm
    DALI-2
    nero, 4000 K, 93 W, 127 lm/W, 2.351 mm
    DALI-2
    nero, 3000 K, 118 W, 122 lm/W, 2.936 mm
    DALI-2
    nero, 4000 K, 118 W, 127 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, 3000 K, 19,6 W, 134 lm/W, 1.181 mm
    DALI-2
    bianco, 4000 K, 19,6 W, 139 lm/W, 1.181 mm
    DALI-2
    bianco, 3000 K, 24 W, 135 lm/W, 1.474 mm
    DALI-2
    bianco, 4000 K, 24 W, 140 lm/W, 1.474 mm
    DALI-2
    bianco, 3000 K, 46 W, 133 lm/W, 2.351 mm
    DALI-2
    bianco, 4000 K, 46 W, 138 lm/W, 2.351 mm
    DALI-2
    bianco, 3000 K, 59 W, 134 lm/W, 2.936 mm
    DALI-2
    bianco, 4000 K, 59 W, 139 lm/W, 2.936 mm
    DALI-2
    SETA linear direct ceiling / suspended system;SETA linear direct / indirect power suspended system;SETA linear direct / indirect TW power suspended system;SETA 60 reflector direct / indirect surface / suspended system;SETA 60 reflector direct surface / suspended system;SETA 60 CONEX reflector direct / indirect surface / suspended system;SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct surface / suspended system

    SETA 60 CONEX reflector direct surface / suspended system

    Stato
    N. articolo/i
    Tipo
    Dimming
    nero, 3000 K, 19,6 W, 134 lm/W, 1.181 mm
    DALI-2
    nero, 4000 K, 19,6 W, 139 lm/W, 1.181 mm
    DALI-2
    nero, 3000 K, 24 W, 135 lm/W, 1.474 mm
    DALI-2
    nero, 4000 K, 24 W, 140 lm/W, 1.474 mm
    DALI-2
